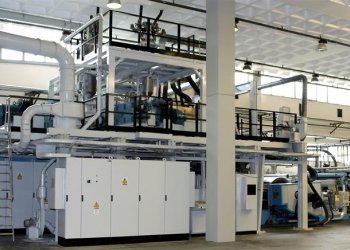

3 strati PRIMPLAST CS 200 F/C Estrusore cast / a testa piana

Codice Macchina
CA043
Manufacturer
PRIMPLAST
Modello
CS 200 F/C
Year
2004
Numero di strati
3
Materiali
STRETCH FILM LLDPE
Larghezza film (mm)
2000
Velocità (m/m)
550
Output (Kg/h)
1400
Rif strati estrusore 1:
A
Screw diam 1
90mm
Description 1
110 kw. AC motor
Rif strati estrusore 2:
B
Screw diam 2
160mm
Description 2
315Kw . AC motor
Rif strati estrusore 3:
C
Screw diam 3
120mm
Description 3
200 kw. AC motor
Die width (mm)
Cloren width 2550mm
Unità chill roll
Chill roll 2750mm (dia 1350mm). Tank and pumps group included chiller pipes Corema
Controllo di spessore
Oscillating thickness control, beta rays gauge (1 scanner) Year 2004
Rewinder max reel diameter (mm)
600mm
Descrizione avvolgitore
AutomaticAVD 2000B with antistatic bars, pneumatic rubber coated pressure roll, no 3 pneumatic shafts for cardboard cores 76mm
Ulteriori informazioni
5 slitting knives. 4 lanes. Mechanical speed chill roll 550 m/min , winder 600m/min Static eliminator. Edge trim recycle system Trim cutting device Process control system Control panel bentilation Automatic cardboard cores feeder Inline scarps recovery system Granulator Aertecnica Croci Motor Kw 30 Year 2003
Codice Macchina CA043
Manufacturer PRIMPLAST
Modello CS 200 F/C
Year 2004
Numero di strati 3
Materiali STRETCH FILM LLDPE
Larghezza film (mm) 2000
Velocità (m/m) 550
Output (Kg/h) 1400
Rif strati estrusore 1: A
Screw diam 1 90mm
Description 1 110 kw. AC motor
Rif strati estrusore 2: B
Screw diam 2 160mm
Description 2 315Kw . AC motor
Rif strati estrusore 3: C
Screw diam 3 120mm
Description 3 200 kw. AC motor
Die width (mm) Cloren width 2550mm
Unità chill roll Chill roll 2750mm (dia 1350mm). Tank and pumps group included chiller pipes Corema
Controllo di spessore Oscillating thickness control, beta rays gauge (1 scanner) Year 2004
Rewinder max reel diameter (mm) 600mm
Descrizione avvolgitore AutomaticAVD 2000B with antistatic bars, pneumatic rubber coated pressure roll, no 3 pneumatic shafts for cardboard cores 76mm
Ulteriori informazioni 5 slitting knives. 4 lanes. Mechanical speed chill roll 550 m/min , winder 600m/min Static eliminator. Edge trim recycle system Trim cutting device Process control system Control panel bentilation Automatic cardboard cores feeder Inline scarps recovery system Granulator Aertecnica Croci Motor Kw 30 Year 2003
** SOLD **
