- Codice Macchina
- FL1157
- Manufacturer
- UTECO
- Modello

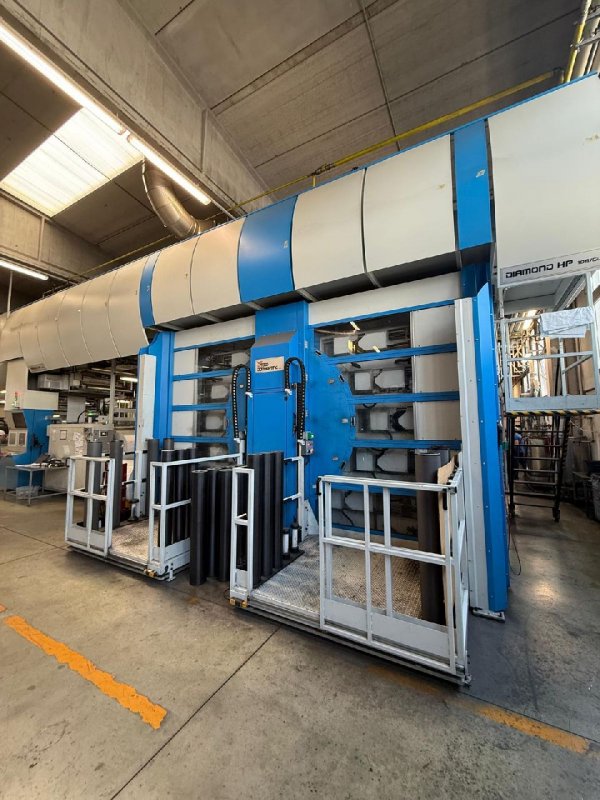

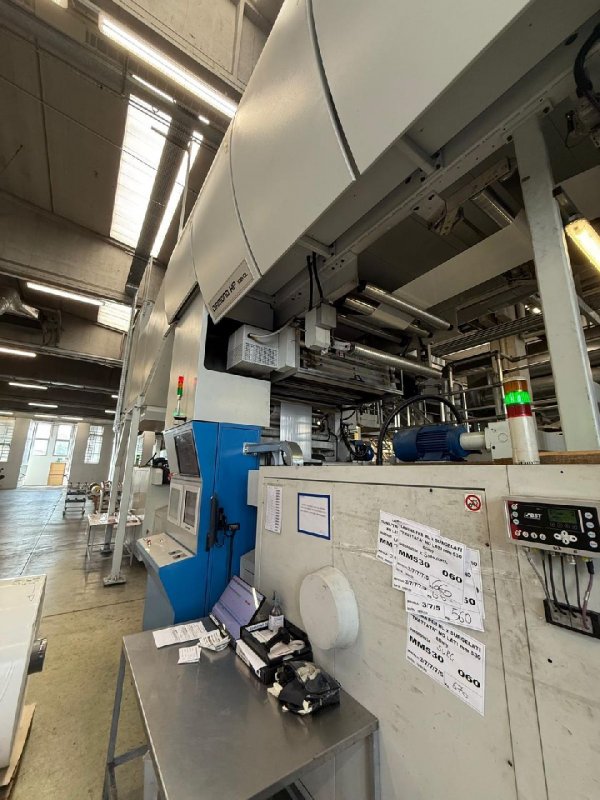

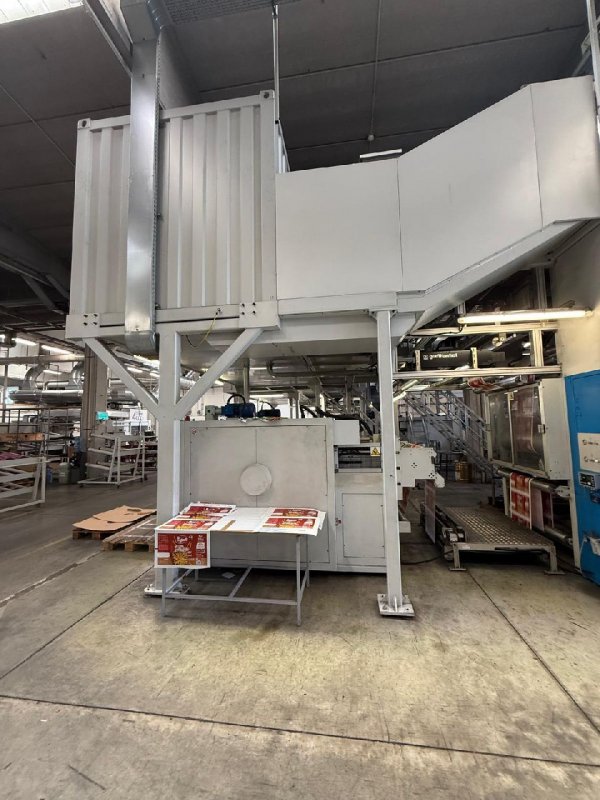

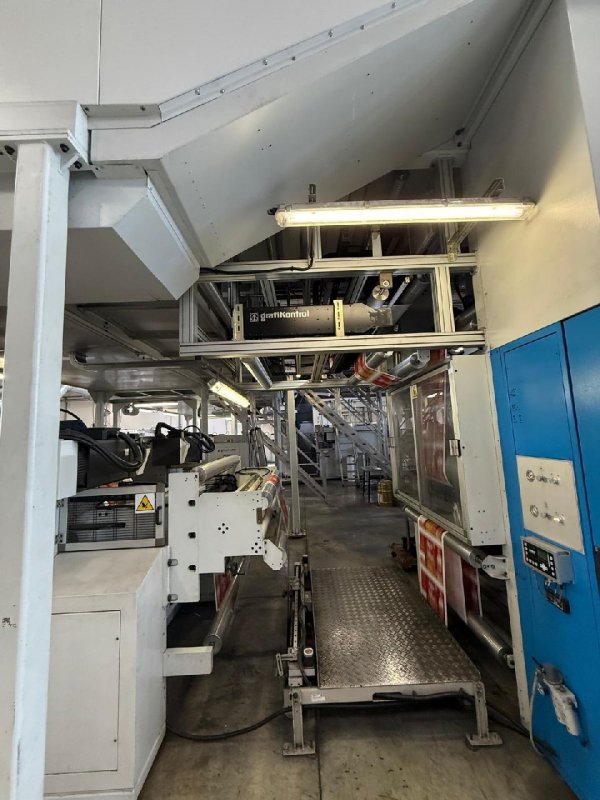

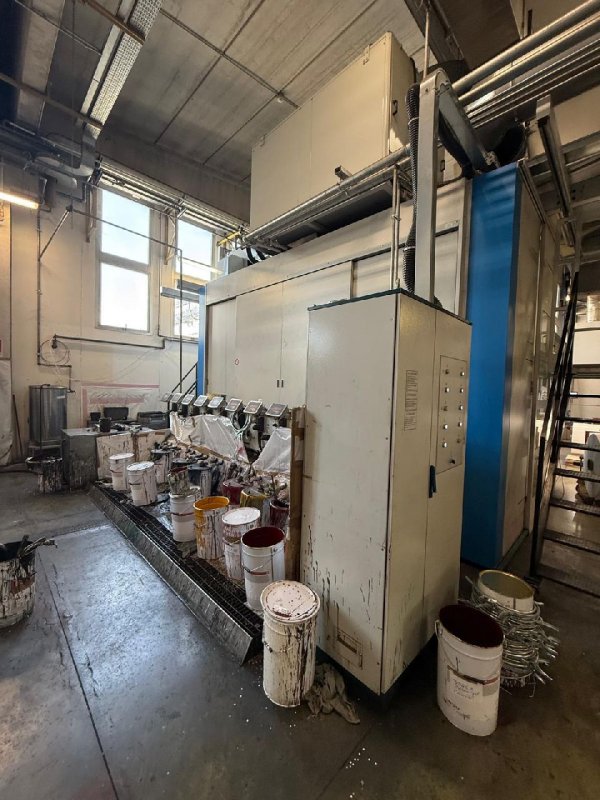

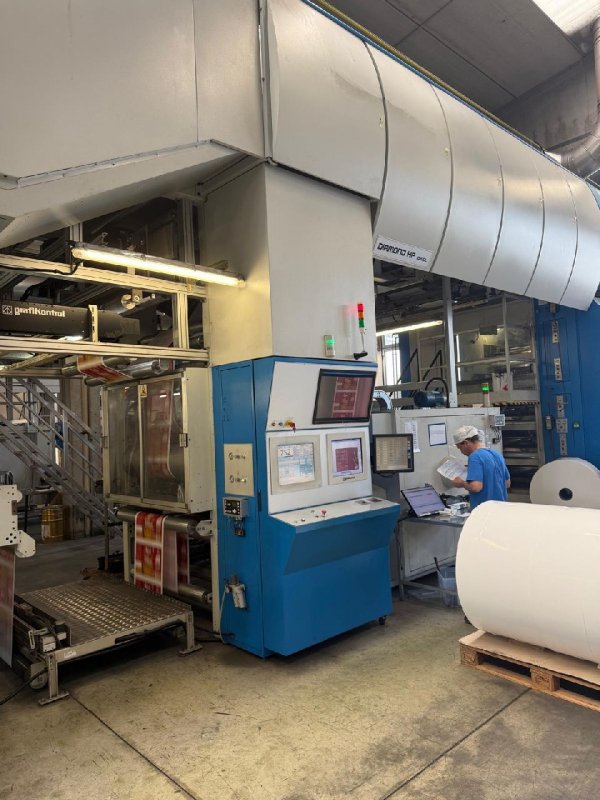

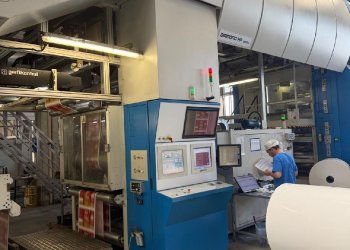

- DIAMOND HP 108
- Year
- 2015
- Numero di colori
- 10
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1350
- Larghezza stampa (mm)
- 1300
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 850
- Unwinder type
- Automatic Turret
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- Automatic Turret
- Max reel diameter rewinder (mm)
- 1000
- Essiccazione
- 2 gas burners, 2 zones, thermo oil heat exchangers - 6mt final tunnel. Automatic air recirculation system with LEL control
- Videocamera
- Yes Grafikontrol
- Trattamento Corona
- Ferrarini Benelli
- Guida film
- yes
- Vyscosity control
- Yes
- Washing system
- yes automatic
- Sistema d'inchiostro
- Closed chamber doctor blades and cemaric anilox
- Anilox
- 20
- Maniche stampa
- 60
- Ulteriori informazioni
- Operator lifting platforms for sleeves change Automatic LEL control
| Codice Macchina | FL1157 |
| Manufacturer | UTECO |
| Modello | DIAMOND HP 108 |
| Year | 2015 |
| Numero di colori | 10 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1350 |
| Larghezza stampa (mm) | 1300 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 850 |
| Unwinder type | Automatic Turret |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | Automatic Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Essiccazione | 2 gas burners, 2 zones, thermo oil heat exchangers - 6mt final tunnel. Automatic air recirculation system with LEL control |
| Videocamera | Yes Grafikontrol |
| Trattamento Corona | Ferrarini Benelli |
| Guida film | yes |
| Vyscosity control | Yes |
| Washing system | yes automatic |
| Sistema d'inchiostro | Closed chamber doctor blades and cemaric anilox |
| Anilox | 20 |
| Maniche stampa | 60 |
| Ulteriori informazioni | Operator lifting platforms for sleeves change Automatic LEL control |
