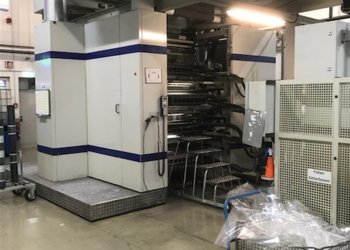

FISCHER & KRECKE F16 S Macchina da stampa flexo 8 colori

Codice Macchina
FL888
Manufacturer
FISCHER & KRECKE
Model
F16 S
Year
2006
Numero di colori
8
Print possibilityes
8+0
Gearless
Yes
Cambio a maniche rapido
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Larghezza nastro (mm)
1300
Larghezza stampa (mm)
1250
Min print repeat (mm)
320
Max print repeat (mm)
800

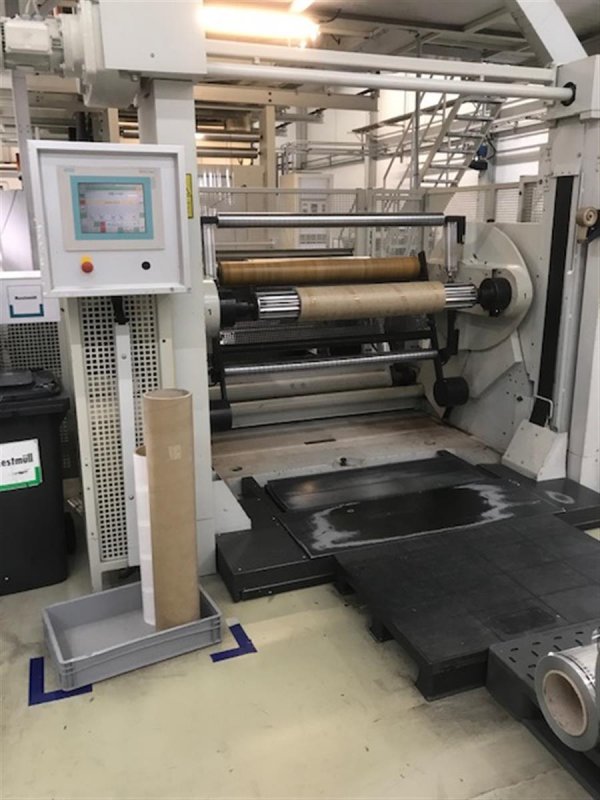

Unwinder type
Turret Automatic
Diametro massimo svolgitore (mm)
1000

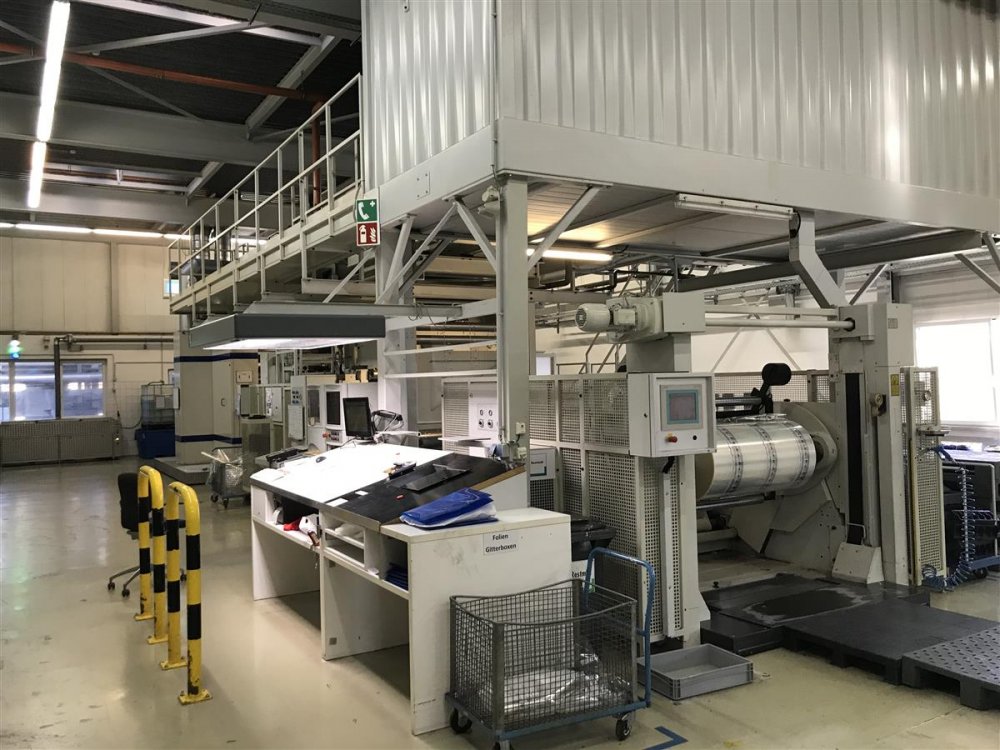

Rewinder type
Turret Rewinder
Max reel diameter rewinder (mm)
1000
Essiccazione
2 zones drying system 4 fans 2 gas burners
Videocamera
yes
Guida film
in and out
Vyscosity control
Yes included
Washing system
Yes
Sistema d'inchiostro
Closed chamber doctor blades
Anilox

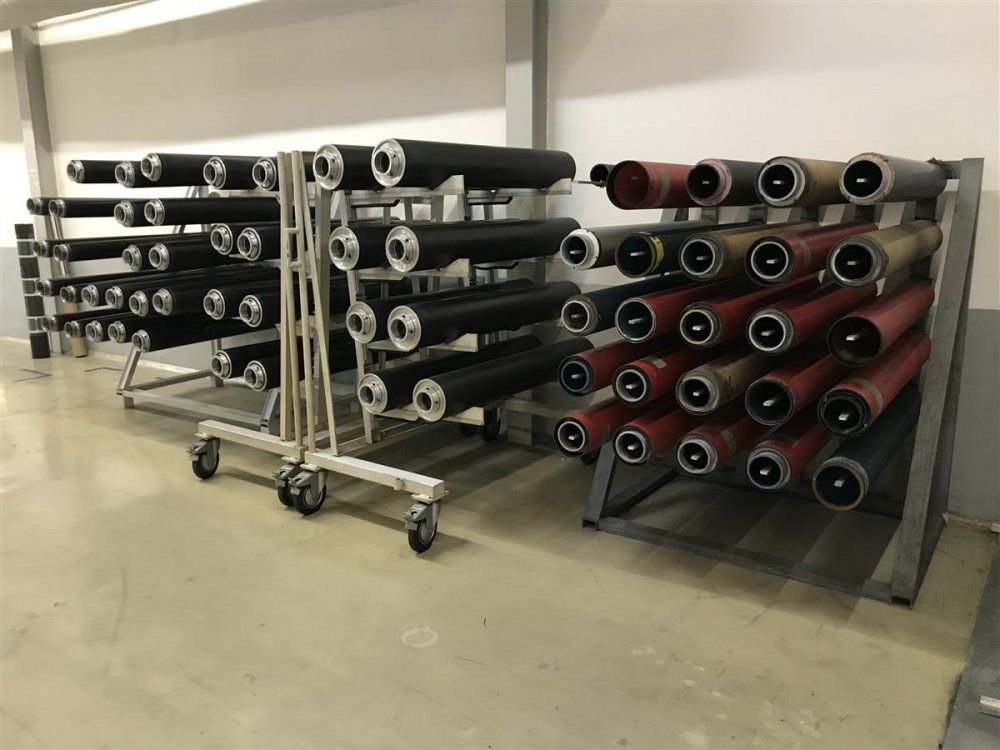

totally 24 ceramic anilox sleeves as follows : 4 x 450 L/cm -vol 3,5 ; 7 x350 L/cm- vol.5,5 ; 1x 280 L/cm ; 2 x 255 L/cm ; 1 x 240 L/cm ; 2 x 200 L/cm ; 1 x180 L/cm ; 3x 140 L/cm ; 1x 110 L/cm ; 1x 100 L/cm
Maniche stampa
totally 360 sleeves repeat between 360 mm and 760 mmm
Codice Macchina FL888
Manufacturer FISCHER & KRECKE
Model F16 S
Year 2006
Numero di colori 8
Print possibilityes 8+0
Gearless Yes
Cambio a maniche rapido Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Larghezza nastro (mm) 1300
Larghezza stampa (mm) 1250
Min print repeat (mm) 320
Max print repeat (mm) 800
Unwinder type Turret Automatic
Diametro massimo svolgitore (mm) 1000
Rewinder type Turret Rewinder
Max reel diameter rewinder (mm) 1000
Essiccazione 2 zones drying system 4 fans 2 gas burners
Videocamera yes
Guida film in and out
Vyscosity control Yes included
Washing system Yes
Sistema d'inchiostro Closed chamber doctor blades
Anilox totally 24 ceramic anilox sleeves as follows : 4 x 450 L/cm -vol 3,5 ; 7 x350 L/cm- vol.5,5 ; 1x 280 L/cm ; 2 x 255 L/cm ; 1 x 240 L/cm ; 2 x 200 L/cm ; 1 x180 L/cm ; 3x 140 L/cm ; 1x 110 L/cm ; 1x 100 L/cm
Maniche stampa totally 360 sleeves repeat between 360 mm and 760 mmm
** SOLD **
