- Code Machine
- LAS010
- Fabricant
- WM WRAPPING MACHINERY SA
- Modello
- INTEC 1000
- Année
- 2007
- Note

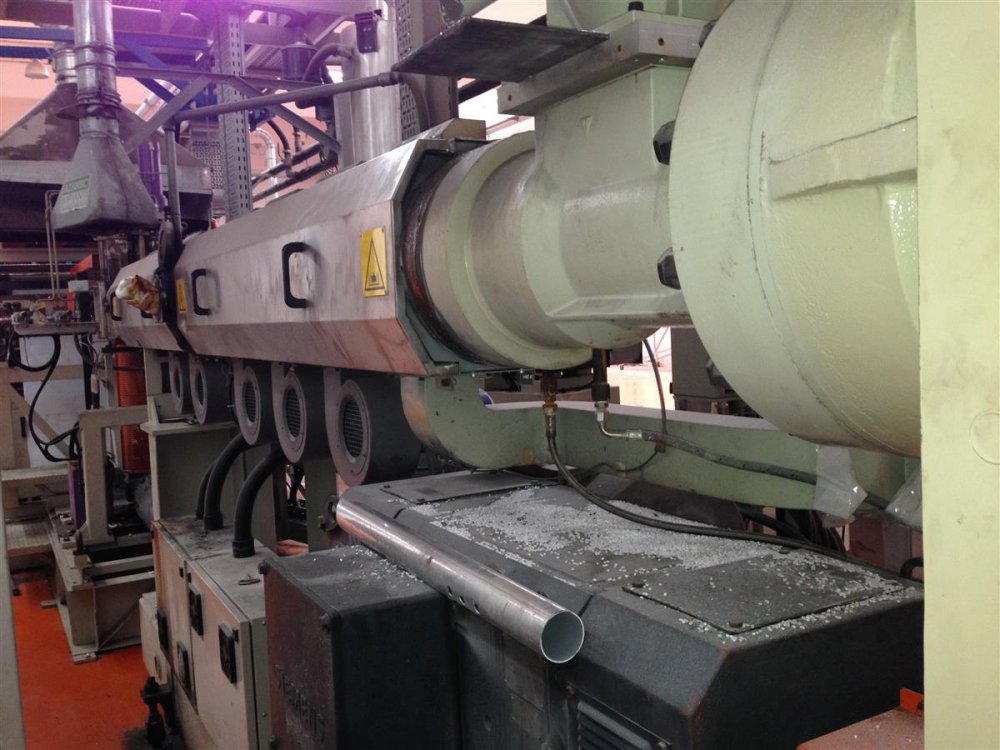

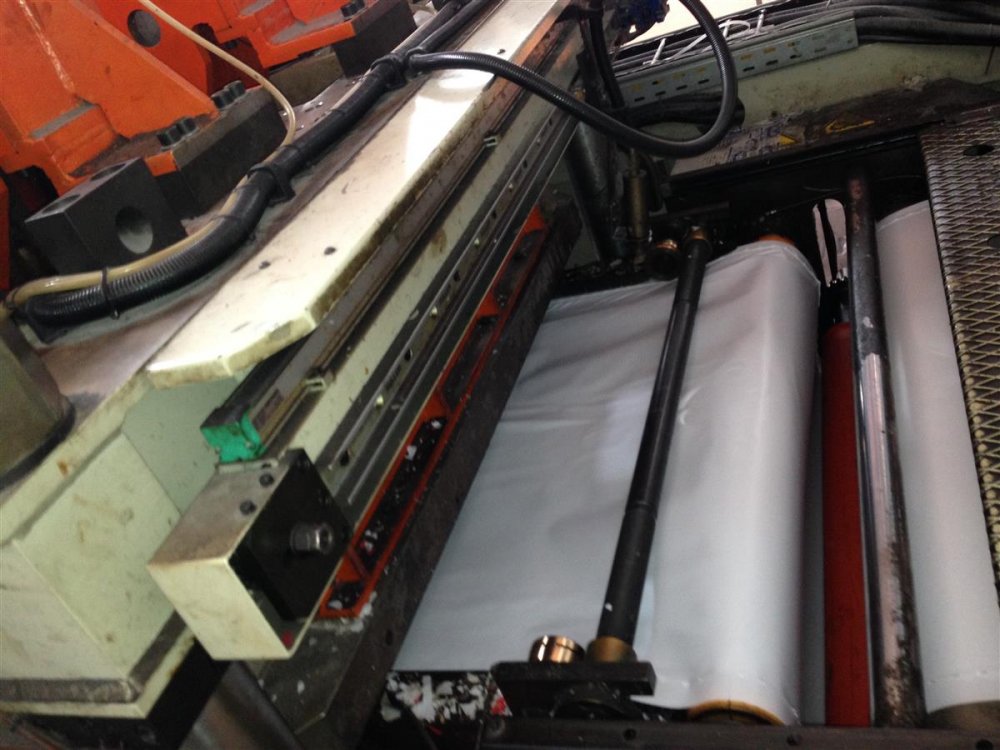

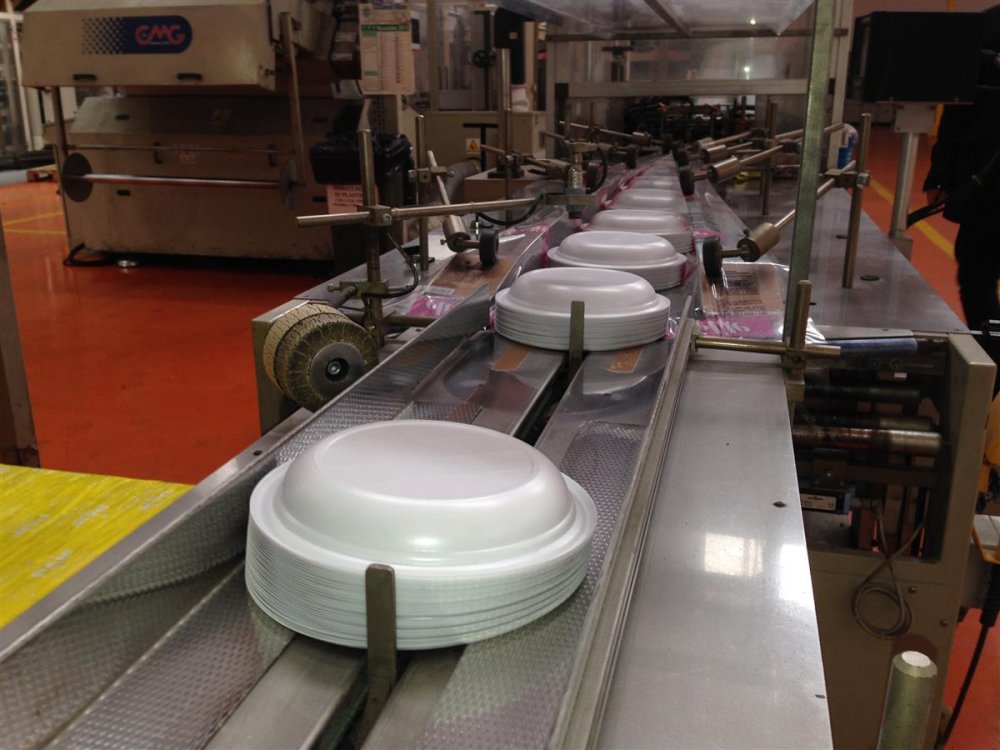

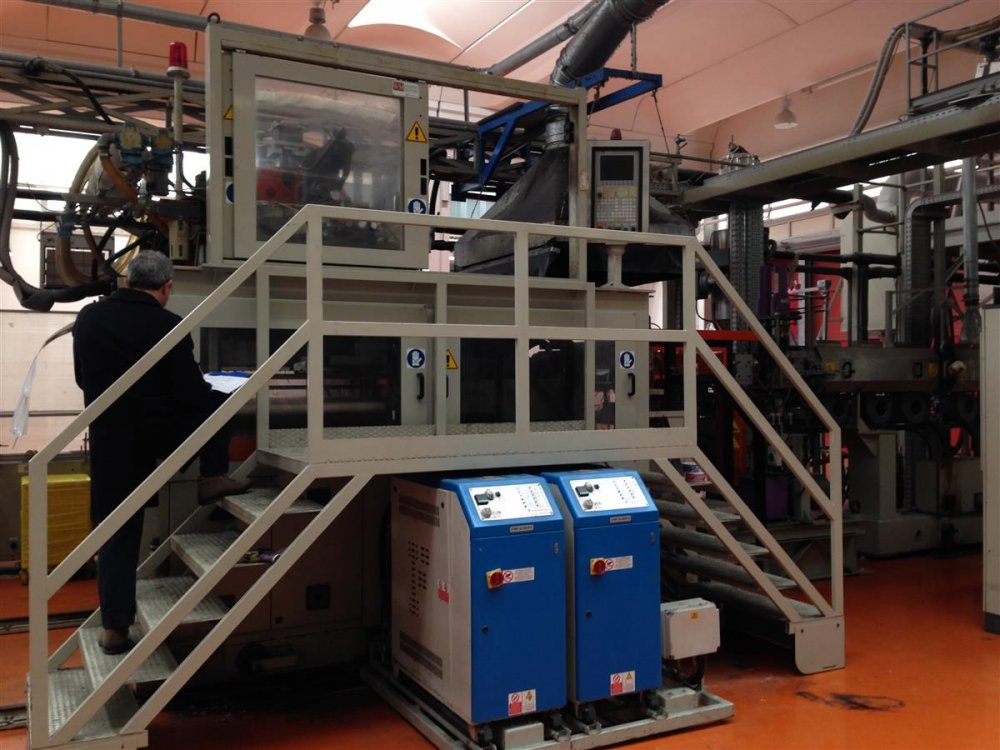

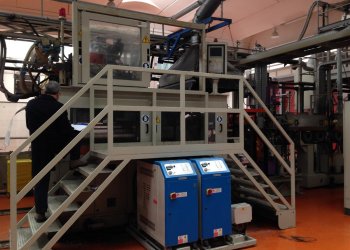

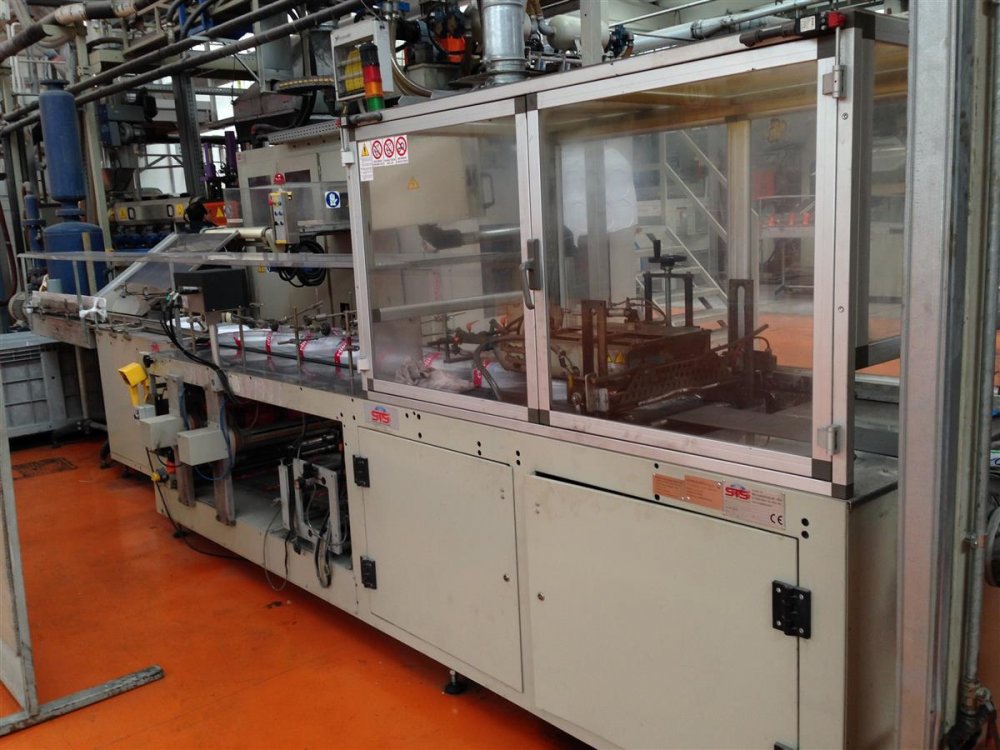

- Complete line for plastic disposable plates . Gravimetric dosing system make Piovan Model MDW1000/42 at 7 components, complete with automatic resin vacuum loaders and blowers. Extrusion and Thermoforming machine for disposable plastic plates. Make WM Wrapping machinery SA (Switzerland ) . 3 layers. Structure ABA . Material HIPS ; PS . Sheet width 1050mm . Output 800kg/h . Plates/h 35.500 pcs/h (depending on mould) . Extruder B (main) : screw diameter 120mm; degassing pump; hydraulic screen changer type continous, make Maag , Melt pump . Extruder A (skin) screw diameter 50mm, degassing pump, hydraulic screen changer make Maag Thermocalender C1160 . Thermoforming machine Intec 1000. Max forming tool area 1000x1000. Forming system : vacuum.Clamping device 40.000daN . Integrated in mould trimming system Extraction system electric type Thermoregulation unit Intec 1000/2 Thermoregulation unit for calenders Chiller I214000 Kcal/h Scrap re-feeding system complete with grinder Moulds : 1 x 16 plates 220mm ; 1x 16 plates 220mm Automatic packaging machine for disposable plates. Packaging of plates in bags. packaging of bags into boxes. Make Selematic, complete with conveyor belt. Complete compressed air system unit. Capacity 73,6 MC/min, pressure 8,5 bar. Complete with compressors, drying, separation and tank
| Code Machine | LAS010 |
| Fabricant | WM WRAPPING MACHINERY SA |
| Modello | INTEC 1000 |
| Année | 2007 |
| Note | Complete line for plastic disposable plates . Gravimetric dosing system make Piovan Model MDW1000/42 at 7 components, complete with automatic resin vacuum loaders and blowers. Extrusion and Thermoforming machine for disposable plastic plates. Make WM Wrapping machinery SA (Switzerland ) . 3 layers. Structure ABA . Material HIPS ; PS . Sheet width 1050mm . Output 800kg/h . Plates/h 35.500 pcs/h (depending on mould) . Extruder B (main) : screw diameter 120mm; degassing pump; hydraulic screen changer type continous, make Maag , Melt pump . Extruder A (skin) screw diameter 50mm, degassing pump, hydraulic screen changer make Maag Thermocalender C1160 . Thermoforming machine Intec 1000. Max forming tool area 1000x1000. Forming system : vacuum.Clamping device 40.000daN . Integrated in mould trimming system Extraction system electric type Thermoregulation unit Intec 1000/2 Thermoregulation unit for calenders Chiller I214000 Kcal/h Scrap re-feeding system complete with grinder Moulds : 1 x 16 plates 220mm ; 1x 16 plates 220mm Automatic packaging machine for disposable plates. Packaging of plates in bags. packaging of bags into boxes. Make Selematic, complete with conveyor belt. Complete compressed air system unit. Capacity 73,6 MC/min, pressure 8,5 bar. Complete with compressors, drying, separation and tank |
