- Code Machine
- UN-RE48
- Fabricant
- KAMPF
- Modello
- INLINER 37/12
- Année
- 2019
- Working width (mm)
- 3300
- Note
- Thicknesses: CPP 20-80 microns and PA/PE 50-250 microns Untrimmed width: 3580mm Trimmed width: 3300mm Upper roll width: 3700mm Machine speed: 15 - 350 m/min Production speed: 270 - 300 m/min Trim width: 50mm, max 100mm Number of knives: 2 (for side trimming only) Effective width: 3300mm for CPP and 3200mm for protective film Number of winding stations: 2 Core material: Steel cores, 8" ID and 260mm OD Roll diameter: Min 300mm, max 1200mm Max roll weight with core and winding shaft: 4000kg Compressed air consumption: 43m³/h Core trolley: 1. Trolley exit length: 4.5m
| Code Machine | UN-RE48 |
| Fabricant | KAMPF |

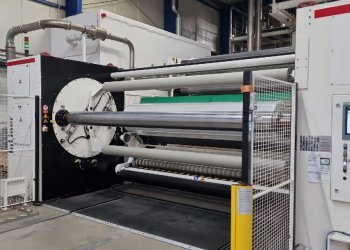

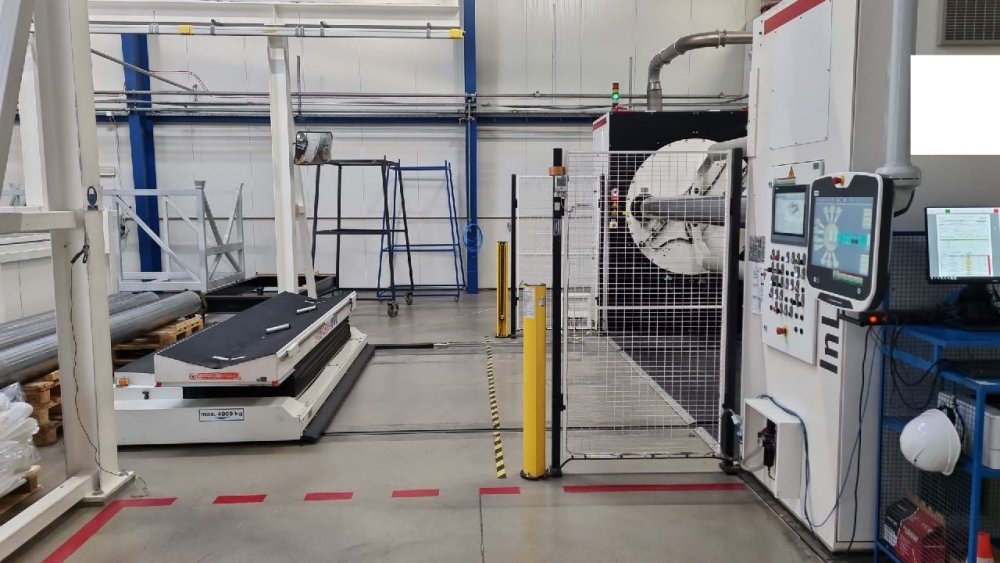

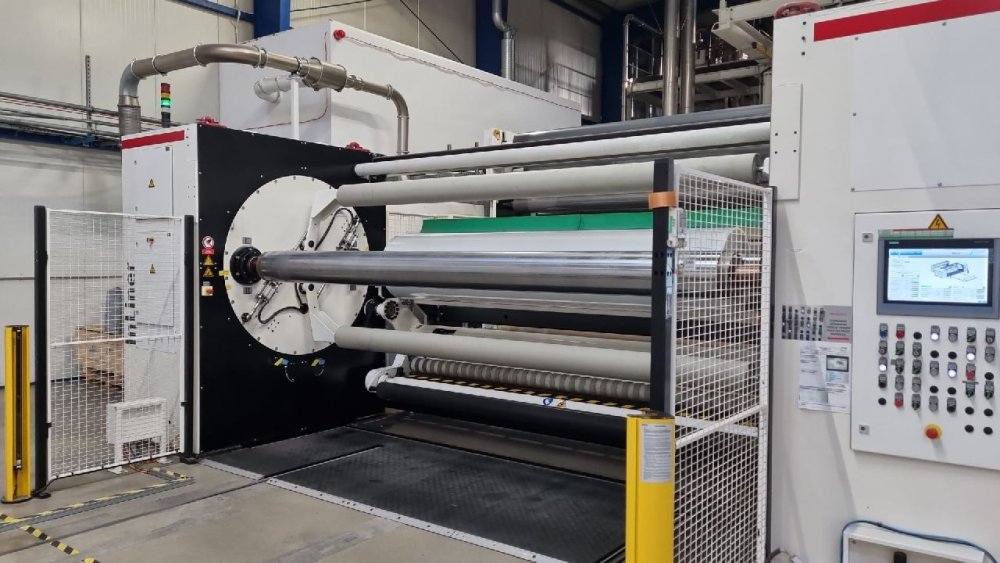

| Modello | INLINER 37/12 |
| Année | 2019 |
| Working width (mm) | 3300 |
| Note | Thicknesses: CPP 20-80 microns and PA/PE 50-250 microns Untrimmed width: 3580mm Trimmed width: 3300mm Upper roll width: 3700mm Machine speed: 15 - 350 m/min Production speed: 270 - 300 m/min Trim width: 50mm, max 100mm Number of knives: 2 (for side trimming only) Effective width: 3300mm for CPP and 3200mm for protective film Number of winding stations: 2 Core material: Steel cores, 8" ID and 260mm OD Roll diameter: Min 300mm, max 1200mm Max roll weight with core and winding shaft: 4000kg Compressed air consumption: 43m³/h Core trolley: 1. Trolley exit length: 4.5m |
MAKLAUS RES04
-
Code Machine: UN-RE42
-
Année: 2007
-
Working width (mm): 500
CERUTTI
-
Code Machine: UN-RE47
-
Année: 2011
-
Working width (mm): 1650
CERUTTI SPIRITO
-
Code Machine: UN-RE37
-
Année: 2007
-
Working width (mm): 1800
WINDMÖLLER & HÖLSCHER
-
Code Machine: UN-RE40
-
Working width (mm): 1200
UTECO SAC-N-R 1500
-
Code Machine: UN-RE49
-
Working width (mm): 1250
Abey
-
Code Machine: UN-RE45
-
Année: 2000
-
Working width (mm): 1200
