- Code Machine
- FI194
- Fabricant
- LEMO
- Modello
- INTERMAT DKT 850.1
- Année
- 1994
- Type of delivery
- Wicketer)
- Type of handle
- Patch handle
- Type of sealing/bags
- Side weld
- Type of bags
- Patch handles
- Overhaul/renovation
- Renovated in 2010
- Working width (mm)
- 1350
- Bag length
- 600mm draw lenght
- Bag width
- 850mm cutting width
- Cycle / min
- 150
- Unwinder

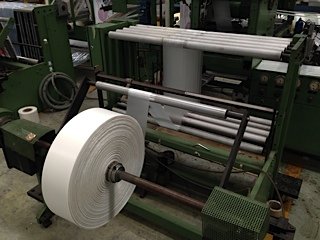

- RAE-QA 1350 jumbo reel unwinder ; reel diam max 1200mm. Unwinder for patch film; AWP 1350 pneumatically tensible expansion unwind shaft for 76 mm core diam.
- Note
- Machine for production of side weld patch handle and carrier bags with internal glued reinforcement. Made of suitable polyethylene film LDPE, and HDPE, and blends . Sealing and cutting width max 850mm; draw lenght: max600mm; Line speed max 60m/min ; Individual draw rollers and single lane print repeat control; ARV 850 automatic control system for fine adjustment during machine operation; STW 850 side seal sealing unit for lDPE ; LLDPE, HDPE; ST850/TRL wicket stacker for collecting and stacking of bags; KSM-OM1350 central film guiding unit with optical sensing system and electromotive adjusting system;FD 1350 folding station with folding triangle to fold the flat film into a semi-tube;Frame for folding triangle on unwinder; DKT 850/left- additional equipment for the production of carrier bags with internally glued reinforcement patch (starting from single-wound sheet). Machine frame in steel-angle iron construction. C-shape punching unit Kaiser shape; Unwinder for patch film up to 280mm total width. execution with new hotmelt glue system.
Code Machine | FI194 |
Fabricant | LEMO |
Modello | INTERMAT DKT 850.1 |
Année | 1994 |
Type of delivery | Wicketer) |
Type of handle | Patch handle |
Type of sealing/bags | Side weld |
Type of bags | Patch handles |
Overhaul/renovation | Renovated in 2010 |
Working width (mm) | 1350 |
Bag length | 600mm draw lenght |
Bag width | 850mm cutting width |
Cycle / min | 150 |
Unwinder | RAE-QA 1350 jumbo reel unwinder ; reel diam max 1200mm. Unwinder for patch film; AWP 1350 pneumatically tensible expansion unwind shaft for 76 mm core diam. |
Note | Machine for production of side weld patch handle and carrier bags with internal glued reinforcement. Made of suitable polyethylene film LDPE, and HDPE, and blends . Sealing and cutting width max 850mm; draw lenght: max600mm; Line speed max 60m/min ; Individual draw rollers and single lane print repeat control; ARV 850 automatic control system for fine adjustment during machine operation; STW 850 side seal sealing unit for lDPE ; LLDPE, HDPE; ST850/TRL wicket stacker for collecting and stacking of bags; KSM-OM1350 central film guiding unit with optical sensing system and electromotive adjusting system;FD 1350 folding station with folding triangle to fold the flat film into a semi-tube;Frame for folding triangle on unwinder; DKT 850/left- additional equipment for the production of carrier bags with internally glued reinforcement patch (starting from single-wound sheet). Machine frame in steel-angle iron construction. C-shape punching unit Kaiser shape; Unwinder for patch film up to 280mm total width. execution with new hotmelt glue system. |
