- Code Machine
- SR278
- Fabricant
- JAGENBERG
- Modello
- VARI STEP
- Année
- 1987
- Working width (mm)
- 2600
- Speed
- up to 1500 m/min
- Unwinder type
- Shaftless
- Max diameter reel unwinder
- 1525
- Rewinder type
- Two drum surface winder
- Max diameter reel rewinder
- 1525
- Rewinder description
- Shaftless rewind.Rewind core chucks for 76mm and 152mm.Exteded reel chucks to run 500 mm width shaftless.Reel ejection and reel lowering
- Note

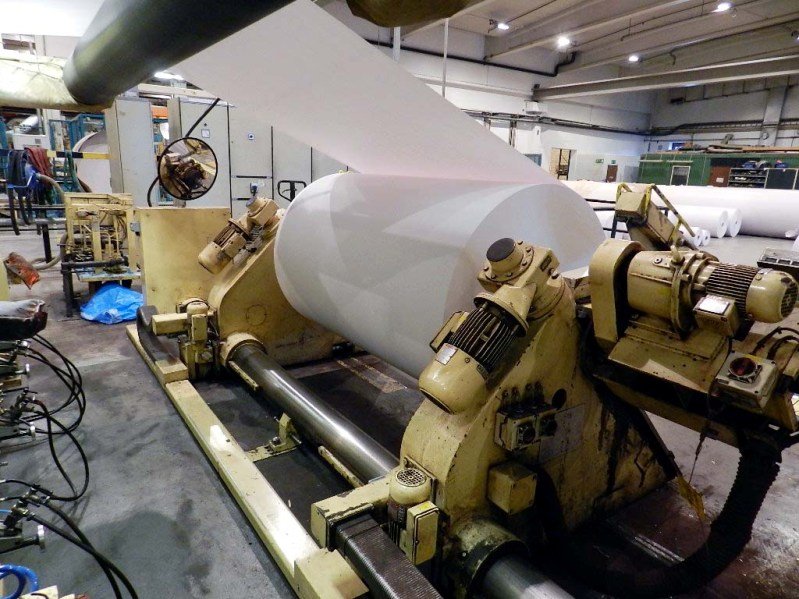

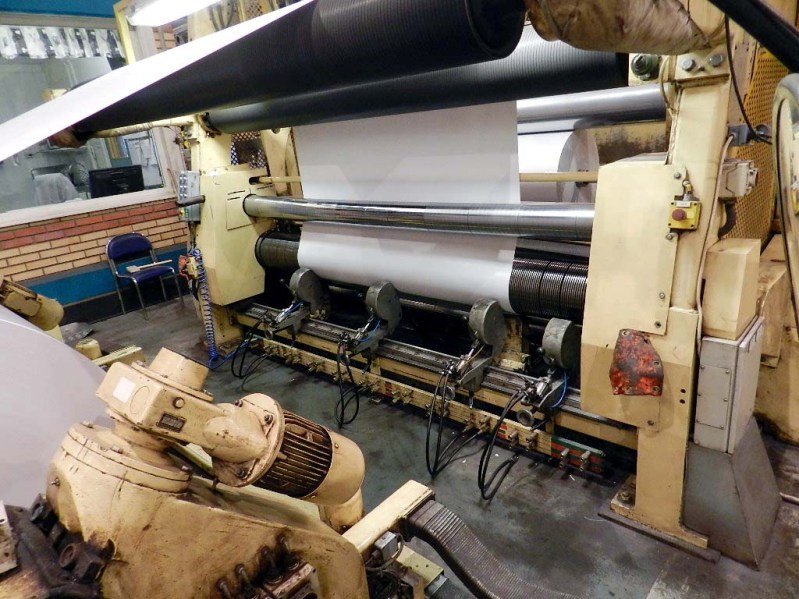

- Shaftless pick-up type unwind stand type DA 15 .Expansion type core chucks for 76mm and 152mm.Crawl speed drive of the unwind for easy feeding.Spreading roll.Multi-shear slitting roll with 5 pneumatic top slitters Automatic rider roll drive.Density control.
| Code Machine | SR278 |
| Fabricant | JAGENBERG |
| Modello | VARI STEP |
| Année | 1987 |
| Working width (mm) | 2600 |
| Speed | up to 1500 m/min |
| Unwinder type | Shaftless |
| Max diameter reel unwinder | 1525 |
| Rewinder type | Two drum surface winder |
| Max diameter reel rewinder | 1525 |
| Rewinder description | Shaftless rewind.Rewind core chucks for 76mm and 152mm.Exteded reel chucks to run 500 mm width shaftless.Reel ejection and reel lowering |
| Note | Shaftless pick-up type unwind stand type DA 15 .Expansion type core chucks for 76mm and 152mm.Crawl speed drive of the unwind for easy feeding.Spreading roll.Multi-shear slitting roll with 5 pneumatic top slitters Automatic rider roll drive.Density control. |
