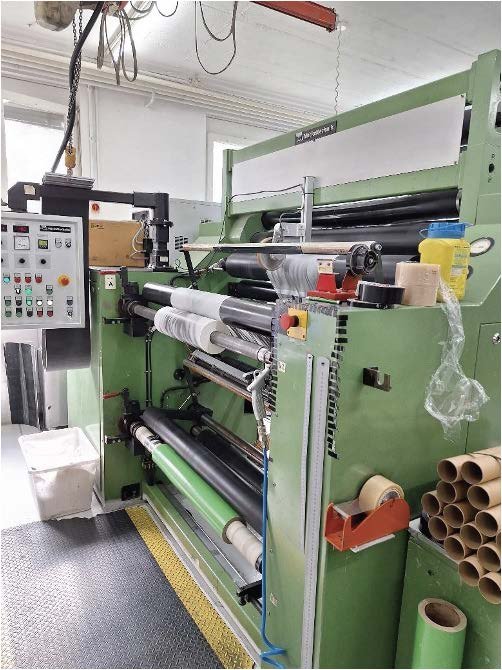

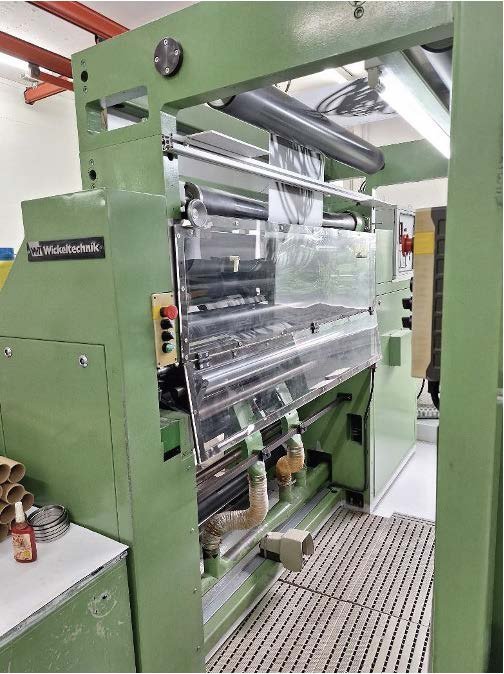

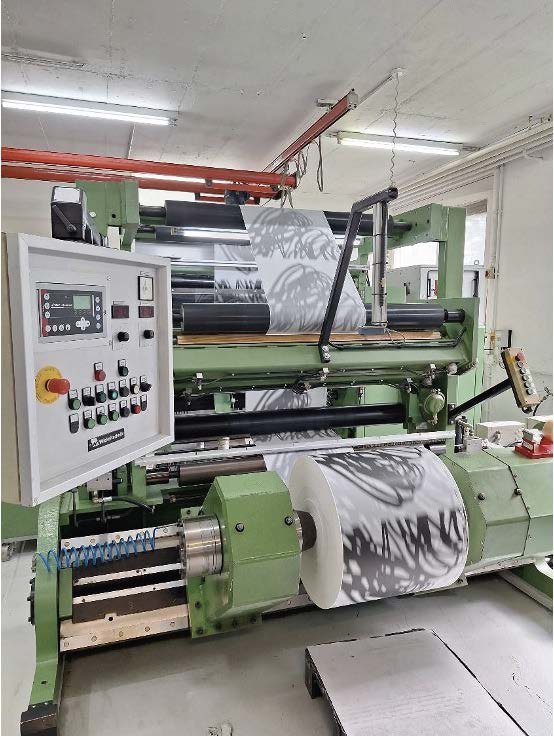

- Code Machine
- SR623
- Fabricant
- WICKELTECHNIK
- Modello
- WFZ 60
- Année
- 1991
- Working width (mm)
- 1400
- Materials
- flexible packaging materials and paper
- Speed
- 300 m/min
- Unwinder type
- Shaftless
- Max diameter reel unwinder
- 1000
- Rewinder type
- Double shaft center driven
- Max diameter reel rewinder
- 600
- Rewinder description
- Pneumatic and friction shafts with lay on roll
- Min slit width
- 50 mm
- Knives
- Shear cut
- Note
- Nozzle for trim exhaust Bridge for over web path Unwind : Shaftless, pivoting arms, lifting from the floor with hydraulic pump. Tension control. Core diameter 3" and 6". Rewind : Pneumatic and friction shafts with lay on roll Web guide system : Shifting web guide system Additional information : Nozzle for trim exhaust Bridge for over web path
| Code Machine | SR623 |
| Fabricant | WICKELTECHNIK |
| Modello | WFZ 60 |
| Année | 1991 |
| Working width (mm) | 1400 |
| Materials | flexible packaging materials and paper |
| Speed | 300 m/min |
| Unwinder type | Shaftless |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Double shaft center driven |
| Max diameter reel rewinder | 600 |
| Rewinder description | Pneumatic and friction shafts with lay on roll |
| Min slit width | 50 mm |
| Knives | Shear cut |
| Note | Nozzle for trim exhaust Bridge for over web path Unwind : Shaftless, pivoting arms, lifting from the floor with hydraulic pump. Tension control. Core diameter 3" and 6". Rewind : Pneumatic and friction shafts with lay on roll Web guide system : Shifting web guide system Additional information : Nozzle for trim exhaust Bridge for over web path |
