- Code Machine
- SS52
- Fabricant
- CMG
- Modello
- TC II 1600
- Année
- 2004
- Taper
- SYNCHRO
- Width (mm)
- 1600
- Sheet length
- 450-1550mm
- Materials
- Paper, board and laminates 100-600 gsm
- Note

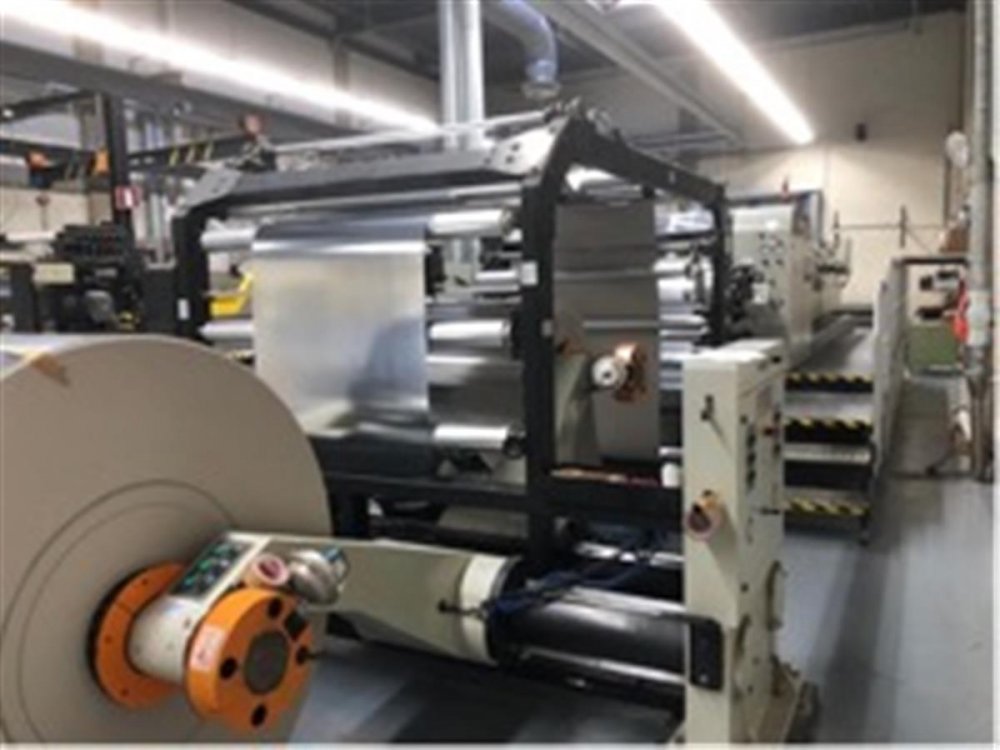

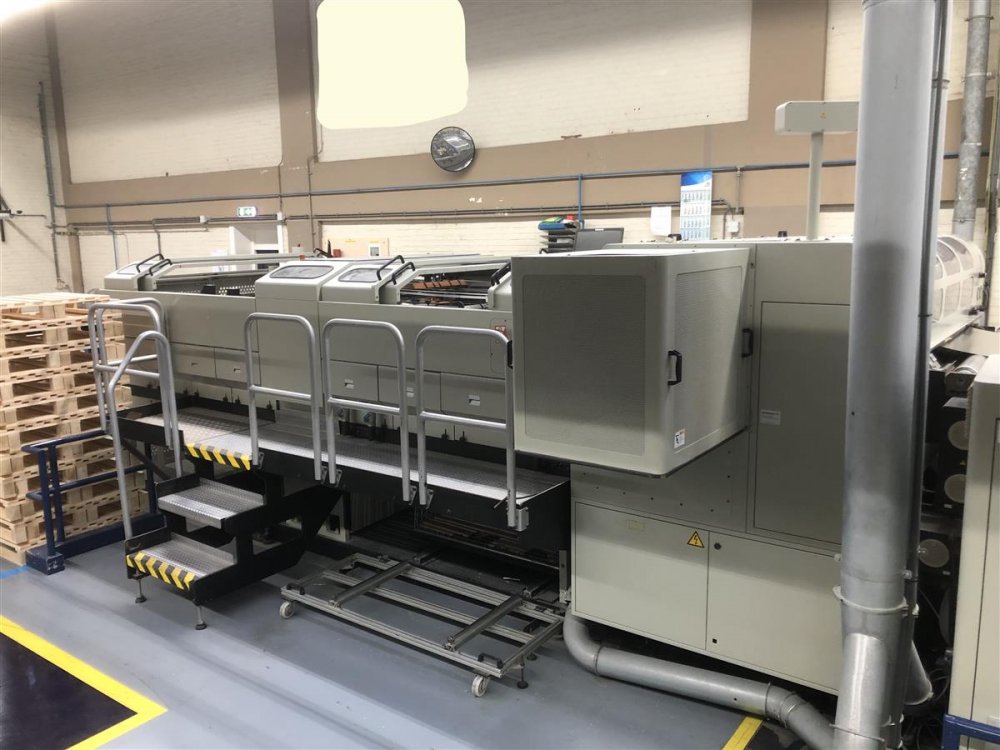

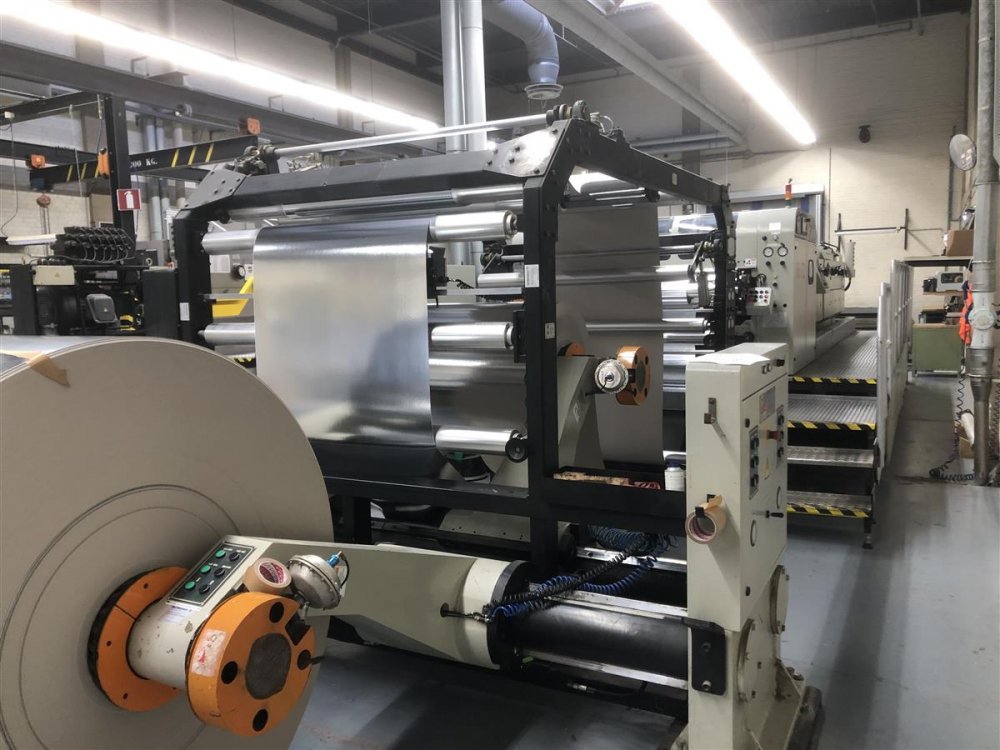

- Double Unwind Board/paper material Max Diameter Reel in 1800 (mm) Core size 300 (mm) standard or 150 (mm) Web guidE FIfe Breaker installation with automatic adjustable setting Slittingm achine direction (sides-mid) – 3 knives Tidland Cotta Rotary knive system - Dust removal system (vacuum clean), anti static bar Cutting transversal: - Twin rotary cutting system - Dust removal system (vacuum clean), anti static bar Pallettizing - maximum height 1650 (mm) Speed: 250/min
Code Machine | SS52 |
Fabricant | CMG |
Modello | TC II 1600 |
Année | 2004 |
Taper | SYNCHRO |
Width (mm) | 1600 |
Sheet length | 450-1550mm |
Materials | Paper, board and laminates 100-600 gsm |
Note | Double Unwind Board/paper material Max Diameter Reel in 1800 (mm) Core size 300 (mm) standard or 150 (mm) Web guidE FIfe Breaker installation with automatic adjustable setting Slittingm achine direction (sides-mid) – 3 knives Tidland Cotta Rotary knive system - Dust removal system (vacuum clean), anti static bar Cutting transversal: - Twin rotary cutting system - Dust removal system (vacuum clean), anti static bar Pallettizing - maximum height 1650 (mm) Speed: 250/min |
