- Code Machine
- SS51
- Fabricant
- STRACHAN & HENSHAW

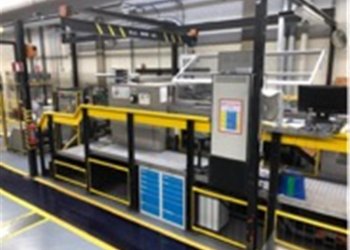

- Modello
- SUPERTRIM 1400
- Année
- 1988
- Taper
- Synchro
- Width (mm)
- 1400
- Sheet length
- 500-1550mm
- Materials
- Paper board and laminates 100-1000 gsm
- Max diameter reel unwinder
- 1800mm
- Drive
- Main Motor AC with Inverter
- Note
- RECENT GENERAL RENOVATION In 2008 New control of Format Norcan In 2005 new ahaftless uniwind and web guides Main motor and inverter replaced Tungsten blades - In line longitudinal cutting with 3 MArio Cotta knives - Tidland encoder for longitudibnal rotary knives position - Dust removal (vaccum clean) - Antistatic bar - Twin rotary cutting system - Delivery on il line pallet piling up to 1650mm heigth - Breaker installation with motor driven adjustable setting - Unwinder shaftless year 2005 cores 300mm - Webguide FIFE Spares: - 1 set of Tungsten blades - Set of Steel blades - Fife actuator, FIFE panel, PFIFE control unit - 1x draw roller - 1x motor - 2x syncro generators - Vibrator - several bearings and roller bearings - 2x hydraulic actuator - 1x electric actuator - 2 patrial Mario cotta knives - 1 partial spare trim for edge - Other parts
Code Machine | SS51 |
Fabricant | STRACHAN & HENSHAW |
Modello | SUPERTRIM 1400 |
Année | 1988 |
Taper | Synchro |
Width (mm) | 1400 |
Sheet length | 500-1550mm |
Materials | Paper board and laminates 100-1000 gsm |
Max diameter reel unwinder | 1800mm |
Drive | Main Motor AC with Inverter |
Note | RECENT GENERAL RENOVATION In 2008 New control of Format Norcan In 2005 new ahaftless uniwind and web guides Main motor and inverter replaced Tungsten blades - In line longitudinal cutting with 3 MArio Cotta knives - Tidland encoder for longitudibnal rotary knives position - Dust removal (vaccum clean) - Antistatic bar - Twin rotary cutting system - Delivery on il line pallet piling up to 1650mm heigth - Breaker installation with motor driven adjustable setting - Unwinder shaftless year 2005 cores 300mm - Webguide FIFE Spares: - 1 set of Tungsten blades - Set of Steel blades - Fife actuator, FIFE panel, PFIFE control unit - 1x draw roller - 1x motor - 2x syncro generators - Vibrator - several bearings and roller bearings - 2x hydraulic actuator - 1x electric actuator - 2 patrial Mario cotta knives - 1 partial spare trim for edge - Other parts |
