- Code Machine
- LA108
- Fabricant
- PAGENDARM
- Année
- 1971
- Application
- Coating
- Type of lamination/coating
- SOLVENT / WATER BASED
- Working width (mm)
- 1300
- Materials
- BOPP for adhesive tapes
- Speed
- Production speed 180mpm
- First unwinder type
- TURRET AUTOMATIC
- Max diameter reel unwinder
- 800
- Rewinder type
- TURRET AUTOMATIC
- Max diameter reel rewinder
- 800
- Coating unit
- Primer unit
- Second Coating unitr
- Realese
- Third Coating unit
- Glue coating unit.

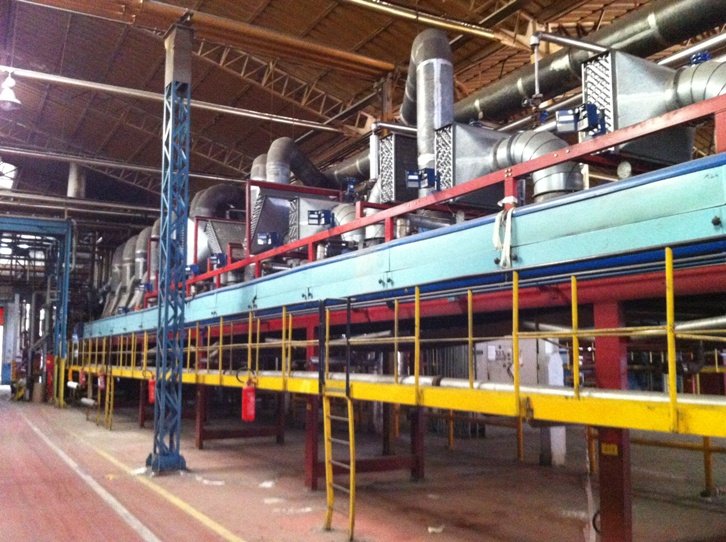

- Drying
- 48 m; 24 hoods, Each with independent heat exchanger inblow and out blow; each hoo 2 m long, On Driven rollers. Air blades. LEL automaticeHeat source steam
- Coating rollers
- Type 2 Drum coating. Coating roller thermo regulated 1,5m diameter
- Note
- Machine is used for coating of solvent base glue on adhesive tape. NEED MAINTENANCE
| Code Machine | LA108 |
| Fabricant | PAGENDARM |
| Année | 1971 |
| Application | Coating |
| Type of lamination/coating | SOLVENT / WATER BASED |
| Working width (mm) | 1300 |
| Materials | BOPP for adhesive tapes |
| Speed | Production speed 180mpm |
| First unwinder type | TURRET AUTOMATIC |
| Max diameter reel unwinder | 800 |
| Rewinder type | TURRET AUTOMATIC |
| Max diameter reel rewinder | 800 |
| Coating unit | Primer unit |
| Second Coating unitr | Realese |
| Third Coating unit | Glue coating unit. |
| Drying | 48 m; 24 hoods, Each with independent heat exchanger inblow and out blow; each hoo 2 m long, On Driven rollers. Air blades. LEL automaticeHeat source steam |
| Coating rollers | Type 2 Drum coating. Coating roller thermo regulated 1,5m diameter |
| Note | Machine is used for coating of solvent base glue on adhesive tape. NEED MAINTENANCE |
