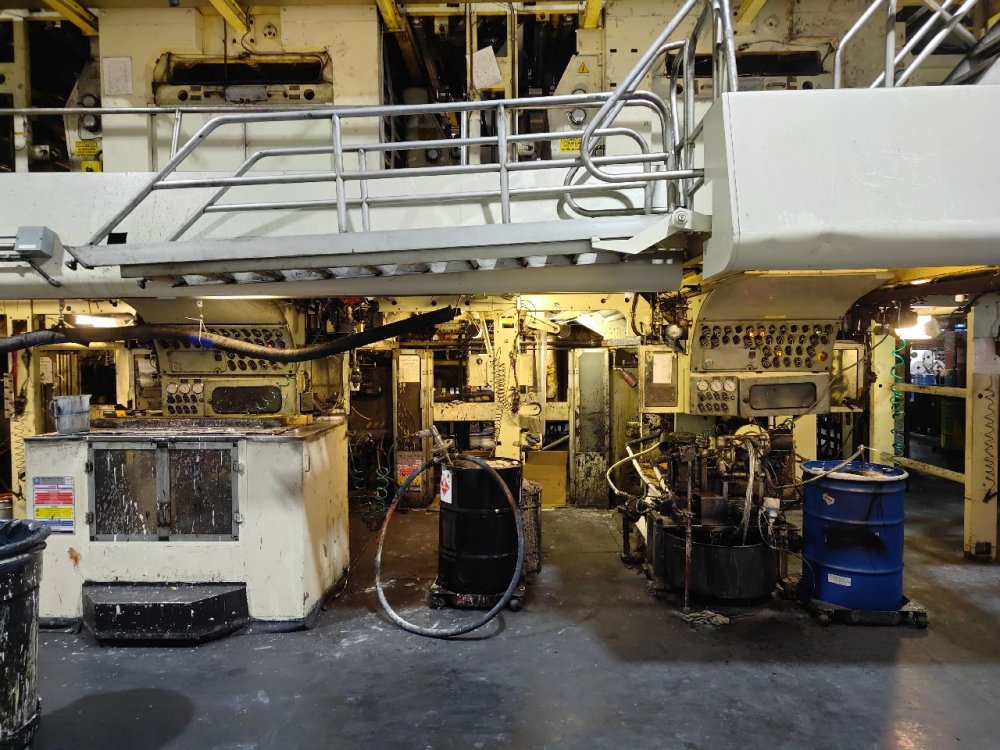

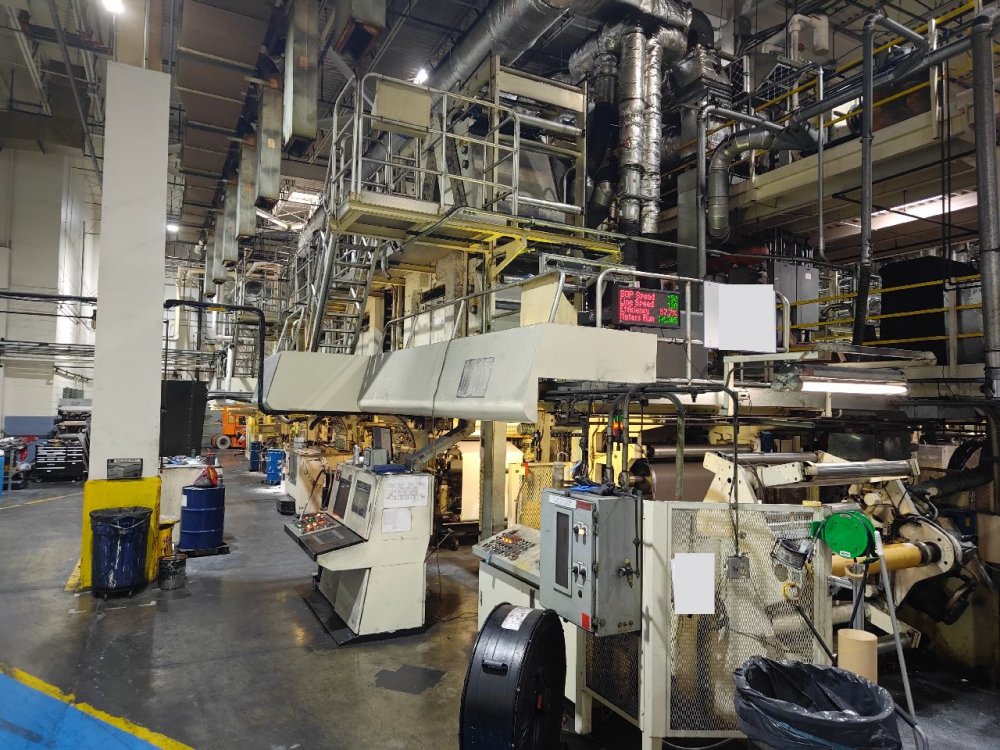

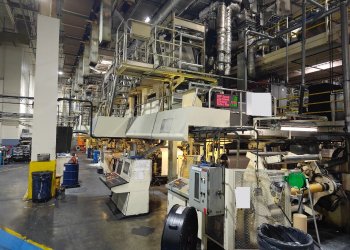

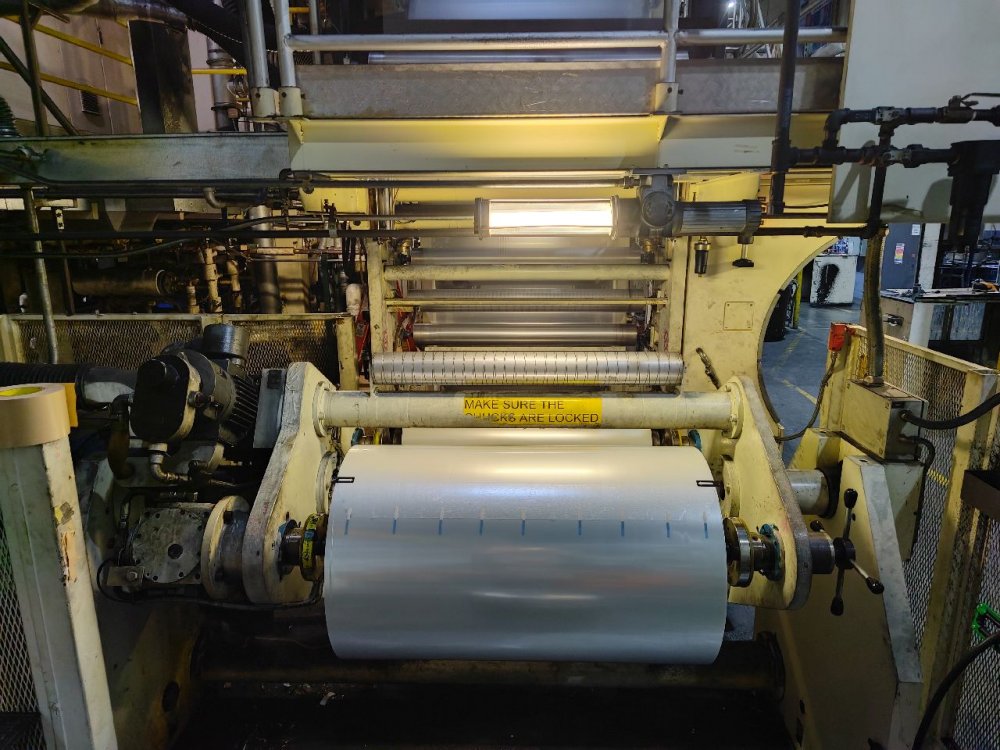

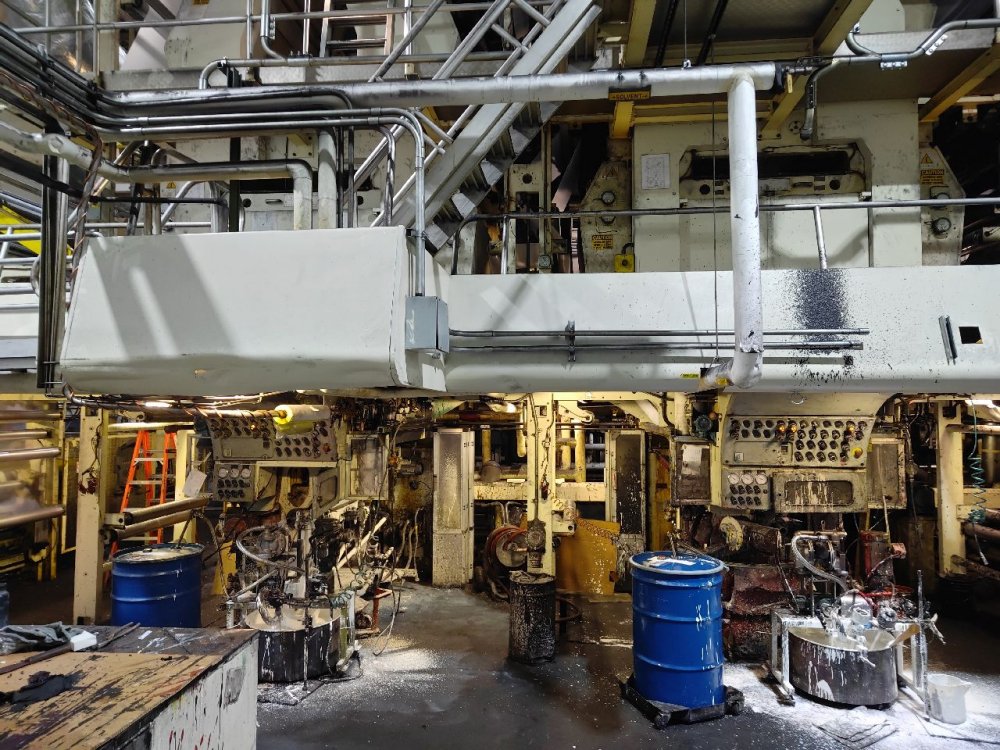

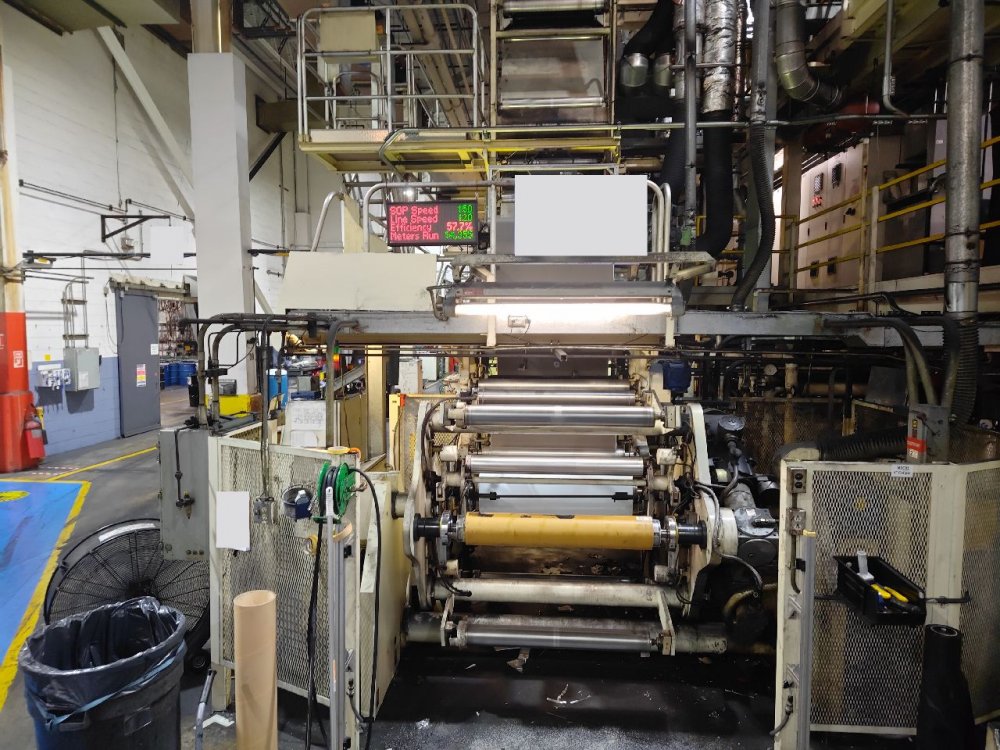

- Code Machine
- LA535
- Fabricant
- ROTOMEC
- Modello
- ROTOPAK 3000-S/1000/250/C
- Année
- 1995
- Application
- Coating
- Type of lamination/coating
- SOLVENT / WATER BASED
- Working width (mm)
- 1010
- Speed
- 425 mom
- First unwinder type
- Turret Automatic
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Turret Automatic
- Max diameter reel unwinder
- 800
- Third unwinder type
- Turret Automatic
- Max diameter reel unwinder
- 800
- Rewinder type
- Turret Automatic
- Max diameter reel rewinder
- 800
- Drying
- All 4 units are double hood with one blowing and one exhaust fan. 2 stations with independent exhaust fans. Drying heat source - Steam
- Register controll
- Yes
- Note
- 4 stations with reverse option, registration capable 4-station line shaft drive, capability to drive 1 station independently PLC - Allen Bradley/Rockwell, 1785L40B-D Drives - Parker, Siemens, Allen Bradley Machine HMI - Factory Talk, Windows 7 Dilution Control: Yes
| Code Machine | LA535 |
| Fabricant | ROTOMEC |
| Modello | ROTOPAK 3000-S/1000/250/C |
| Année | 1995 |
| Application | Coating |
| Type of lamination/coating | SOLVENT / WATER BASED |
| Working width (mm) | 1010 |
| Speed | 425 mom |
| First unwinder type | Turret Automatic |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Turret Automatic |
| Max diameter reel unwinder | 800 |
| Third unwinder type | Turret Automatic |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret Automatic |
| Max diameter reel rewinder | 800 |
| Drying | All 4 units are double hood with one blowing and one exhaust fan. 2 stations with independent exhaust fans. Drying heat source - Steam |
| Register controll | Yes |
| Note | 4 stations with reverse option, registration capable 4-station line shaft drive, capability to drive 1 station independently PLC - Allen Bradley/Rockwell, 1785L40B-D Drives - Parker, Siemens, Allen Bradley Machine HMI - Factory Talk, Windows 7 Dilution Control: Yes |
