- Code Machine
- LA237
- Fabricant
- UTECO
- Modello
- RAINBOW M
- Année
- 2008
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1350
- Materials
- all plastic film and paper

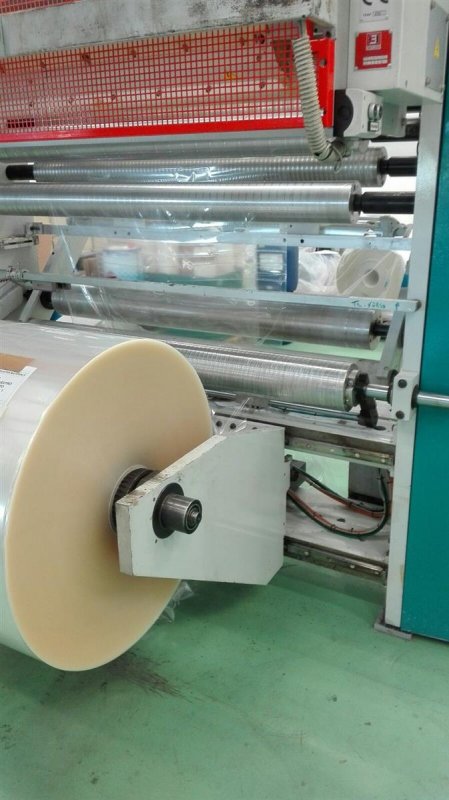

- First unwinder type
- Shaftless driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Shaftless driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- Shaftless driven
- Max diameter reel rewinder
- 1000

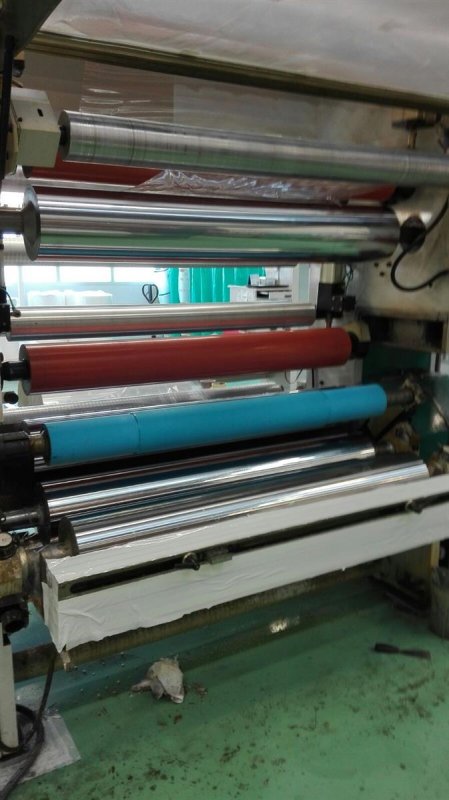

- Coating unit
- fixed stand solventless 4 roller type three rollers driven . Sleeve change system for coating roller
- pumping mixing unit
- VEA Matrix
- Note
- tension tange 2- 40 kg production speed 400 mpm 12 sleeves for coating roller
Code Machine | LA237 |
Fabricant | UTECO |
Modello | RAINBOW M |
Année | 2008 |
Application | Duplex lamination |
Type of lamination/coating | SOLVENTLESS |
Working width (mm) | 1350 |
Materials | all plastic film and paper |
First unwinder type | Shaftless driven |
Max diameter reel unwinder | 1000 |
Secondary unwinder type | Shaftless driven |
Max diameter reel unwinder | 1000 |
Rewinder type | Shaftless driven |
Max diameter reel rewinder | 1000 |
Coating unit | fixed stand solventless 4 roller type three rollers driven . Sleeve change system for coating roller |
pumping mixing unit | VEA Matrix |
Note | tension tange 2- 40 kg production speed 400 mpm 12 sleeves for coating roller |
