- Code Machine
- EX644
- Fabricant
- MACCHI
- Modello
- COEX 5
- Année
- 2015
- Number of layers
- 5
- Overhaul/renovation
- 2015 new electronic of winder and haul off which are 2002 year
- Film structure
- ABCDE
- Material
- LDPE,LLDPE,PA,EVOH
- Film Width
- 2100
- Output (Kg/h)
- 350-400 Kg/h
- Extruder 1 Layer ref:
- 80
- Screw diam 1
- 80/30
- Extruder 2 Layer ref:
- 55
- Screw diam 2
- 55/30
- Extruder 3 Layer ref:
- 55
- Screw diam 3
- 55/30
- Extruder 4 Layer ref:
- 55
- Screw diam 4
- 55/30
- Extruder 5 Layer ref:
- 80
- Screw diam 5
- 80/30
- Head description
- Coex 5 with K Design air ring
- Die diam (mm)
- 350 gap 2.2mm
- Thickness controll system
- Electronic System x rays

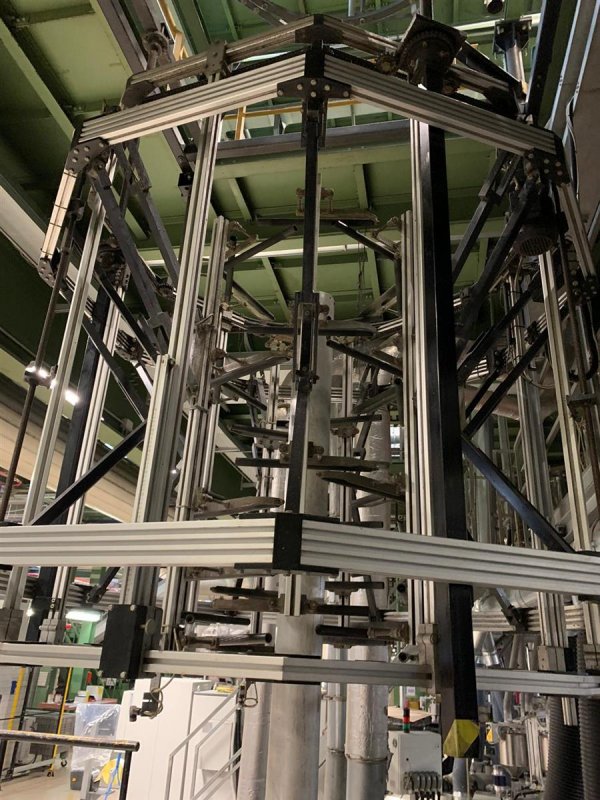

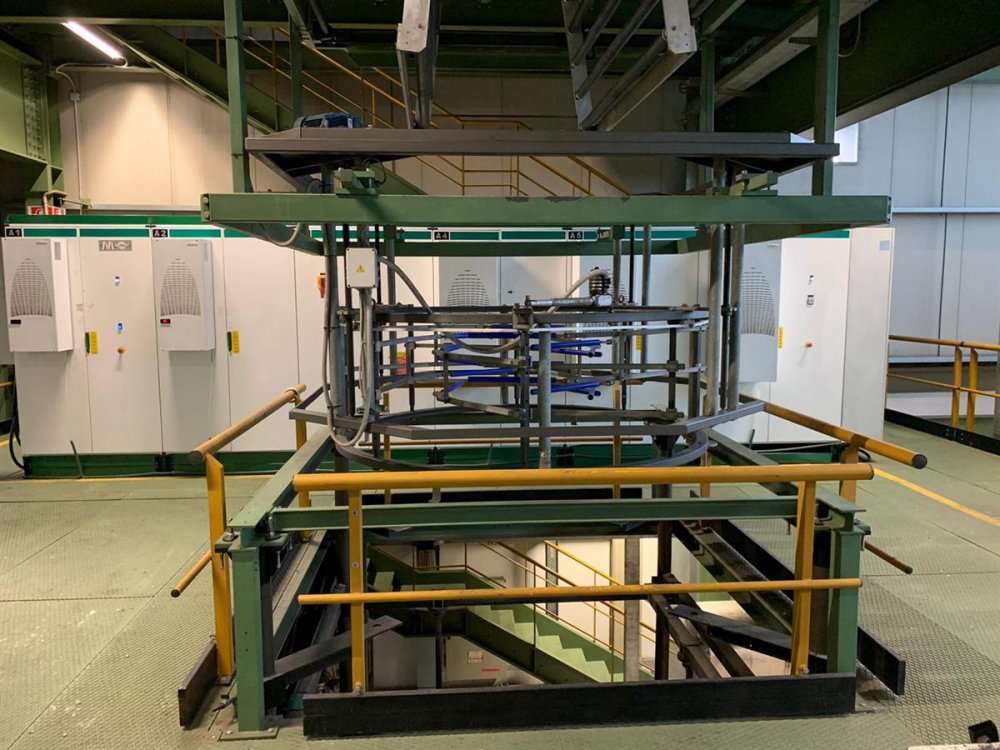

- Bubble cage
- Yes. Automatic

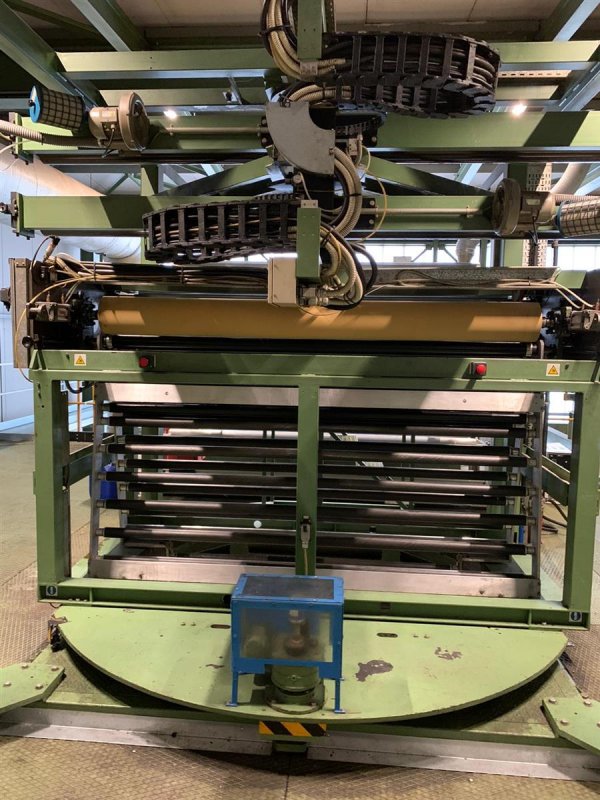

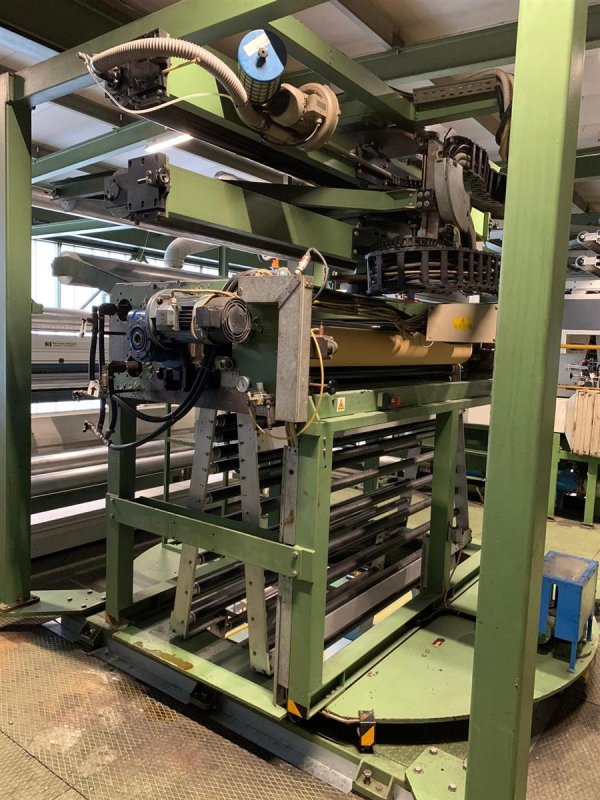

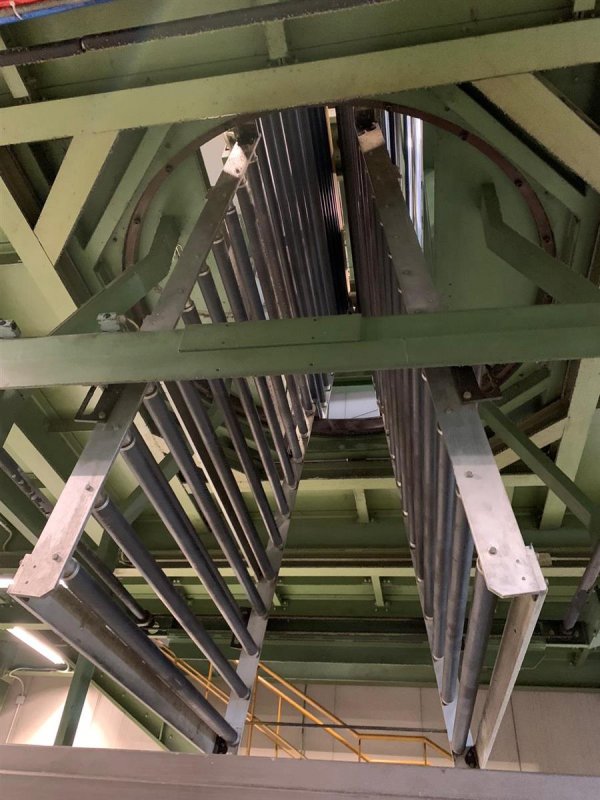

- Take off unit
- Oscillating for 2400mm film width

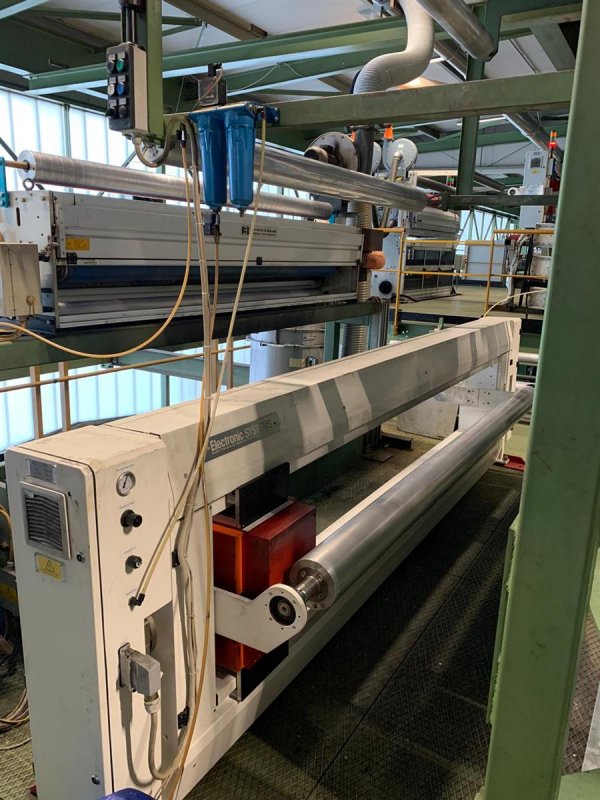

- Corona treatment
- Ferrarini & Benelli
- Web guide
- Yes

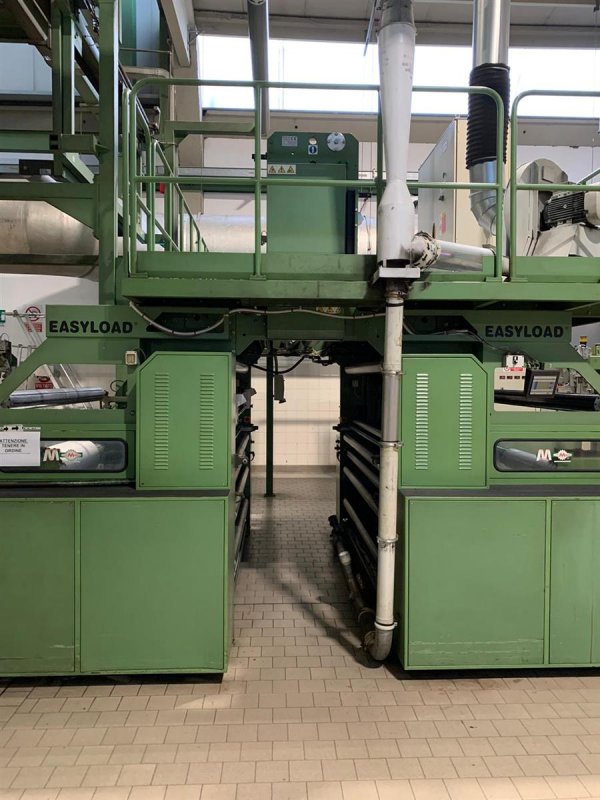

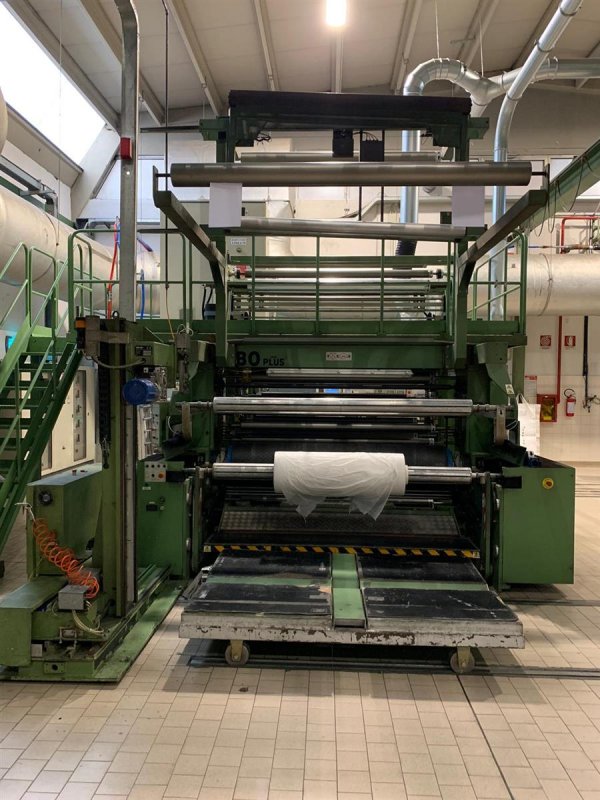

- Rewinder Type
- Double back to back
- Rewinder max reel diameter
- 1000mm

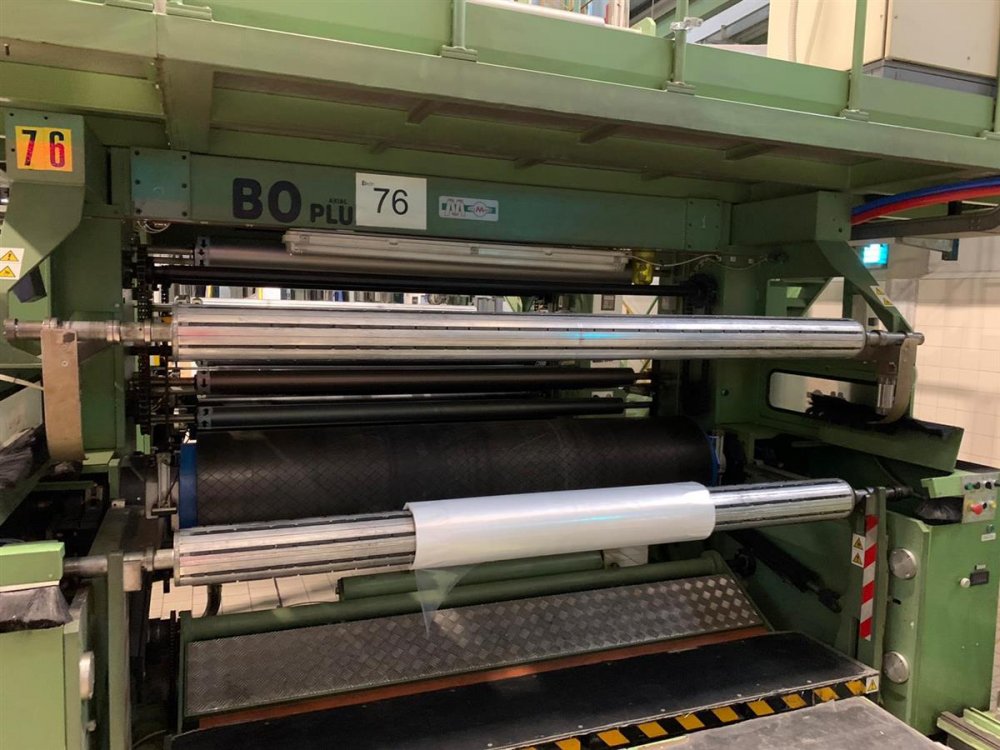

- Rewinder description
- BOPLUS wide 2100mm
- Note
- No supporting tower Gravimetric system Innoplast. components 5-3-2-3-5 Plasmec in line hot regranulator
| Code Machine | EX644 |
| Fabricant | MACCHI |
| Modello | COEX 5 |
| Année | 2015 |
| Number of layers | 5 |
| Overhaul/renovation | 2015 new electronic of winder and haul off which are 2002 year |
| Film structure | ABCDE |
| Material | LDPE,LLDPE,PA,EVOH |
| Film Width | 2100 |
| Output (Kg/h) | 350-400 Kg/h |
| Extruder 1 Layer ref: | 80 |
| Screw diam 1 | 80/30 |
| Extruder 2 Layer ref: | 55 |
| Screw diam 2 | 55/30 |
| Extruder 3 Layer ref: | 55 |
| Screw diam 3 | 55/30 |
| Extruder 4 Layer ref: | 55 |
| Screw diam 4 | 55/30 |
| Extruder 5 Layer ref: | 80 |
| Screw diam 5 | 80/30 |
| Head description | Coex 5 with K Design air ring |
| Die diam (mm) | 350 gap 2.2mm |
| Thickness controll system | Electronic System x rays |
| Bubble cage | Yes. Automatic |
| Take off unit | Oscillating for 2400mm film width |
| Corona treatment | Ferrarini & Benelli |
| Web guide | Yes |
| Rewinder Type | Double back to back |
| Rewinder max reel diameter | 1000mm |
| Rewinder description | BOPLUS wide 2100mm |
| Note | No supporting tower Gravimetric system Innoplast. components 5-3-2-3-5 Plasmec in line hot regranulator |
