- Code Machine
- CA150
- Fabricant
- GAP
- Année
- 2006
- Number of layers
- 3
- Film structure
- ABC
- Material
- Stretch film LLDPE
- Film width (mm)
- 2000
- Output (Kg/h)
- 1000

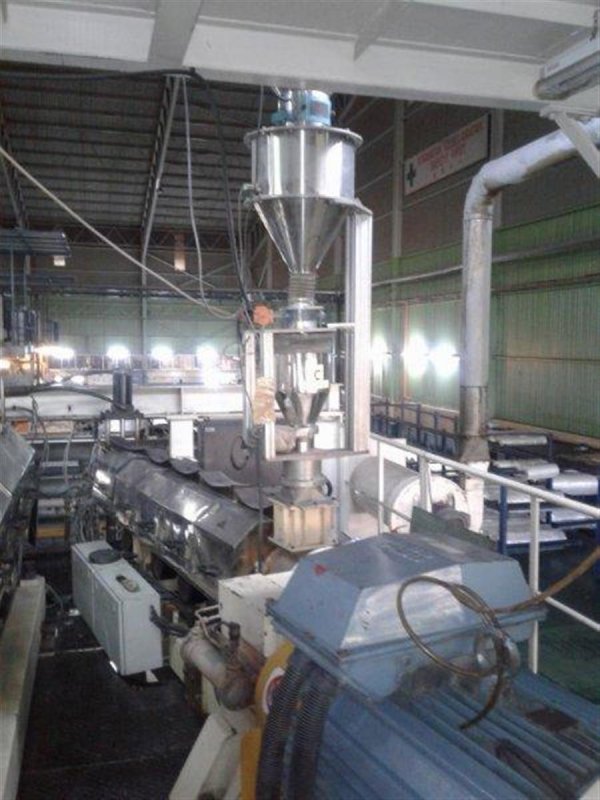

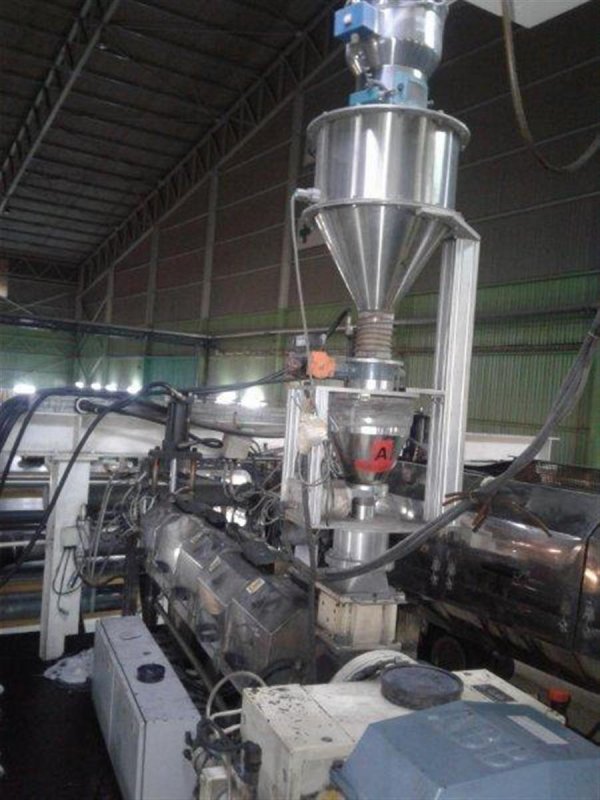

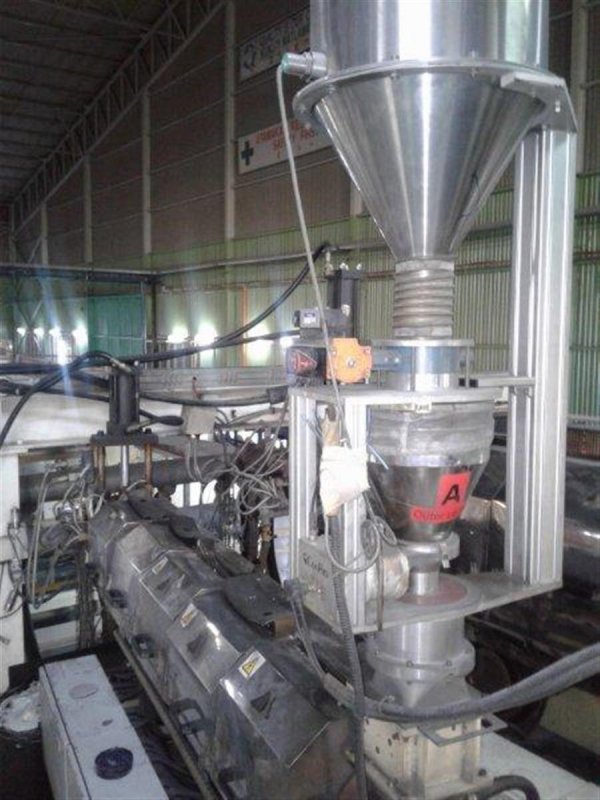

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 90
- Description 1
- single component gravimetric doser, AC motor 132KW

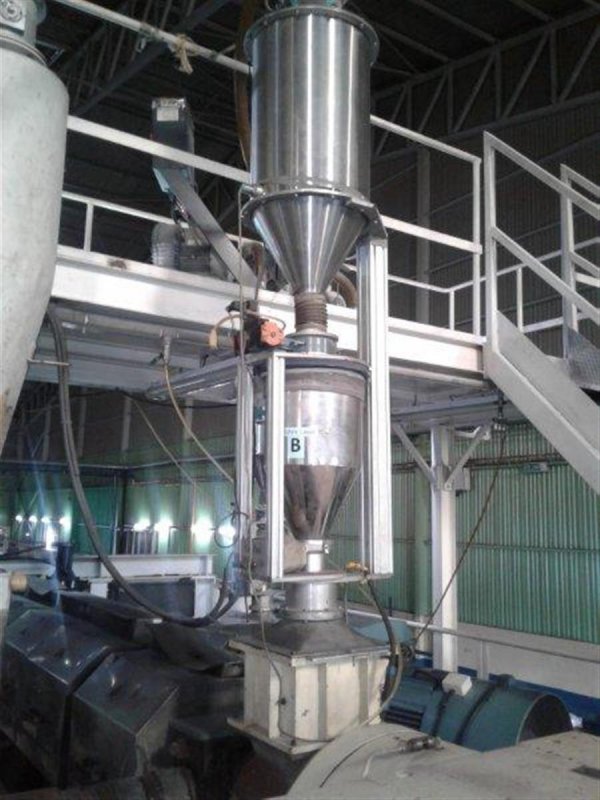

- Extruder 2 Layer ref:
- B
- Screw diam 2
- 170
- Description 2

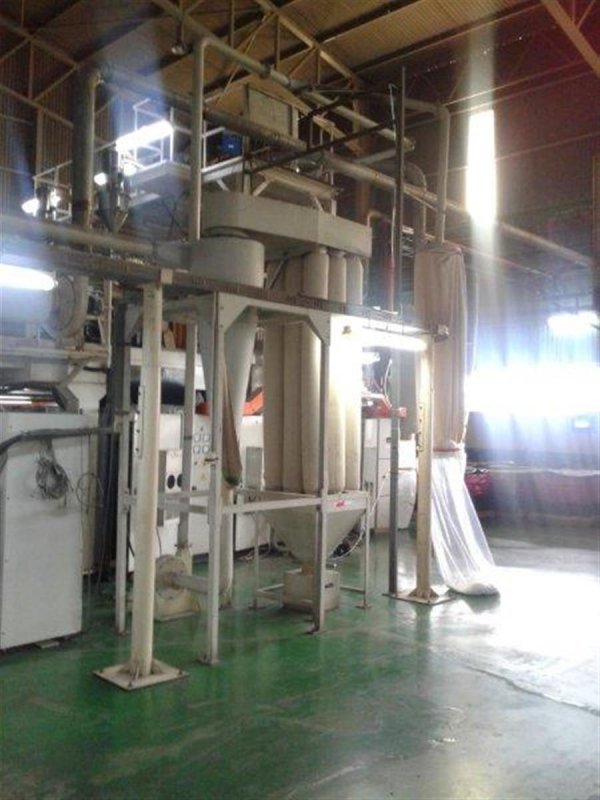

- single component gravimetric doser, AC motor 355KW. Additional small extruder for forced feeding of edge trim recycling
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 90
- Description 3
- single component gravimetric doser, AC motor 132KW

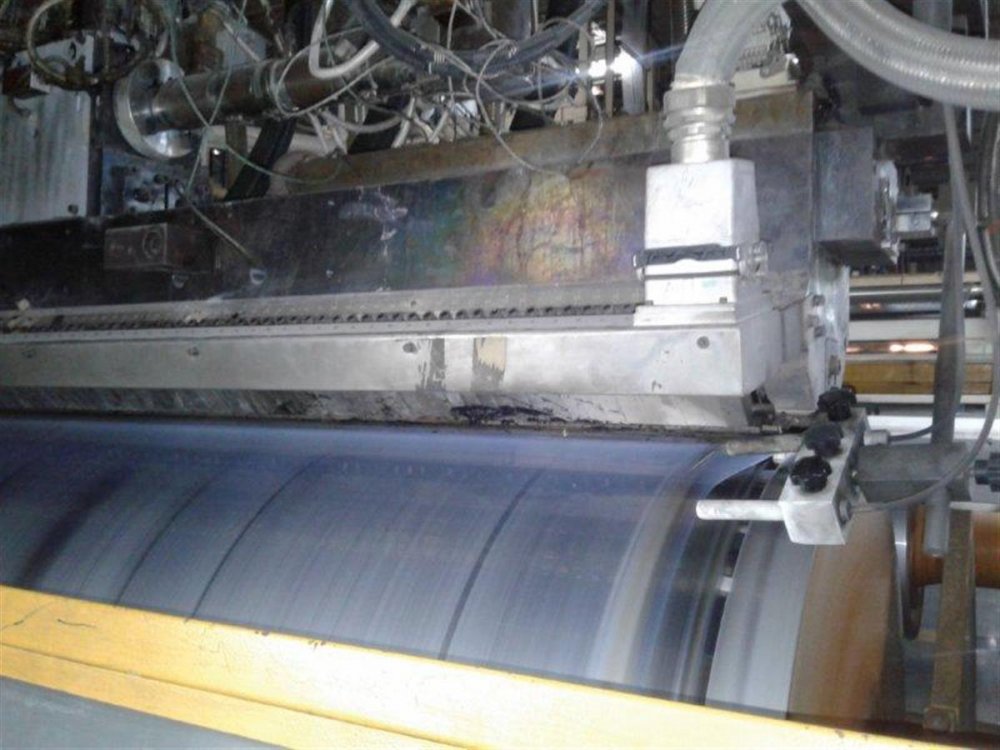

- Head description
- Cloren
- Die width (mm)
- 2500

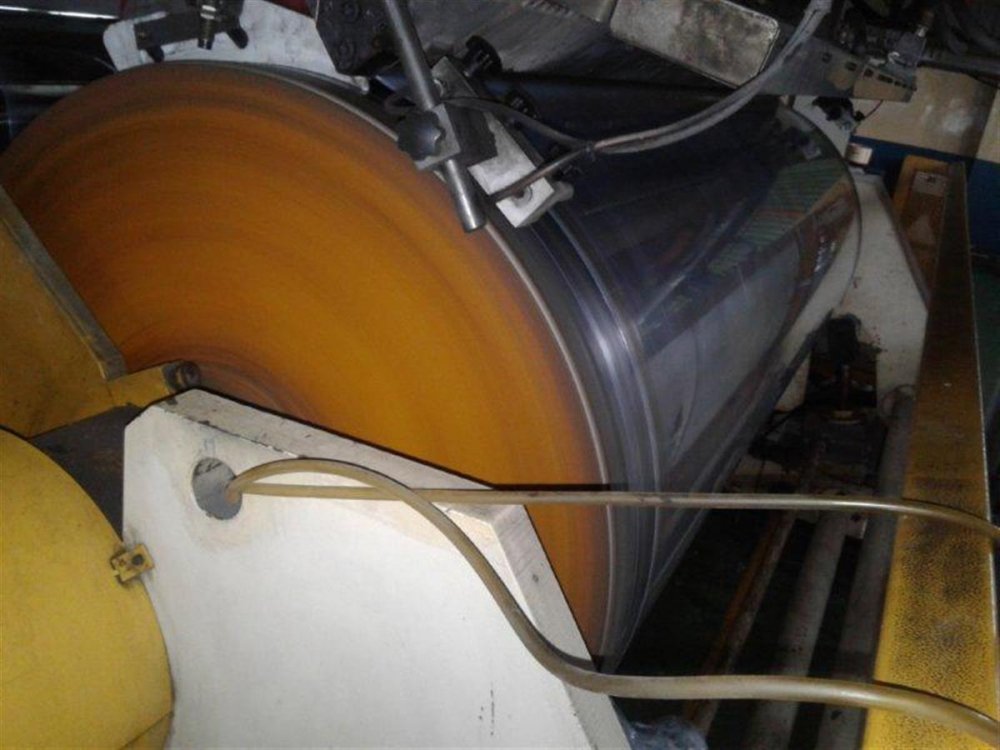

- Chill roll unit
- diam 1000mm. edge pinning, vacuum box
- Thickness controll system
- Scantech with x rays. Automatich thicknes control through thermal bolts and flex lip.
- Web guide
- oscillating device

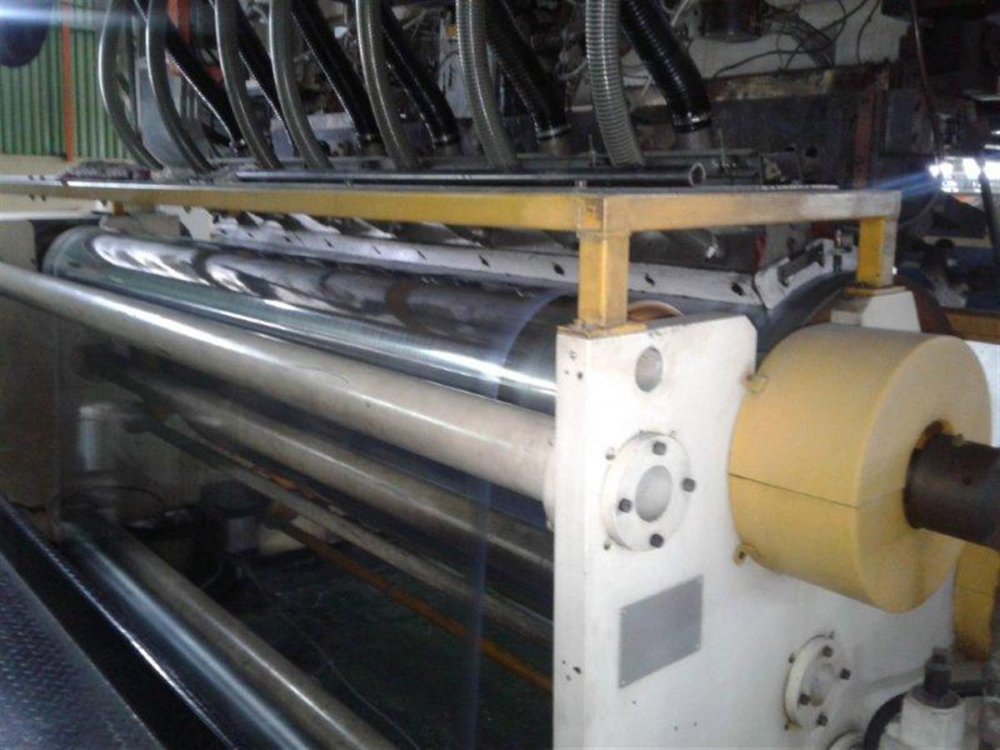

- Rewinder max reel diameter (mm)
- 500

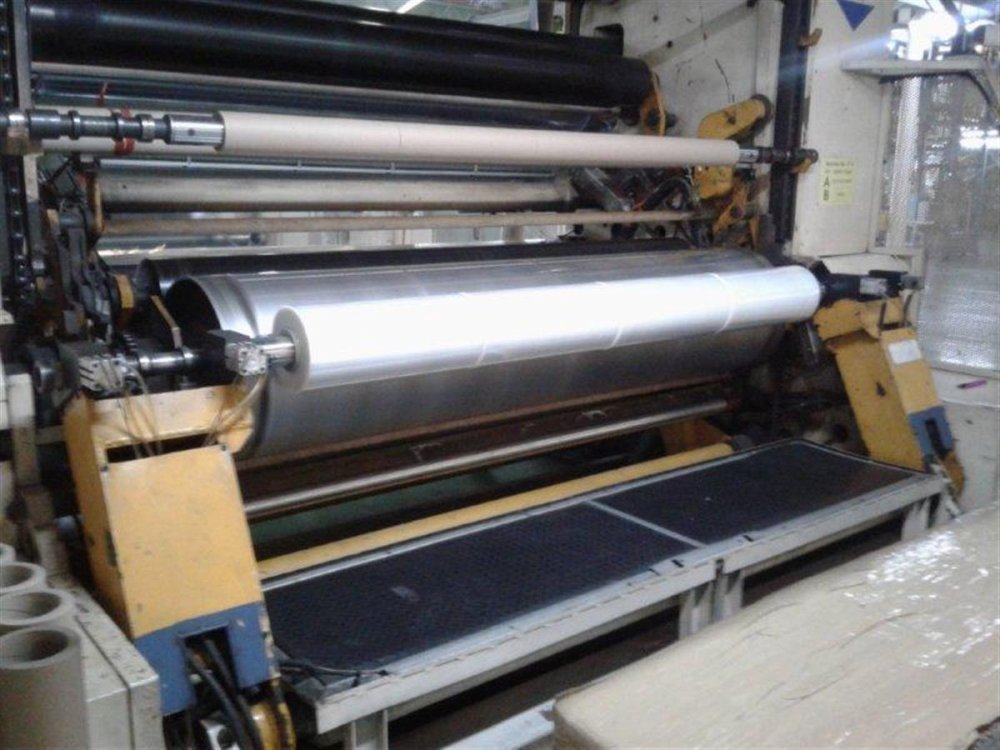

- Rewinder description
- Rewinder for machine reela and jumbo
| Code Machine | CA150 |
| Fabricant | GAP |
| Année | 2006 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | Stretch film LLDPE |
| Film width (mm) | 2000 |
| Output (Kg/h) | 1000 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 90 |
| Description 1 | single component gravimetric doser, AC motor 132KW |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 170 |
| Description 2 | single component gravimetric doser, AC motor 355KW. Additional small extruder for forced feeding of edge trim recycling |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 90 |
| Description 3 | single component gravimetric doser, AC motor 132KW |
| Head description | Cloren |
| Die width (mm) | 2500 |
| Chill roll unit | diam 1000mm. edge pinning, vacuum box |
| Thickness controll system | Scantech with x rays. Automatich thicknes control through thermal bolts and flex lip. |
| Web guide | oscillating device |
| Rewinder max reel diameter (mm) | 500 |
| Rewinder description | Rewinder for machine reela and jumbo |
