- Code Machine
- RO193
- Fabricant
- BOBST ROTOMEC
- Modello
- 4003MP 1200/450/C
- Année
- 2015
- Number of colors
- 10
- Print possibilities
- 8+2, 9+1,10+0
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1225
- Print repeat range (mm)
- 450-920mm
- Drying heat surce
- Thermal oil

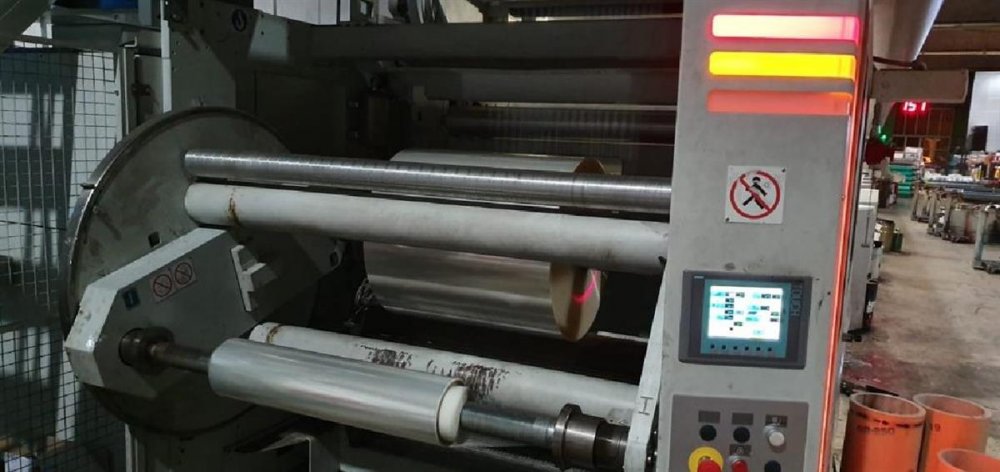

- Unwinder type

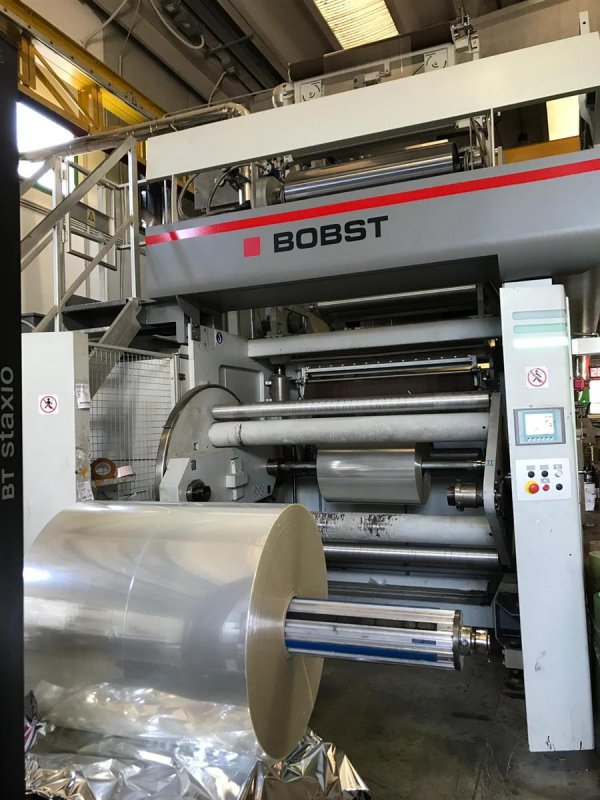

- Duplex automatic
- Max reel diameter unwinder (mm)
- 1020
- Rewinder type

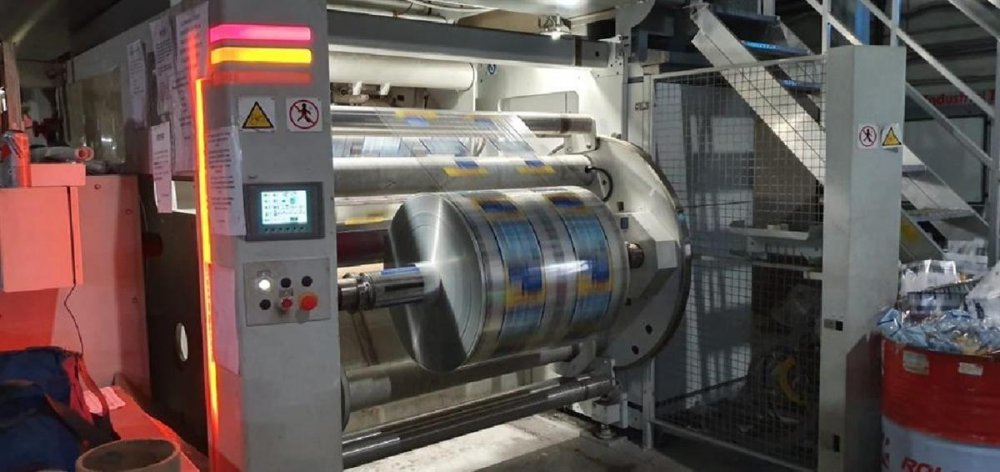

- Duplex automatic
- Max reel diameter rewinder (mm)
- 1020
- Videocamera
- Eltromat WEB I 316 with 100% defect control
- Register controll
- Bobst Registron S6100/HDI
- Vyscosity control
- Available
- Corona treatment
- Yes one side
- Note
- Mech.speed : 450 m/min with 550mm cylinders Paper heating roll 7 coating units with single hood and 3 with double. Totally 20 trolleys. Installed thermal power 600.000 Kg/cal/h 2 oil heaters by gas Turning bar for reverse printing of 2 colour Option : Thermo oil boiler
| Code Machine | RO193 |
| Fabricant | BOBST ROTOMEC |
| Modello | 4003MP 1200/450/C |
| Année | 2015 |
| Number of colors | 10 |
| Print possibilities | 8+2, 9+1,10+0 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1225 |
| Print repeat range (mm) | 450-920mm |
| Drying heat surce | Thermal oil |
| Unwinder type | Duplex automatic |
| Max reel diameter unwinder (mm) | 1020 |
| Rewinder type | Duplex automatic |
| Max reel diameter rewinder (mm) | 1020 |
| Videocamera | Eltromat WEB I 316 with 100% defect control |
| Register controll | Bobst Registron S6100/HDI |
| Vyscosity control | Available |
| Corona treatment | Yes one side |
| Note | Mech.speed : 450 m/min with 550mm cylinders Paper heating roll 7 coating units with single hood and 3 with double. Totally 20 trolleys. Installed thermal power 600.000 Kg/cal/h 2 oil heaters by gas Turning bar for reverse printing of 2 colour Option : Thermo oil boiler |
