- Code Machine
- FL1226
- Fabricant
- BOBST FISCHER & KRECKE
- Modello
- 20 Six
- Année
- 2014
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1250
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic Shaftless with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic Shaftless with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , 6 m6 tunnel , 2 Gas burners, Automatic air recirculating system with LEL control cathalitic type by Heck
- Videocamera
- Yes AVT with 100% inspection
- Corona treatment
- AFS Single Side 6KW
- Web guides
- Yes
- Vyscosity control
- Yes, Inkspec 3 solvents
- Washing system
- Yes, automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 38 aniloxes
- Print Sleeves
- 400 sleeves, 36 pcs of adaptors
- Note
- Max. mechanical speed - 400m/min Smart GPS system plate mounter included Materials: PE, OPP, CPP, PA, PET, papier Inline slitting, medium cut only
| Code Machine | FL1226 |
| Fabricant | BOBST FISCHER & KRECKE |
| Modello | 20 Six |
| Année | 2014 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1250 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic Shaftless with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic Shaftless with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , 6 m6 tunnel , 2 Gas burners, Automatic air recirculating system with LEL control cathalitic type by Heck |
| Videocamera | Yes AVT with 100% inspection |
| Corona treatment | AFS Single Side 6KW |
| Web guides | Yes |
| Vyscosity control | Yes, Inkspec 3 solvents |
| Washing system | Yes, automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 38 aniloxes |
| Print Sleeves | 400 sleeves, 36 pcs of adaptors |
| Note | Max. mechanical speed - 400m/min Smart GPS system plate mounter included Materials: PE, OPP, CPP, PA, PET, papier Inline slitting, medium cut only |
NOVAGRAF FL 8000
-
Code Machine: FL1143
-
Année: 2007
-
Web width (mm): 1350
BIELLONI Bielloflex GALA
-
Code Machine: FL1149
-
Année: 1992
-
Web width (mm): 1480
OFEM Colombus 7/806
-
Code Machine: FL1099
-
Année: 1998
-
Web width (mm): 1270

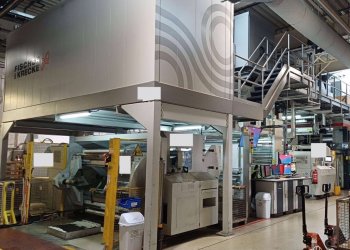

BOBST FISCHER & KRECKE FP16 - S10
-
