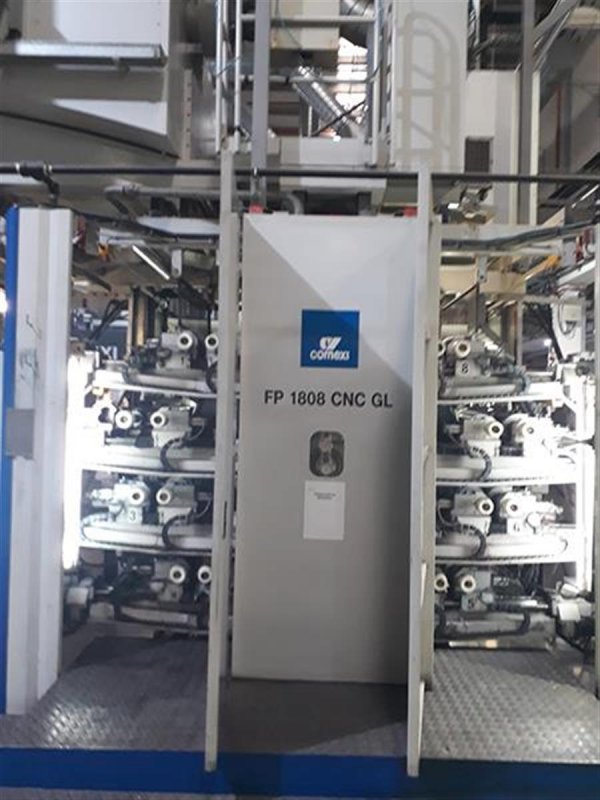

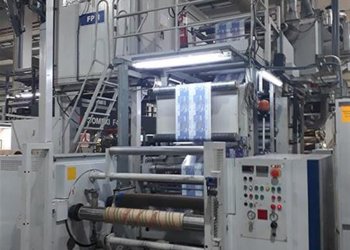

COMEXI FP 1808 CNC GL Imprimeus Flexo 8 couleurs

Code Machine
FL953
Fabricant
COMEXI
Modello
FP 1808 CNC GL
Année
2003
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

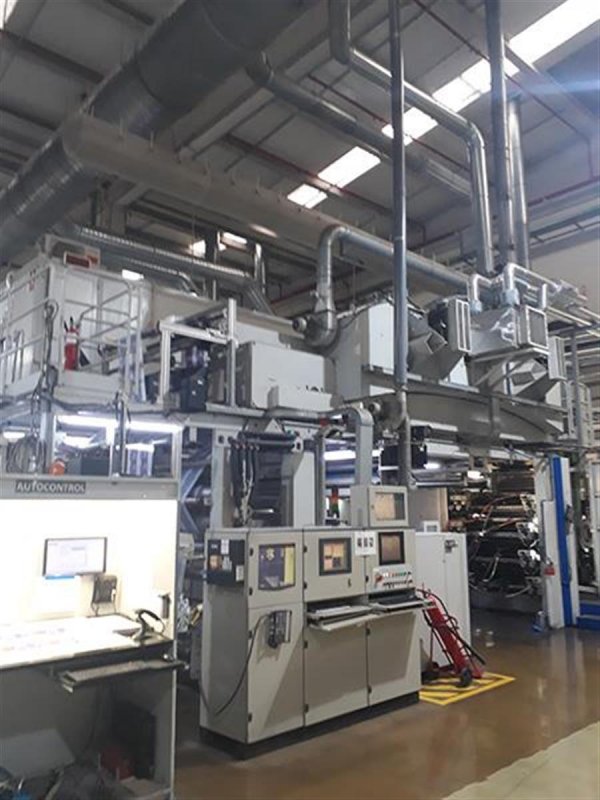

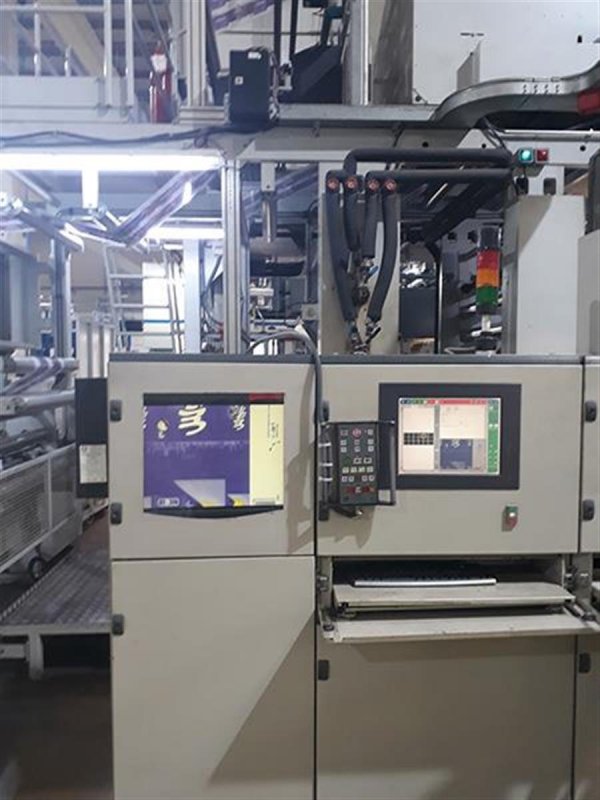

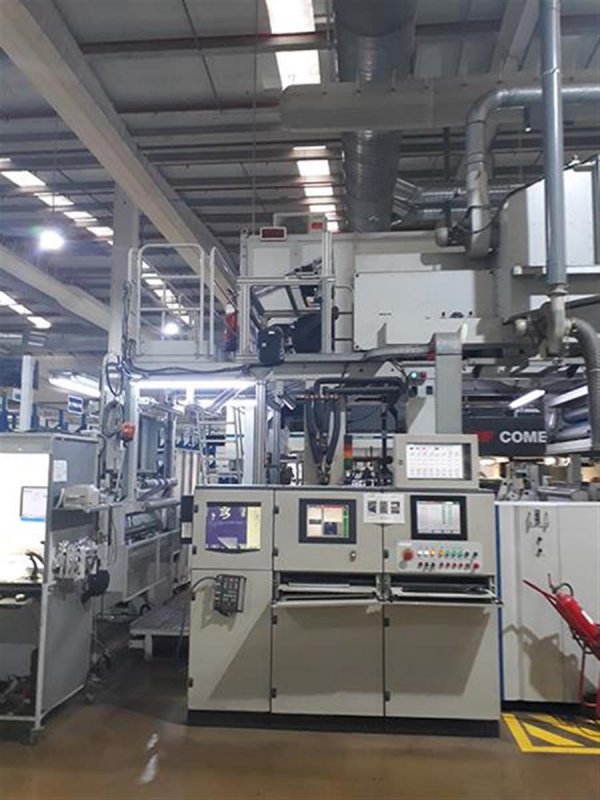

Computer supervision
Yes
Web width (mm)
1070
Print width (mm)
1020
Min print repeat (mm)
330
Max print repeat (mm)
680

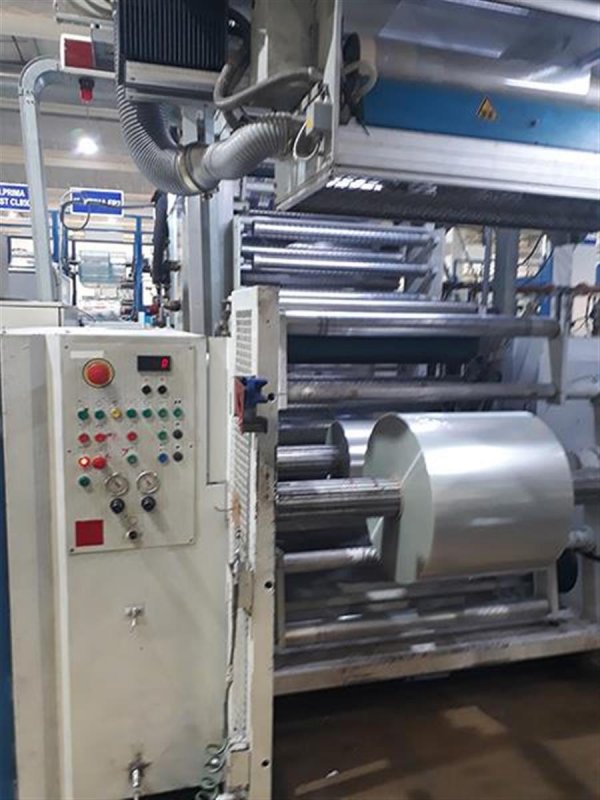

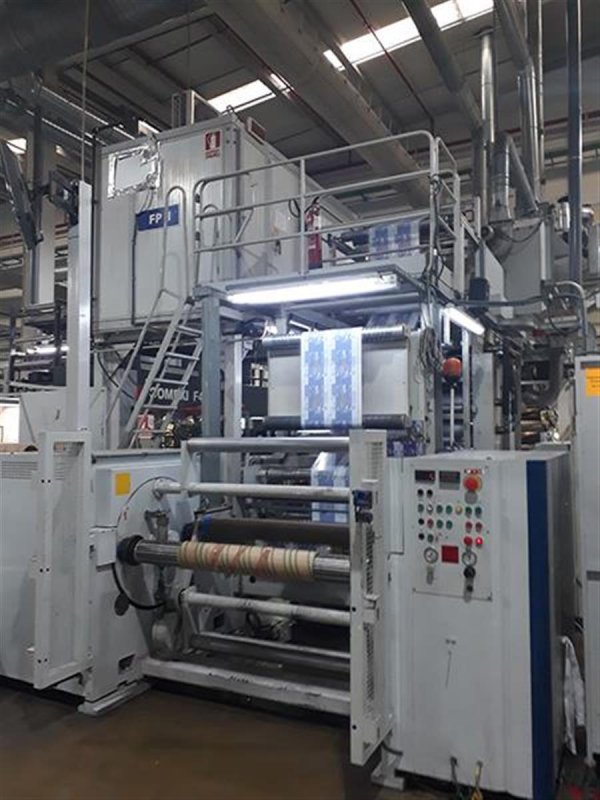

Unwinder type
Turret
Max reel diameter unwinder (mm)
800
Rewinder type
Turret
Max reel diameter rewinder (mm)
800

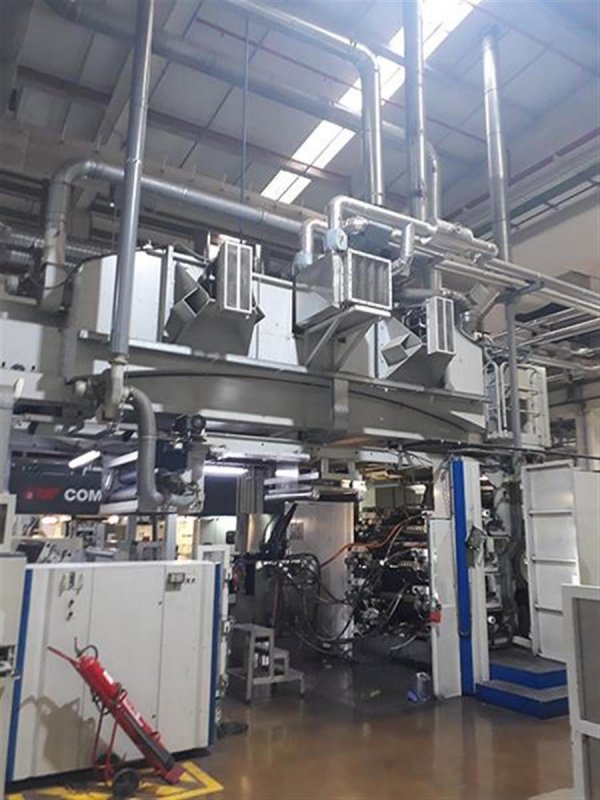

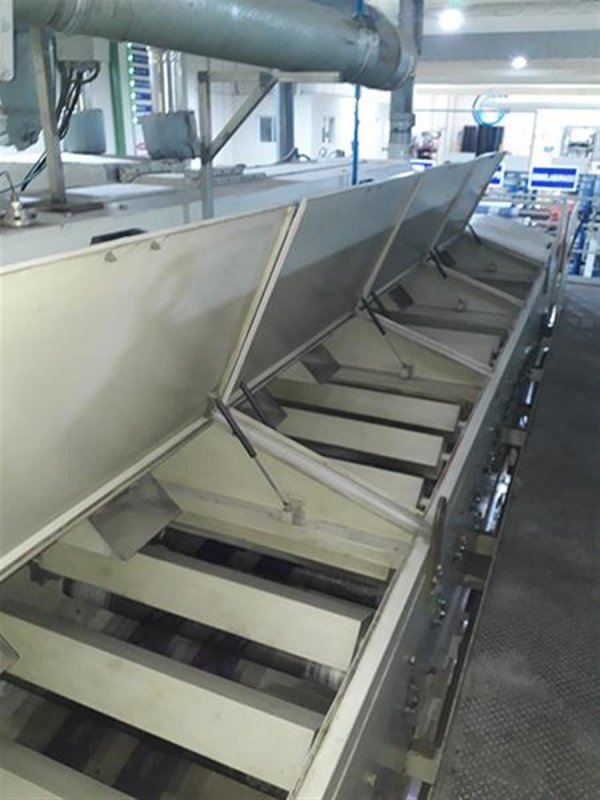

Drying
Termic Oil burners

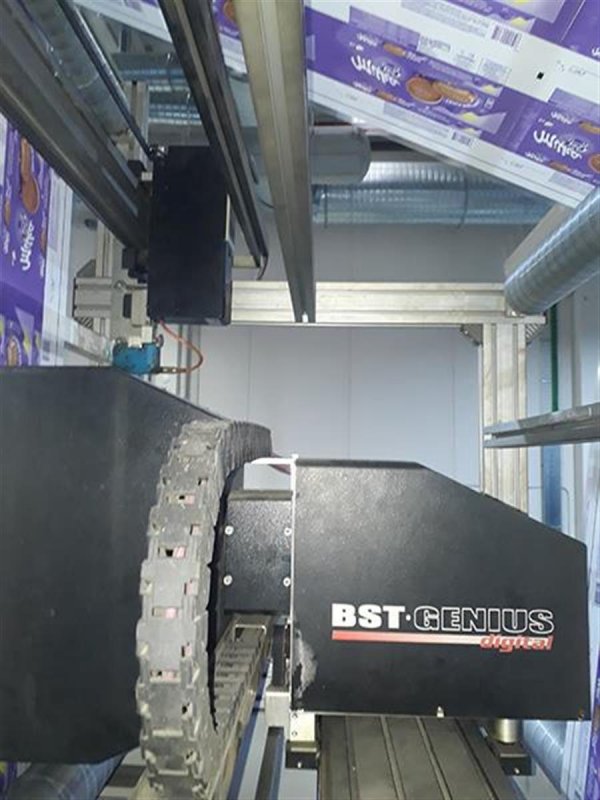

Videocamera
BST, model GENIUS
Corona treatment
Yes, SOFTAL

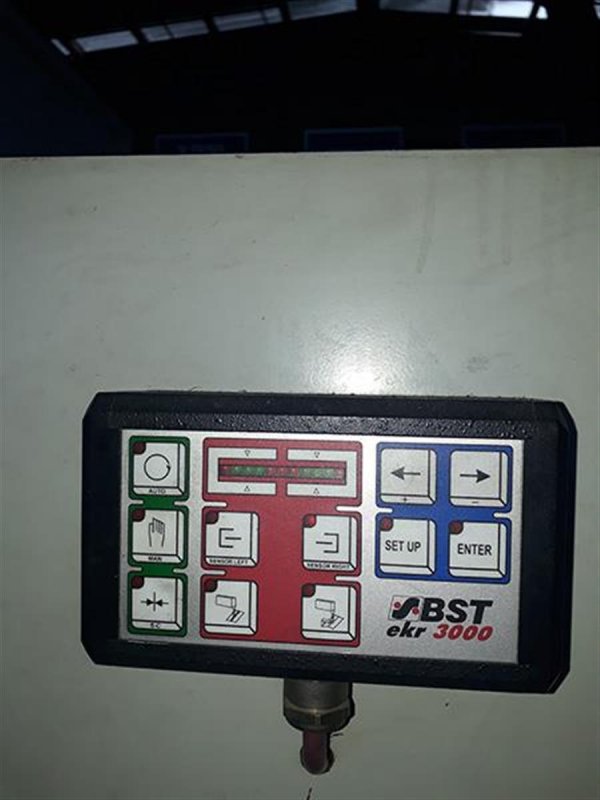

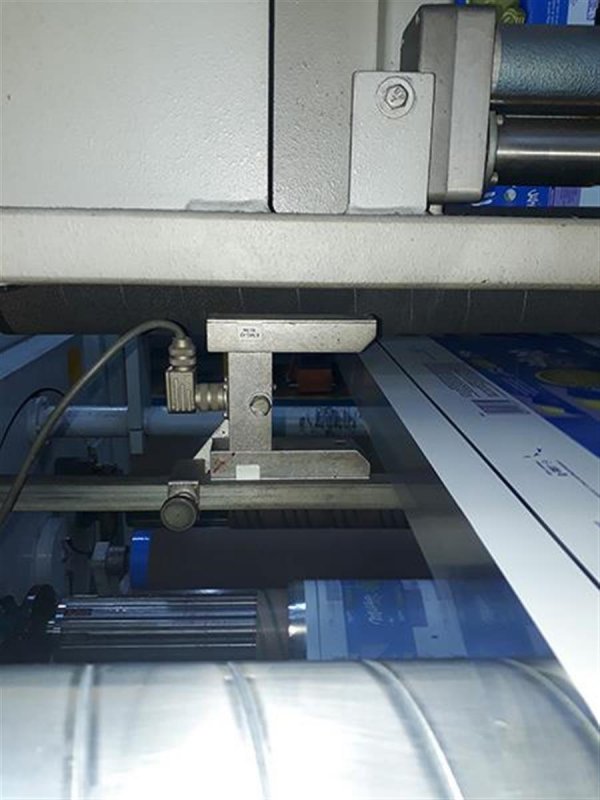

Web guides
BST type OPG before and after printing, ultrasonic sensor 2 Lel indicators.
Vyscosity control
Inelme viscosimeters
Washing system
Automatic device for individual or simultaneous cleaning of colors.

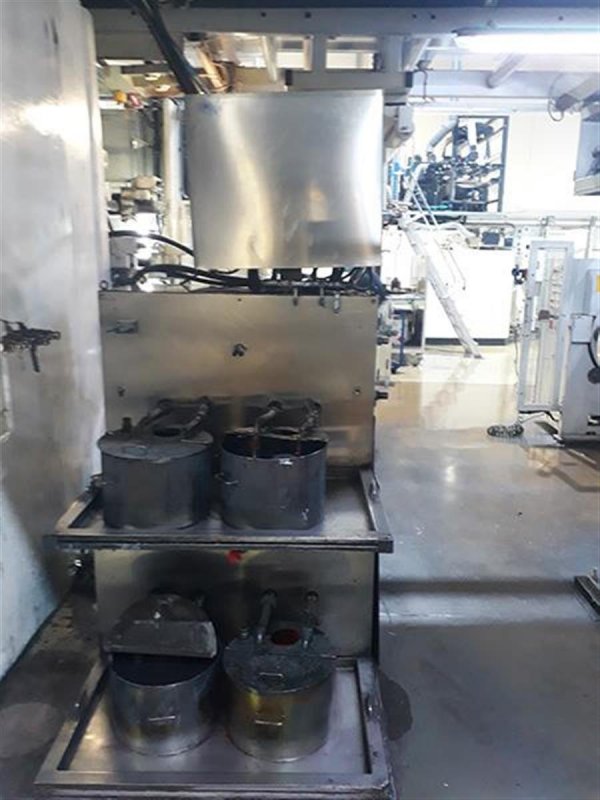

Inking system
Inks pumps + self cleaning including; pneumatic recirculating ink - pumps with reversible fluid flow system; ink tanks, stainless steel, 20 l.

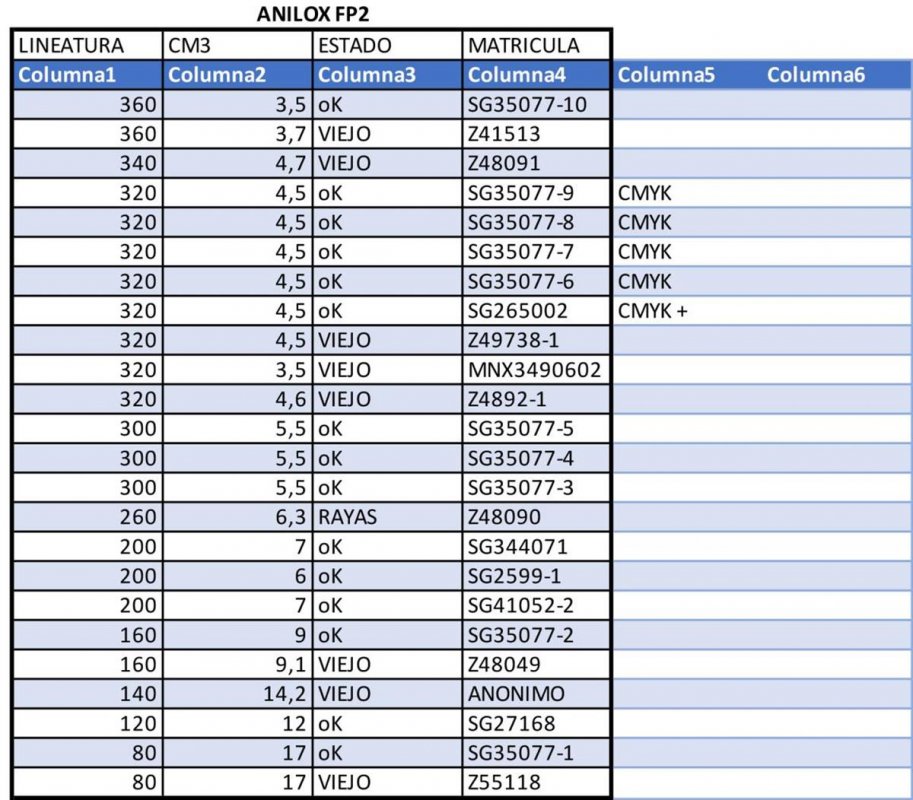

Anilox
2x360, 1x340, 8x320, 3x300, 1x260, 3x200, 2x160, 1x140, 1x120, 2x80.

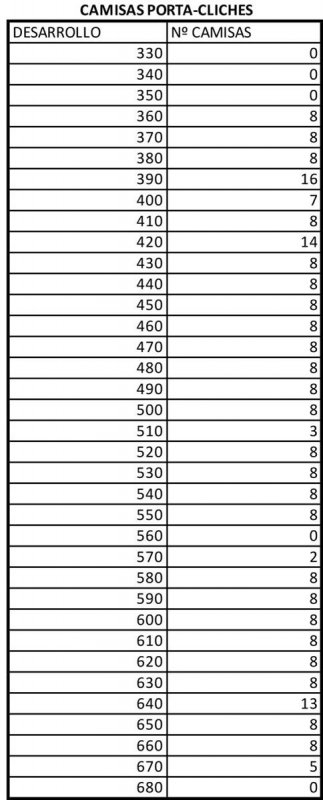

Print Sleeves
330 - 680
Note
Materials: Films PE, OPP and similar films. Thicknes: min 25 micras - max 100 micras Speed: 350 m/min Motorized lateral register; Core diam: Unwinder: 152 mm - Rewinder: 76 and 152 mm. Tension range: 2/30 Kgs. Inks pumps + self cleaning including: pneumatic recirculating ink-pumps with reversible fluid flow system Ink Tanks, stainless steel, 20 l. Electronic control, valves and pneumatic controls.
Code Machine FL953
Fabricant COMEXI
Modello FP 1808 CNC GL
Année 2003
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1070
Print width (mm) 1020
Min print repeat (mm) 330
Max print repeat (mm) 680
Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Turret
Max reel diameter rewinder (mm) 800
Drying Termic Oil burners
Videocamera BST, model GENIUS
Corona treatment Yes, SOFTAL
Web guides BST type OPG before and after printing, ultrasonic sensor 2 Lel indicators.
Vyscosity control Inelme viscosimeters
Washing system Automatic device for individual or simultaneous cleaning of colors.
Inking system Inks pumps + self cleaning including; pneumatic recirculating ink - pumps with reversible fluid flow system; ink tanks, stainless steel, 20 l.
Anilox 2x360, 1x340, 8x320, 3x300, 1x260, 3x200, 2x160, 1x140, 1x120, 2x80.
Print Sleeves 330 - 680
Note Materials: Films PE, OPP and similar films. Thicknes: min 25 micras - max 100 micras Speed: 350 m/min Motorized lateral register; Core diam: Unwinder: 152 mm - Rewinder: 76 and 152 mm. Tension range: 2/30 Kgs. Inks pumps + self cleaning including: pneumatic recirculating ink-pumps with reversible fluid flow system Ink Tanks, stainless steel, 20 l. Electronic control, valves and pneumatic controls.
** SOLD **
