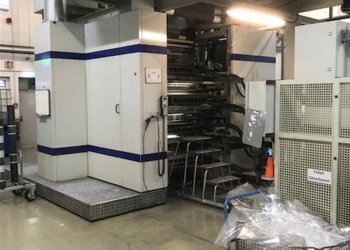

FISCHER & KRECKE F16 S Imprimeus Flexo 8 couleurs

Code Machine
FL888
Fabricant
FISCHER & KRECKE
Modello
F16 S
Année
2006
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1300
Print width (mm)
1250
Min print repeat (mm)
320
Max print repeat (mm)
800
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret Rewinder
Max reel diameter rewinder (mm)
1000
Drying
2 zones drying system 4 fans 2 gas burners
Videocamera
yes
Web guides
in and out
Vyscosity control
Yes included
Washing system
Yes
Inking system
Closed chamber doctor blades
Anilox
totally 24 ceramic anilox sleeves as follows : 4 x 450 L/cm -vol 3,5 ; 7 x350 L/cm- vol.5,5 ; 1x 280 L/cm ; 2 x 255 L/cm ; 1 x 240 L/cm ; 2 x 200 L/cm ; 1 x180 L/cm ; 3x 140 L/cm ; 1x 110 L/cm ; 1x 100 L/cm
Print Sleeves
totally 360 sleeves repeat between 360 mm and 760 mmm
Code Machine FL888
Fabricant FISCHER & KRECKE
Modello F16 S
Année 2006
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1300
Print width (mm) 1250
Min print repeat (mm) 320
Max print repeat (mm) 800
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Rewinder
Max reel diameter rewinder (mm) 1000
Drying 2 zones drying system 4 fans 2 gas burners
Videocamera yes
Web guides in and out
Vyscosity control Yes included
Washing system Yes
Inking system Closed chamber doctor blades
Anilox totally 24 ceramic anilox sleeves as follows : 4 x 450 L/cm -vol 3,5 ; 7 x350 L/cm- vol.5,5 ; 1x 280 L/cm ; 2 x 255 L/cm ; 1 x 240 L/cm ; 2 x 200 L/cm ; 1 x180 L/cm ; 3x 140 L/cm ; 1x 110 L/cm ; 1x 100 L/cm
Print Sleeves totally 360 sleeves repeat between 360 mm and 760 mmm
** SOLD **
