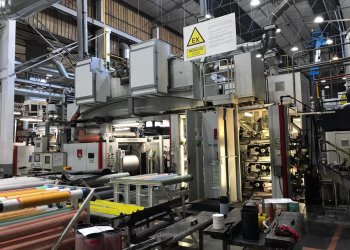

- Code Machine
- FL923
- Fabricant
- COMEXI
- Modello
- FP1808 GL
- Année
- 2003
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1070
- Print width (mm)
- 1020
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 700
- Unwinder type
- Turret automatic non stop with roll lifting system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic non stop with roll lifting system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans, 5 mt final tunnel , 2 gas burners , automatic recirculation system with LEL solvent coontrol
- Videocamera
- Yes ELTROMAT Meshcon
- Corona treatment
- yes SHERMAN
- Web guides
- Yes in and out OPG system
- Vyscosity control
- Yes Inelme SICCT
- Washing system
- Automatic wash up system
- Inking system
- Closed chamber doctor blades and ceramic anilox sleeves
- Anilox
- 26 ceramic anilox sleeves as follows : 2x 80 l/cm-vol.14 ; 2x 120 l/cm-vol.11; 1x 140 l/cm-vol.9 ; 2x 160 l/cm-vol.8,5 ; 2x 200 l/cm-vol.7,5 ; 6x 320 l/cm-vol.4,1; 1x 320 l/cm-vol.4,9 ; 8x 420 l/cm-vol.3,7 ;
- Print Sleeves
- 40 as follows : 8 each following repeats: 380 mm, 400 , 450 , 580 , 590
| Code Machine | FL923 |
| Fabricant | COMEXI |
| Modello | FP1808 GL |
| Année | 2003 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1070 |
| Print width (mm) | 1020 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 700 |
| Unwinder type | Turret automatic non stop with roll lifting system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic non stop with roll lifting system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4 fans, 5 mt final tunnel , 2 gas burners , automatic recirculation system with LEL solvent coontrol |
| Videocamera | Yes ELTROMAT Meshcon |
| Corona treatment | yes SHERMAN |
| Web guides | Yes in and out OPG system |
| Vyscosity control | Yes Inelme SICCT |
| Washing system | Automatic wash up system |
| Inking system | Closed chamber doctor blades and ceramic anilox sleeves |
| Anilox | 26 ceramic anilox sleeves as follows : 2x 80 l/cm-vol.14 ; 2x 120 l/cm-vol.11; 1x 140 l/cm-vol.9 ; 2x 160 l/cm-vol.8,5 ; 2x 200 l/cm-vol.7,5 ; 6x 320 l/cm-vol.4,1; 1x 320 l/cm-vol.4,9 ; 8x 420 l/cm-vol.3,7 ; |
| Print Sleeves | 40 as follows : 8 each following repeats: 380 mm, 400 , 450 , 580 , 590 |
