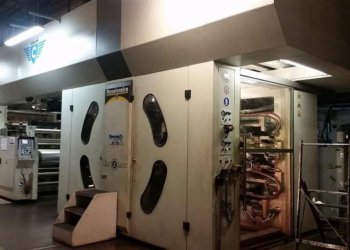

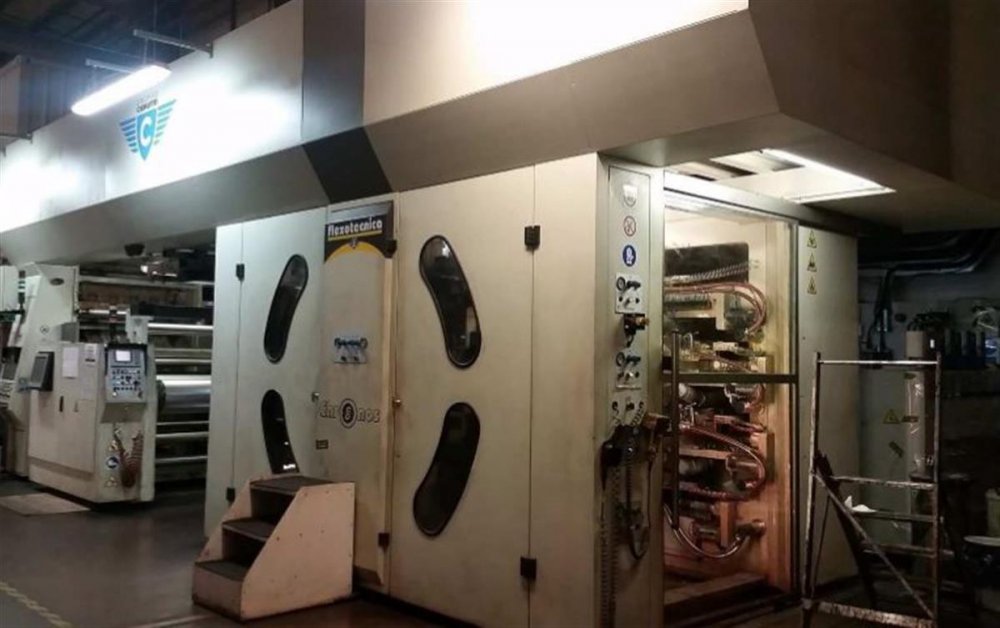

FLEXOTECNICA CHRONOS Imprimeus Flexo 8 couleurs

Code Machine
FL666
Fabricant
FLEXOTECNICA
Modello
CHRONOS
Année
2007
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
370
Max print repeat (mm)
800
Unwinder type
Flying splice turret for reels 1000 mm diameter
Max reel diameter unwinder (mm)
1000
Rewinder type
Flying splice turret for reels 1000 mm diameter
Max reel diameter rewinder (mm)
1000
Drying
Heated Air 2 zones gas burners
Videocamera
video inspection system AVT-Jupiter/Dual mode with pREgister automatic register pre-setting
Web guides
YES
Vyscosity control
YES
Washing system
Automatic wash-up system for 8 print units.
Inking system
Ink pumping
Anilox
Anilox sleeves ceramic coated and laser engraved. Specifications to be discussed among those on stock by the seller.
Print Sleeves
Print sleeves as following: 16 sleeves for print repeats 375 mm.; 8 sleeves for print repeats 400 mm.; 8 sleeves for print repeats 410 mm.; 8 sleeves for print repeats 425 mm.; 8 sleeves for print repeats 445 mm.; 8 sleeves for print repeats 470 mm.; 8 sleeves for print repeats 480 mm.; 16 sleeves for print repeats 490 mm
Note
8 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print section; 8 bridge sleeves external diameter 152,905 mm. for the print section Motorized registers
Code Machine FL666
Fabricant FLEXOTECNICA
Modello CHRONOS
Année 2007
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 370
Max print repeat (mm) 800
Unwinder type Flying splice turret for reels 1000 mm diameter
Max reel diameter unwinder (mm) 1000
Rewinder type Flying splice turret for reels 1000 mm diameter
Max reel diameter rewinder (mm) 1000
Drying Heated Air 2 zones gas burners

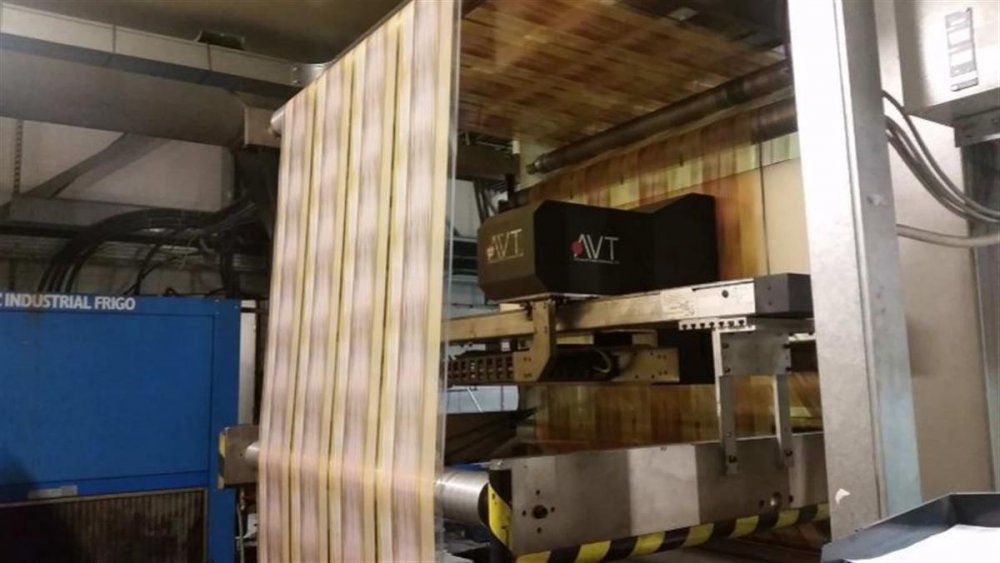

Videocamera video inspection system AVT-Jupiter/Dual mode with pREgister automatic register pre-setting
Web guides YES
Vyscosity control YES
Washing system Automatic wash-up system for 8 print units.
Inking system Ink pumping
Anilox Anilox sleeves ceramic coated and laser engraved. Specifications to be discussed among those on stock by the seller.
Print Sleeves Print sleeves as following: 16 sleeves for print repeats 375 mm.; 8 sleeves for print repeats 400 mm.; 8 sleeves for print repeats 410 mm.; 8 sleeves for print repeats 425 mm.; 8 sleeves for print repeats 445 mm.; 8 sleeves for print repeats 470 mm.; 8 sleeves for print repeats 480 mm.; 16 sleeves for print repeats 490 mm
Note 8 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print section; 8 bridge sleeves external diameter 152,905 mm. for the print section Motorized registers
** SOLD **
