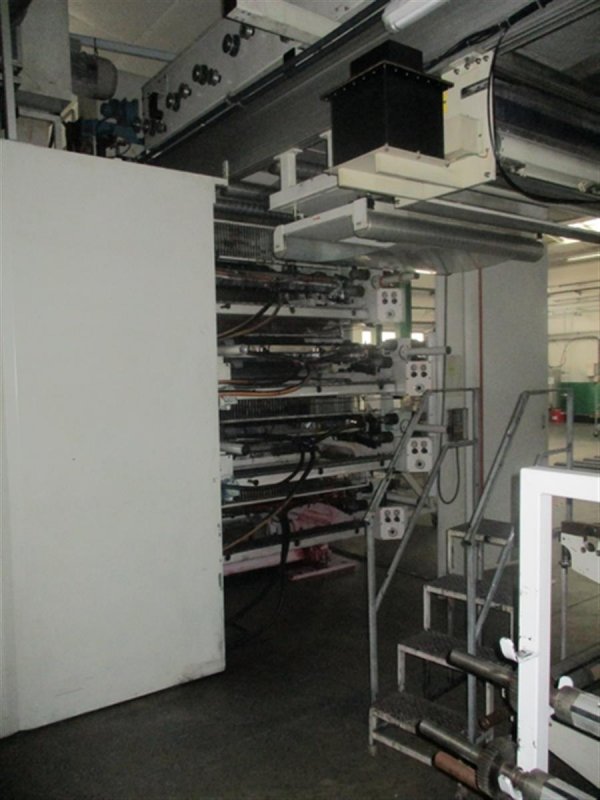

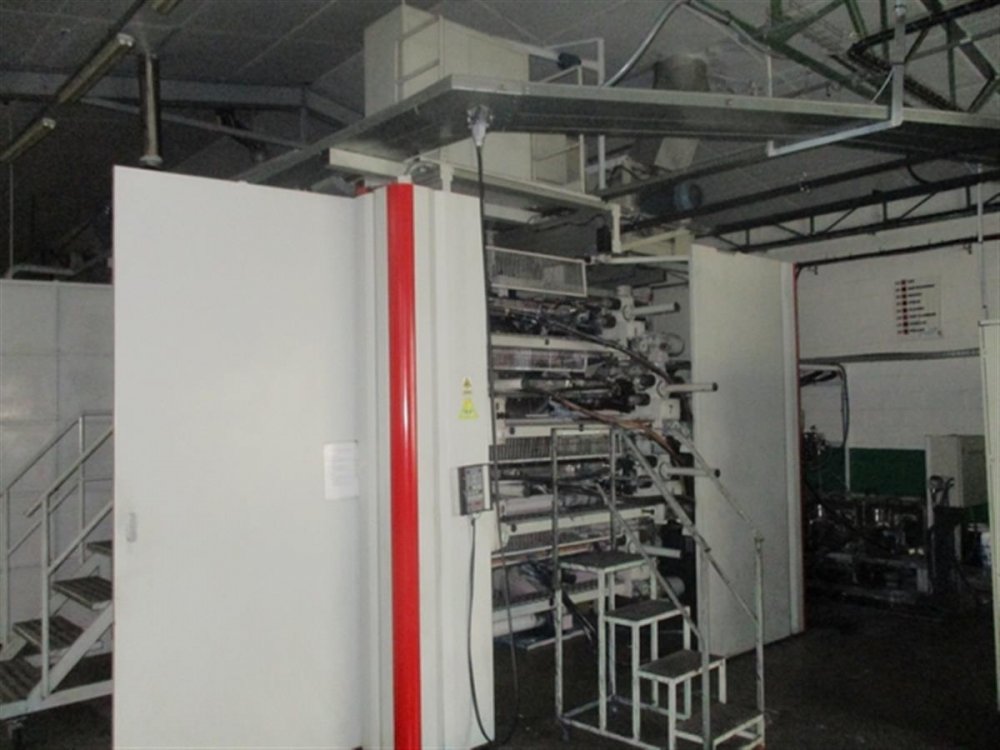

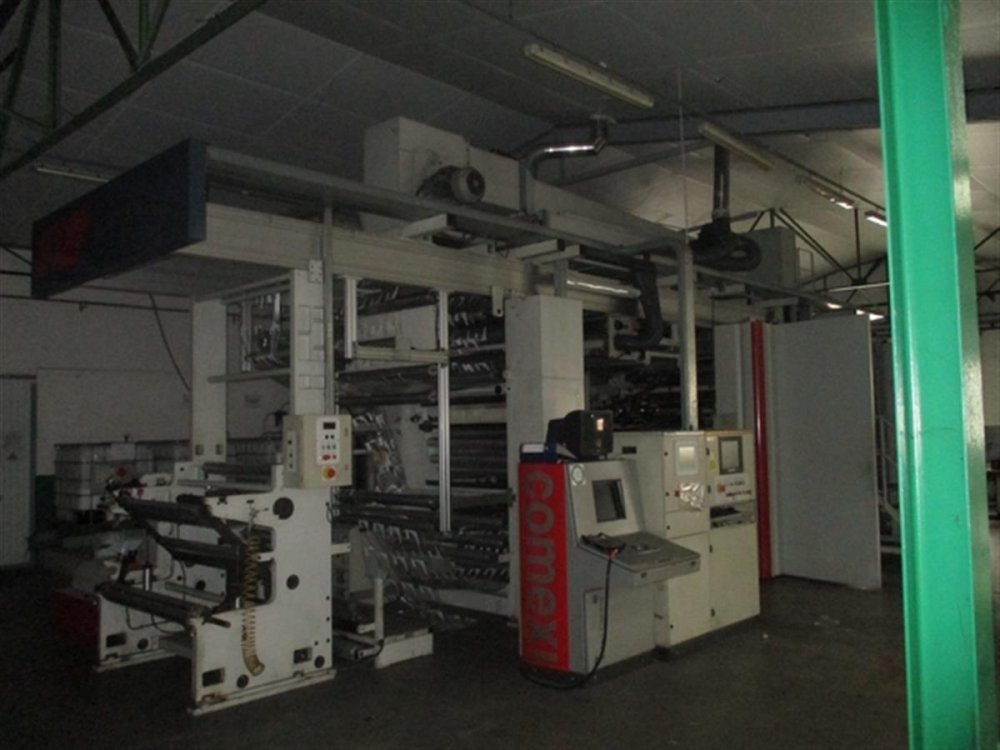

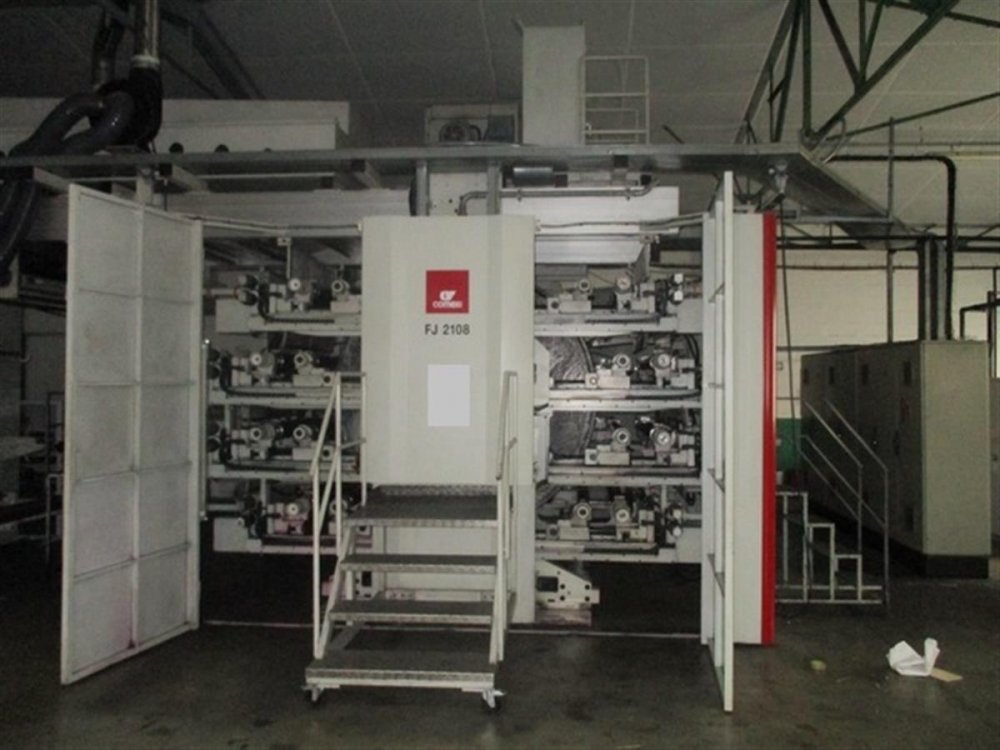

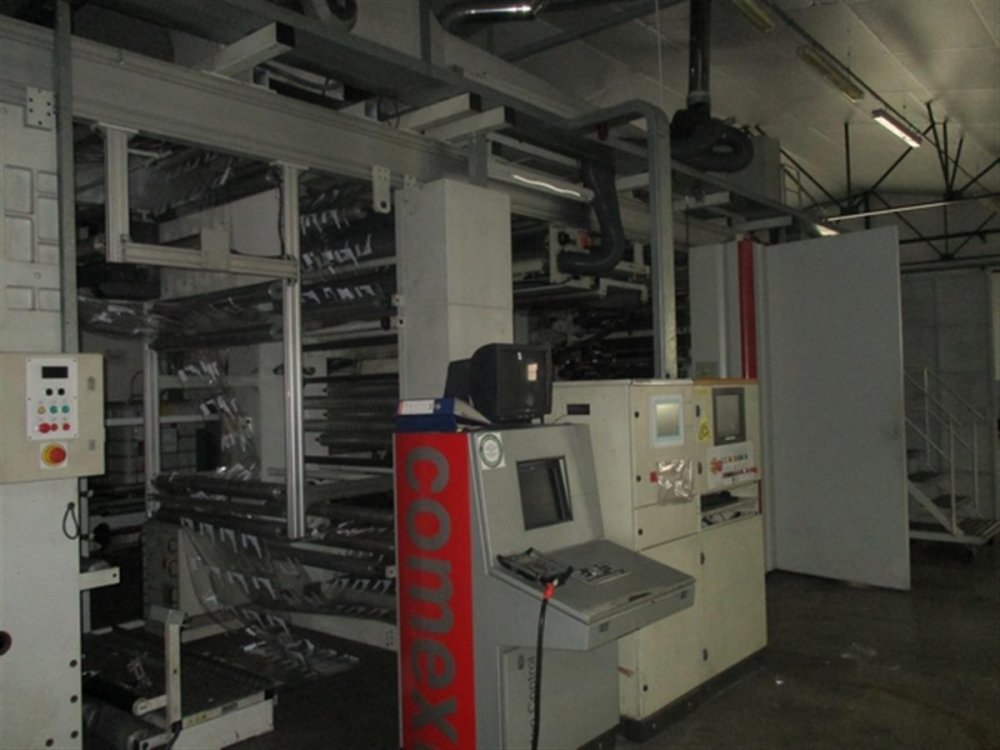

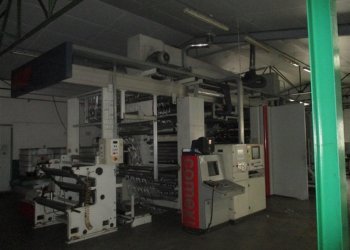

COMEXI FJ2108 CNC Imprimeus Flexo 8 couleurs // Flexo CI // Printing machines // Équipement d'occasion // Tecno Converting 2000 S.r.l.

** SOLD **

Photo Gallerie

Code Machine: FL664
Fabricant: COMEXI
Modello: FJ2108 CNC
Année: 2001
Number of colors: 8
Print possibilityes: 8+0
Gearless: No
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Web width (mm): 1270
Print width (mm): 1220
Min print repeat (mm): 350
Max print repeat (mm): 800
Unwinder type: Double bracket
Max reel diameter unwinder (mm): 800
Rewinder type: Double bracket
Max reel diameter rewinder (mm): 800
Corona treatment: Yes
Web guides: Yes before printing and rewinding brand BST type OPG
Vyscosity control: Yes
Washing system: Yes
Inking system: 8 pneumatic ink pumps, chamber doctor blades
Anilox: 10 anilox
Print Sleeves: Yes
Note: 10 mm gear pitch motorized longitudinal /side register Speed 300 m/min Materials : LDPE, PP, OPP Unwinder : marriage roll, dancing roller, tension control, pneuamtic shaft 3" and 6" Rewinder : pneuamtic shaft 3" and 6" Sleeve machine for anilox and cylinders plates, slow rotation with electrical motors; through off system, meshing system Sets of gears Conditionig system for the central drum

Code Machine	FL664
Fabricant	COMEXI
Modello	FJ2108 CNC
Année	2001
Number of colors	8
Print possibilityes	8+0
Gearless	No
Fast sleeve change	Yes
4 motor per deck CNC position system	Yes
Web width (mm)	1270
Print width (mm)	1220
Min print repeat (mm)	350
Max print repeat (mm)	800
Unwinder type	Double bracket
Max reel diameter unwinder (mm)	800
Rewinder type	Double bracket
Max reel diameter rewinder (mm)	800
Corona treatment	Yes
Web guides	Yes before printing and rewinding brand BST type OPG
Vyscosity control	Yes
Washing system	Yes
Inking system	8 pneumatic ink pumps, chamber doctor blades
Anilox	10 anilox
Print Sleeves	Yes
Note	10 mm gear pitch motorized longitudinal /side register Speed 300 m/min Materials : LDPE, PP, OPP Unwinder : marriage roll, dancing roller, tension control, pneuamtic shaft 3" and 6" Rewinder : pneuamtic shaft 3" and 6" Sleeve machine for anilox and cylinders plates, slow rotation with electrical motors; through off system, meshing system Sets of gears Conditionig system for the central drum
