- Código Máquina
- OT328
- Constructor
- OHIO
- Modello
- PRISM - Hybrid
- Año
- 2021
- Machine Type
- Engraving unit
- Note

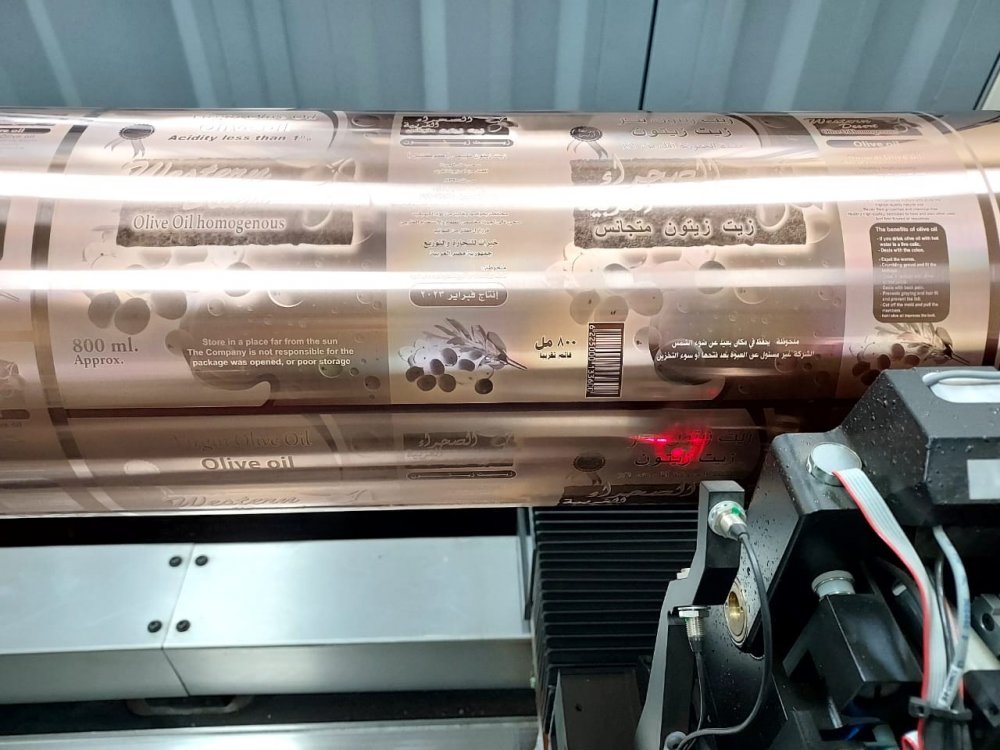

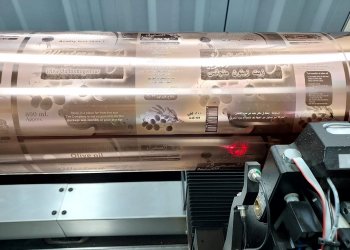

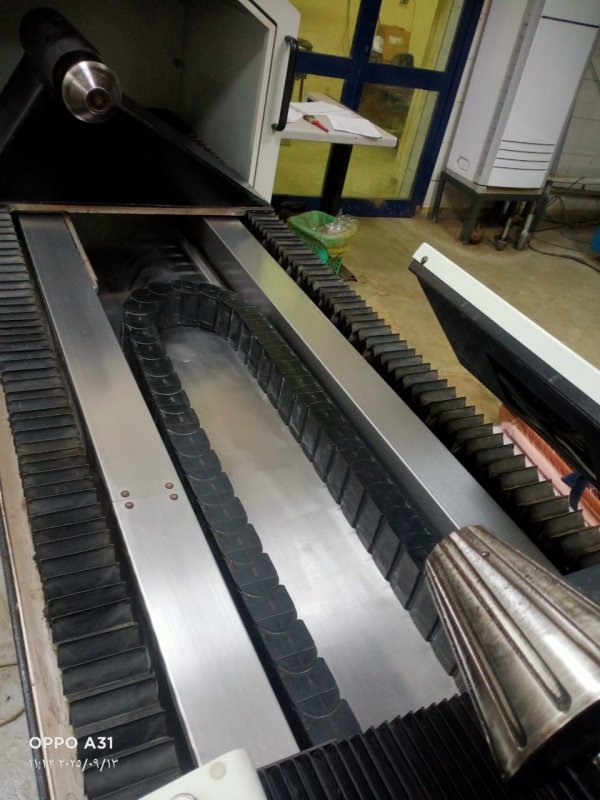

- The machine is equipped for both hollow and shafted cylinders : adaptors for hollow cylinders ( sleeves ) holders for shafted cylinders. Face length hollow cylinders 1850 mm max. and 350 mm min. Max weight of cylinder is 500 Kg. Circumference from 350 mm to 1200 mm ( diameter 111mm to 382 mm ) 2 x tail stocks for hollow cylinders 1 x adjustable headstock with 3 jaw chunks 1x tail stock for shafted cylinders Dimensions of the unit Width 4350 mm x Depth 1100 mm t 3 Vision engraving head standard tune 8.6 kHz up to 35 micron depth 8.1 kHz up to 60 micron depth 3.2 kHz up to 70 micron depth premium tune 1.7 kHz up to 93 micron depth ( impact engraving ) The hybrid engraving gives a better engraving text , machine has a one button operation to adjust automatically cylinder size and test cut. Machine will be delivered with collage software and archiving - job management software
| Código Máquina | OT328 |
| Constructor | OHIO |
| Modello | PRISM - Hybrid |
| Año | 2021 |
| Machine Type | Engraving unit |
| Note | The machine is equipped for both hollow and shafted cylinders : adaptors for hollow cylinders ( sleeves ) holders for shafted cylinders. Face length hollow cylinders 1850 mm max. and 350 mm min. Max weight of cylinder is 500 Kg. Circumference from 350 mm to 1200 mm ( diameter 111mm to 382 mm ) 2 x tail stocks for hollow cylinders 1 x adjustable headstock with 3 jaw chunks 1x tail stock for shafted cylinders Dimensions of the unit Width 4350 mm x Depth 1100 mm t 3 Vision engraving head standard tune 8.6 kHz up to 35 micron depth 8.1 kHz up to 60 micron depth 3.2 kHz up to 70 micron depth premium tune 1.7 kHz up to 93 micron depth ( impact engraving ) The hybrid engraving gives a better engraving text , machine has a one button operation to adjust automatically cylinder size and test cut. Machine will be delivered with collage software and archiving - job management software |
Brodbeck HTE 650 CUTTER MACHINERY
-
Código Máquina: OT282
-
Año: 2000

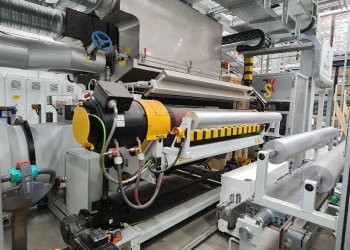

REIFENHAUSER REICOFIL Polyrema
-
