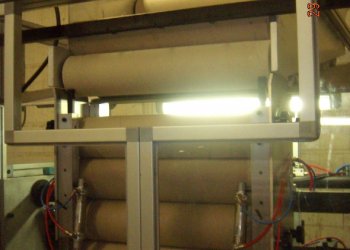

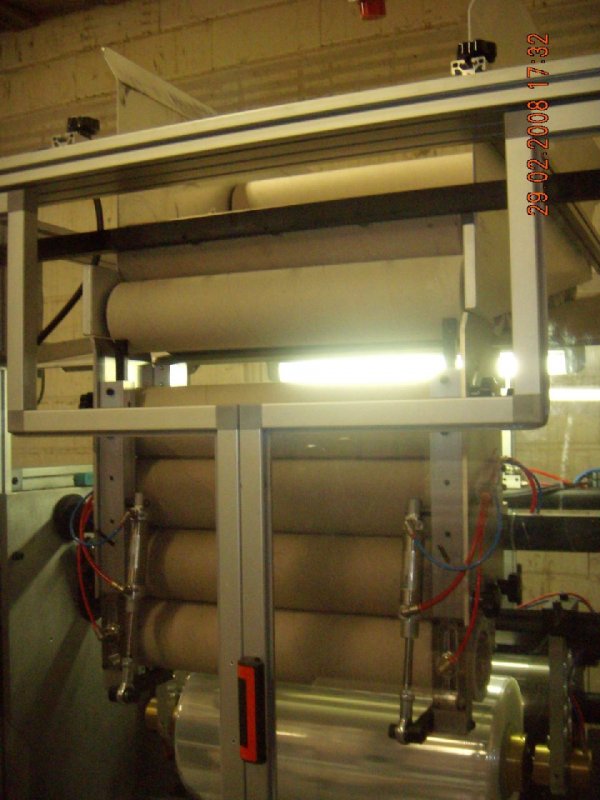

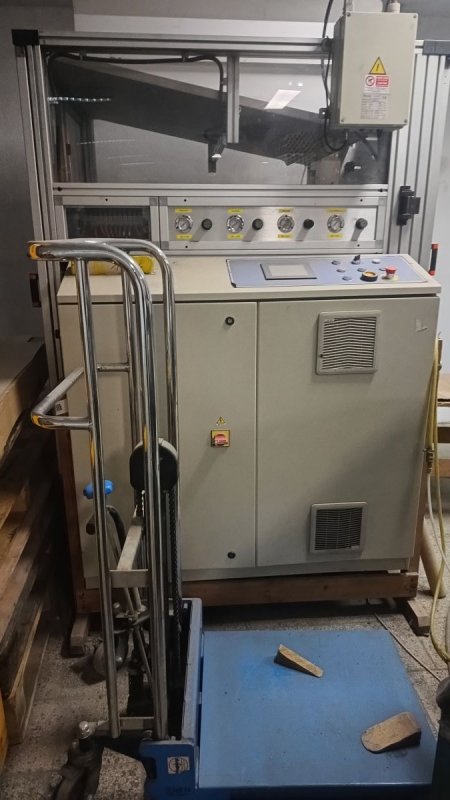

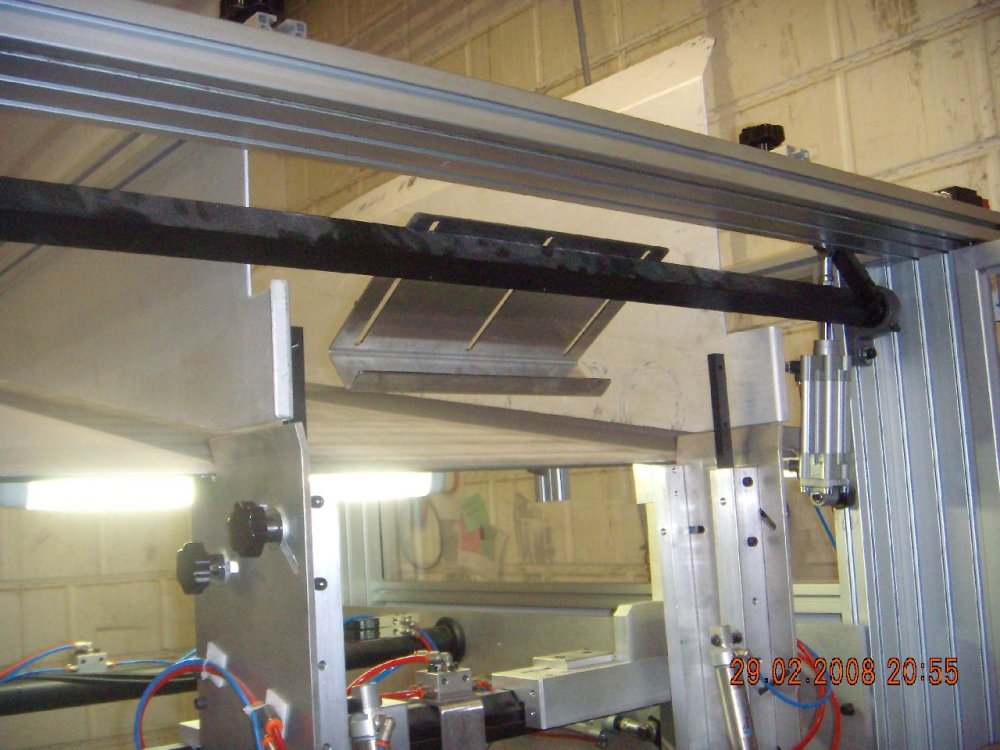

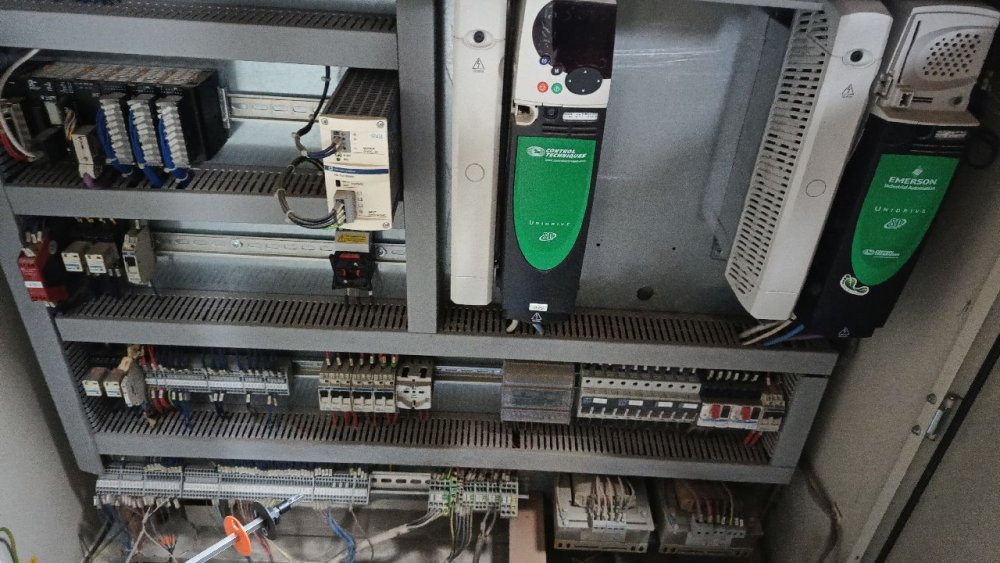

- Código Máquina
- UN-RE44
- Constructor
- Maklaus
- Modello
- RES-UNI
- Año
- 2008
- Working width (mm)
- 600
- Note
- The machine covers all kind of finished rolls required by the market (automatic production of Mini-rolls, automatic use, manual use and pre-stretch) Max. rewinding speed 1500 meters per minute Cycle production time 17-21 seconds (for 250 meter rolls) Max. diameter of mother roll - 550 mm Max. material width - 600 mm Min. material width - 450 mm Max. diameter of finished roll - 300 mm Mother roll core diameter - 76 mm Inside diameter of finished roll - 50 mm (30mm, 32mm, 38mm, 42mm, 76mm optional) Material thickness - 10 micron - 50 micron Installed power - 14 Kw Voltage - 400 V Air pressure - 6 bar Compressed air consumption - < 100 liter per minute Machine overall dimensions - 1350x1800x2200 mm Machine weight - 1250 Kg
| Código Máquina | UN-RE44 |
| Constructor | Maklaus |
| Modello | RES-UNI |
| Año | 2008 |
| Working width (mm) | 600 |
| Note | The machine covers all kind of finished rolls required by the market (automatic production of Mini-rolls, automatic use, manual use and pre-stretch) Max. rewinding speed 1500 meters per minute Cycle production time 17-21 seconds (for 250 meter rolls) Max. diameter of mother roll - 550 mm Max. material width - 600 mm Min. material width - 450 mm Max. diameter of finished roll - 300 mm Mother roll core diameter - 76 mm Inside diameter of finished roll - 50 mm (30mm, 32mm, 38mm, 42mm, 76mm optional) Material thickness - 10 micron - 50 micron Installed power - 14 Kw Voltage - 400 V Air pressure - 6 bar Compressed air consumption - < 100 liter per minute Machine overall dimensions - 1350x1800x2200 mm Machine weight - 1250 Kg |
NORDMECCANICA
-
Código Máquina: UN-RE38
-
Año: 1991
-
Working width (mm): 1300
ALMA ROLLOMATIC AUTOMATIC STRETCH WINDER
-
Código Máquina: UN-RE25
-
Año: 2009
-
Working width (mm): 1350
MAKLAUS RES04
-
Código Máquina: UN-RE42
-
Año: 2007
-
Working width (mm): 500
WINDMÖLLER & HÖLSCHER
-
Código Máquina: UN-RE40
-
Working width (mm): 1200
LAEM SYSTEM Doctoring machine VIS100-800
-
Código Máquina: UN-RE31
-
Año: 2015
-
Working width (mm): 800

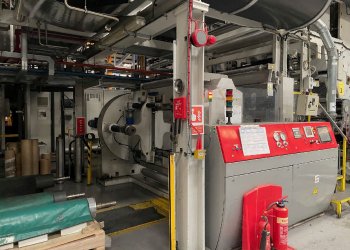

CERUTTI SPIRITO
-
