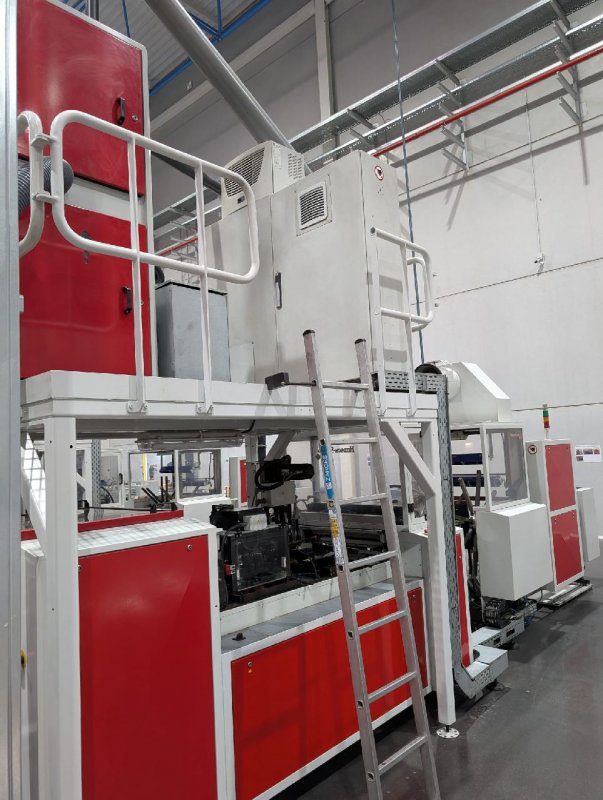

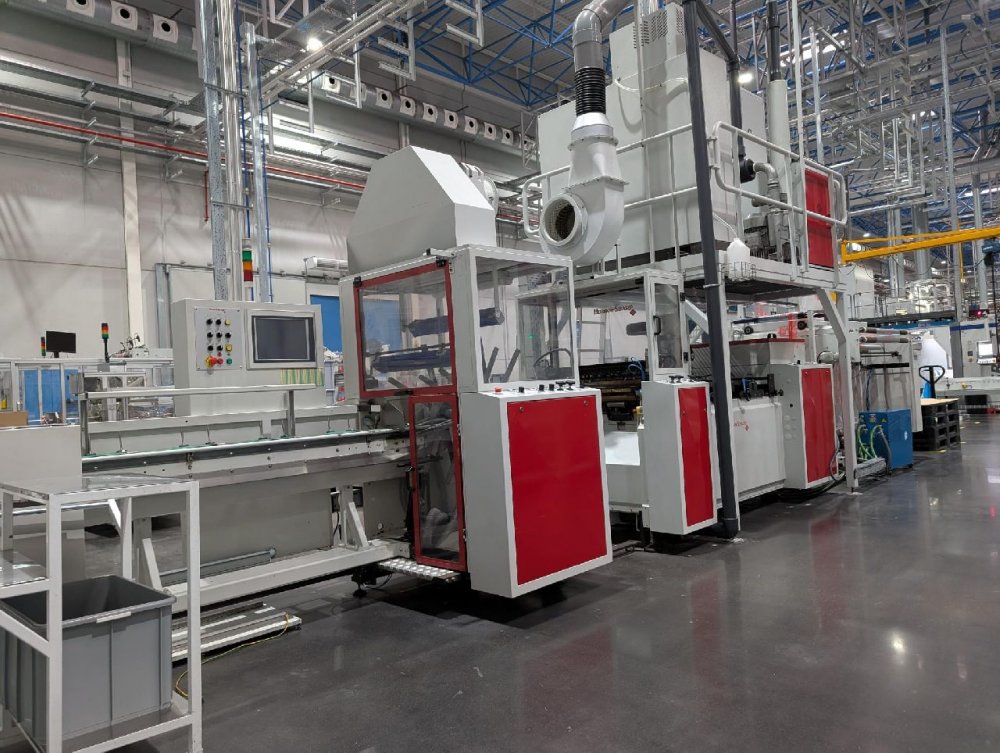

- Código Máquina
- FI575
- Constructor
- HUDSON SHARP
- Modello
- 5750W 390-LH
- Año
- 2009
- Type of delivery

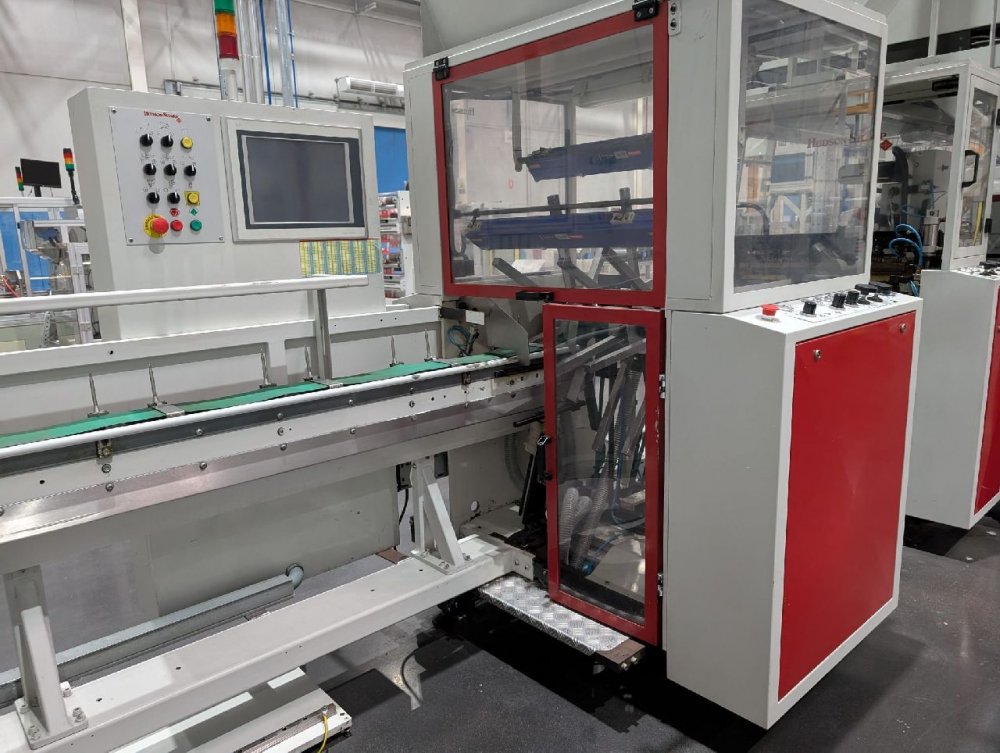

- Wicketer)
- Type of bags

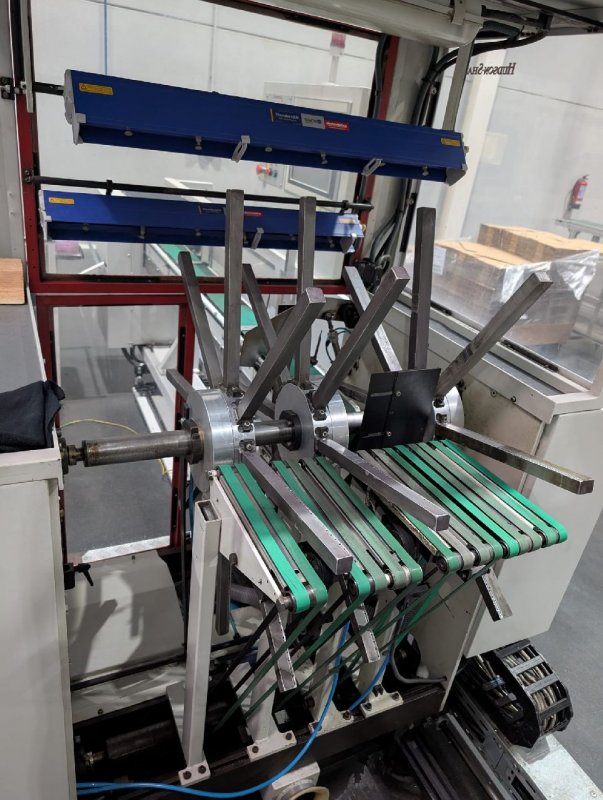

- Wicketers
- Working width (mm)
- 1370
- Bag length
- max.610mm, min.240mm
- Bag width
- max.390mm, min.110mm
- Cycle / min
- 120m/min
- Unwinder

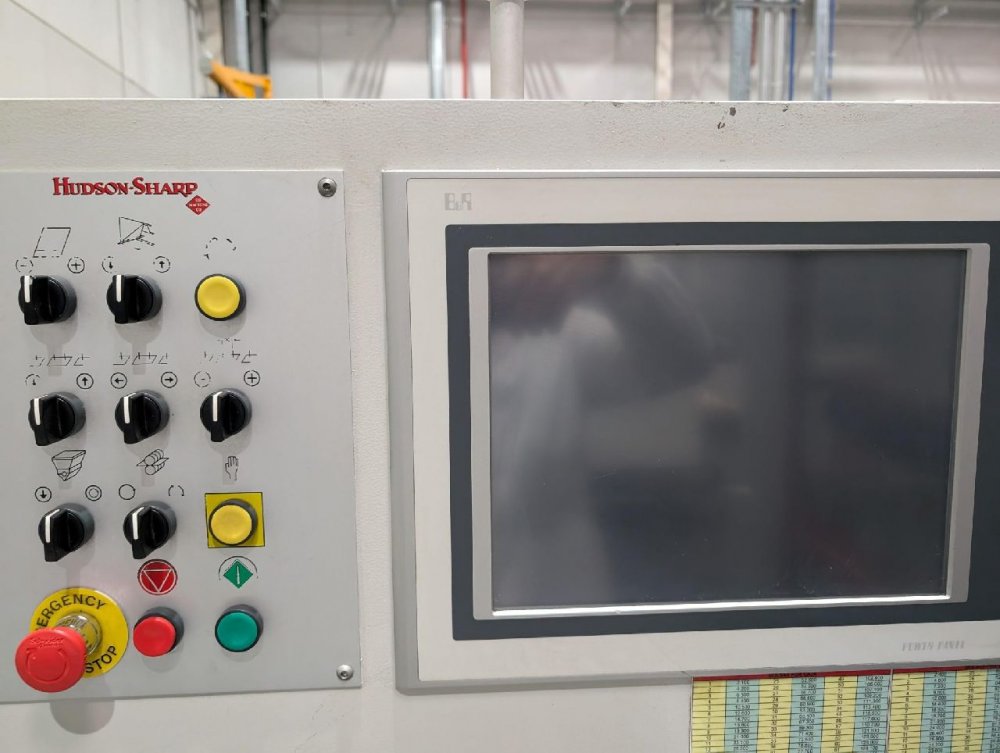

- Shaftless, Electric powered and braked, VFAC surface driven, Pneumatic reel lifting, folding triangle on top, Selection of the unwind direction via touch screen, Motorised opening and closing of lifting arms, With ultrasonic BST centre guide, Light running bearings, End of reel and film break detection, For core dia of 76 and 152 mm Max. roll diameter 1000mm
- Note

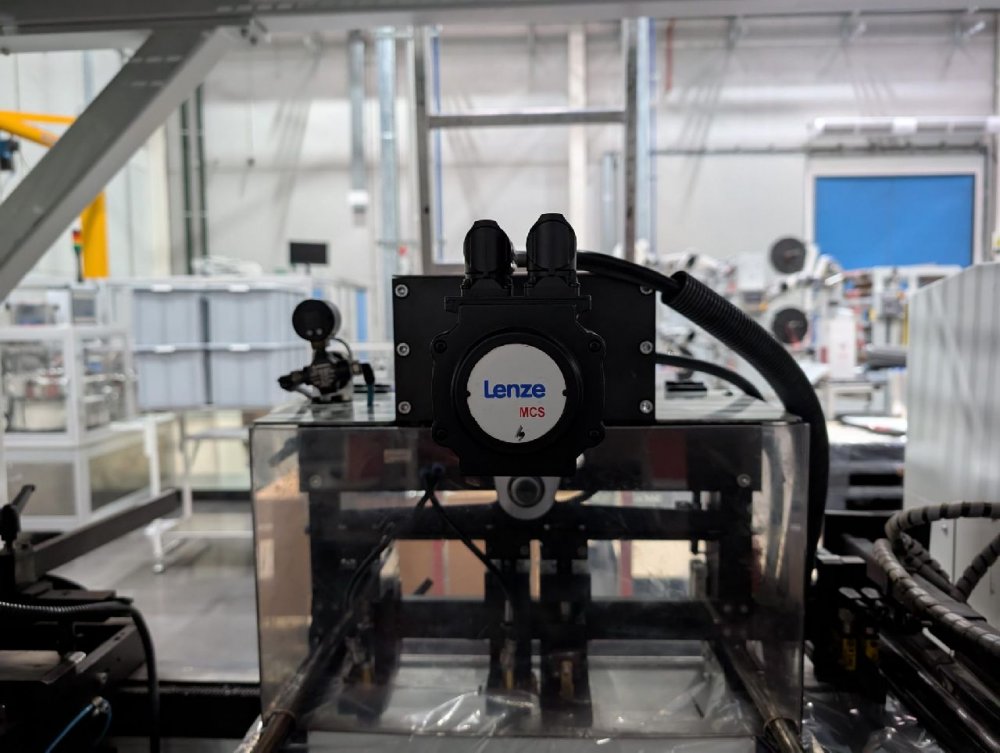

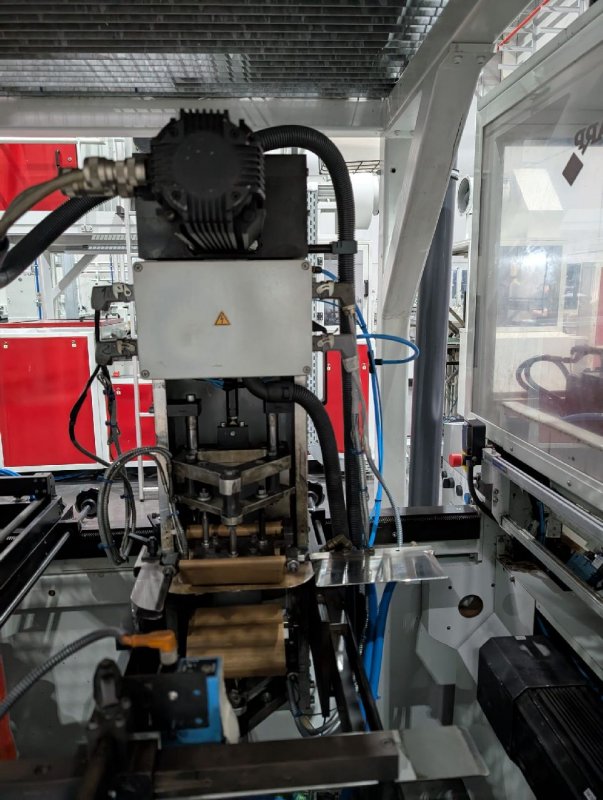

- Seven axis servo driven Max draw length: 390 mm Left hand configuration SERVO DRIVEN CHEVRON SEAL DEVICE - seal time adjustable in milliseconds - upper and lower temperature adjustable
| Código Máquina | FI575 |
| Constructor | HUDSON SHARP |
| Modello | 5750W 390-LH |
| Año | 2009 |
| Type of delivery | Wicketer) |
| Type of bags | Wicketers |
| Working width (mm) | 1370 |
| Bag length | max.610mm, min.240mm |
| Bag width | max.390mm, min.110mm |
| Cycle / min | 120m/min |
| Unwinder | Shaftless, Electric powered and braked, VFAC surface driven, Pneumatic reel lifting, folding triangle on top, Selection of the unwind direction via touch screen, Motorised opening and closing of lifting arms, With ultrasonic BST centre guide, Light running bearings, End of reel and film break detection, For core dia of 76 and 152 mm Max. roll diameter 1000mm |
| Note | Seven axis servo driven Max draw length: 390 mm Left hand configuration SERVO DRIVEN CHEVRON SEAL DEVICE - seal time adjustable in milliseconds - upper and lower temperature adjustable |
