- Código Máquina
- SR402

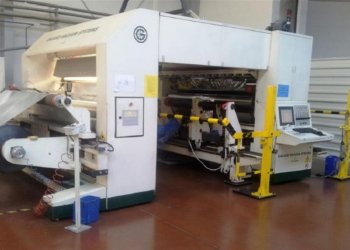

- Constructor
- GALILEO
- Modello
- MSR25
- Año
- 2003
- Working width (mm)
- 2500
- Materials
- PET : 12-40mic, OPP : 15-40mic, PVC : 20-40mic, NYLON : 10-50mic, CPP : 25-100mic, LDPE : 25-65mic,
- Speed
- 800m/min
- Unwinder type
- Shaftless
- Max diameter reel unwinder
- 1000
- Rewinder type
- Center driven with independent arms
- Max diameter reel rewinder
- 1000
- Rewinder description
- Rewinding stations 4 pcs. Width range 300-2500mm . Max weight 1500 Kg. Chucks 3" & 6" as follows . -4 pcs. of driven chucks 3’ +4 pcs. of non driven chucks 3’ ; 4 pcs. of driven chucks 6’ + 4 pcs. of non driven chucks 6" ; 2 pcs of pressure roll 1050mm, 2 pcs of pressure roll 1350mm, 3 pcs of pressure roll 650mm, 1 pcs of pressure roll 2500mm,1 pcs of pressure roll 600mm,1 pcs of pressure roll 1700mm Trolleys
- Min slit width
- 300 mm
- Knives
- Razor blade, Cutting station : 5 pcs
- Note
- PLC and drivers :SIEMENS S7, Webguide Fife +/- 75mm, sensor ultrasonic Unwinder core width range 1000mm -2500mm ; min outside diam 400mm ; core diam 6" ; Electrical : Voltage : 3x400V,Frequency : 50 Hz, Max. absorbed power : 65kW, Compressed air : 6-7 bar,Noise level : 80dB (A), Tension range : 16 – 160 N/m,
| Código Máquina | SR402 |
| Constructor | GALILEO |
| Modello | MSR25 |
| Año | 2003 |
| Working width (mm) | 2500 |
| Materials | PET : 12-40mic, OPP : 15-40mic, PVC : 20-40mic, NYLON : 10-50mic, CPP : 25-100mic, LDPE : 25-65mic, |
| Speed | 800m/min |
| Unwinder type | Shaftless |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Center driven with independent arms |
| Max diameter reel rewinder | 1000 |
| Rewinder description | Rewinding stations 4 pcs. Width range 300-2500mm . Max weight 1500 Kg. Chucks 3" & 6" as follows . -4 pcs. of driven chucks 3’ +4 pcs. of non driven chucks 3’ ; 4 pcs. of driven chucks 6’ + 4 pcs. of non driven chucks 6" ; 2 pcs of pressure roll 1050mm, 2 pcs of pressure roll 1350mm, 3 pcs of pressure roll 650mm, 1 pcs of pressure roll 2500mm,1 pcs of pressure roll 600mm,1 pcs of pressure roll 1700mm Trolleys |
| Min slit width | 300 mm |
| Knives | Razor blade, Cutting station : 5 pcs |
| Note | PLC and drivers :SIEMENS S7, Webguide Fife +/- 75mm, sensor ultrasonic Unwinder core width range 1000mm -2500mm ; min outside diam 400mm ; core diam 6" ; Electrical : Voltage : 3x400V,Frequency : 50 Hz, Max. absorbed power : 65kW, Compressed air : 6-7 bar,Noise level : 80dB (A), Tension range : 16 – 160 N/m, |
