- Código Máquina
- ME101

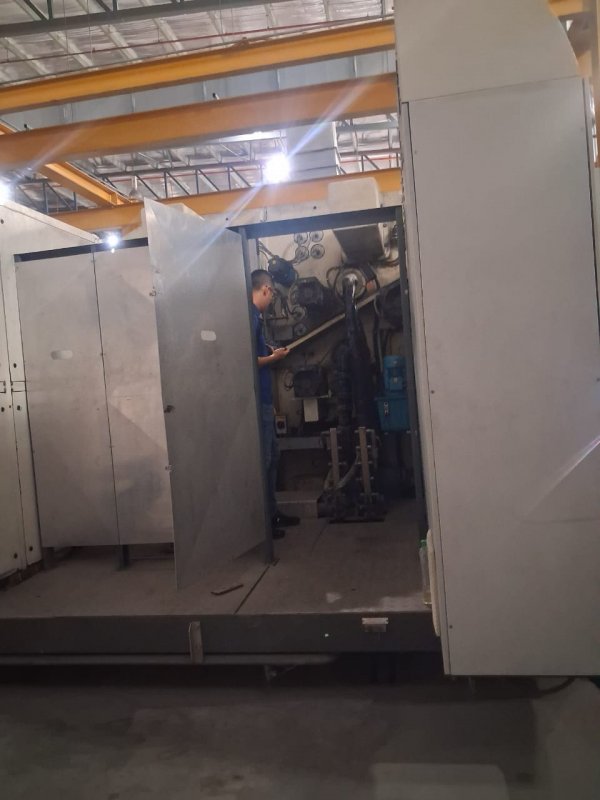

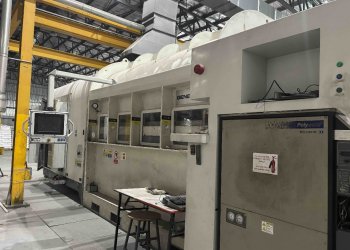

- Constructor
- BOBST
- Modello
- K5000
- Año
- 2014
- Working width (mm)
- 2450
- Materials
- BOPP10-50my, BOPET8-20my, CPP 20-50my, other films
- Speed
- 1000 m/min
- Max diameter reel unwinder
- 1200mm
- Max diameter reel rewinder
- 1200mm

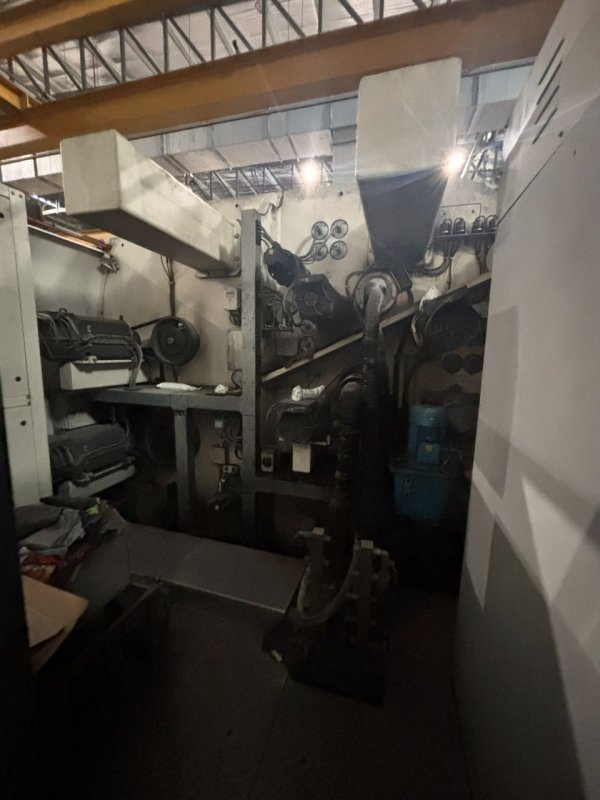

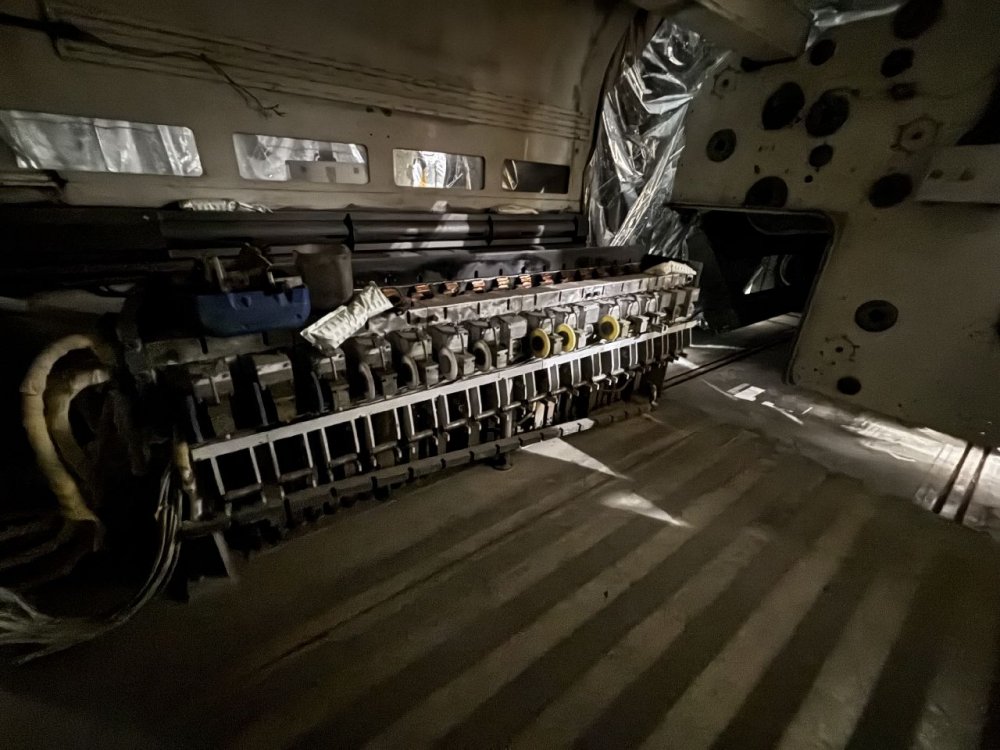

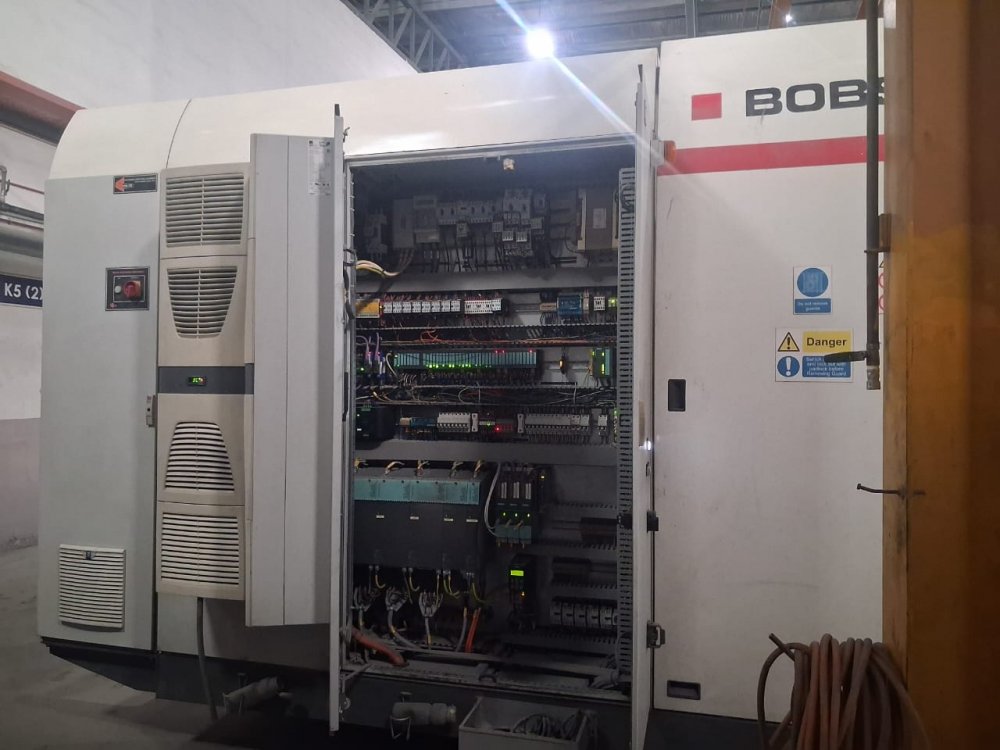

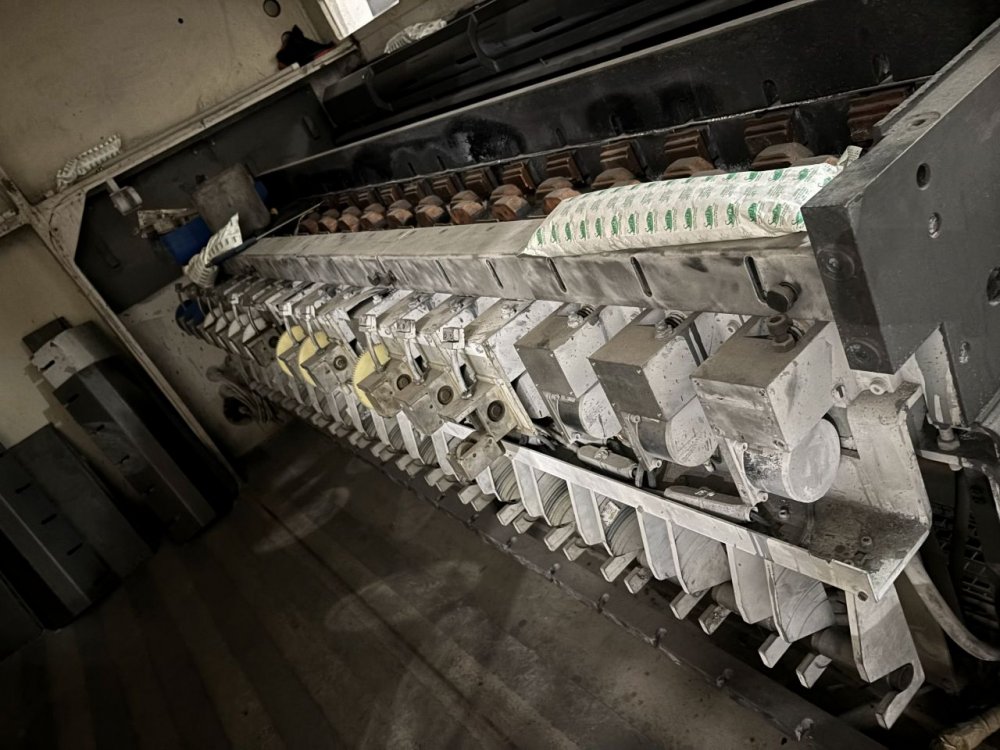

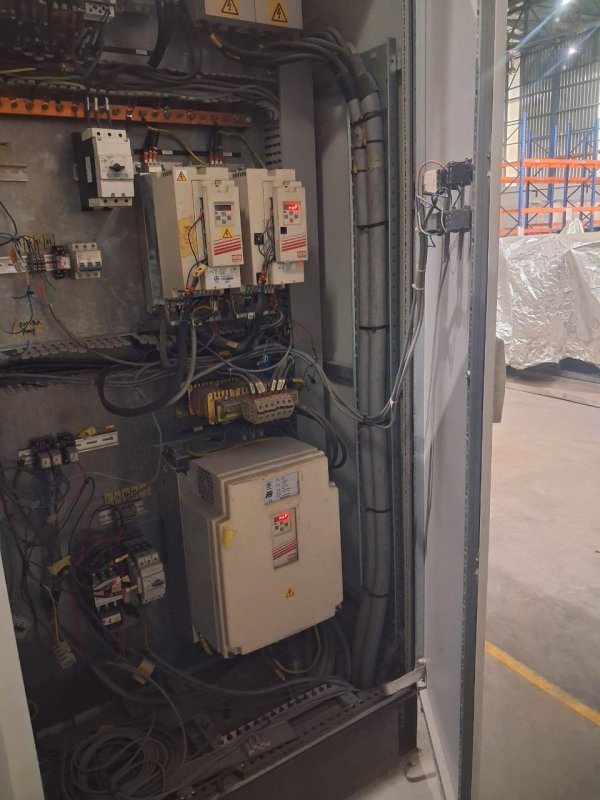

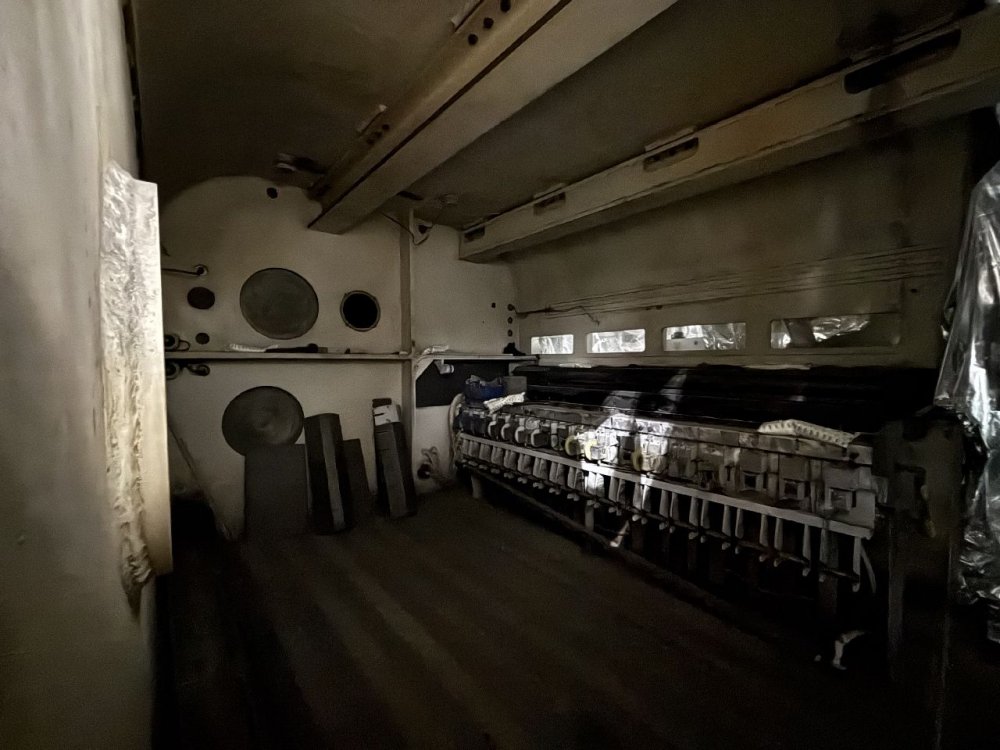

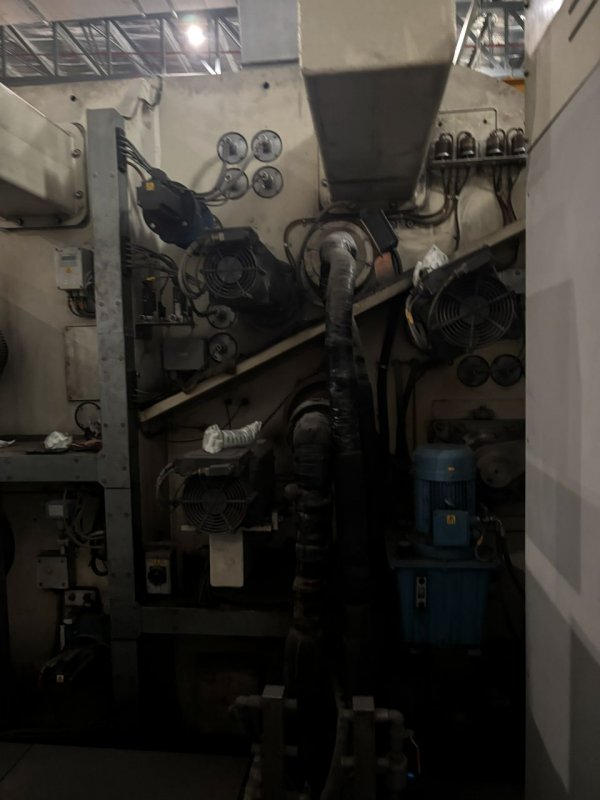

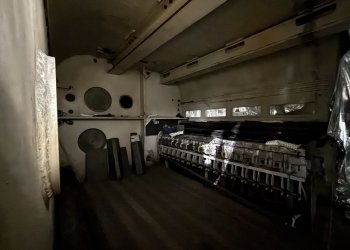

- Evapouration Boots

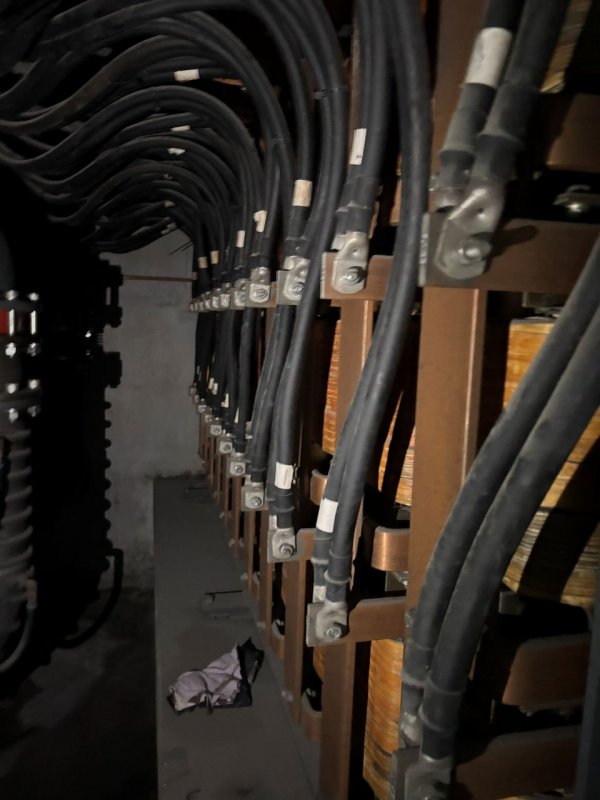

- 33 boots, size 125x40x10mm, Aluminium wire 1.6-2.4mm r Alu wire reel diam max 320mm Control: - Individual thrystor controlled transformers controlling power to boots - Individual stepper motors for wire 595mm diam cooled process roll + 250 mm diam post process cooling
- Pumping down time
- less than 5 min in OEM description

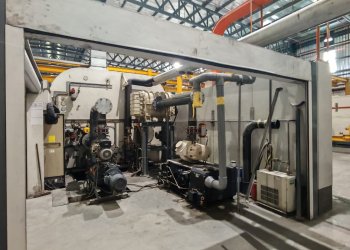

- Pumping system

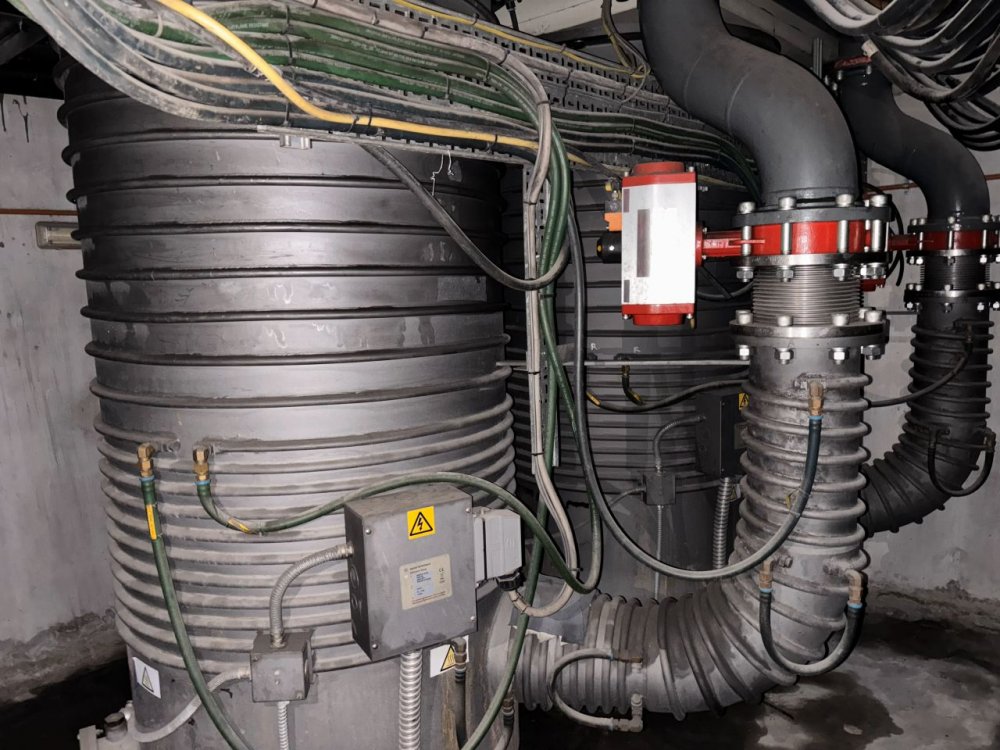

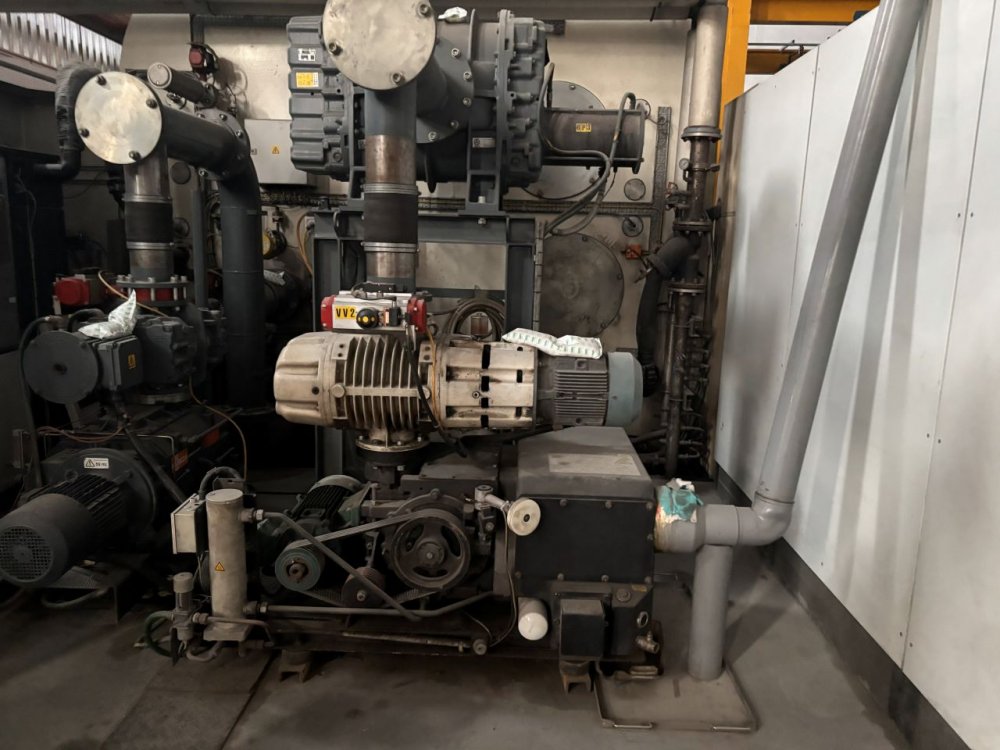

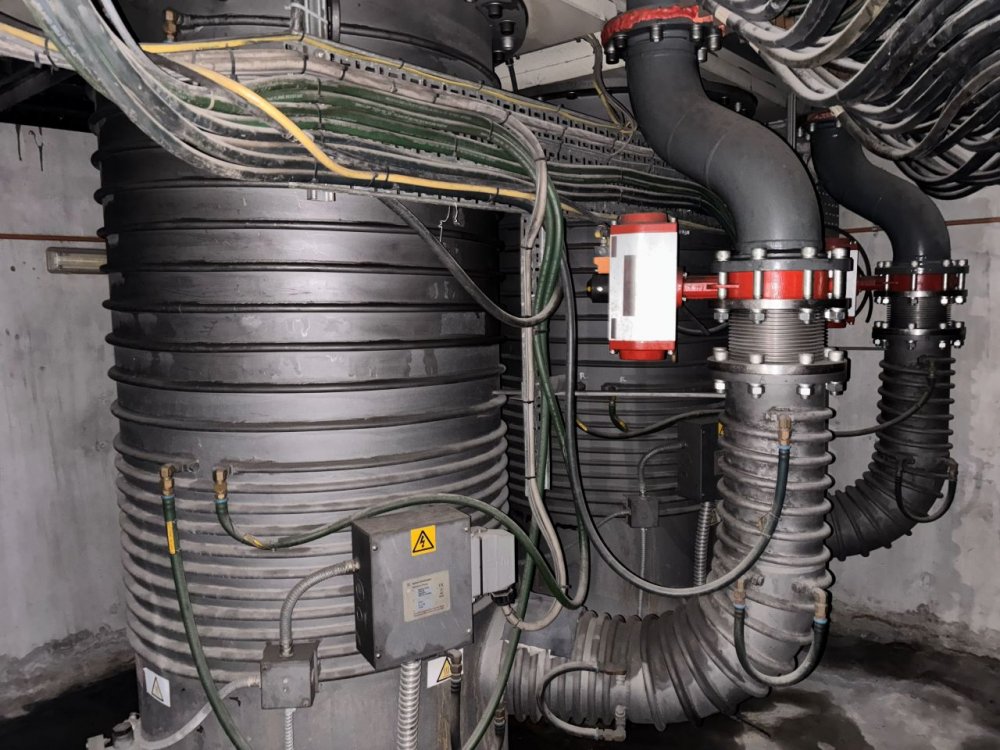

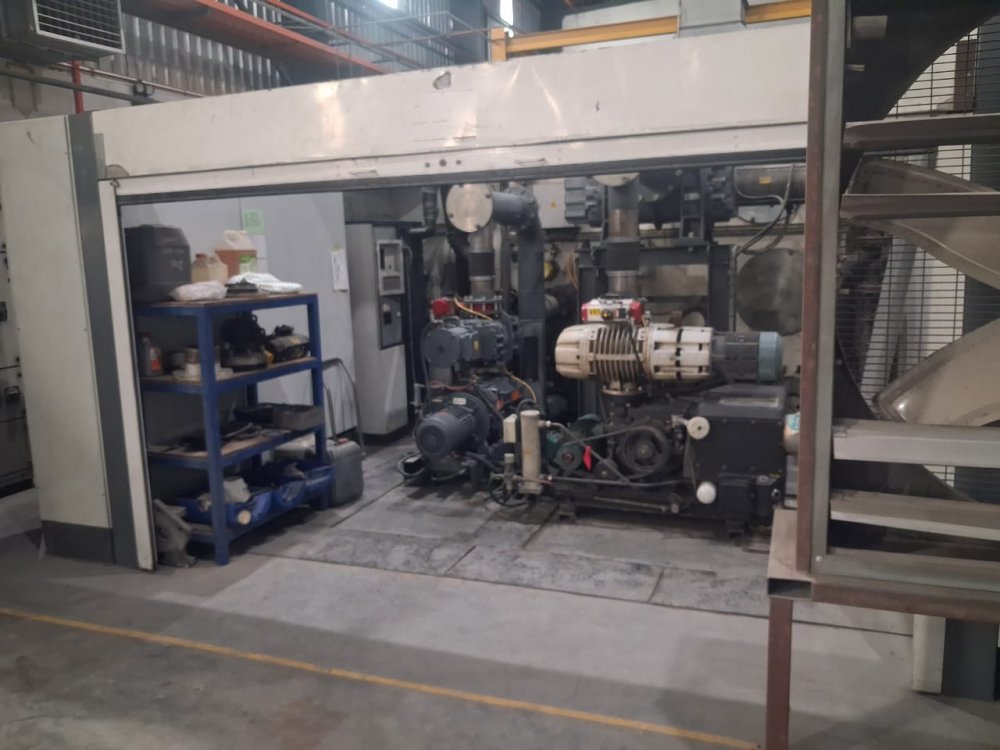

- Operating pressure 5x(10^-4) mBar. Web coating zone: - 1x NC630B dry rotary screw pump, 630m^3/h - 1x Aerzen GM 2000CMC booster pump 3900m^3/h - 2x Varian HS35 diffusion pumps 50.000 l/sec - 1x Polycold PFC. 1102 CE 200 kl/s Web winding zone: - 1x NC630B dry rotary screw pump, 630m^3/h - 1x Aerzen GM 2000CMC booster pump 3900m^3/h - 1x Aerzen GM 8000CMY booster pump 13000m^3/h - 1x extra cryogenic coli unit
- Plasma treatment
- Yes, Max power 4kW/m. 40kHz

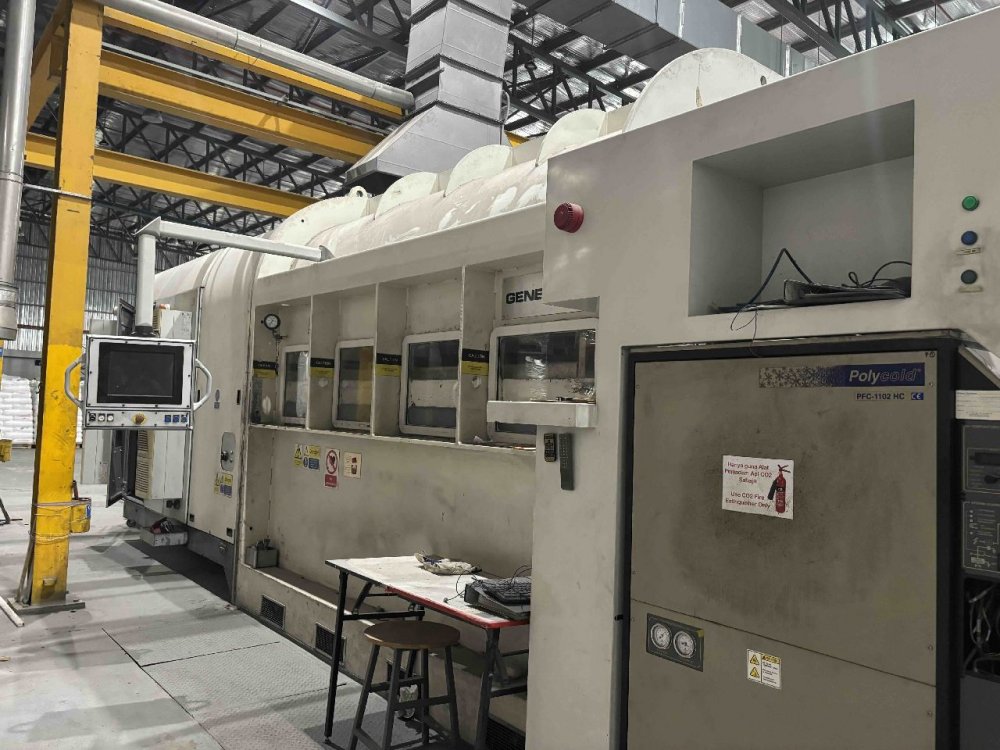

- Polycold
- Polycold PFC. 1102 CE 200 kl/s
- Note

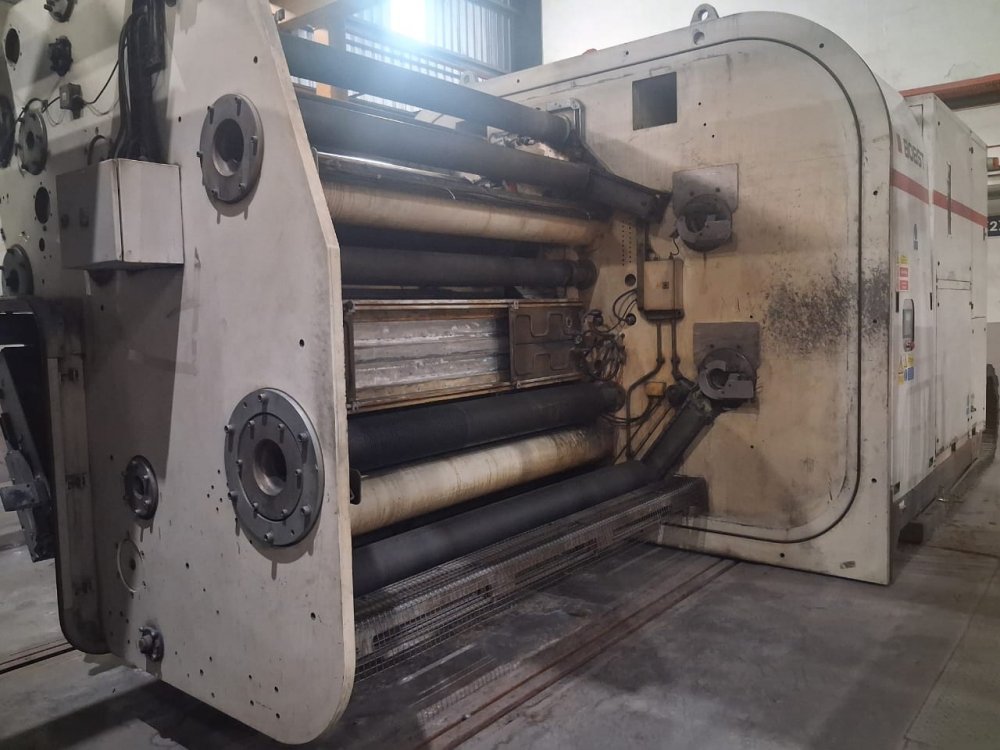

- Highlights: - Camera and monitoring system - Portholes circular viewing - Closed loop automatic deposition control - Closed loop tension control - End tensioned evaporator clamping - Precision zones seals - Full width viewing windows - MFC Gas wedge injection system - Individual stepper motor control - Individual temp control - Individual Trystor control - Integrated drum shield and shutter - Inverter controlled booster pumps - Linear tracking anti-telescoping lay-arms - Multi point deposition monitor - Remotely adjustable bowed spread roller - Edge shield adjustment - Same side reel change over - Swing over clamps - Web system control interface Web tension 66-662N Anti telescopio via 2 linear tracking lay arms Cooling: - Process drum: 595mm diam chrome plated - 2 zone gas wedge injection system, layer of gas between process roll and web -1x post coating cooled roller 250 mm diam Spreading: - 1x spiral grooved roll - 3x bowed spread er rollers Tension : - 2x load cell rolls to measure tension on unwind and rewind - 1x Independently driven draw roller, with high friction covering, to tension web over process roll Optical system with light emitting diodes and photo detectors for O.D monitoring Chiller
| Código Máquina | ME101 |
| Constructor | BOBST |
| Modello | K5000 |
| Año | 2014 |
| Working width (mm) | 2450 |
| Materials | BOPP10-50my, BOPET8-20my, CPP 20-50my, other films |
| Speed | 1000 m/min |
| Max diameter reel unwinder | 1200mm |
| Max diameter reel rewinder | 1200mm |
| Evapouration Boots | 33 boots, size 125x40x10mm, Aluminium wire 1.6-2.4mm r Alu wire reel diam max 320mm Control: - Individual thrystor controlled transformers controlling power to boots - Individual stepper motors for wire 595mm diam cooled process roll + 250 mm diam post process cooling |
| Pumping down time | less than 5 min in OEM description |
| Pumping system | Operating pressure 5x(10^-4) mBar. Web coating zone: - 1x NC630B dry rotary screw pump, 630m^3/h - 1x Aerzen GM 2000CMC booster pump 3900m^3/h - 2x Varian HS35 diffusion pumps 50.000 l/sec - 1x Polycold PFC. 1102 CE 200 kl/s Web winding zone: - 1x NC630B dry rotary screw pump, 630m^3/h - 1x Aerzen GM 2000CMC booster pump 3900m^3/h - 1x Aerzen GM 8000CMY booster pump 13000m^3/h - 1x extra cryogenic coli unit |
| Plasma treatment | Yes, Max power 4kW/m. 40kHz |
| Polycold | Polycold PFC. 1102 CE 200 kl/s |
| Note | Highlights: - Camera and monitoring system - Portholes circular viewing - Closed loop automatic deposition control - Closed loop tension control - End tensioned evaporator clamping - Precision zones seals - Full width viewing windows - MFC Gas wedge injection system - Individual stepper motor control - Individual temp control - Individual Trystor control - Integrated drum shield and shutter - Inverter controlled booster pumps - Linear tracking anti-telescoping lay-arms - Multi point deposition monitor - Remotely adjustable bowed spread roller - Edge shield adjustment - Same side reel change over - Swing over clamps - Web system control interface Web tension 66-662N Anti telescopio via 2 linear tracking lay arms Cooling: - Process drum: 595mm diam chrome plated - 2 zone gas wedge injection system, layer of gas between process roll and web -1x post coating cooled roller 250 mm diam Spreading: - 1x spiral grooved roll - 3x bowed spread er rollers Tension : - 2x load cell rolls to measure tension on unwind and rewind - 1x Independently driven draw roller, with high friction covering, to tension web over process roll Optical system with light emitting diodes and photo detectors for O.D monitoring Chiller |
GENERAL VACUUM EQUIPMENT
-
Código Máquina: ME092
-
Año: 2005
-
Working width (mm): 2050
GENERAL VACUUM EQUIPMENT
-
Código Máquina: ME070
-
Año: 1990
-
Working width (mm): 1980
GALILEO MEGA 2410 A
-
Código Máquina: ME088
-
Año: 2001
-
Working width (mm): 2450
GENERAL VACUUM EQUIPMENT HF 1450-112
-
Código Máquina: ME089
-
Año: 1994
-
Working width (mm): 1450
GENERAL VACUUM EQUIPMENT EHF 2250-2250
-
Código Máquina: ME080
-
Año: 1998
-
Working width (mm): 2250

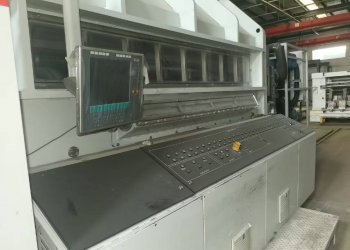

LEYBOLD Topmet 2050
-
