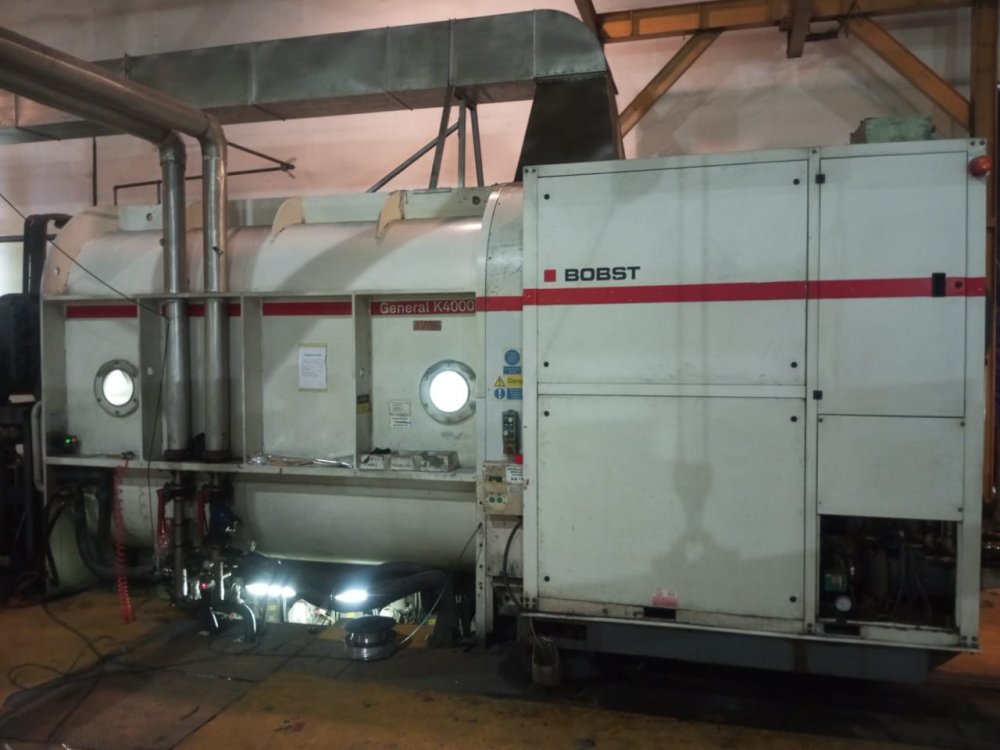

- Código Máquina
- ME098
- Constructor
- BOBST
- Modello
- K4000
- Año
- 2009
- Working width (mm)
- 2450
- Materials
- BOPP 10 t0 50 µm PET 9 to 50µm CPP 20 to 40 µm LDPE 25 to 50 µm Nylon 12 to 50 µm UPVC 20 to 100µm
- Speed
- 840m/min
- Max diameter reel unwinder
- 1000mm
- Max diameter reel rewinder
- 1000mm
- Evapouration Boots
- 26, individual motors to run each all wire
- Pumping down time
- <5 min (clean, dry and empty)
- Pumping system
- 1. Web coating area : 1x NC630G rotary screw pump, 630m3/h, 1 root booster pump 3900m3/h 4x 20" diffusion pumps 17.500 l/sec. ; Winder zone 1x Busch NC630, 1 x roots booster pump 3900m3/h, 1 x roots booster pump 13000 m3/h
| Código Máquina | ME098 |
| Constructor | BOBST |
| Modello | K4000 |
| Año | 2009 |
| Working width (mm) | 2450 |
| Materials | BOPP 10 t0 50 µm PET 9 to 50µm CPP 20 to 40 µm LDPE 25 to 50 µm Nylon 12 to 50 µm UPVC 20 to 100µm |
| Speed | 840m/min |
| Max diameter reel unwinder | 1000mm |
| Max diameter reel rewinder | 1000mm |
| Evapouration Boots | 26, individual motors to run each all wire |
| Pumping down time | <5 min (clean, dry and empty) |
| Pumping system | 1. Web coating area : 1x NC630G rotary screw pump, 630m3/h, 1 root booster pump 3900m3/h 4x 20" diffusion pumps 17.500 l/sec. ; Winder zone 1x Busch NC630, 1 x roots booster pump 3900m3/h, 1 x roots booster pump 13000 m3/h |
GENERAL VACUUM EQUIPMENT
-
Código Máquina: ME070
-
Año: 1990
-
Working width (mm): 1980
GENERAL VACUUM EQUIPMENT
-
Código Máquina: ME092
-
Año: 2005
-
Working width (mm): 2050
LEYBOLD Topmet 2050
-
Código Máquina: ME096
-
Año: 2012
-
Working width (mm): 2400
GENERAL VACUUM EQUIPMENT EHF 2250-2250
-
Código Máquina: ME080
-
Año: 1998
-
Working width (mm): 2250
GENERAL VACUUM EQUIPMENT K2450
-
Código Máquina: ME086
-
Año: 2003
-
Working width (mm): 2450
BOBST K5000
-
Código Máquina: ME101
-
Año: 2014
-
Working width (mm): 2450
