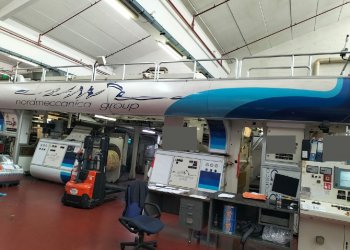

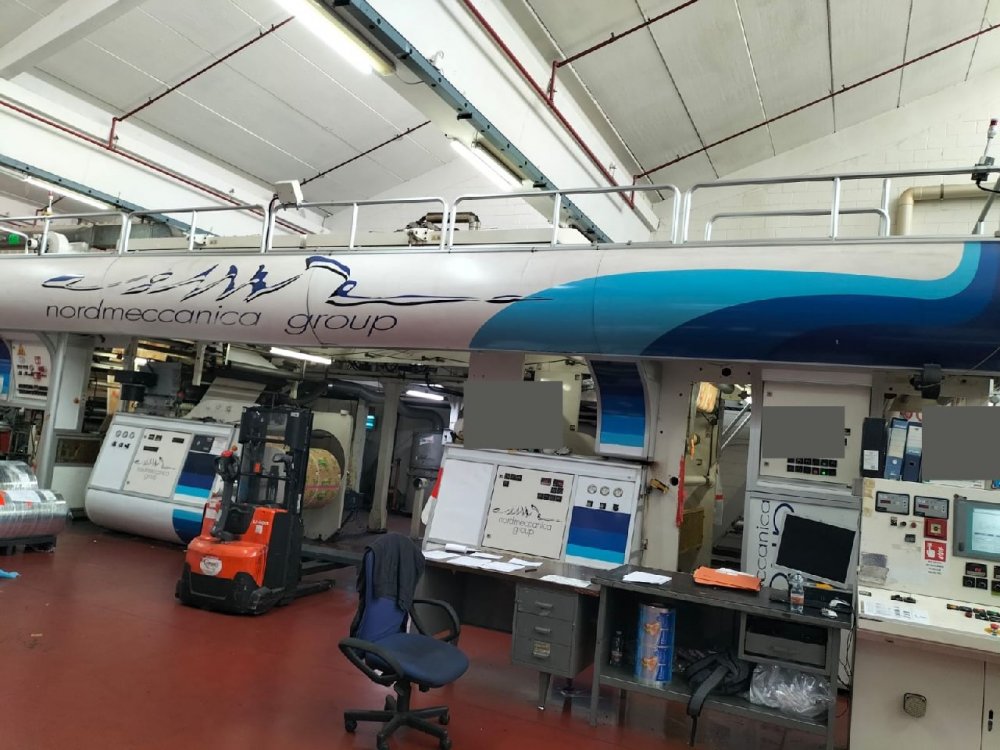

- Código Máquina
- LA521
- Constructor
- NORDMECCANICA
- Modello
- Duplex Combi
- Año
- 2004
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1300

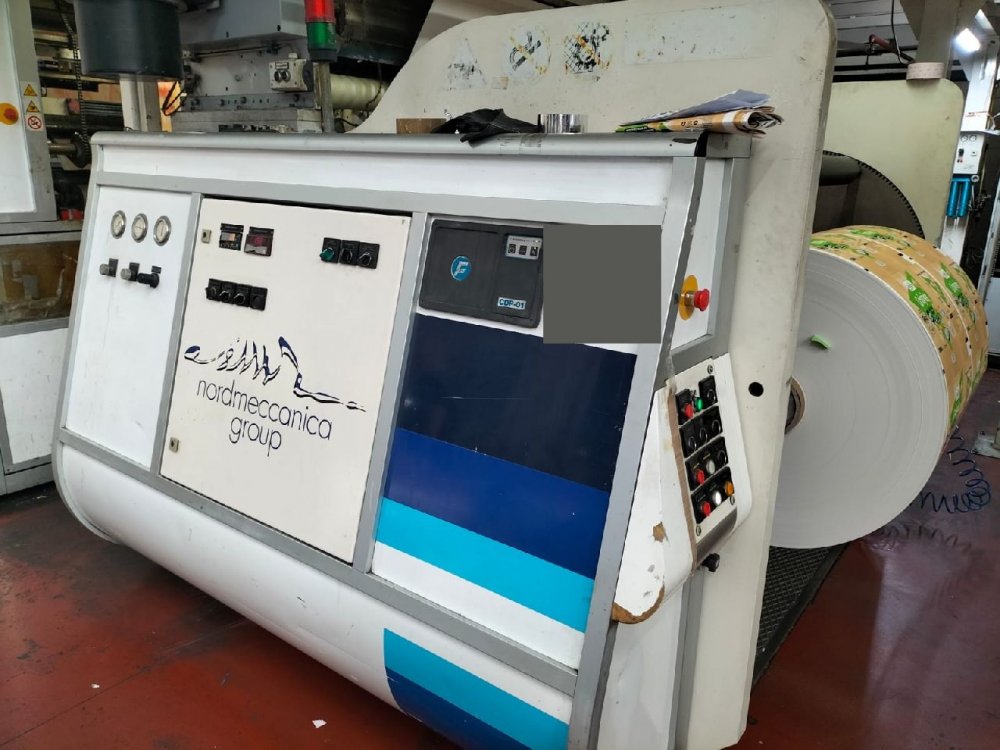

- First unwinder type
- Turret automatic, non stop
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Turret automatic, non stop
- Max diameter reel unwinder
- 800

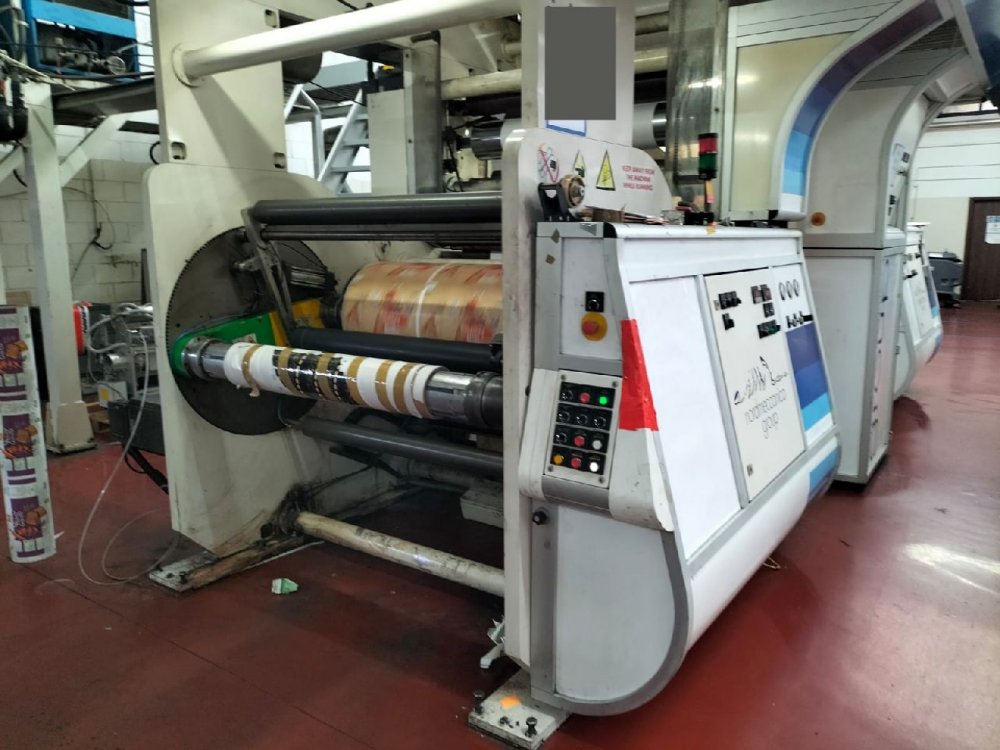

- Rewinder type
- Turret automatic, non stop
- Max diameter reel rewinder
- 1000
- Coating unit
- 2 rotogravure trolleys, 1 semiflexo trolley , 1 solventless trolley

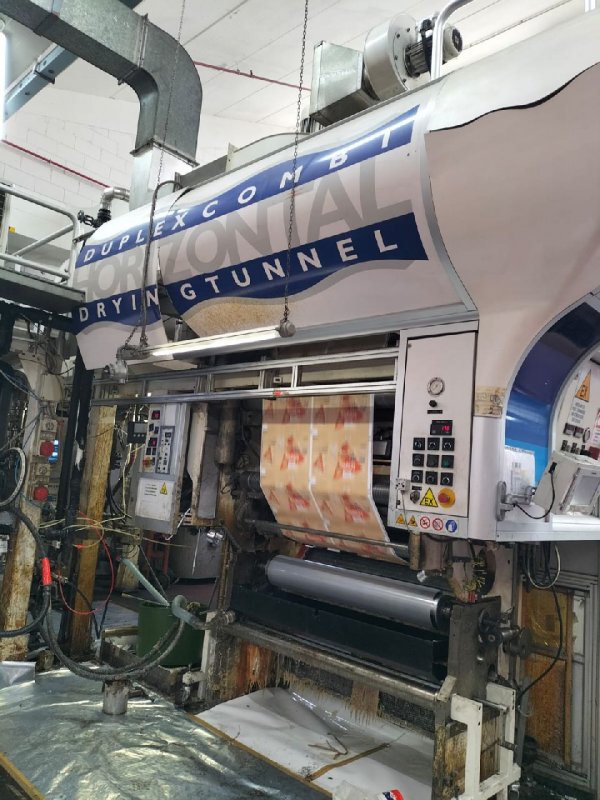

- Drying
- 2 Zones, four fans, double tunnel 2x3 mt, Thermo oil heaters
- Corona treatment
- Yes, 2 corona treaters
| Código Máquina | LA521 |
| Constructor | NORDMECCANICA |
| Modello | Duplex Combi |
| Año | 2004 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1300 |
| First unwinder type | Turret automatic, non stop |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Turret automatic, non stop |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret automatic, non stop |
| Max diameter reel rewinder | 1000 |
| Coating unit | 2 rotogravure trolleys, 1 semiflexo trolley , 1 solventless trolley |
| Drying | 2 Zones, four fans, double tunnel 2x3 mt, Thermo oil heaters |
| Corona treatment | Yes, 2 corona treaters |
