- Código Máquina
- EX803
- Constructor
- WINDMÖLLER & HÖLSCHER
- Modello
- VAREX
- Año
- 2009
- Number of layers
- 3
- Film structure
- ABC
- Material
- LDPE films, Specially equipped also for thin LDPE films, down to 10 and for application requiring gel free film and gel's measurement and recording
- Film Width
- 2600

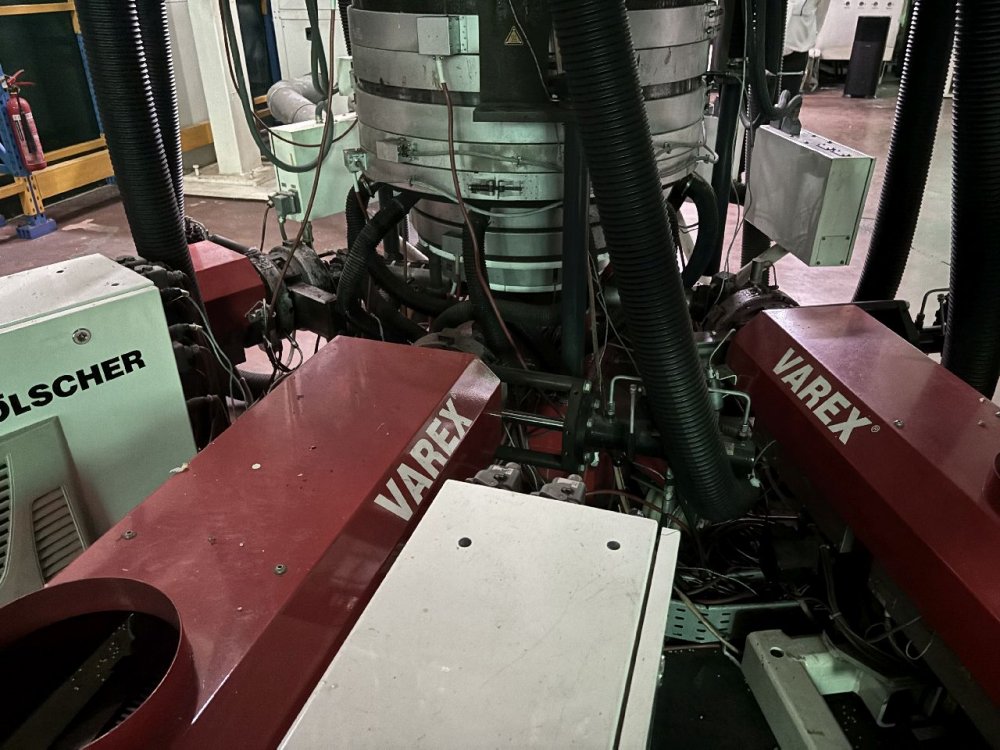

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 60mm L/D30
- Description 1

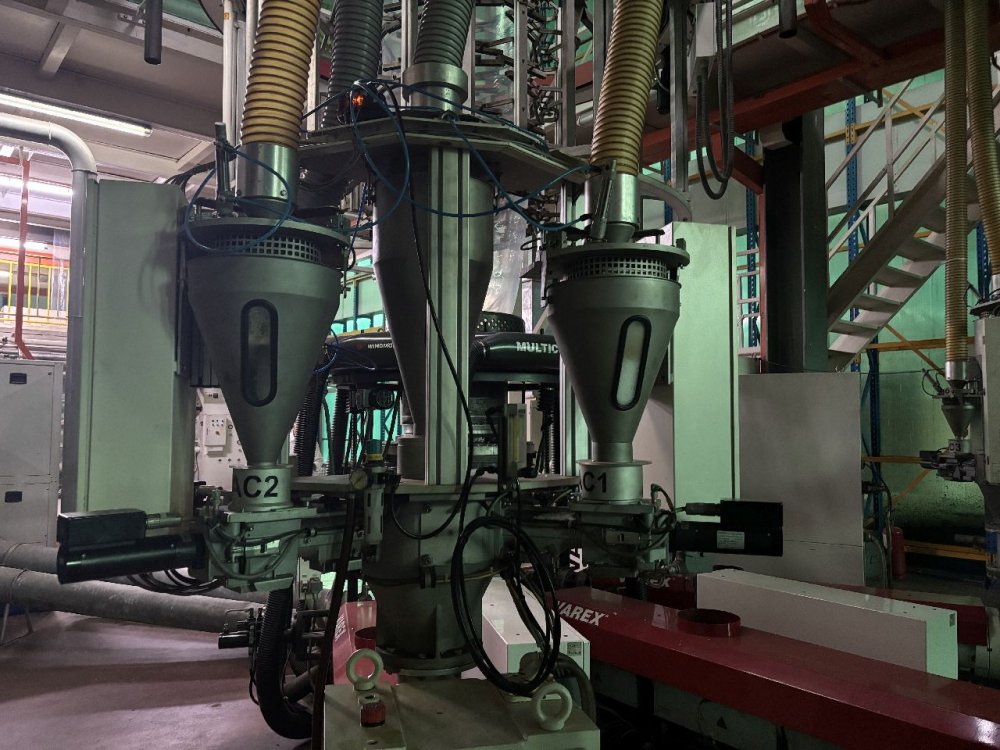

- - Module G gravimetric dosing 4 components - Nitrogen injector for hopper - AC motor - Hydraulic screen changer
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 90mm L/D30
- Description 2
- - Module G gravimetric dosing 4 components - Nitrogen injector for hopper - AC motor - Hydraulic screen changer
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 60mm L/D30
- Description 3
- - Module G gravimetric dosing 4 components - Nitrogen injector for hopper - AC motor - Hydraulic screen changer

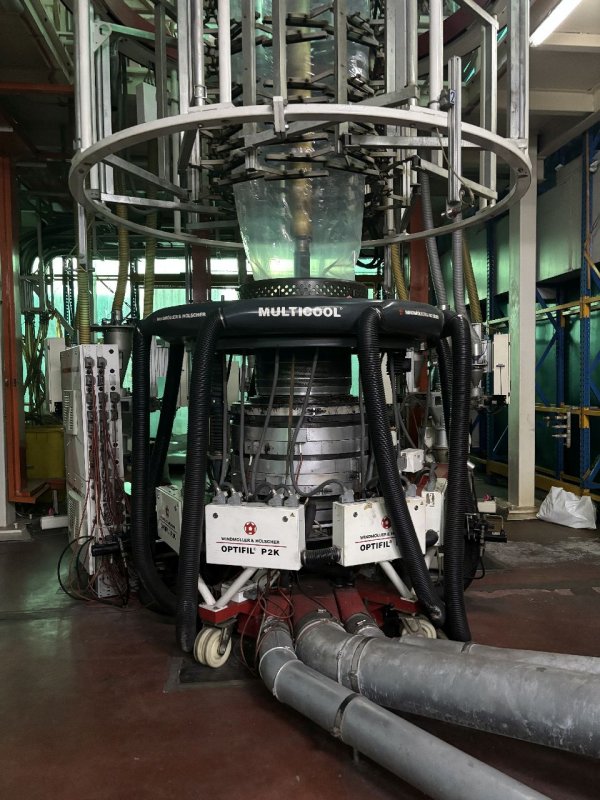

- Head description
- - die range possible to install: 450-630mm -Multicool air ring with height adjustment -Multilevel IBC - tube diameter control
- Die diam (mm)
- 630mm gap 1,25mm and 2,25mm
- Thickness controll system
- Automatic thickness control via Kundig thickness gauge and OPTIFIL P2K air flow adjustment on air ring

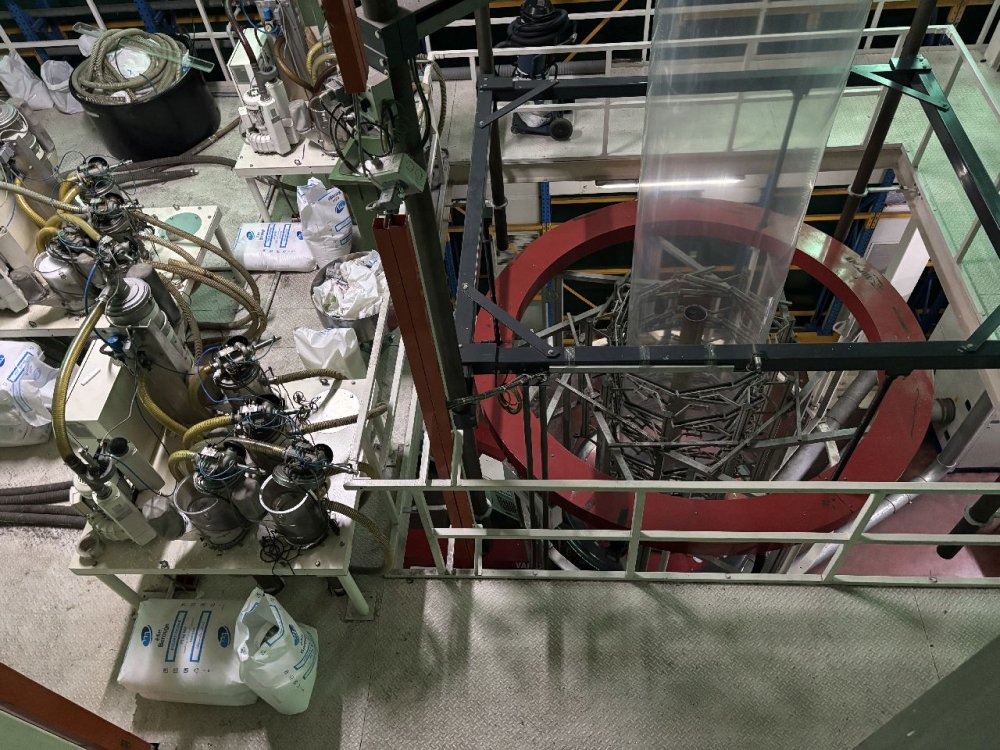

- Bubble cage
- - for lay flat width 865-2650mm - Web brick monitor - Tube diameter gauge - CRP rollers
- Panel for gussets
- No
- Take off unit
- Model: Multinip , Reversing type, 360 deg rotation
- Web guide
- yes

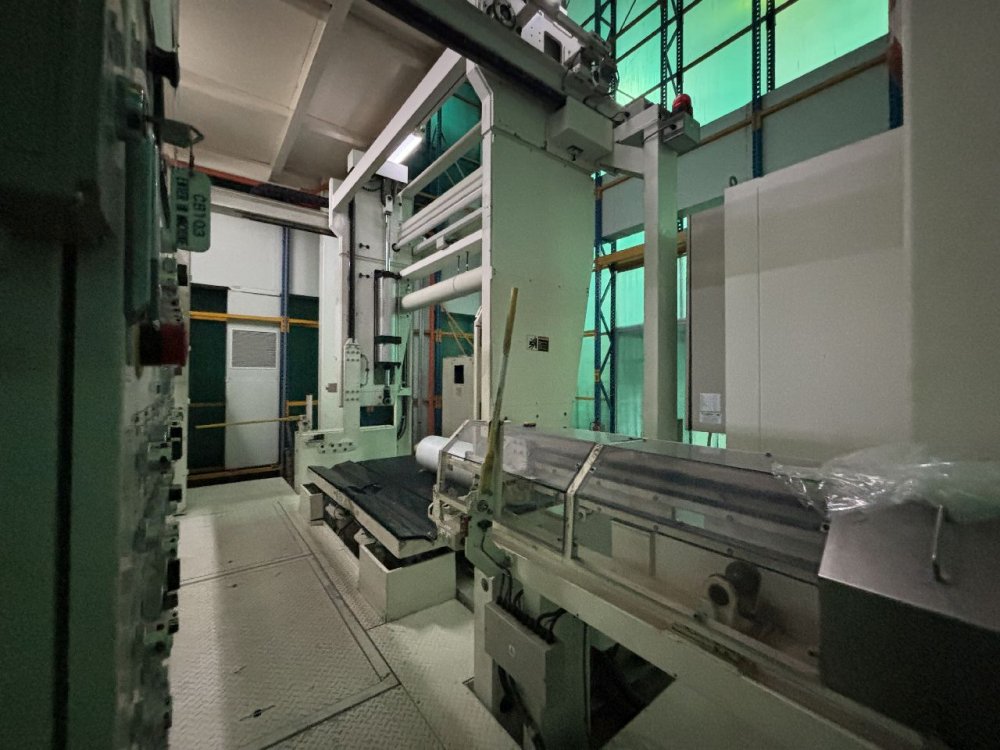

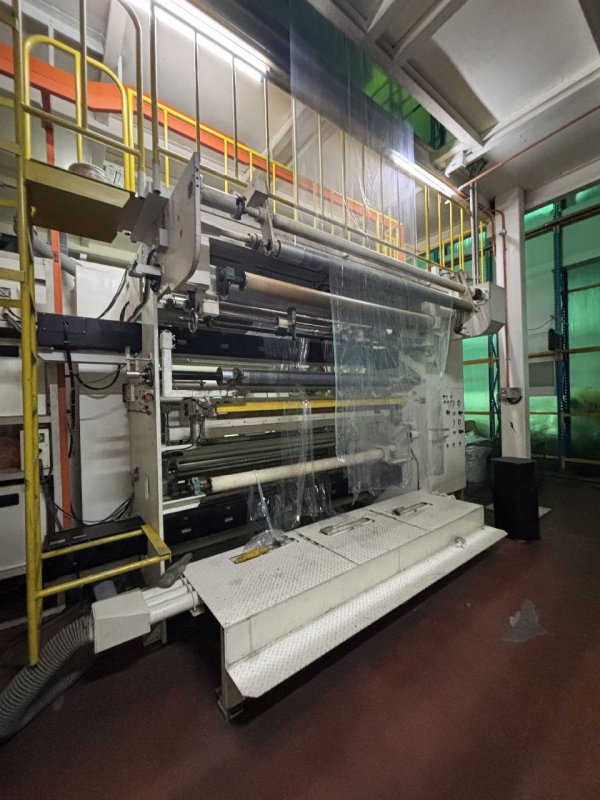

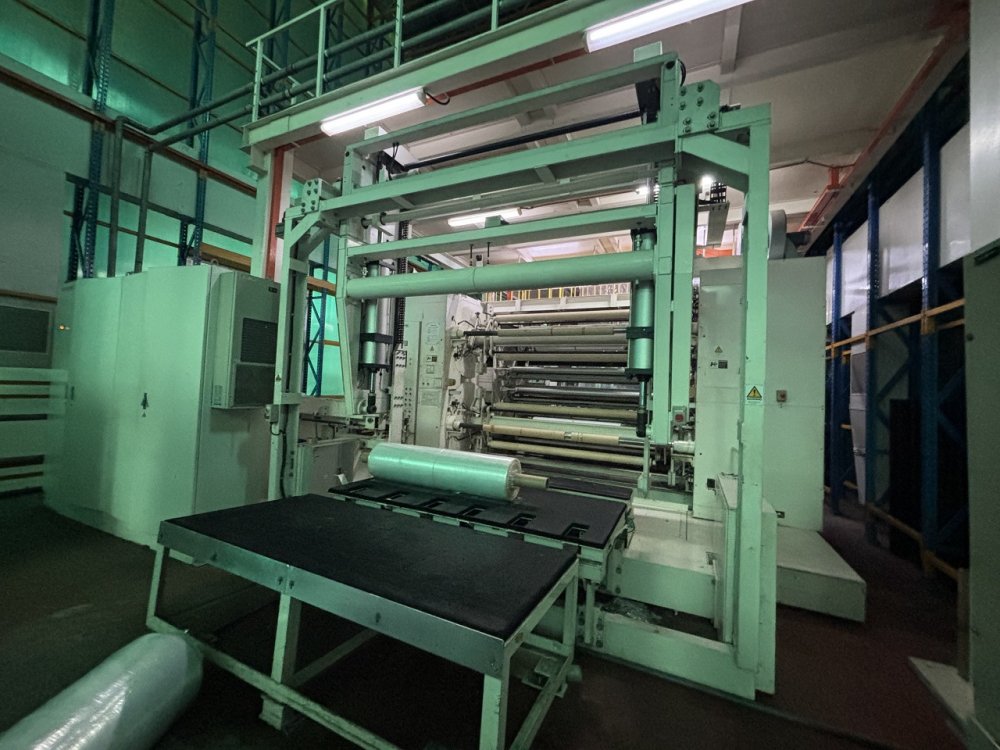

- Rewinder Type
- Double back to back
- Rewinder description
- - Double turret winder with 2 turret winders an upper and a lower one - Make Fuji Sakai (Japan) - Special design for thin films - Automatic reels unloading and cores re- loading system - Edge trim removal
- Note
- - FUTEC In-line gel detection and recording system - MODULE B: for in line lay flat width measurement and double cage adjustment - OPTIFIL PLUS: Modular process automation - Easy change - ISP Information production system and ethernet connection - Supporting tower included - UPS
| Código Máquina | EX803 |
| Constructor | WINDMÖLLER & HÖLSCHER |
| Modello | VAREX |
| Año | 2009 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | LDPE films, Specially equipped also for thin LDPE films, down to 10 and for application requiring gel free film and gel's measurement and recording |
| Film Width | 2600 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 60mm L/D30 |
| Description 1 | - Module G gravimetric dosing 4 components - Nitrogen injector for hopper - AC motor - Hydraulic screen changer |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 90mm L/D30 |
| Description 2 | - Module G gravimetric dosing 4 components - Nitrogen injector for hopper - AC motor - Hydraulic screen changer |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 60mm L/D30 |
| Description 3 | - Module G gravimetric dosing 4 components - Nitrogen injector for hopper - AC motor - Hydraulic screen changer |
| Head description | - die range possible to install: 450-630mm -Multicool air ring with height adjustment -Multilevel IBC - tube diameter control |
| Die diam (mm) | 630mm gap 1,25mm and 2,25mm |
| Thickness controll system | Automatic thickness control via Kundig thickness gauge and OPTIFIL P2K air flow adjustment on air ring |
| Bubble cage | - for lay flat width 865-2650mm - Web brick monitor - Tube diameter gauge - CRP rollers |
| Panel for gussets | No |
| Take off unit | Model: Multinip , Reversing type, 360 deg rotation |
| Web guide | yes |
| Rewinder Type | Double back to back |
| Rewinder description | - Double turret winder with 2 turret winders an upper and a lower one - Make Fuji Sakai (Japan) - Special design for thin films - Automatic reels unloading and cores re- loading system - Edge trim removal |
| Note | - FUTEC In-line gel detection and recording system - MODULE B: for in line lay flat width measurement and double cage adjustment - OPTIFIL PLUS: Modular process automation - Easy change - ISP Information production system and ethernet connection - Supporting tower included - UPS |
