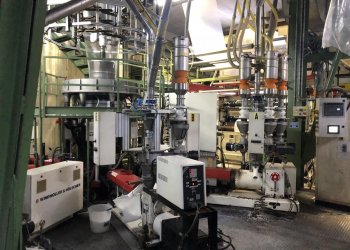

- Código Máquina
- EX624
- Constructor
- WINDMÖLLER & HÖLSCHER
- Modello
- Varex
- Año
- 2000
- Number of layers
- 5
- Film structure
- A-B-C-D-E
- Material
- LDPE, LLDPE, EVOH, Barrier film with PP
- Film Width
- 2400
- Output (Kg/h)
- 500

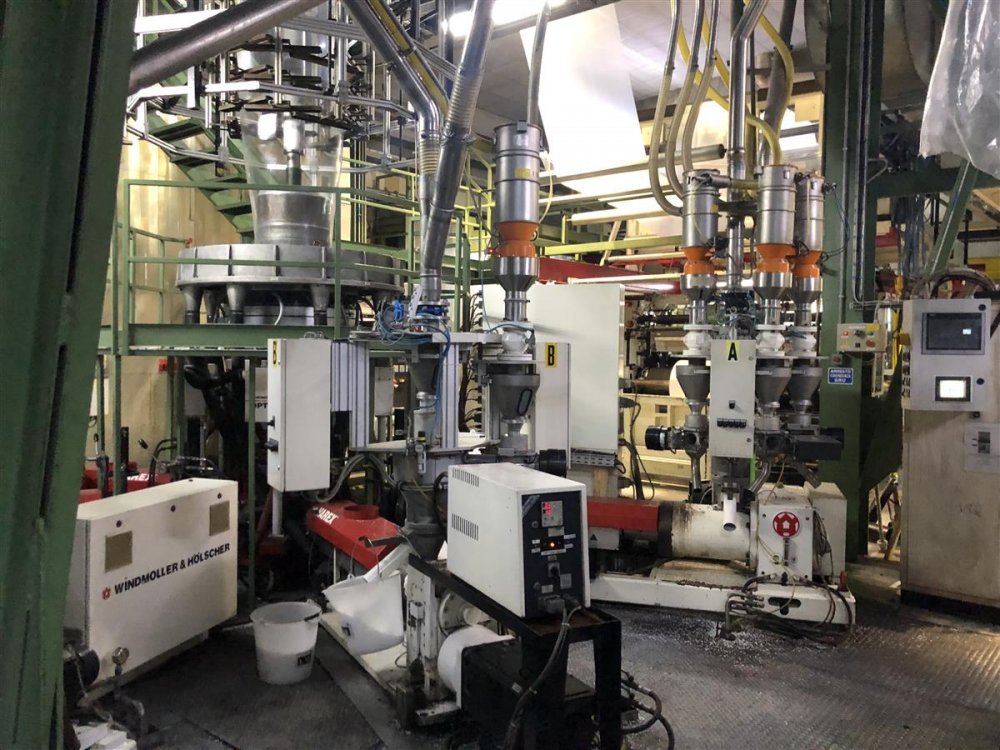

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 70
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 50
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 60
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 50
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 70
- Head description
- IBC, Automatic by heat patrons Optifil P2
- Die diam (mm)
- 500 with 2.8mm and 1.8mm gaps
- Thickness controll system
- OPTIFIL P2
- Bubble cage
- YES
- Take off unit
- Rotating
- Corona treatment
- Ferrarini GTS 12W40A /Kavlar SGA 61,9Kw
- Web guide
- EL Ultrasounds sensor, oshillating frame
- Rewinder Type
- Double back to back
- Rewinder max reel diameter
- 1000
- Rewinder description
- Windmoeller
- Note
- Hot part year 2000, take off and winder also from W&H Currently hot part and downstream part are on two separate lines
Código Máquina | EX624 |
Constructor | WINDMÖLLER & HÖLSCHER |
Modello | Varex |
Año | 2000 |
Number of layers | 5 |
Film structure | A-B-C-D-E |
Material | LDPE, LLDPE, EVOH, Barrier film with PP |
Film Width | 2400 |
Output (Kg/h) | 500 |
Extruder 1 Layer ref: | A |
Screw diam 1 | 70 |
Extruder 2 Layer ref: | B |
Screw diam 2 | 50 |
Extruder 3 Layer ref: | C |
Screw diam 3 | 60 |
Extruder 4 Layer ref: | D |
Screw diam 4 | 50 |
Extruder 5 Layer ref: | E |
Screw diam 5 | 70 |

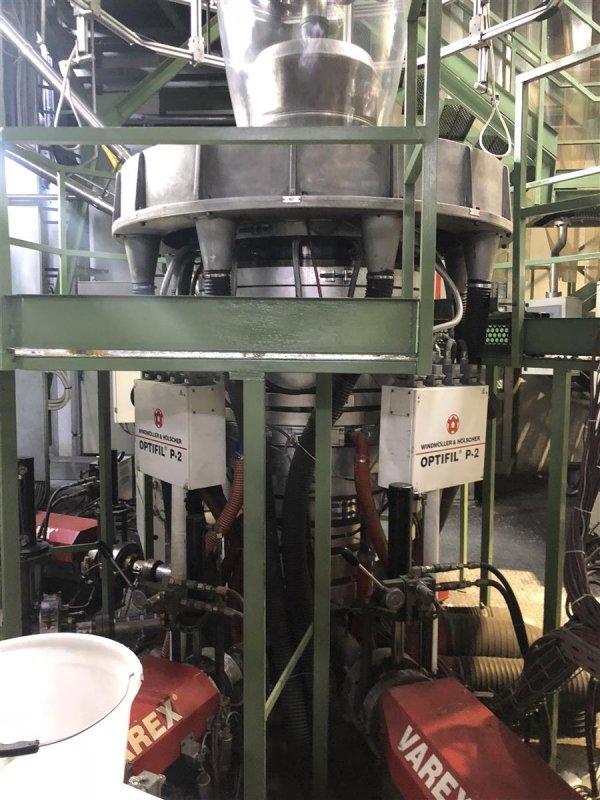

Head description | IBC, Automatic by heat patrons Optifil P2 |
Die diam (mm) | 500 with 2.8mm and 1.8mm gaps |
Thickness controll system | OPTIFIL P2 |
Bubble cage | YES |

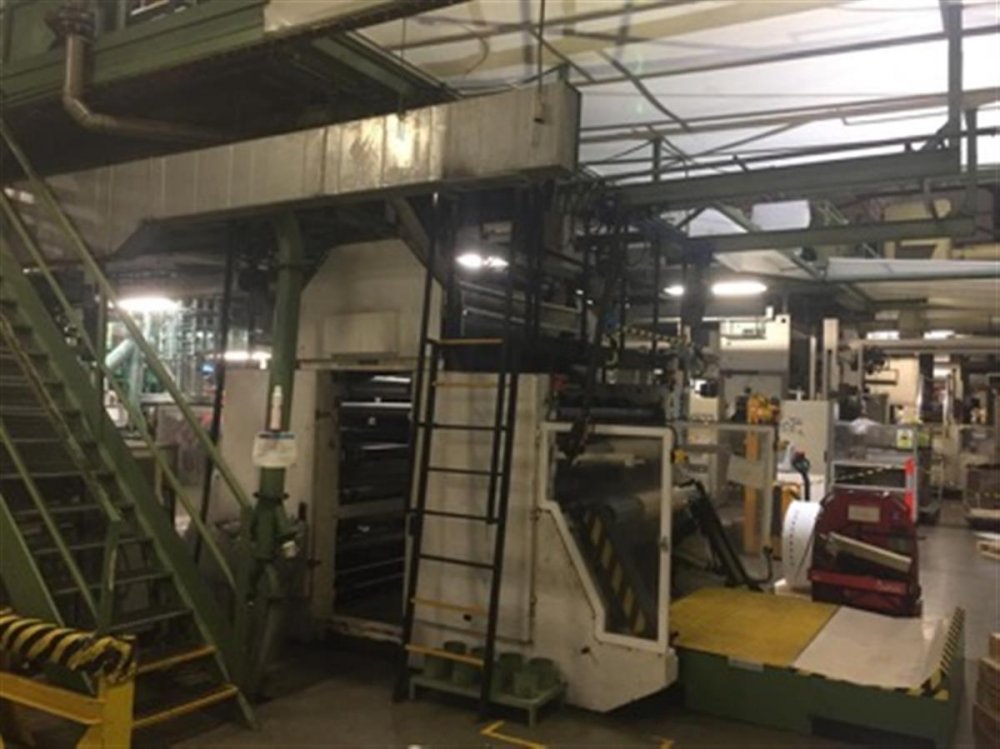

Take off unit | Rotating |
Corona treatment | Ferrarini GTS 12W40A /Kavlar SGA 61,9Kw |
Web guide | EL Ultrasounds sensor, oshillating frame |
Rewinder Type | Double back to back |
Rewinder max reel diameter | 1000 |
Rewinder description | Windmoeller |
Note | Hot part year 2000, take off and winder also from W&H Currently hot part and downstream part are on two separate lines |
