- Código Máquina
- RO154
- Constructor
- WINDMÖLLER & HÖLSCHER
- Modello

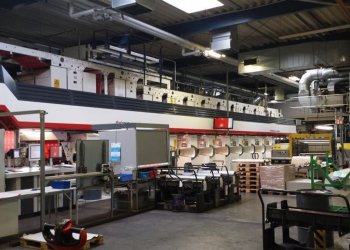

- HELIOSTAR SH
- Año
- 2011
- Number of colors
- 10
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1120
- Print width (mm)
- 1100
- Print repeat range (mm)
- 320-900 mm
- Drying specifications
- First unit 1 and 10 double hood, unit 2 and 9 single
- Drying heat surce
- Hot water included also water boiler
- Unwinder type
- Automatic splice
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic splice
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- yes
- Register controll
- yes
- Vyscosity control
- Automatic by Opticolor
- Corona treatment
- yes
- Print cylinders
- to be agreed
- Note
- Speed 400 m/min Electrostatic unit (Eltex) Div. printing cylinder-sleeves Web cleaning system unit 10 trolleys Direct driven system for printing units 10 solvent analyse systems Turning bars Easy-sync-plus 7 reverse trolleys Chiller
Código Máquina | RO154 |
Constructor | WINDMÖLLER & HÖLSCHER |
Modello | HELIOSTAR SH |
Año | 2011 |
Number of colors | 10 |
Drive | Electronic shaft |
Trolley system | Yes |
Web width (mm) | 1120 |
Print width (mm) | 1100 |
Print repeat range (mm) | 320-900 mm |
Drying specifications | First unit 1 and 10 double hood, unit 2 and 9 single |
Drying heat surce | Hot water included also water boiler |
Unwinder type | Automatic splice |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Automatic splice |
Max reel diameter rewinder (mm) | 1000 |
Videocamera | yes |
Register controll | yes |
Vyscosity control | Automatic by Opticolor |
Corona treatment | yes |
Print cylinders | to be agreed |
Note | Speed 400 m/min Electrostatic unit (Eltex) Div. printing cylinder-sleeves Web cleaning system unit 10 trolleys Direct driven system for printing units 10 solvent analyse systems Turning bars Easy-sync-plus 7 reverse trolleys Chiller |
