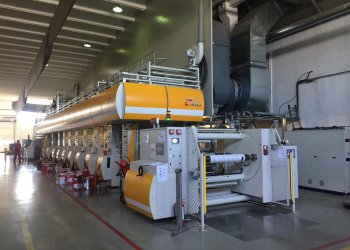

- Código Máquina
- RO158
- Constructor
- UTECO
- Modello
- E PRESS SH 350
- Año
- 2013
- Number of colors
- 9
- Print possibilities
- 9+0, 8+1, 7+2 ; 8 + COLD SEAL
- Drive
- Cardan
- Trolley system
- Yes
- Web width (mm)
- 1300
- Print width (mm)
- 1280
- Print repeat range (mm)
- 450-900 mm
- Drying specifications
- UNITS 1- 7 singLe drier 2200 mm , 1 blowing fan each unit , one common exhaust fan ; UNIT 8 double drier2 x 2200 mm , 2 blowing fans 2 exhaust fans ; UNIT 9 double extended driers 2x 2700 mm 2 blowing fans 2 exhaust fans; automatic reiicrculating unitr with LEL control on each drying zone
- Drying heat surce
- Thermo oil heaters each 110.000 kcal/h capacity for each drying zone with independednt control ( totally11 drying zones )
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- GRAFIKONTROL l type Grafiskan 2100 for pruint visualization + Grafiskan 3000 3 chip for 100% print inspection with 100% defekt control
- Register controll
- ELTROMAT automatic reg control long and side type Registar 20 with quick pre registering system
- Vyscosity control
- New Celio VIscolor 2500
- Corona treatment
- yes Mero
- Note
- 16 printing trolleys ( 8+ 8 ) + 2 cold seal trolleys with peristaltic pump 18 doctor blades assembly ( 9 in the machien + 9 for job change 9 ELTEX ex proof antistatic bars Fire detection and extinction system
| Código Máquina | RO158 |
| Constructor | UTECO |
| Modello | E PRESS SH 350 |
| Año | 2013 |
| Number of colors | 9 |
| Print possibilities | 9+0, 8+1, 7+2 ; 8 + COLD SEAL |
| Drive | Cardan |
| Trolley system | Yes |
| Web width (mm) | 1300 |
| Print width (mm) | 1280 |
| Print repeat range (mm) | 450-900 mm |
| Drying specifications | UNITS 1- 7 singLe drier 2200 mm , 1 blowing fan each unit , one common exhaust fan ; UNIT 8 double drier2 x 2200 mm , 2 blowing fans 2 exhaust fans ; UNIT 9 double extended driers 2x 2700 mm 2 blowing fans 2 exhaust fans; automatic reiicrculating unitr with LEL control on each drying zone |
| Drying heat surce | Thermo oil heaters each 110.000 kcal/h capacity for each drying zone with independednt control ( totally11 drying zones ) |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | GRAFIKONTROL l type Grafiskan 2100 for pruint visualization + Grafiskan 3000 3 chip for 100% print inspection with 100% defekt control |
| Register controll | ELTROMAT automatic reg control long and side type Registar 20 with quick pre registering system |
| Vyscosity control | New Celio VIscolor 2500 |
| Corona treatment | yes Mero |
| Note | 16 printing trolleys ( 8+ 8 ) + 2 cold seal trolleys with peristaltic pump 18 doctor blades assembly ( 9 in the machien + 9 for job change 9 ELTEX ex proof antistatic bars Fire detection and extinction system |
