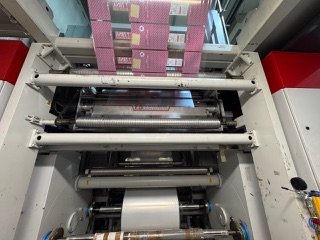

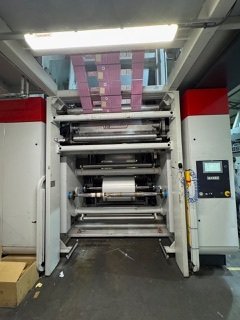

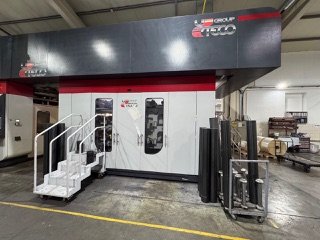

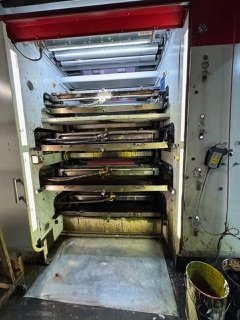

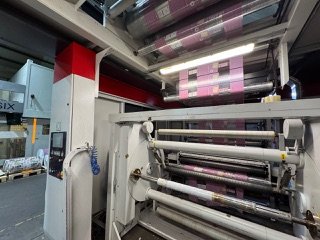

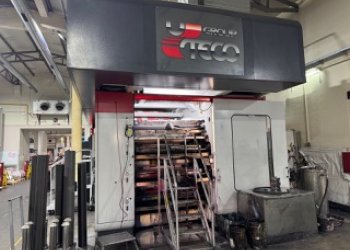

- Código Máquina
- FL1175

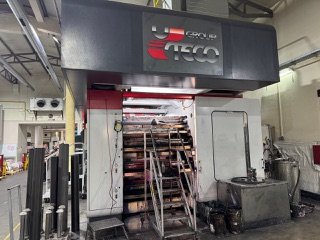

- Constructor
- UTECO
- Modello
- CRYSTAL 808
- Año
- 2019
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1550
- Print width (mm)
- 1500
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 850
- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4fans with inverter contro, final drying tunnel 5 t long, 2 gas burners , Automatic air recirculation system in both zones with LEL control
- Videocamera
- Yes Grafykontrol Progrex 500 with camera Matrix 500, 3ccd with 100 % inspection , click and drag register adj system , 100 % defekt control
- Corona treatment
- Yes Ferrarini Benelli, driven
- Web guides
- yes in and out
- Vyscosity control
- yes automatic Gama G 26
- Washing system
- Automatic wash up system
- Inking system
- Closed chamber doctor blades
- Print Sleeves
- 224 printing sleevs 8 for each following repeat 400mm, 410, 420, 425 , 440 , 450, 460 , 470 , 480 , 500 , 510 , 520 , 530 , 540 , 560 , 580 , 600 , 620 , 640 , 650 , 660 , 670 , 680 , 700 , 720 , 740 , 760 , 780
- Note
- Machine end 2019 installed 2020 Reprint system comlete with register control Automatic printing pressur setting Kiss and Go Automatic printing pressure adj .with speed P2P
| Código Máquina | FL1175 |
| Constructor | UTECO |
| Modello | CRYSTAL 808 |
| Año | 2019 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1550 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4fans with inverter contro, final drying tunnel 5 t long, 2 gas burners , Automatic air recirculation system in both zones with LEL control |
| Videocamera | Yes Grafykontrol Progrex 500 with camera Matrix 500, 3ccd with 100 % inspection , click and drag register adj system , 100 % defekt control |
| Corona treatment | Yes Ferrarini Benelli, driven |
| Web guides | yes in and out |
| Vyscosity control | yes automatic Gama G 26 |
| Washing system | Automatic wash up system |
| Inking system | Closed chamber doctor blades |
| Print Sleeves | 224 printing sleevs 8 for each following repeat 400mm, 410, 420, 425 , 440 , 450, 460 , 470 , 480 , 500 , 510 , 520 , 530 , 540 , 560 , 580 , 600 , 620 , 640 , 650 , 660 , 670 , 680 , 700 , 720 , 740 , 760 , 780 |
| Note | Machine end 2019 installed 2020 Reprint system comlete with register control Automatic printing pressur setting Kiss and Go Automatic printing pressure adj .with speed P2P |

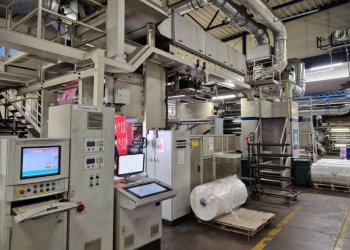

FISCHER & KRECKE 16S-10k
-
