- Código Máquina
- FL968

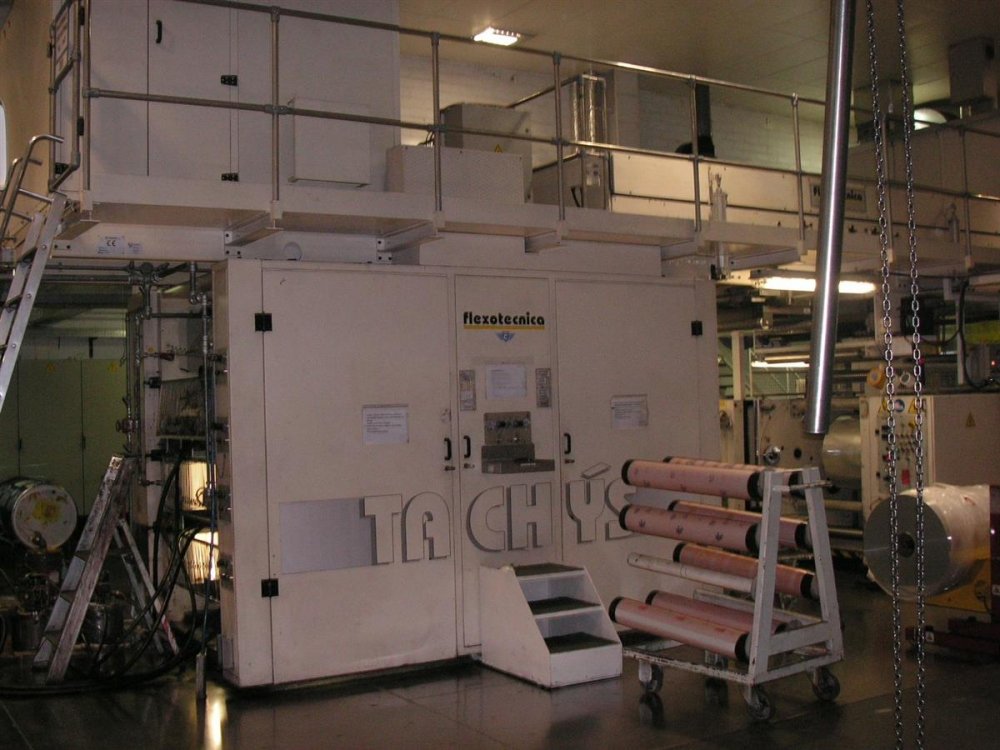

- Constructor
- FLEXOTECNICA
- Modello
- TACHYS
- Año
- 2000
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- Yes

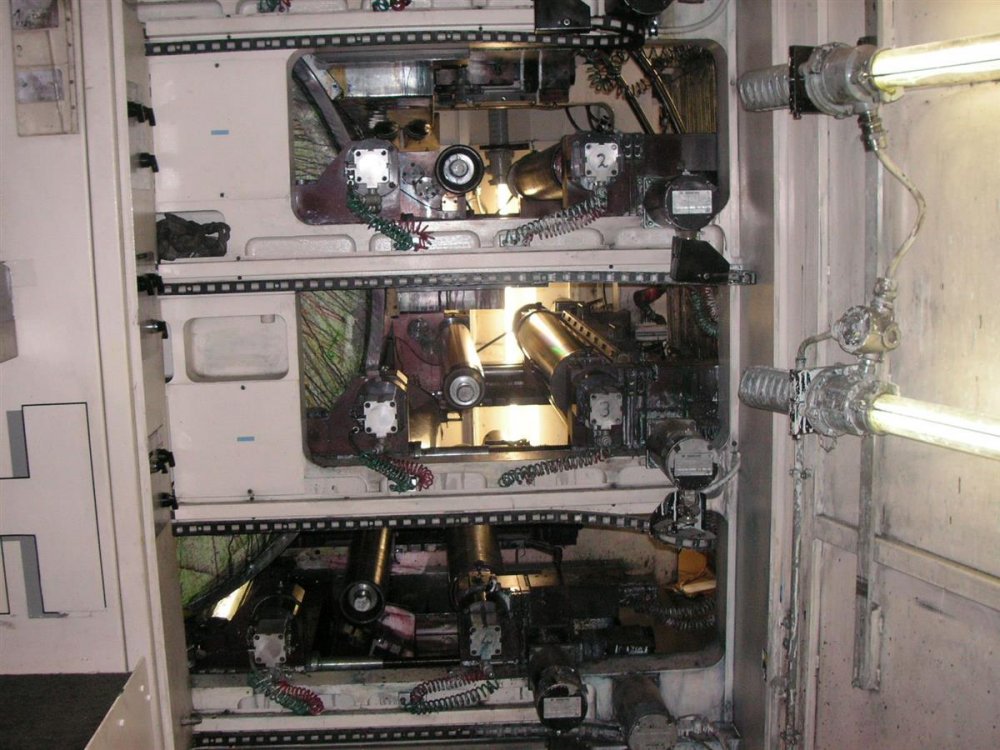

- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 650
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800

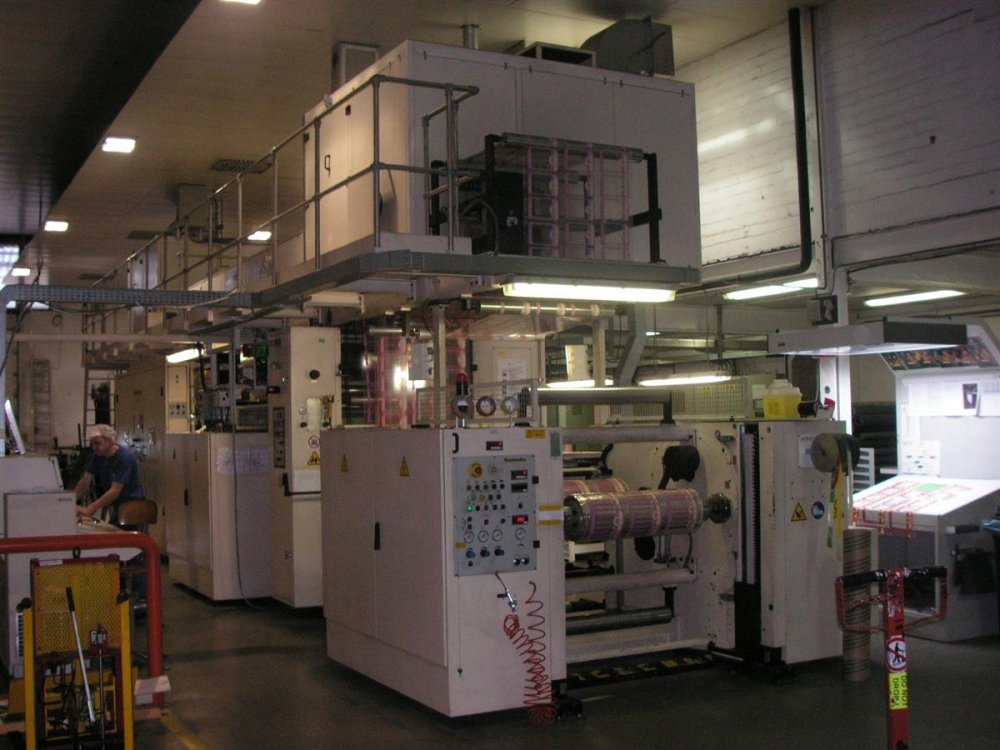

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800

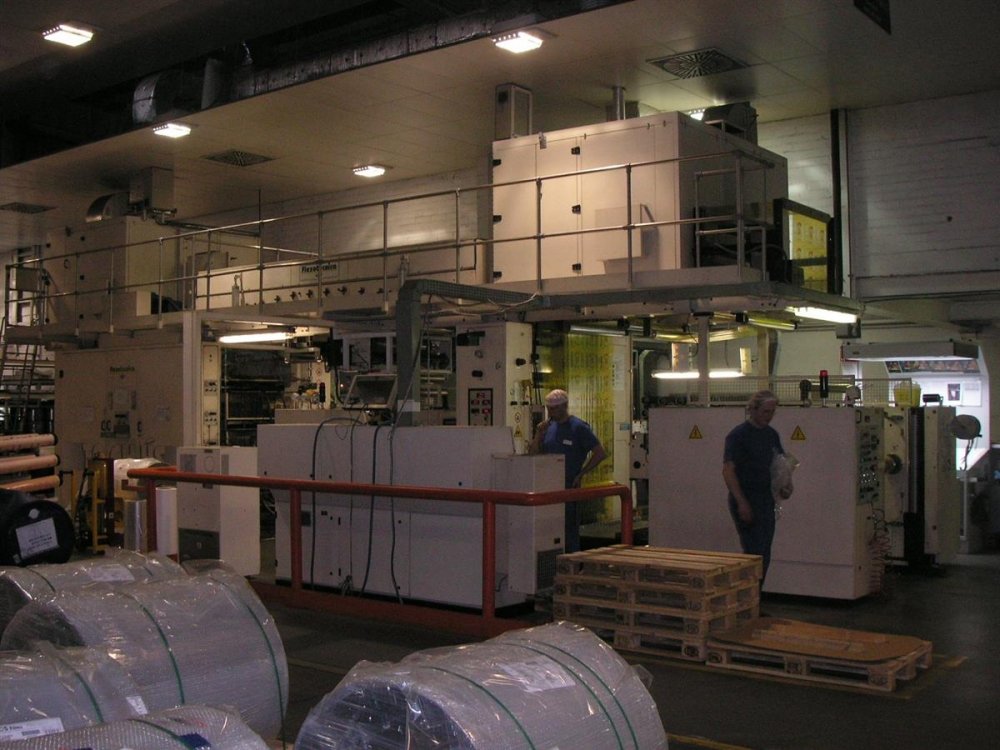

- Drying
- 2 zones, 4 fans, 2 heaters
- Videocamera
- camera BST Webvideostar year 2014, with defect control
- Corona treatment
- Yes

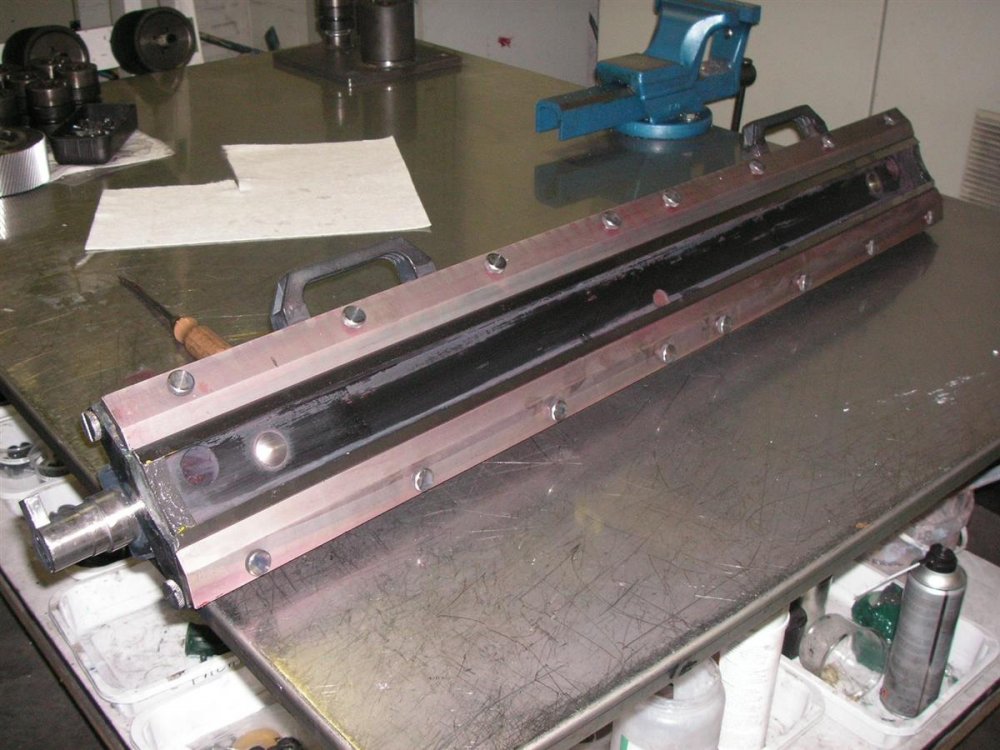

- Inking system
- Closed chamber doctror blades

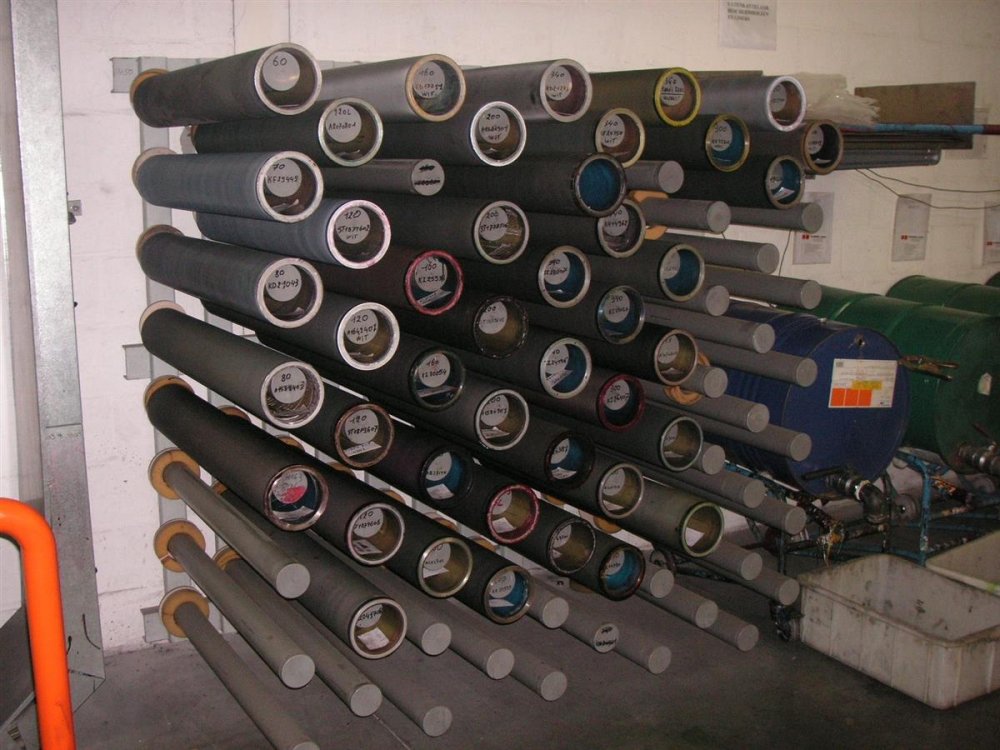

- Anilox
- 25

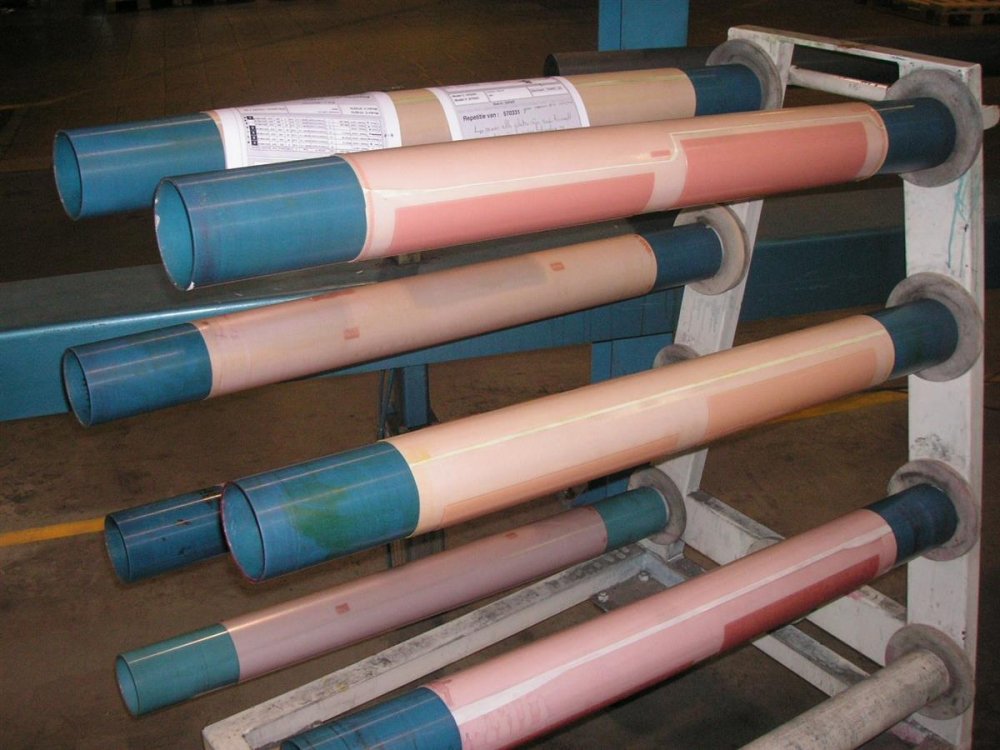

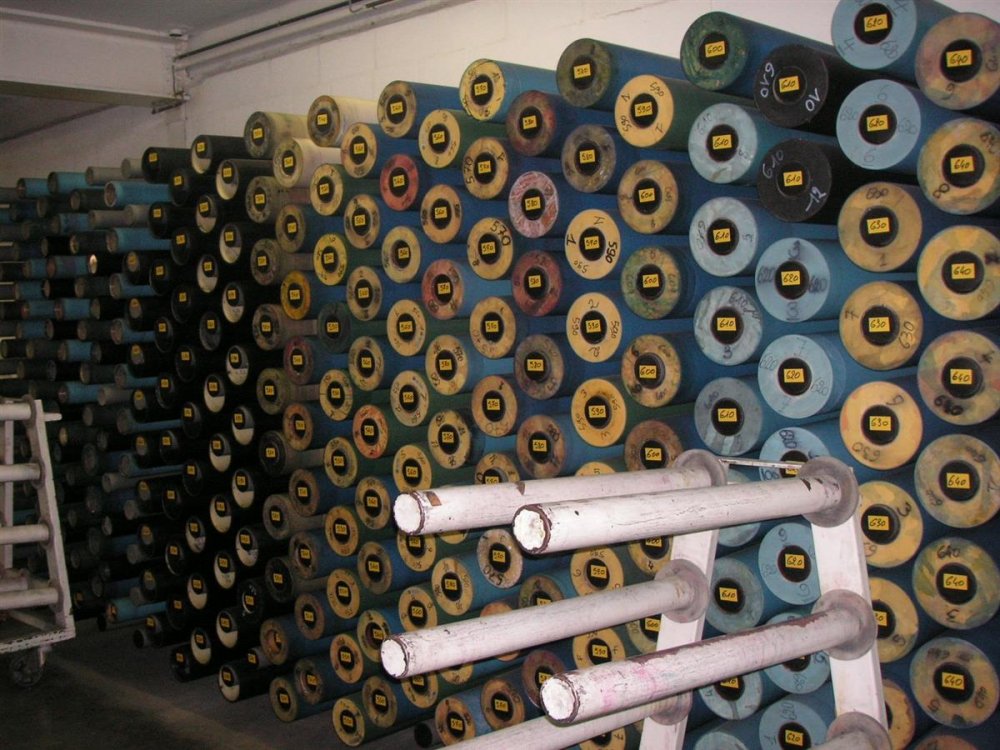

- Print Sleeves
- 400
- Note
- Max. speed 250 m/min Coronatreater Webviewer 400 sleeves and the necessary carriers 40 anilox ceramic sleeves (volume 5 to 18 cm³/m², 340 to 60 lines/cm)
Código Máquina | FL968 |
Constructor | FLEXOTECNICA |
Modello | TACHYS |
Año | 2000 |
Number of colors | 8 |
Gearless | No |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1050 |
Print width (mm) | 1000 |
Min print repeat (mm) | 300 |
Max print repeat (mm) | 650 |
Unwinder type | Turret automatic |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Turret automatic |
Max reel diameter rewinder (mm) | 800 |
Drying | 2 zones, 4 fans, 2 heaters |
Videocamera | camera BST Webvideostar year 2014, with defect control |
Corona treatment | Yes |
Inking system | Closed chamber doctror blades |
Anilox | 25 |
Print Sleeves | 400 |
Note | Max. speed 250 m/min Coronatreater Webviewer 400 sleeves and the necessary carriers 40 anilox ceramic sleeves (volume 5 to 18 cm³/m², 340 to 60 lines/cm) |
