- Código Máquina
- FL842
- Constructor
- WINDMÖLLER & HÖLSCHER
- Modello
- SOLOFLEX
- Año
- 2001
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- No
- Computer supervision
- No
- Web width (mm)
- 850
- Print width (mm)
- 800
- Min print repeat (mm)
- 310
- Max print repeat (mm)
- 600
- Unwinder type
- Automatic turret
- Max reel diameter unwinder (mm)
- 600
- Rewinder type
- Automatic turret
- Max reel diameter rewinder (mm)
- 600
- Drying
- Electric
- Videocamera
- BST Pro scan 3000
- Corona treatment
- Yes, HALBRANDT
- Web guides
- BST

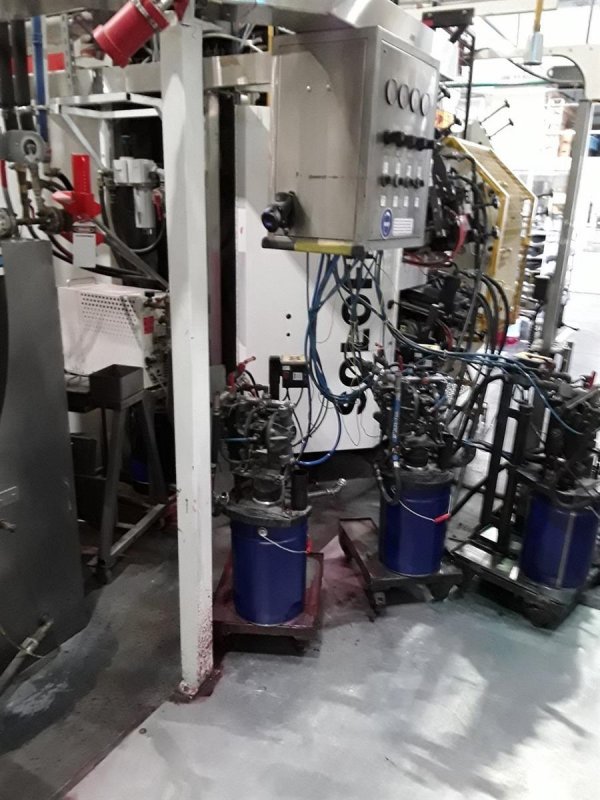

- Vyscosity control
- Yes
- Inking system
- closed chamber doctor blades
- Anilox
- 14 approx - lineature 100,140,200,320 L/cm

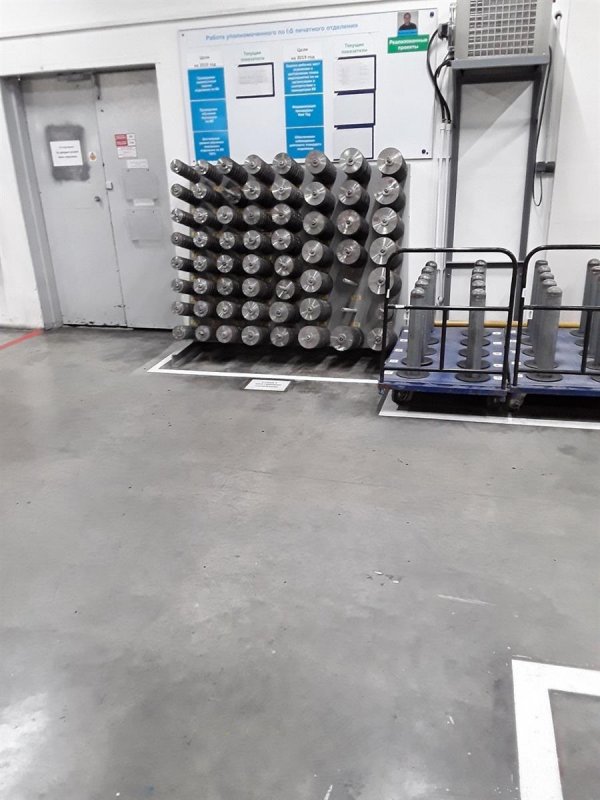

- Print Sleeves
- 148 approx. formats available, mm x qty: 80 x19 , 570 x14 , 500 x5 , 560 x11 , 540 x 1, 580 x1 , 400 x 14 , 425 xb8 , 420 x 8 , 480 x 9 , 340 x 17 , 320 x 8 , 600 x 10 , 375 x 8, 370 x 25 , 470 x 10 , 460 x 7 , 450 x 7 , 440 x 7, 445 x 8, 325 x 7 , 535 x 7 , 510 x 3 , 520 x 12 , 530 x 16 , 490 x 3, 410 x 9 , 390 x 22 , 360 x 9 , 350 x 7 , 475 x 7
- Note
- Speed 250 m/min Material: film/laminate Edge guide in and out
| Código Máquina | FL842 |
| Constructor | WINDMÖLLER & HÖLSCHER |
| Modello | SOLOFLEX |
| Año | 2001 |
| Number of colors | 8 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | No |
| Computer supervision | No |
| Web width (mm) | 850 |
| Print width (mm) | 800 |
| Min print repeat (mm) | 310 |
| Max print repeat (mm) | 600 |
| Unwinder type | Automatic turret |
| Max reel diameter unwinder (mm) | 600 |
| Rewinder type | Automatic turret |
| Max reel diameter rewinder (mm) | 600 |
| Drying | Electric |
| Videocamera | BST Pro scan 3000 |
| Corona treatment | Yes, HALBRANDT |
| Web guides | BST |
| Vyscosity control | Yes |
| Inking system | closed chamber doctor blades |
| Anilox | 14 approx - lineature 100,140,200,320 L/cm |
| Print Sleeves | 148 approx. formats available, mm x qty: 80 x19 , 570 x14 , 500 x5 , 560 x11 , 540 x 1, 580 x1 , 400 x 14 , 425 xb8 , 420 x 8 , 480 x 9 , 340 x 17 , 320 x 8 , 600 x 10 , 375 x 8, 370 x 25 , 470 x 10 , 460 x 7 , 450 x 7 , 440 x 7, 445 x 8, 325 x 7 , 535 x 7 , 510 x 3 , 520 x 12 , 530 x 16 , 490 x 3, 410 x 9 , 390 x 22 , 360 x 9 , 350 x 7 , 475 x 7 |
| Note | Speed 250 m/min Material: film/laminate Edge guide in and out |
