- Código Máquina
- FL946
- Constructor
- FISCHER & KRECKE
- Modello
- 36S - 10
- Año
- 2008
- Number of colors
- 10
- Print possibilityes
- 10+0
- Overhaul/renovation
- Renovated in 2018 from manufacturer. All print units motors and parts renovated. New drives. CI drum renovated in 2018
- Gearless
- Yes
- Fast sleeve change
- Yes

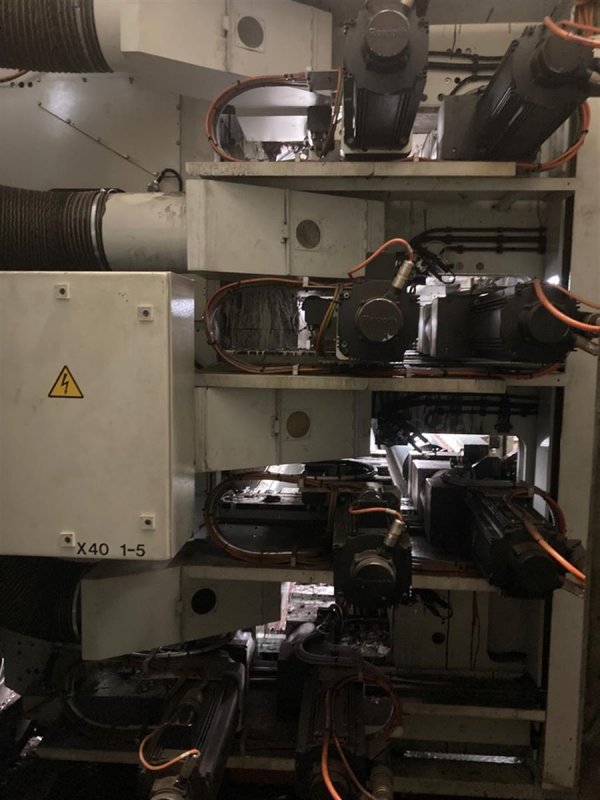

- 4 motor per deck CNC position system
- Yes

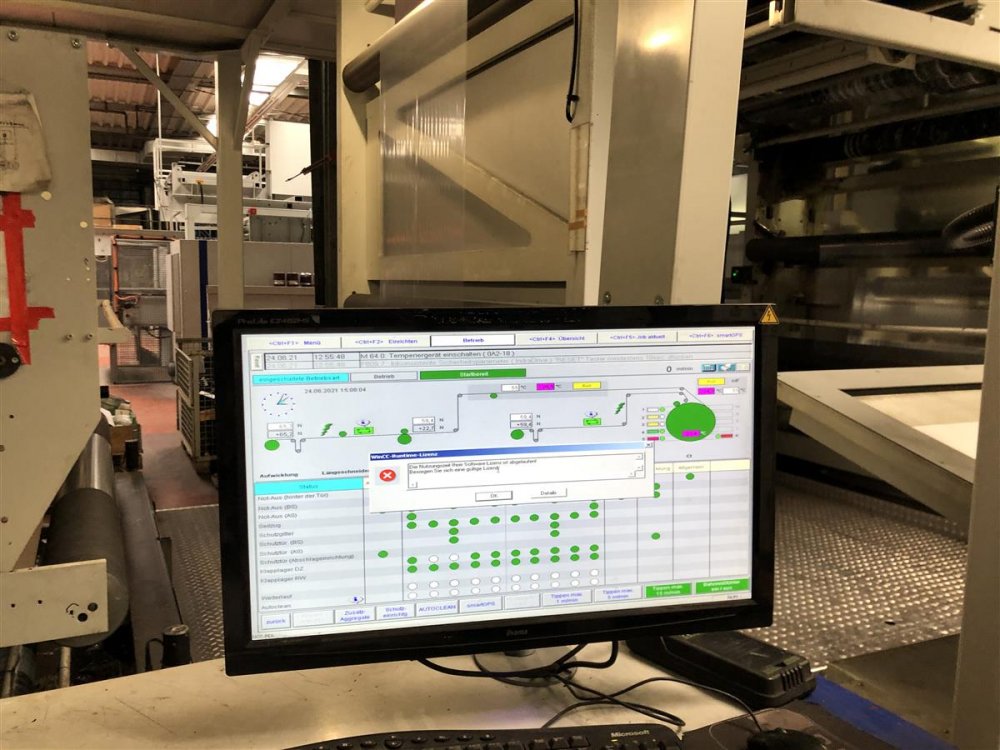

- Computer supervision
- No
- Web width (mm)
- 2100
- Print width (mm)
- 2050
- Min print repeat (mm)
- 520
- Max print repeat (mm)
- 1050

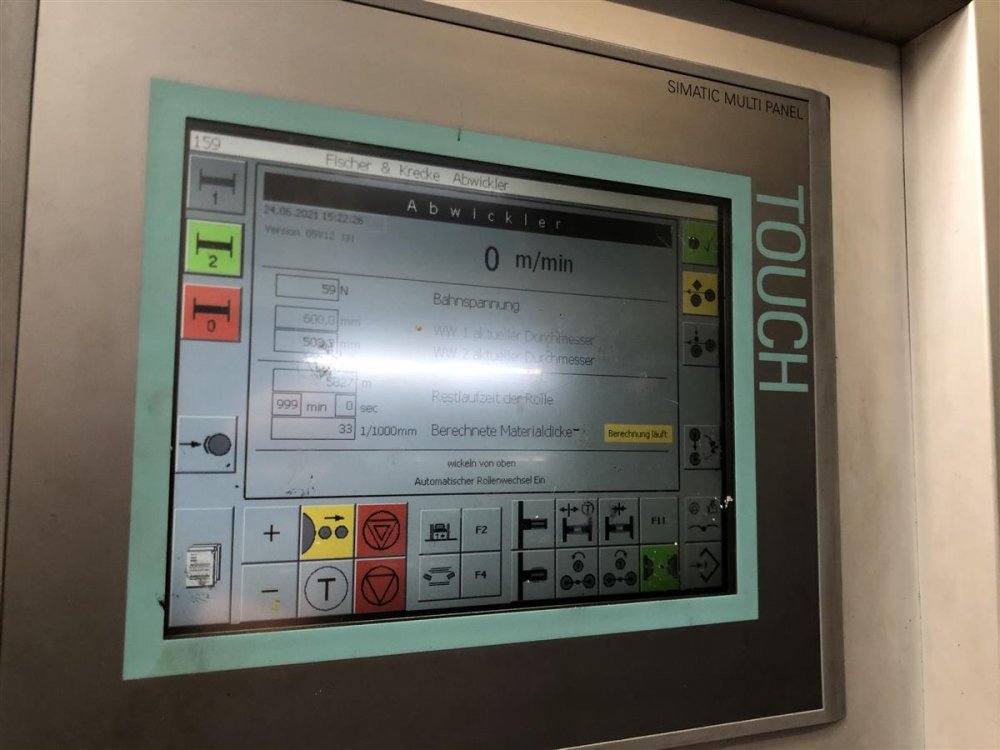

- Unwinder type
- Turret shaftless 13 AW, both direction splicing (can work with shaft of smaller widths)
- Max reel diameter unwinder (mm)
- 1000

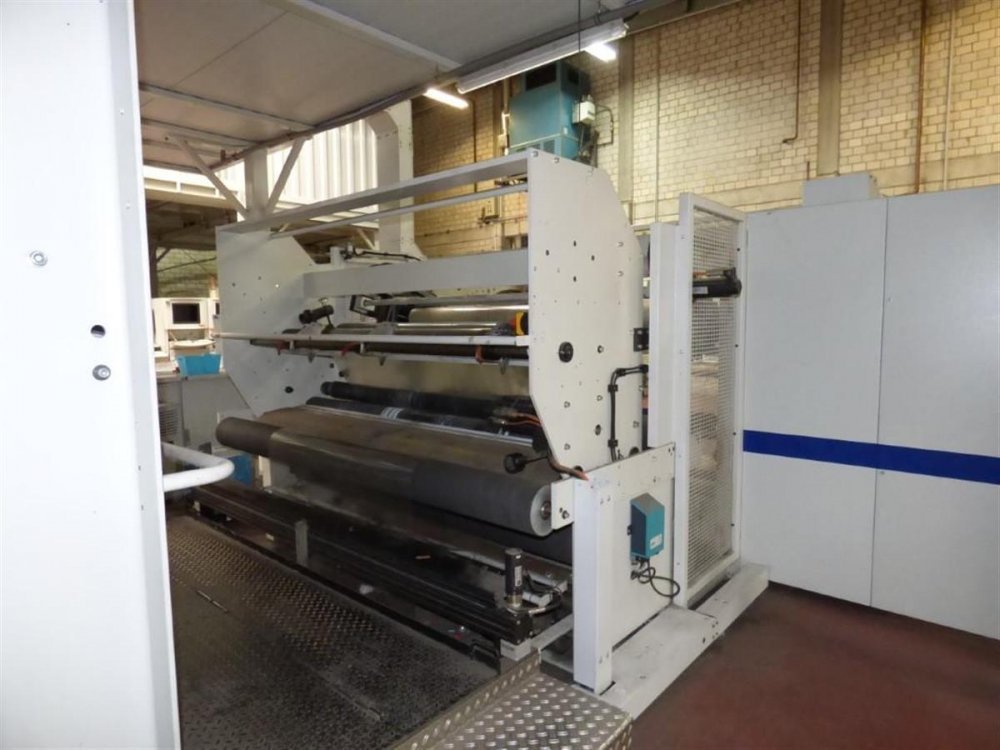

- Rewinder type
- Turret shaftless14 AW, both direction splicing (can work with shaft of smaller widths)
- Max reel diameter rewinder (mm)
- 1000

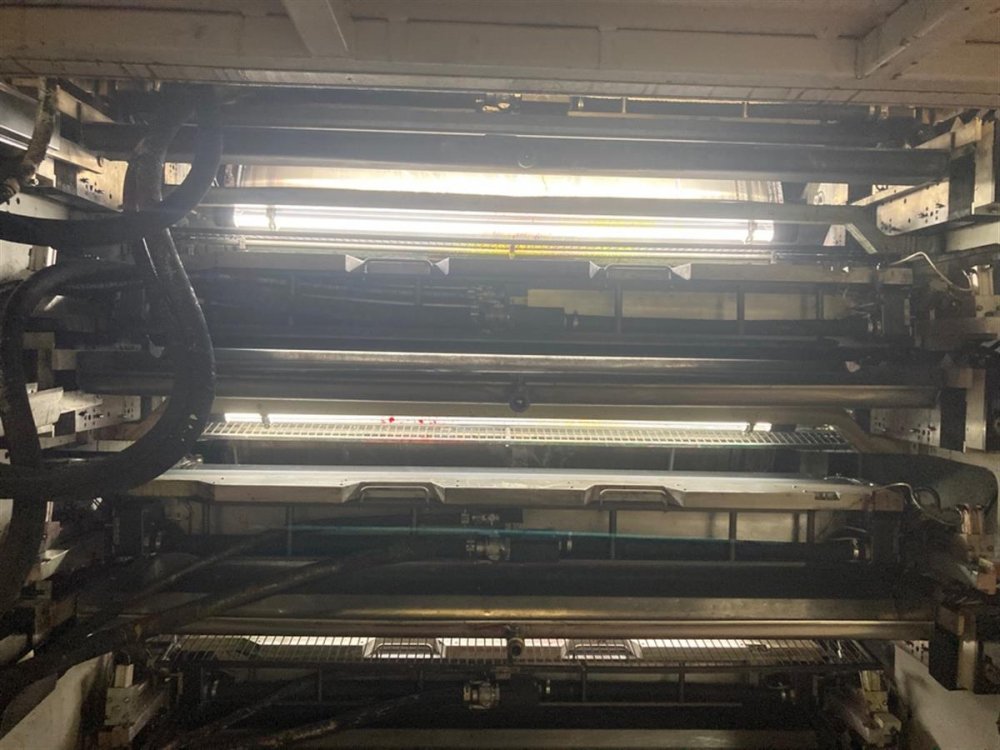

- Drying
- 7 m drying lenght, Maxon gas burners,
- Videocamera

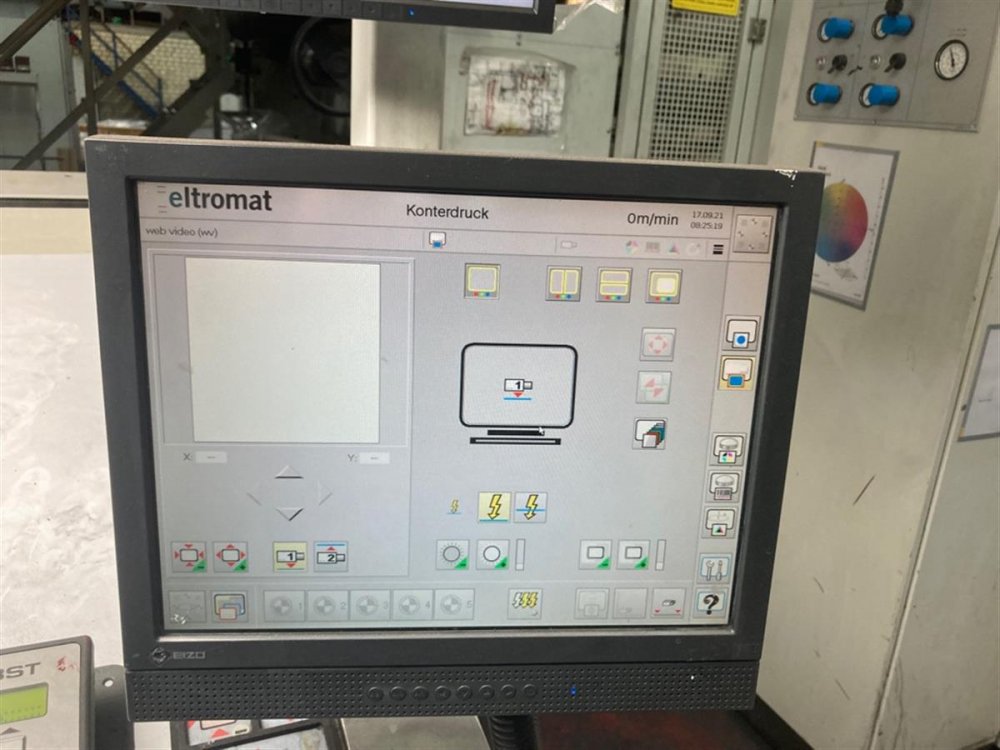

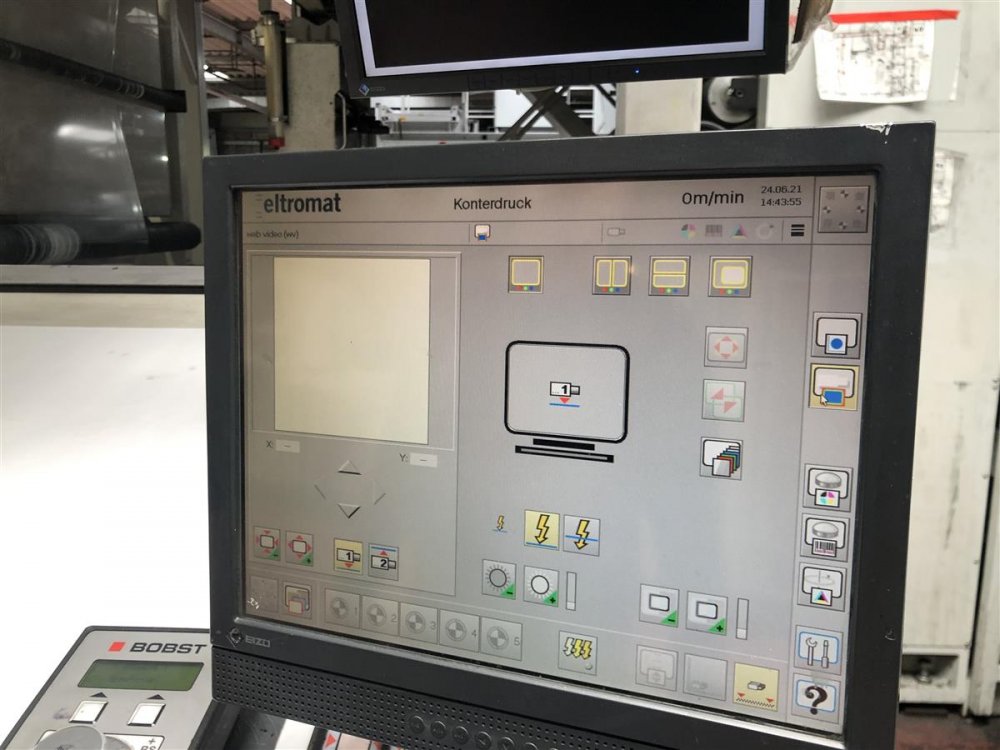

- 2 x Eltromat Webvideo 3000 both 3 chip camera with defect and quality control
- Web guides
- BST
- Vyscosity control
- BLOSS VISControl 3000

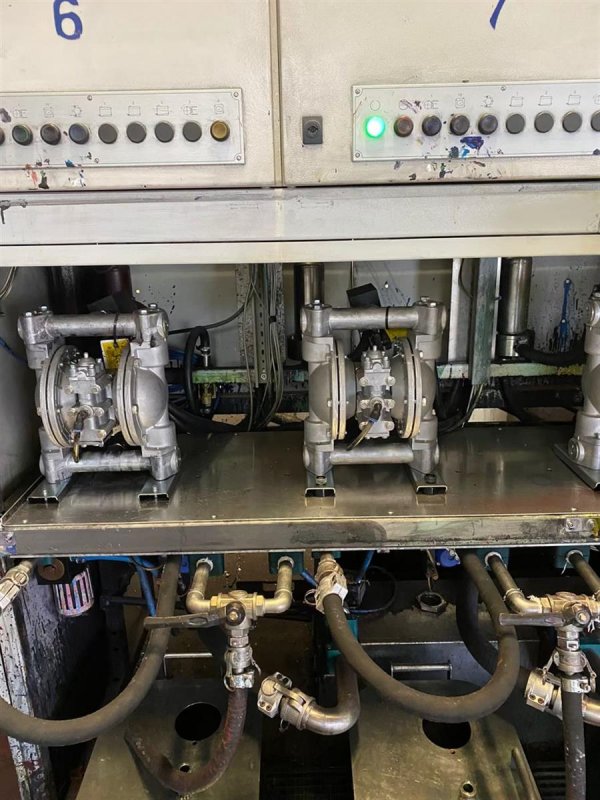

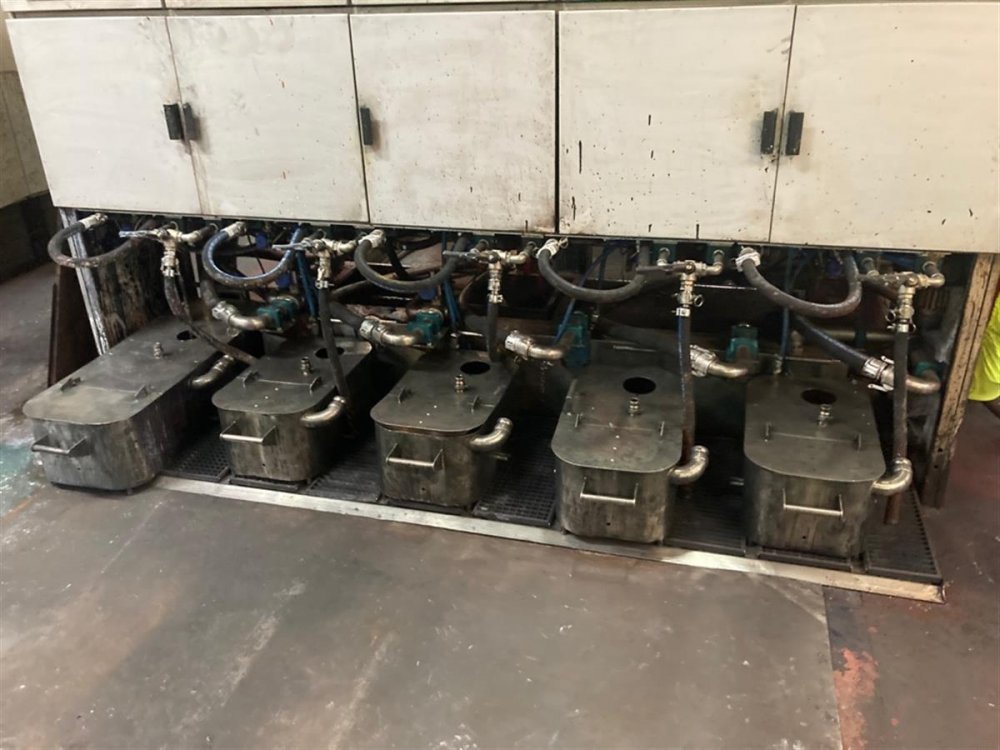

- Washing system
- Auto Clean, 15 tanks, (1x80L, 3x60L, 10x30L
- Inking system
- Closed chamber doctor blades
- Anilox
- 1x120, 2x140, 2x300, 2x400, 4x460, 1x580, 2x220, 1x160.
- Print Sleeves

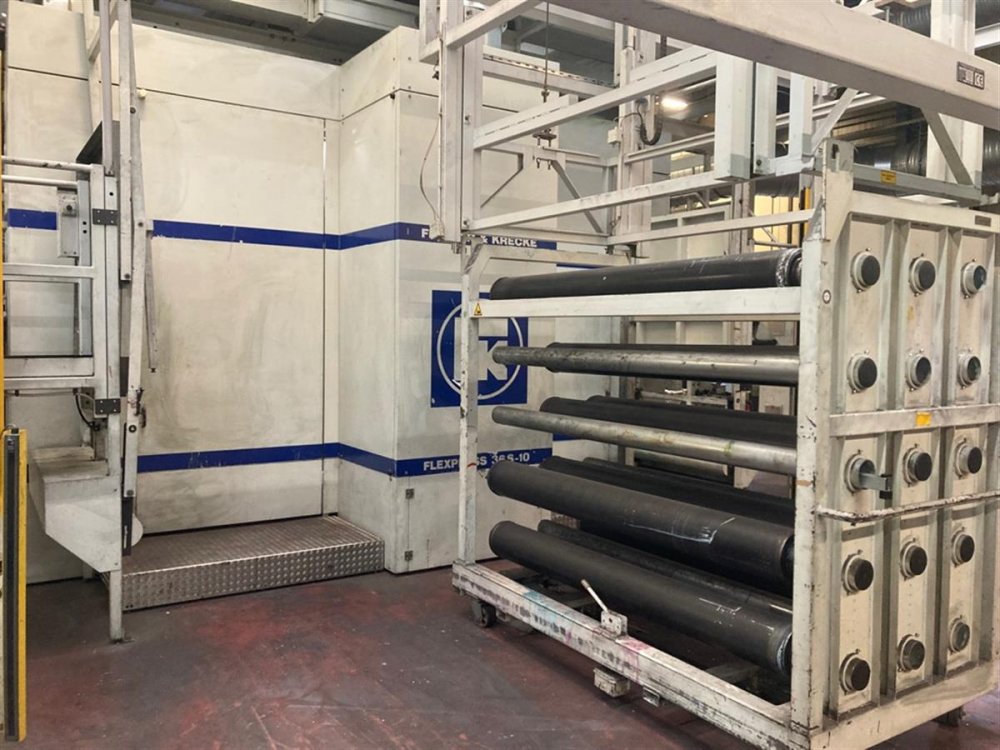

- Carbon fiber carriers: diam 191.102 mm, 222.933mm, 254.514mm, 286.345mm. Print sleeves: qtyx repeat (mm): 10x520, 10x540, 10x560, 10x570, 10x 580, 11x 590, 23x600, 10x620, 10x630, 10x640, 10x650, 10x660, 21x680, 20x690, 20x700, 10x720, 10x740, 10x750,10x760, 18x780, 10x800, 20x840, 11x870
- Note

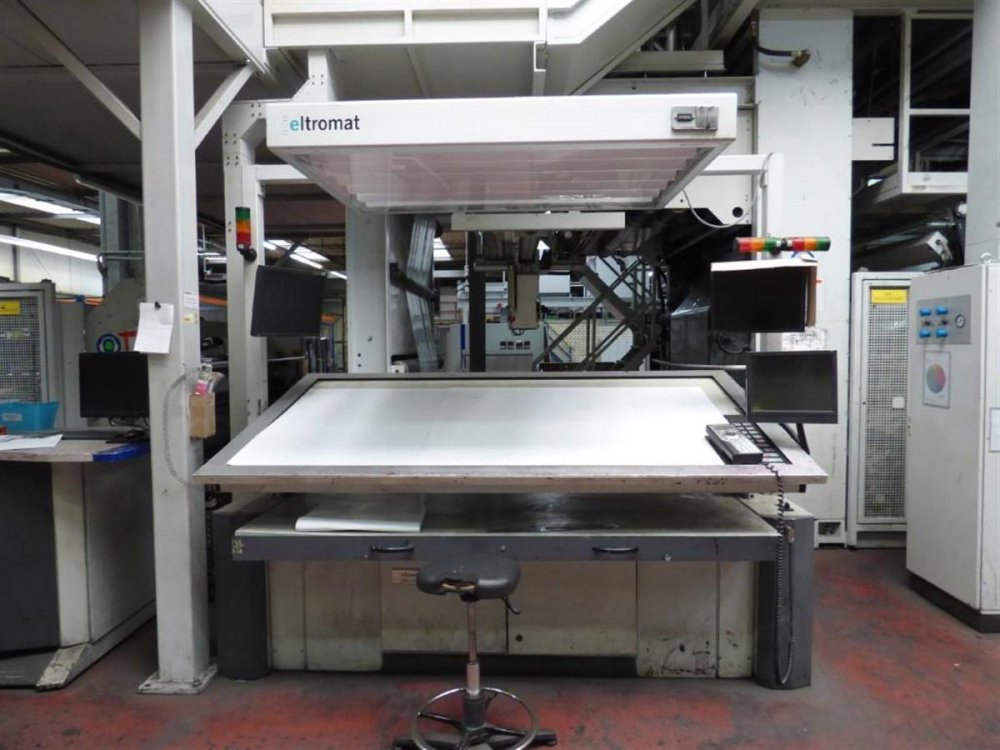

- GPS automatic print set up system in line slitting system Speed: 500 m/min Carbon fiber sleeve mandrels Diam CI drum 2910mm, Ni-Cr plating. Thermo regulated CI drum and side frames Robot for sleeve change system LEL control PLATE MOUNTER: - Make Heaford - Model: 2100 DS - 10 cameras, 16 channels UPS
| Código Máquina | FL946 |
| Constructor | FISCHER & KRECKE |
| Modello | 36S - 10 |
| Año | 2008 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Overhaul/renovation | Renovated in 2018 from manufacturer. All print units motors and parts renovated. New drives. CI drum renovated in 2018 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | No |
| Web width (mm) | 2100 |
| Print width (mm) | 2050 |
| Min print repeat (mm) | 520 |
| Max print repeat (mm) | 1050 |
| Unwinder type | Turret shaftless 13 AW, both direction splicing (can work with shaft of smaller widths) |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret shaftless14 AW, both direction splicing (can work with shaft of smaller widths) |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 7 m drying lenght, Maxon gas burners, |
| Videocamera | 2 x Eltromat Webvideo 3000 both 3 chip camera with defect and quality control |
| Web guides | BST |
| Vyscosity control | BLOSS VISControl 3000 |
| Washing system | Auto Clean, 15 tanks, (1x80L, 3x60L, 10x30L |
| Inking system | Closed chamber doctor blades |
| Anilox | 1x120, 2x140, 2x300, 2x400, 4x460, 1x580, 2x220, 1x160. |
| Print Sleeves | Carbon fiber carriers: diam 191.102 mm, 222.933mm, 254.514mm, 286.345mm. Print sleeves: qtyx repeat (mm): 10x520, 10x540, 10x560, 10x570, 10x 580, 11x 590, 23x600, 10x620, 10x630, 10x640, 10x650, 10x660, 21x680, 20x690, 20x700, 10x720, 10x740, 10x750,10x760, 18x780, 10x800, 20x840, 11x870 |
| Note | GPS automatic print set up system in line slitting system Speed: 500 m/min Carbon fiber sleeve mandrels Diam CI drum 2910mm, Ni-Cr plating. Thermo regulated CI drum and side frames Robot for sleeve change system LEL control PLATE MOUNTER: - Make Heaford - Model: 2100 DS - 10 cameras, 16 channels UPS |
