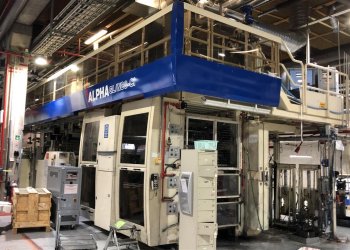

- Código Máquina
- FL921
- Constructor
- SCHIAVI
- Modello
- ALPHA
- Año
- 2001
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 325
- Max print repeat (mm)
- 650
- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones, 4 fans and 2 thermal oil heat exchangers. 1 zone inter colors 8.500m3/h, second zone is drying tunnel 10.300 m3/h: 2 x 18 nozels, tot 4,5 m length, Infrared lamps
- Videocamera
- BST
- Corona treatment
- yes
- Web guides
- 2 in and out
- Vyscosity control
- New celio
- Inking system
- Closed chamber doctor blades
- Print Sleeves
- approx 310 sleeves + approx 24 bridge sleeves/adapters
- Note
- CI drum diam 1800mm Hastelly surface Materials: Film from 10 my, Alu foil from 7 my, paper and laminates up to 120 gsm Plate thickness 1,14mm + 0,55mm Thermo regulation for CI drum LEL contol system Zellweger speed 350 m/min
| Código Máquina | FL921 |
| Constructor | SCHIAVI |
| Modello | ALPHA |
| Año | 2001 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 325 |
| Max print repeat (mm) | 650 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | TURRET |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones, 4 fans and 2 thermal oil heat exchangers. 1 zone inter colors 8.500m3/h, second zone is drying tunnel 10.300 m3/h: 2 x 18 nozels, tot 4,5 m length, Infrared lamps |
| Videocamera | BST |
| Corona treatment | yes |
| Web guides | 2 in and out |
| Vyscosity control | New celio |
| Inking system | Closed chamber doctor blades |
| Print Sleeves | approx 310 sleeves + approx 24 bridge sleeves/adapters |
| Note | CI drum diam 1800mm Hastelly surface Materials: Film from 10 my, Alu foil from 7 my, paper and laminates up to 120 gsm Plate thickness 1,14mm + 0,55mm Thermo regulation for CI drum LEL contol system Zellweger speed 350 m/min |
