- Código Máquina
- FL899
- Constructor
- UTECO

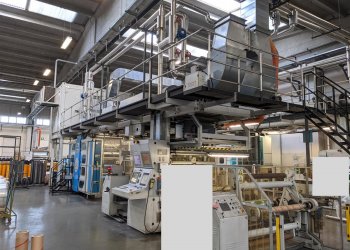

- Modello
- ONYX 808
- Año
- 2007
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans , drying tunnel 4 mt , 2 thermo oil heat exchangers
- Videocamera
- BST Premius Digital 3 chip
- Web guides
- yes in and out
- Vyscosity control
- yes by Fasnacht
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 12 ceramic anilox sleeves as follwos : 4x 300 lines/cm- Vol.15 cm3/m2 ; 4x 200 lines /cm-Vol. 6,5 ; 2x 100 lines/cm -vol.12 ; 2x 80 lines/cm -vol.15
- Print Sleeves
- 56 sleeves: 8x34, 8x 40, 8x47, 8x54, 8x59, 8x65, 8x69
- Print cylinders
- 9 carbon fiber carriers
- Note
- Reprint system with insetter register control and Driven infeed nip calender
| Código Máquina | FL899 |
| Constructor | UTECO |
| Modello | ONYX 808 |
| Año | 2007 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans , drying tunnel 4 mt , 2 thermo oil heat exchangers |
| Videocamera | BST Premius Digital 3 chip |
| Web guides | yes in and out |
| Vyscosity control | yes by Fasnacht |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 12 ceramic anilox sleeves as follwos : 4x 300 lines/cm- Vol.15 cm3/m2 ; 4x 200 lines /cm-Vol. 6,5 ; 2x 100 lines/cm -vol.12 ; 2x 80 lines/cm -vol.15 |
| Print Sleeves | 56 sleeves: 8x34, 8x 40, 8x47, 8x54, 8x59, 8x65, 8x69 |
| Print cylinders | 9 carbon fiber carriers |
| Note | Reprint system with insetter register control and Driven infeed nip calender |
