- Código Máquina
- FL856
- Constructor

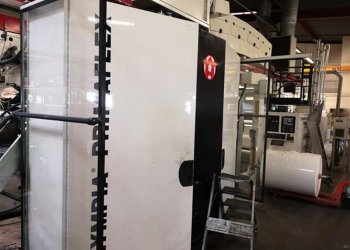

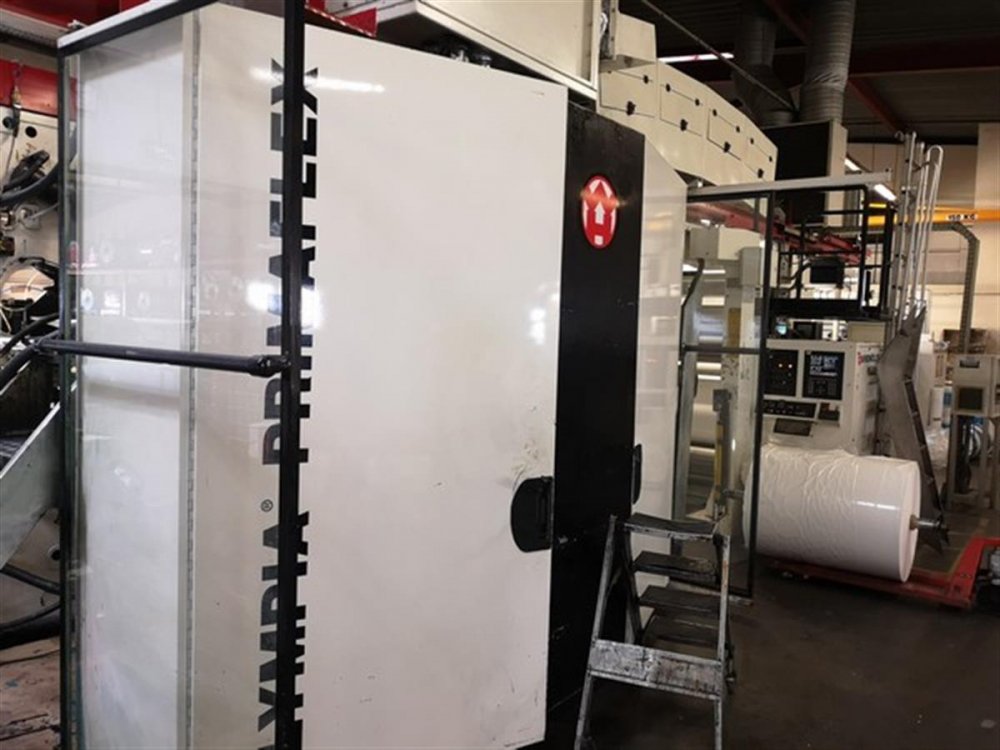

- WINDMÖLLER & HÖLSCHER
- Modello
- PRIMAFLEX
- Año
- 2000
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes

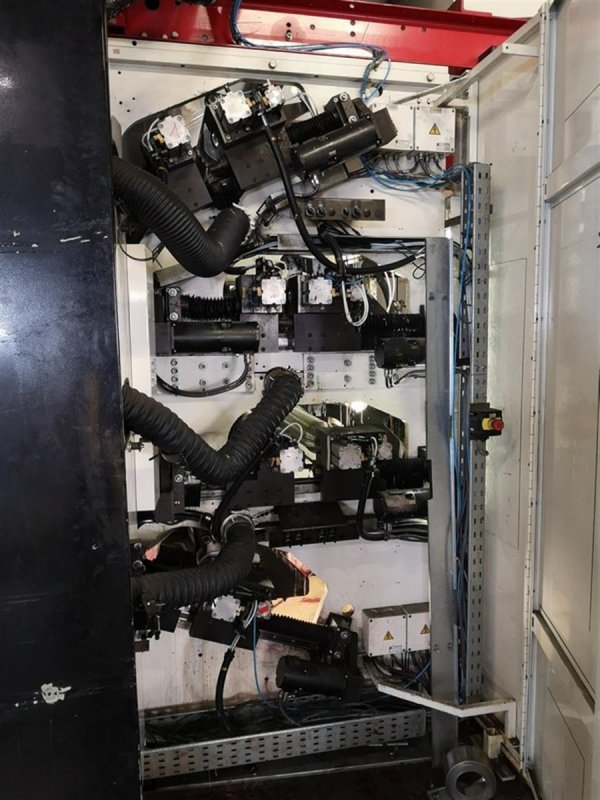

- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 760
- Unwinder type
- Turret automatic with lifting table for rolls
- Max reel diameter unwinder (mm)
- 800

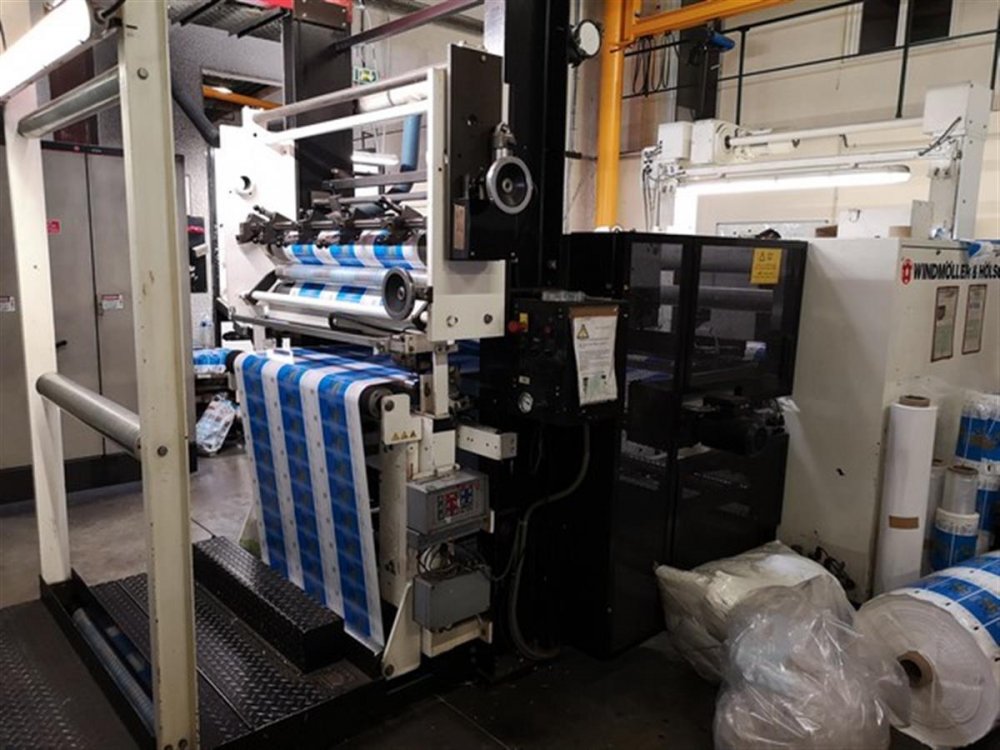

- Rewinder type
- Turret automatic with lifting table for rolls
- Max reel diameter rewinder (mm)
- 800

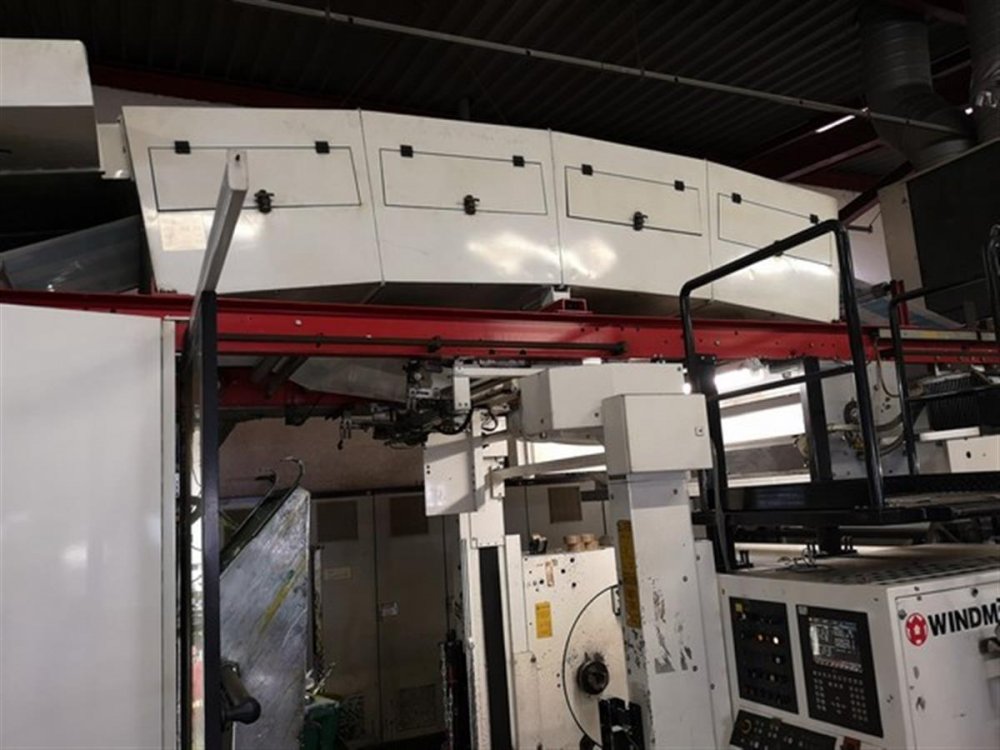

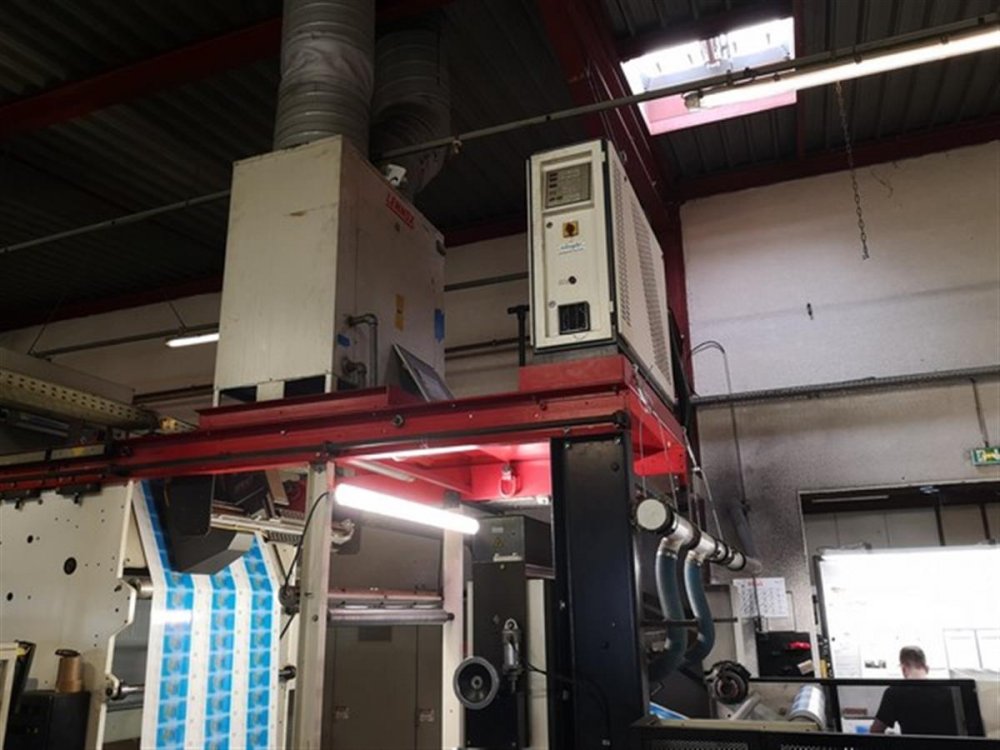

- Drying
- 2 zones 4 fans , two heating units by thermal oil heat exchanger
- Videocamera
- yes BST
- Corona treatment
- yes SOFTAL
- Web guides
- yes in and out BST
- Inking system
- closed chamber doctor blades
- Anilox
- 16 ceramic anilox sleeves
- Print Sleeves
- 150
| Código Máquina | FL856 |
| Constructor | WINDMÖLLER & HÖLSCHER |
| Modello | PRIMAFLEX |
| Año | 2000 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 760 |
| Unwinder type | Turret automatic with lifting table for rolls |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic with lifting table for rolls |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones 4 fans , two heating units by thermal oil heat exchanger |

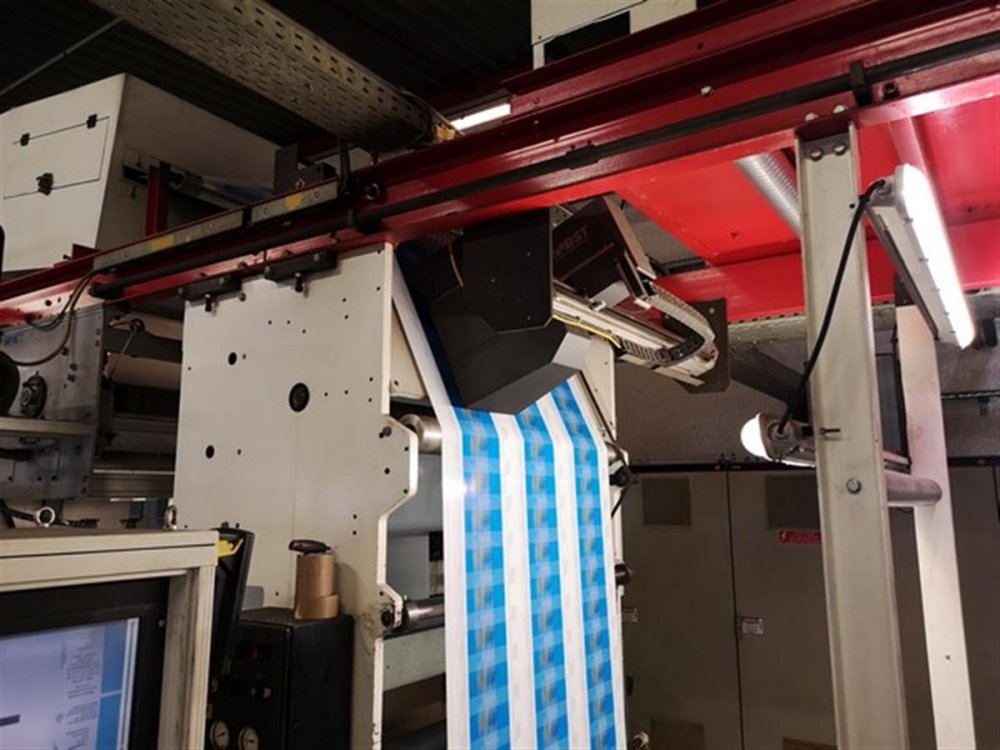

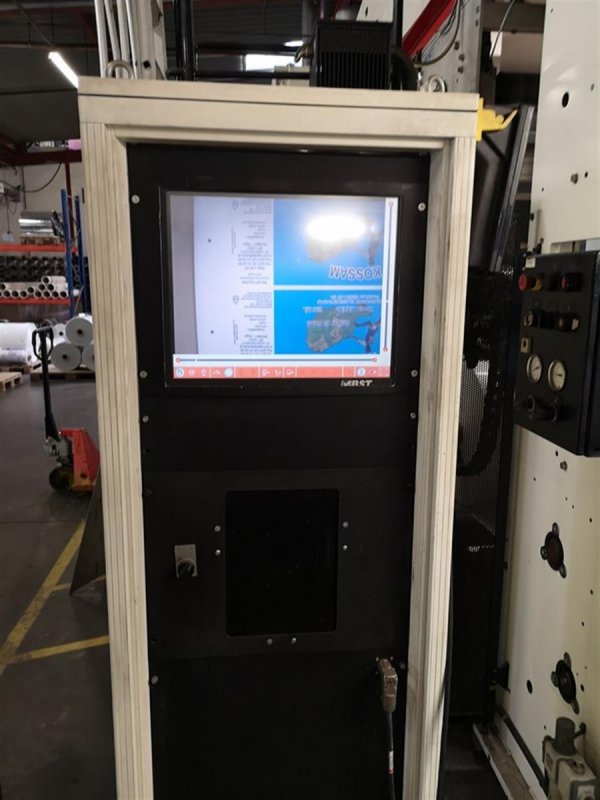

| Videocamera | yes BST |
| Corona treatment | yes SOFTAL |
| Web guides | yes in and out BST |
| Inking system | closed chamber doctor blades |
| Anilox | 16 ceramic anilox sleeves |
| Print Sleeves | 150 |
