- Código Máquina
- FL847
- Constructor
- SOMA
- Modello

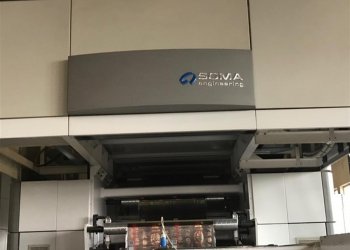

- SOMAFLEX MIDI II
- Año
- 2010
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1100
- Print width (mm)
- 1050
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones - 4 fans- electric heater - Automatic air recirculation with LEL control
- Videocamera
- Yes BST PREMIUS Automatic register and print setting
- Corona treatment
- Yes AFS
- Web guides
- E-L in and out
- Vyscosity control
- 8 automatic Norcross
- Washing system
- Yes automatic
- Anilox
- 330/5 , 360/4,5, 360/4,5 , 240/7,5 , 240/7,5 , 260/6,5 , 120/13,5
- Print Sleeves
- 8x.420 , 8x440, 8x 500 ,8x 520, 8x 540, 8x 560 , 8x 590 ,8x 600
| Código Máquina | FL847 |
| Constructor | SOMA |
| Modello | SOMAFLEX MIDI II |
| Año | 2010 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1100 |
| Print width (mm) | 1050 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones - 4 fans- electric heater - Automatic air recirculation with LEL control |
| Videocamera | Yes BST PREMIUS Automatic register and print setting |
| Corona treatment | Yes AFS |
| Web guides | E-L in and out |
| Vyscosity control | 8 automatic Norcross |
| Washing system | Yes automatic |
| Anilox | 330/5 , 360/4,5, 360/4,5 , 240/7,5 , 240/7,5 , 260/6,5 , 120/13,5 |
| Print Sleeves | 8x.420 , 8x440, 8x 500 ,8x 520, 8x 540, 8x 560 , 8x 590 ,8x 600 |
