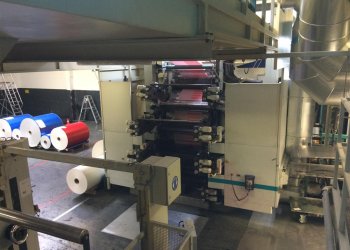

| Código Máquina |
FL643 |
| Constructor |
FISCHER & KRECKE |
| Modelo |
34 DF |
| Año |
1999 |
| Número de colores |
9 |
| Posibilidades de impresión |
8 colors flexo + 1 rotogravure. 9 col printing or 8 col printing and 1 for cold/hot seal or laquers. |
| Gearless |
No |
| Cambio rápido mangas impresión |
No |
| 4 motor per deck CNC position system |
Yes |
| Computer supervision |
Yes |
| Ancho del material (mm) |
1280 |
| Diámetro máximo bobinas Desenrollador (mm) |
1250 |
| Tipo Enrollador |
Turret |
| Max reel diameter rewinder (mm) |
1000 |
| Sistema de secado |
4 Gas burners 4 fans. Flexo unit drying: 2 zones one for inter- color flexo on CI and second is a 5m long drying tunnel. Rotogravure drying: 2 drying hood 6m length eachwith independent ventilations and heaters. tot 12 m. |
| Videocámera |
2 x Eltromat High resolution camera. for fron side and back side |
| Alineadores |
BST web control |
| Sistema de tinta |
Chamber doctor blades. 7 chamber in carbon fibers and 5 in alluminium. Ink tanks.Electric Ink pumps. motor under inverter |
| Anilox |
16 anilox roller: 2x 400 l/cm -60°-5,2 cm³/m² ; 3x 380 i/cm -60°-3,8/4,9cm³/m² ; 6x 340 l/cm -60°-5,5cm³/m² ; 6x 300 l/cm –60°-4,3-7,7cm³/m² ; 2x 255 l/cm –60°-6,0 -9 cm³/m² ; 2x 240 l/cm –60°-7,9 -9,3 cm³/m² ; 4x 220 l/cm –60°-8,2 cm³/m² ; 6x 180 l/cm –60°-7,2 cm³/m² ; 2x 160 l/cm –60°-10 cm³/m² ; 2x 150 l/cm –60°-9,4cm³/m² ; 2x 140 l/cm –60°-7,3 cm³/m² ; 2x 120 l/cm –60°-7,7cm³/m² |
| Mangas de impresión |
No. Several gears and air mandrels available |
| Cilindros de impresión |
127,388x 8:420 ;136,942x2: 450 ; 143,312x8:470 ; 152,866x8:500 ; 162,420x16:530 ; 168,789x16:550 ; 175,159x8:570 ; 191,082x8:620 ; 210,191x8:680 ; 219,745x8: 710 ; 229.229x8:740 ; 245,215x8:790 |
| Informaciones adicionales |
•V= max.365m/min
•temperature control unit and cold water composition
•Gravure unit for front or reverse side (turn-cross in the ground)
UNWINDING:
•possibility to unwind front or reverse side to be preferred printing side •winding shafts 2x 76mm and 2x 150mm
•automatic reel change
REWINDING:
•Possibility to rewind front or reverse side to be preferred reel outside •winding shafts 2 x 76mm und 2 x 150mm
DIMENSIONS:
•Width: 11m
•Length: 30m
•Height: 6m
•Diameter central cylinder 2,26 mm = 7,1 m circumference |
