- Maschinencode
- SO293
- Hersteller
- CURIONI
- Modello
- SUN MASTER 540
- Baujahr
- 1993
- Width (mm)
- 540
- Materials
- Paper 80-130 gsm
- Feed:
- Reel fed
- Handel unit
- Twisted
- Bag length max (mm)
- 650
- Bag length min (mm)
- 320
- Bag width max (mm)
- 540
- Bag width min (mm)
- 220
- Bottom width max (mm)
- 200
- Bottom width (mm)
- 80
- Unwinder
- 1500 max diameter
- Note

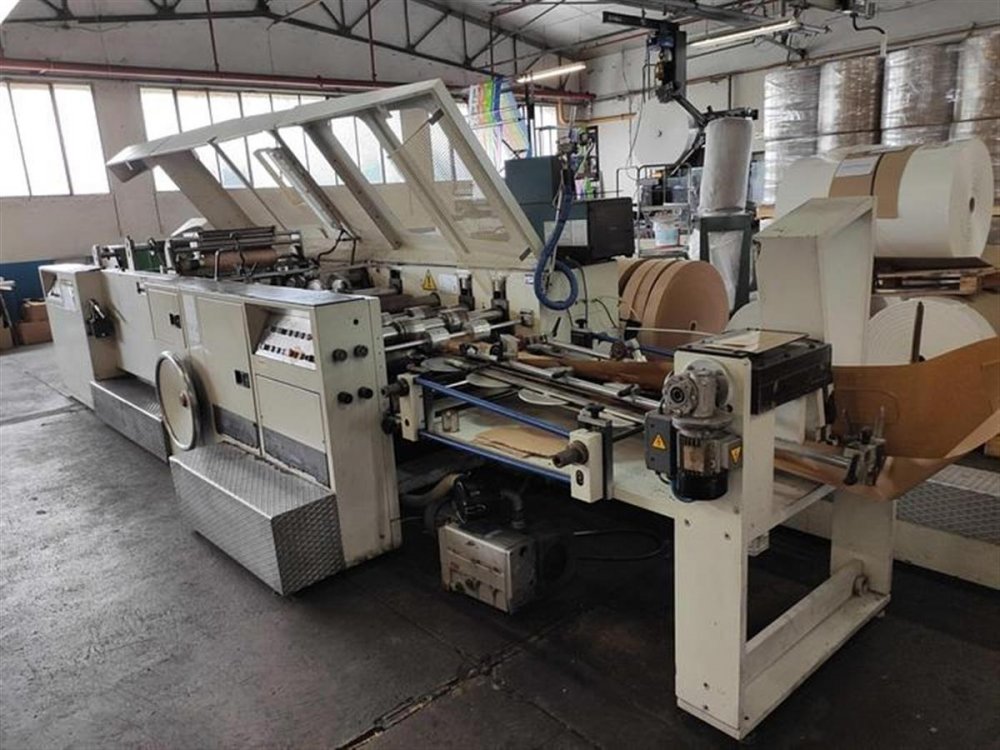

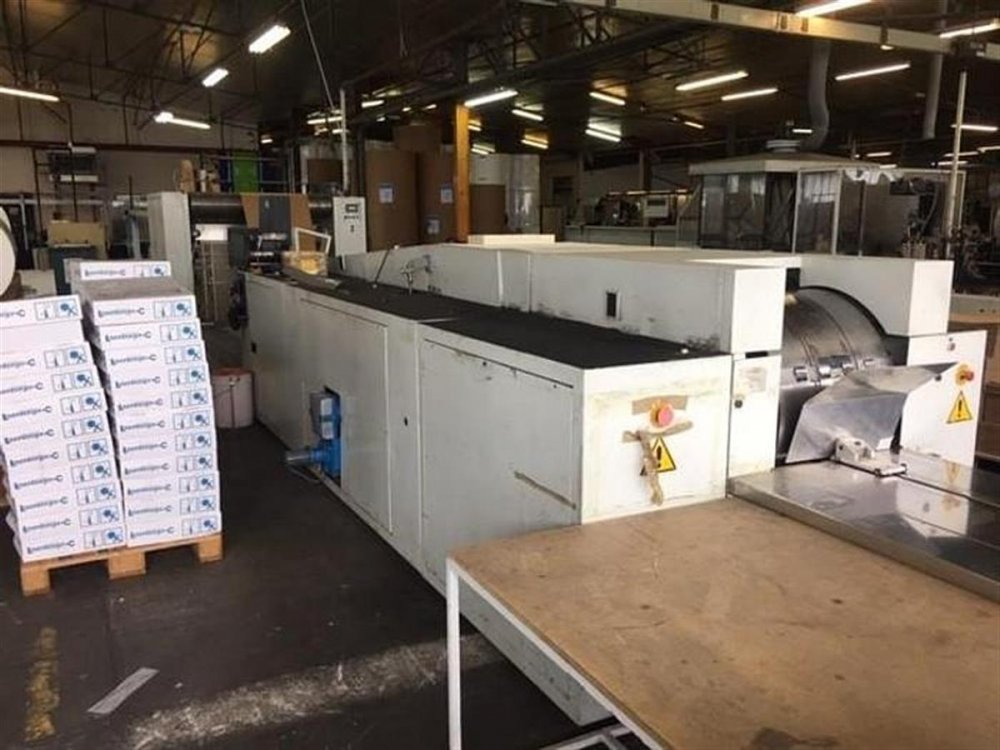

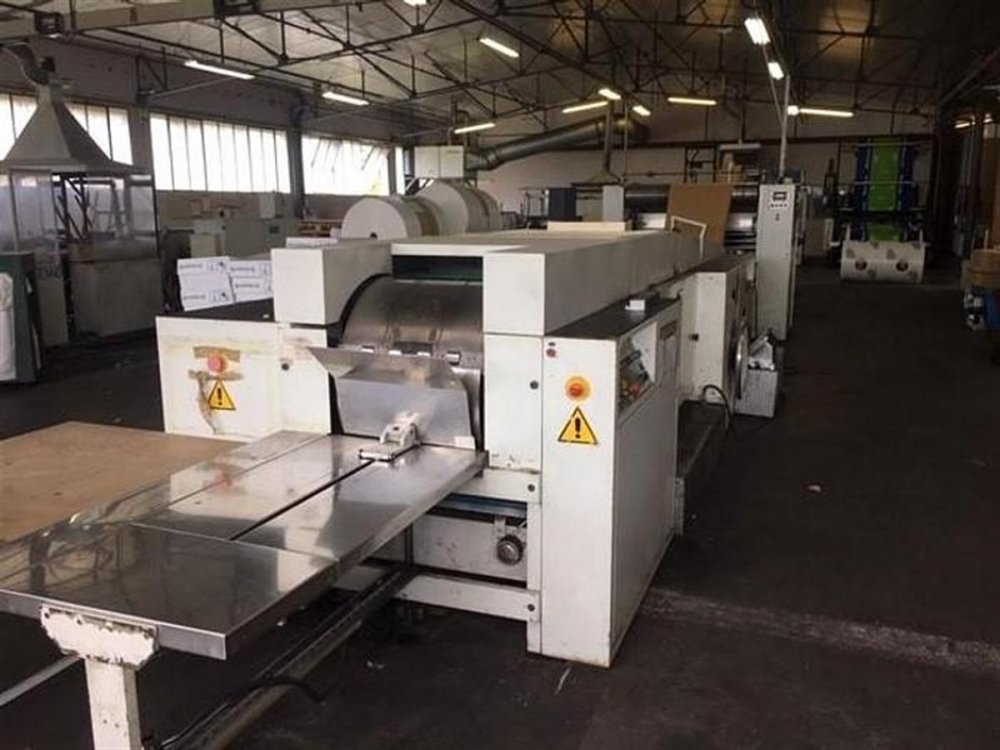

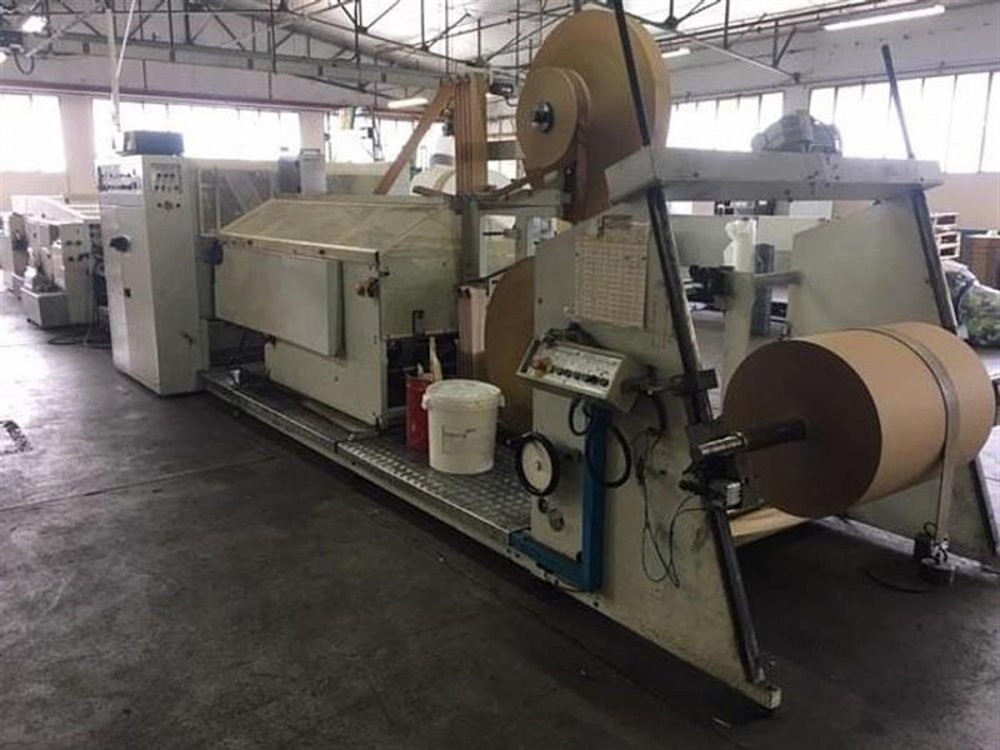

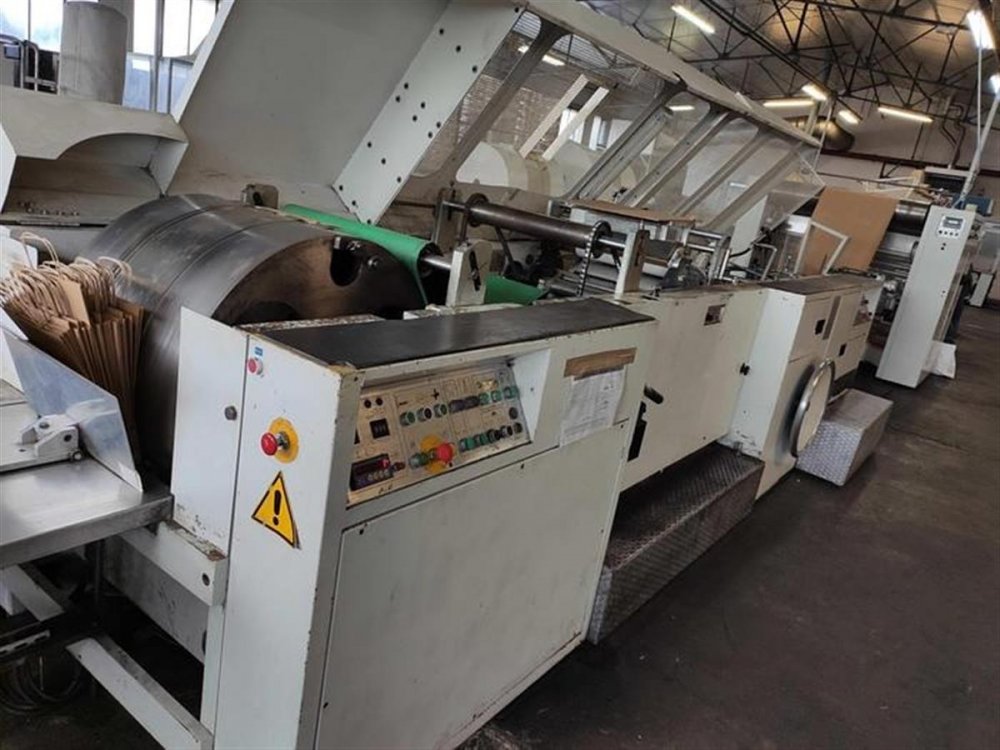

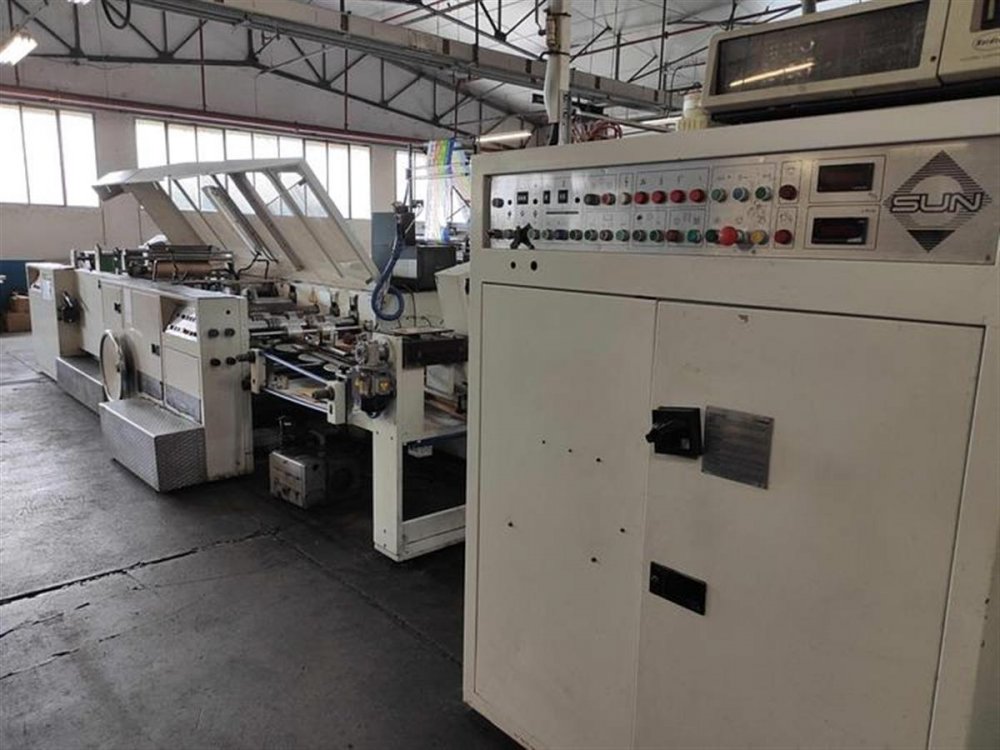

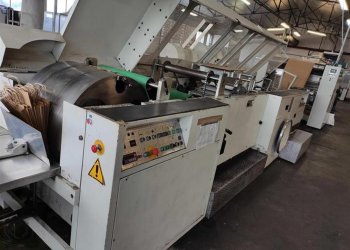

- Square bottom paper bag making machine with twisted handle unit Cut length mm 400 - 780 Reel width mm 720 - 1430 Bag width with handles: mm 240 – 540 Minimum bag width with handles 240 mm Expanding shaft diameter: mm 76 (2.99”) Photocell In-line twisted cord handle making unit Type of handles: twisted-paper cord Approx. dimensions of the machine: length 15500 mm, width 2800 mm, height 2130 mm. Approx. total gross weight kg 21000 2/3 pinions on choice from the following: 440 mm - 540 mm - 560 mm - 590 mm - 670 mm.
| Maschinencode | SO293 |
| Hersteller | CURIONI |
| Modello | SUN MASTER 540 |
| Baujahr | 1993 |
| Width (mm) | 540 |
| Materials | Paper 80-130 gsm |
| Feed: | Reel fed |
| Handel unit | Twisted |
| Bag length max (mm) | 650 |
| Bag length min (mm) | 320 |
| Bag width max (mm) | 540 |
| Bag width min (mm) | 220 |
| Bottom width max (mm) | 200 |
| Bottom width (mm) | 80 |
| Unwinder | 1500 max diameter |
| Note | Square bottom paper bag making machine with twisted handle unit Cut length mm 400 - 780 Reel width mm 720 - 1430 Bag width with handles: mm 240 – 540 Minimum bag width with handles 240 mm Expanding shaft diameter: mm 76 (2.99”) Photocell In-line twisted cord handle making unit Type of handles: twisted-paper cord Approx. dimensions of the machine: length 15500 mm, width 2800 mm, height 2130 mm. Approx. total gross weight kg 21000 2/3 pinions on choice from the following: 440 mm - 540 mm - 560 mm - 590 mm - 670 mm. |
