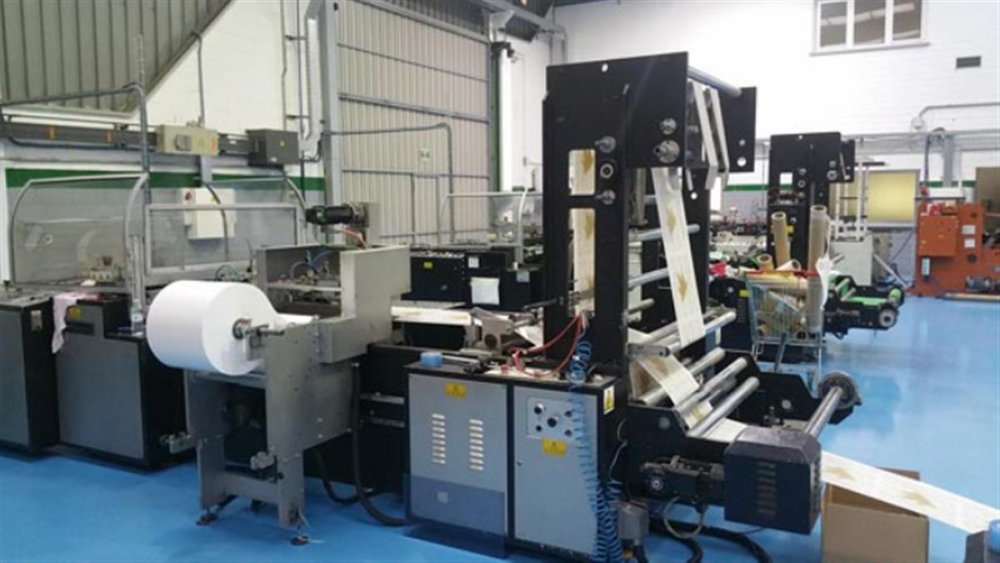

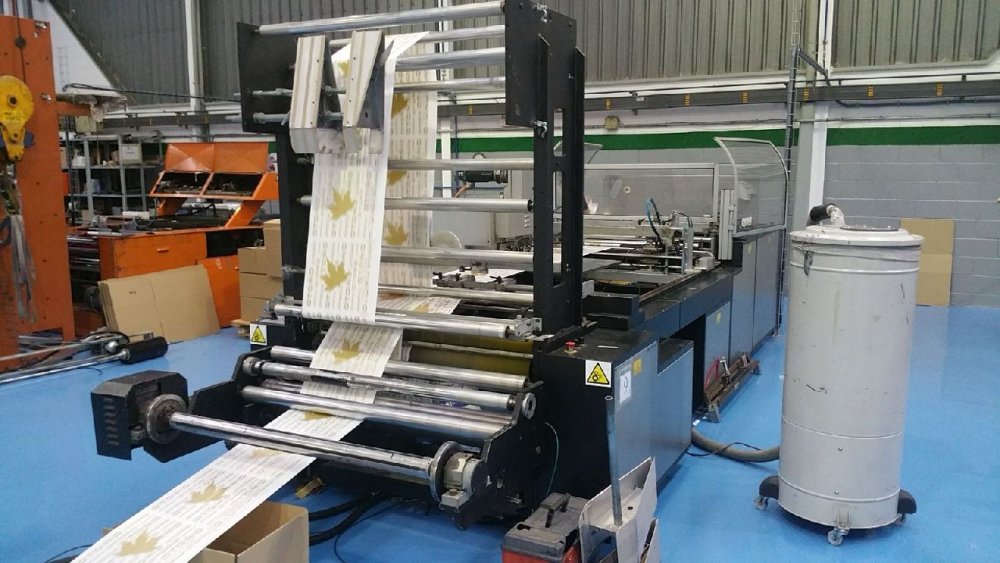

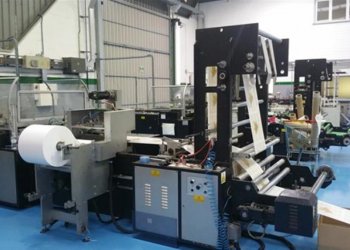

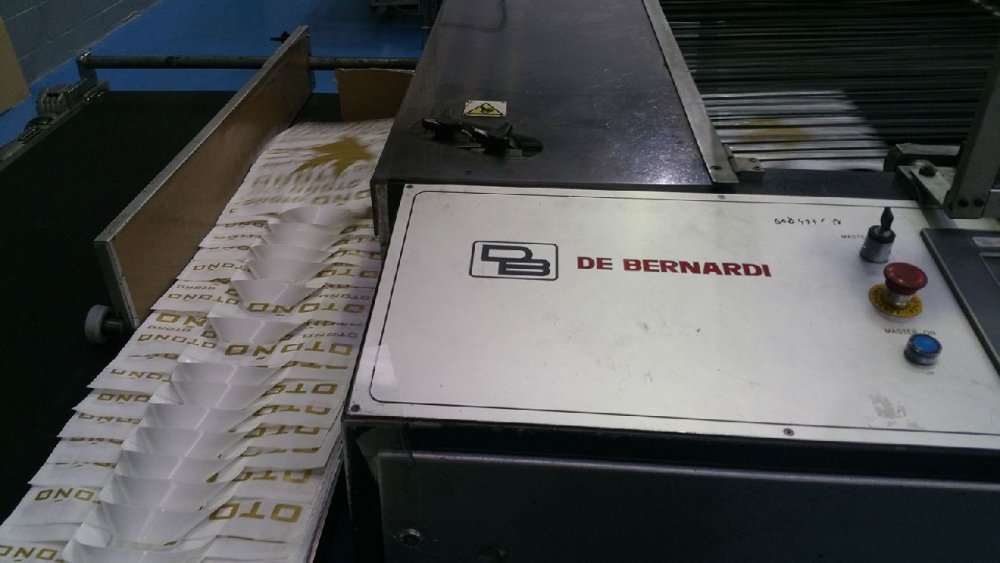

- Maschinencode
- FI521
- Hersteller
- DE BERNARDI
- Modello
- DB100N SH
- Baujahr
- 2007

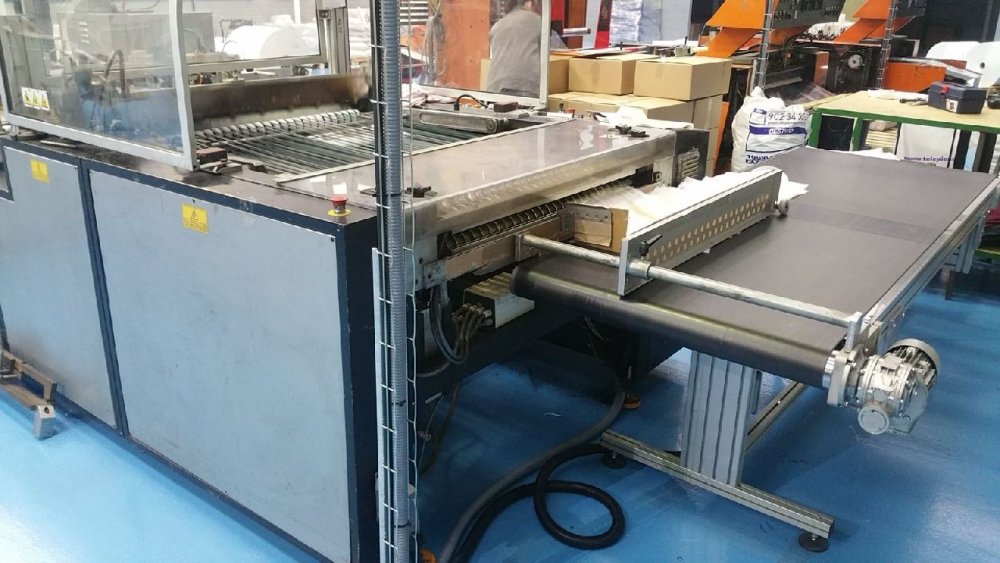

- Type of delivery
- Conveyor table
- Type of handle
- Multiple (patch and softloop)
- Type of sealing/bags
- Side weld
- Type of bags
- Soft loop handles
- Working width (mm)
- 850
- Number of lanes
- 1
- Bag length
- 250-800
- Bag width
- 250-800
- Cycle / min
- 100-120

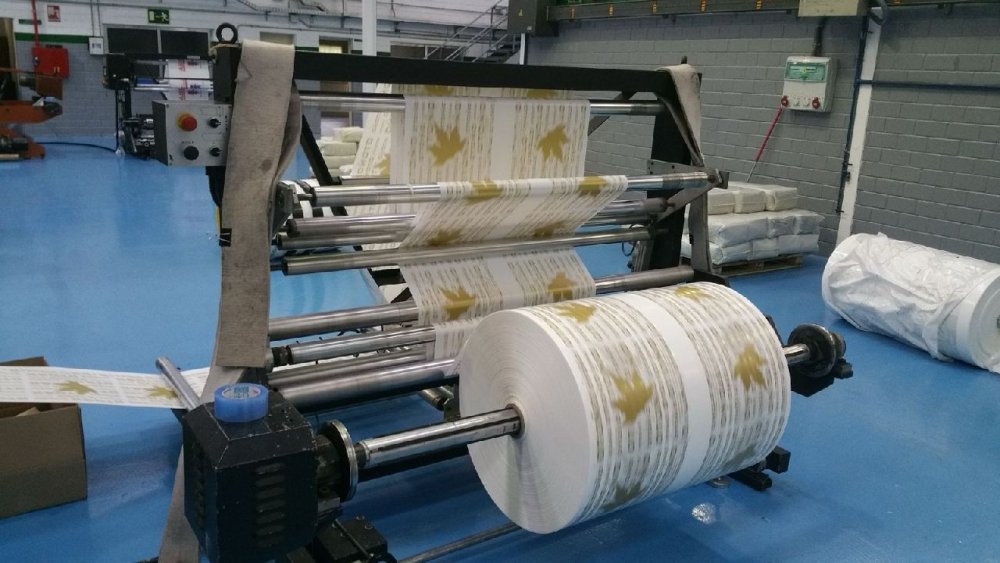

- Unwinder

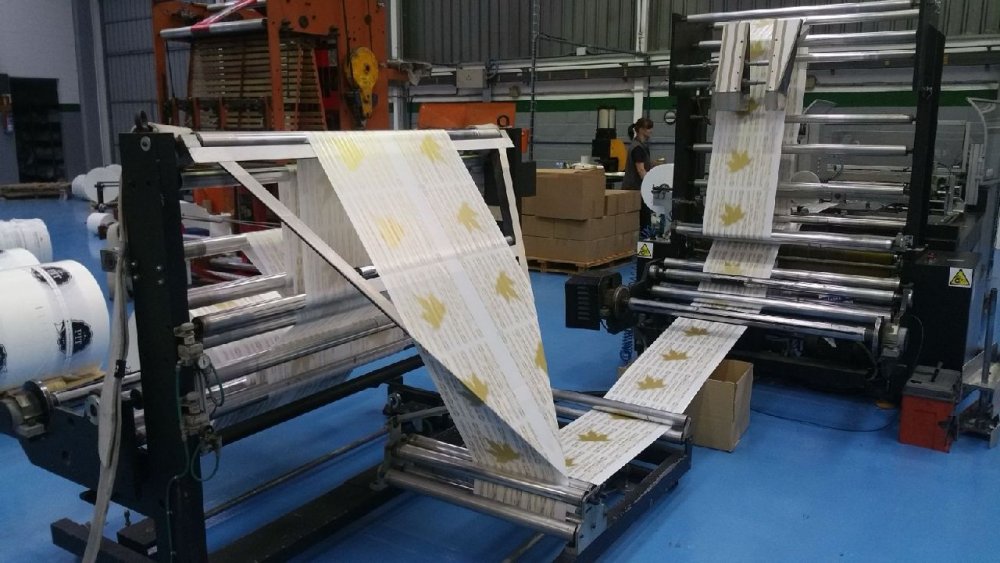

- Single shafted motor braked. Width 1600mm
- Note

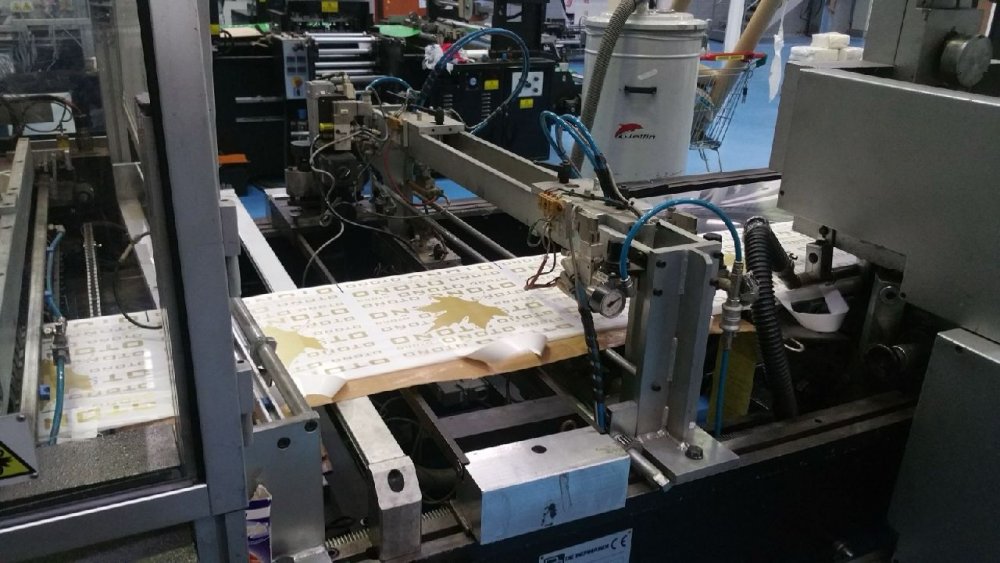

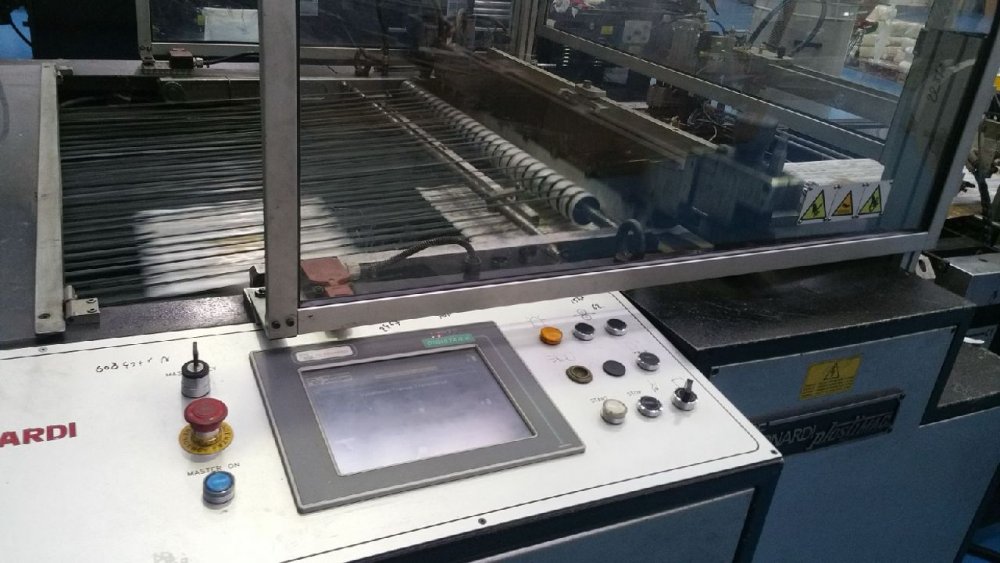

- attenzione 24-07-25 macchina smontata Flexo-loop bags w/wo bottom gusset Flexo-loop bags with reinforcement turn-up w/wo bottom gusset Die cut handle bags Die cut handle bags with reinforcement turn-up Material that can be processed:LDPE,HDPE, and recycled extracts Max welding width: Up to 850 mm Sealing width (bag length): 250-800mm Draw length (bag width): 250-800 mm Handle width: 30mm loop thickness:180-230 micron Driving system: PLC controlled Operator interface terminal Print registration control Servo motor driven input nip rollers 2 sealing bars, 1 for side and 1 for bottom seal
| Maschinencode | FI521 |
| Hersteller | DE BERNARDI |
| Modello | DB100N SH |
| Baujahr | 2007 |
| Type of delivery | Conveyor table |
| Type of handle | Multiple (patch and softloop) |
| Type of sealing/bags | Side weld |
| Type of bags | Soft loop handles |
| Working width (mm) | 850 |
| Number of lanes | 1 |
| Bag length | 250-800 |
| Bag width | 250-800 |
| Cycle / min | 100-120 |
| Unwinder | Single shafted motor braked. Width 1600mm |
| Note | attenzione 24-07-25 macchina smontata Flexo-loop bags w/wo bottom gusset Flexo-loop bags with reinforcement turn-up w/wo bottom gusset Die cut handle bags Die cut handle bags with reinforcement turn-up Material that can be processed:LDPE,HDPE, and recycled extracts Max welding width: Up to 850 mm Sealing width (bag length): 250-800mm Draw length (bag width): 250-800 mm Handle width: 30mm loop thickness:180-230 micron Driving system: PLC controlled Operator interface terminal Print registration control Servo motor driven input nip rollers 2 sealing bars, 1 for side and 1 for bottom seal |
SCAE DIMATIC ETH 351/160
-
Maschinencode: FI559
-
Baujahr: 2017
-
Working width (mm): 1410

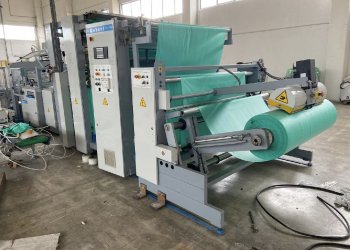

MOBERT VICTORY 110 DELTA 8
-
Maschinencode: FI542
-
Baujahr: 2013
-
Working width (mm): 1100
COMAT 2200
-
Maschinencode: FI511
-
Baujahr: 1980
-
Working width (mm): 2200

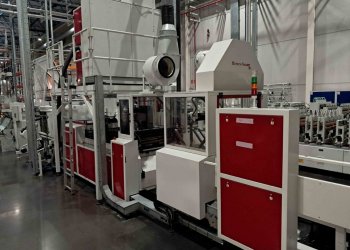

HUDSON SHARP 5750W 390-H
-
