- Maschinencode
- SS37
- Hersteller
- PIZZOLATO
- Modello
- SYNCHRO
- Baujahr
- 2008
- Width (mm)
- 1600
- Sheet length
- 350-1650
- Materials
- mapers and cardboards 50-450 g/m2
- Cycle / min
- 250m/min

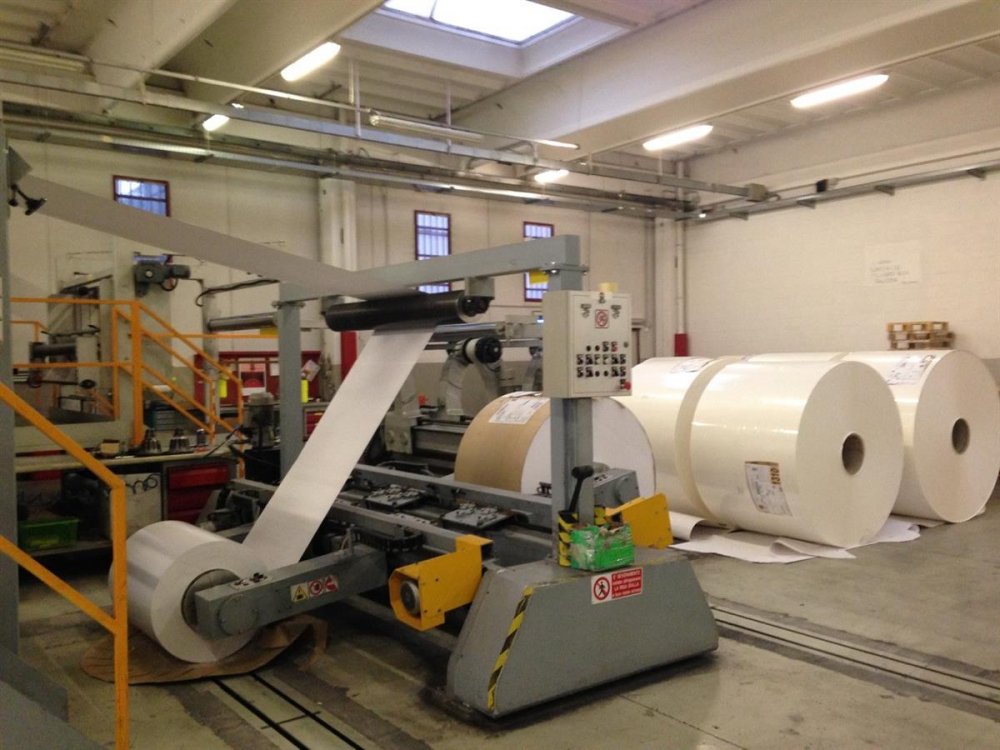

- Max diameter reel unwinder
- 1500
- Note
- Sheet width 350 -1500mm. Sheet lengths: from 350 to 1650mm. Transversal blade load :700 g/m2 Rotary knives: 3 Format precision: +/- 0,5mm ( +/- 0,05% ) -measured on the sheets coming in sequence from the same roll Angle accuracy: 0,5mm measured on a1000mm sheet length Height of the pile including the pallet: 400mm- 1500mm. Reel diam. 500 -1500mm. Reel width : 400-1500mm Core diam. From 76 - 300mm. Reel weight max 2 tons. With pneumatic air cooled brakes. Register control through photocell for pre printed reels Very good conditions It can be seen in production!
| Maschinencode | SS37 |
| Hersteller | PIZZOLATO |
| Modello | SYNCHRO |
| Baujahr | 2008 |
| Width (mm) | 1600 |
| Sheet length | 350-1650 |
| Materials | mapers and cardboards 50-450 g/m2 |
| Cycle / min | 250m/min |
| Max diameter reel unwinder | 1500 |
| Note | Sheet width 350 -1500mm. Sheet lengths: from 350 to 1650mm. Transversal blade load :700 g/m2 Rotary knives: 3 Format precision: +/- 0,5mm ( +/- 0,05% ) -measured on the sheets coming in sequence from the same roll Angle accuracy: 0,5mm measured on a1000mm sheet length Height of the pile including the pallet: 400mm- 1500mm. Reel diam. 500 -1500mm. Reel width : 400-1500mm Core diam. From 76 - 300mm. Reel weight max 2 tons. With pneumatic air cooled brakes. Register control through photocell for pre printed reels Very good conditions It can be seen in production! |
