GALILEO MEGA 2010 / B Metalliziermaschine // Metallizers // Converting machines // Gebrauchte Maschinen // Tecno Converting 2000 S.r.l.

Fotogalerie

Maschinencode: ME62
Hersteller: GALILEO
Modello: MEGA 2010 / B
Baujahr: 2005
Working width (mm): 2020
Materials: Polyester (PET) 6-60 µ Oriented Polypropylene (OPP) 12-100 µ PVC 20-80 µ Low-density polyethylene (LDPE) 25-100 µ High-density polyethylene (HDPE) 25-100 µ CPP 20-80 µ
Speed: 840 m/min
Max diameter reel unwinder: 1200
Max diameter reel rewinder: 1200
Evapouration Boots: Boats number: 23 Boats dimensions: 120x35x10 mm
Pumping down time: PUMPDOWN TIME to 5x10-4 mbar: less than 6,5 min. ; FINAL VACUUM Obtained after 6 hours pumping: 2.10-5 mbar

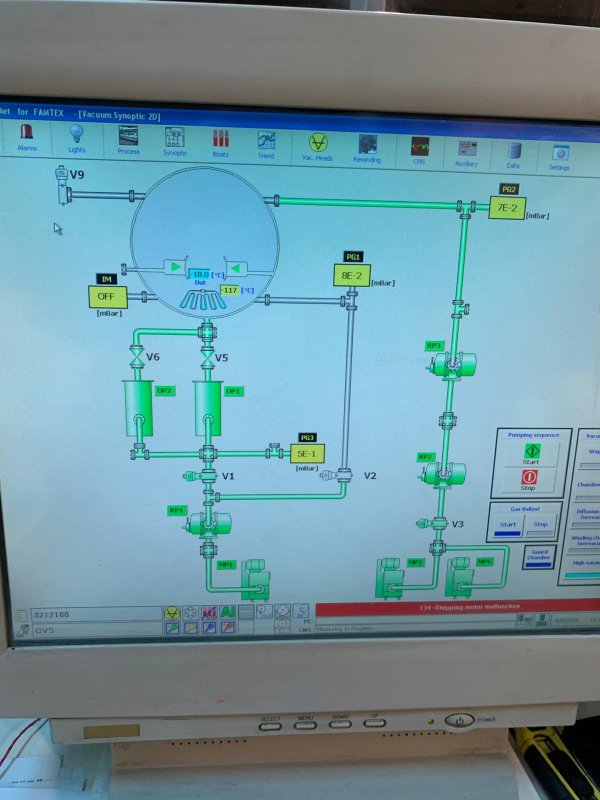

Pumping system: No. 2 Diffusion pumps - 50000 l/sec No. 1 Roots pump - 13000 m³/h No. 1 Roots pump - 2400 m³/h No. 1 Roots pump - 2400 m³/h No. 1 Cryogenic panel - 200.000 l/sec No. 2 Rotary piston pumps - 505 m³/h No. 1 Polycold 1100* Metallising Chamber No. 1 Rotary piston pump - 505 m³/h Winding chamber
Polycold: No. 1 Cryogenic panel - 200.000 l/sec No. 1 Polycold 1100*

Maschinencode	ME62
Hersteller	GALILEO
Modello	MEGA 2010 / B
Baujahr	2005
Working width (mm)	2020
Materials	Polyester (PET) 6-60 µ Oriented Polypropylene (OPP) 12-100 µ PVC 20-80 µ Low-density polyethylene (LDPE) 25-100 µ High-density polyethylene (HDPE) 25-100 µ CPP 20-80 µ
Speed	840 m/min
Max diameter reel unwinder	1200
Max diameter reel rewinder	1200
Evapouration Boots	Boats number: 23 Boats dimensions: 120x35x10 mm
Pumping down time	PUMPDOWN TIME to 5x10-4 mbar: less than 6,5 min. ; FINAL VACUUM Obtained after 6 hours pumping: 2.10-5 mbar
Pumping system	No. 2 Diffusion pumps - 50000 l/sec No. 1 Roots pump - 13000 m³/h No. 1 Roots pump - 2400 m³/h No. 1 Roots pump - 2400 m³/h No. 1 Cryogenic panel - 200.000 l/sec No. 2 Rotary piston pumps - 505 m³/h No. 1 Polycold 1100* Metallising Chamber No. 1 Rotary piston pump - 505 m³/h Winding chamber
Polycold	No. 1 Cryogenic panel - 200.000 l/sec No. 1 Polycold 1100*
