- Maschinencode
- LA489
- Hersteller
- Energy Science INC
- Modello
- EC 95/120/600
- Baujahr
- 2011
- Application
- Coating
- Type of lamination/coating
- OTHER APPLICATION
- Working width (mm)
- 1250
- Materials
- PET 12-50mic, PAPER- 10-100 GSM, PA FILM 30-150 MIC. Substrate thickness 12 mic- 150mic
- Speed
- 200 mpm
- First unwinder type
- SIngle
- Max diameter reel unwinder
- 800
- Rewinder type
- Single
- Max diameter reel rewinder
- 800
- Coating unit

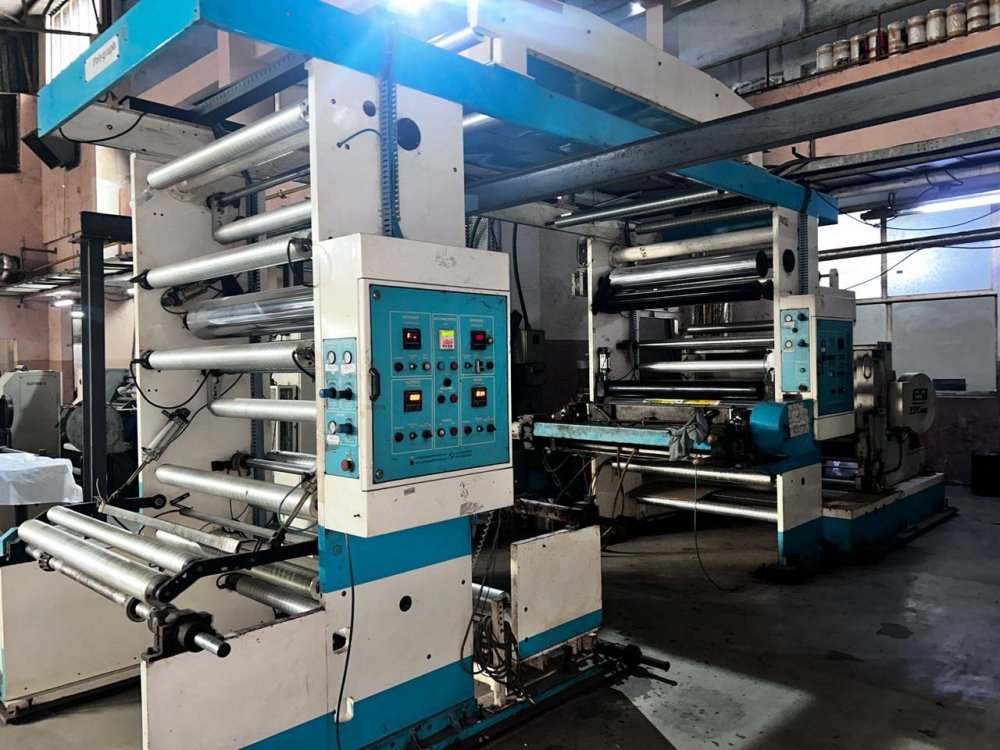

- Flexo print/coating, Anilox GSM coating - 3 GSM
- Second Coating unitr

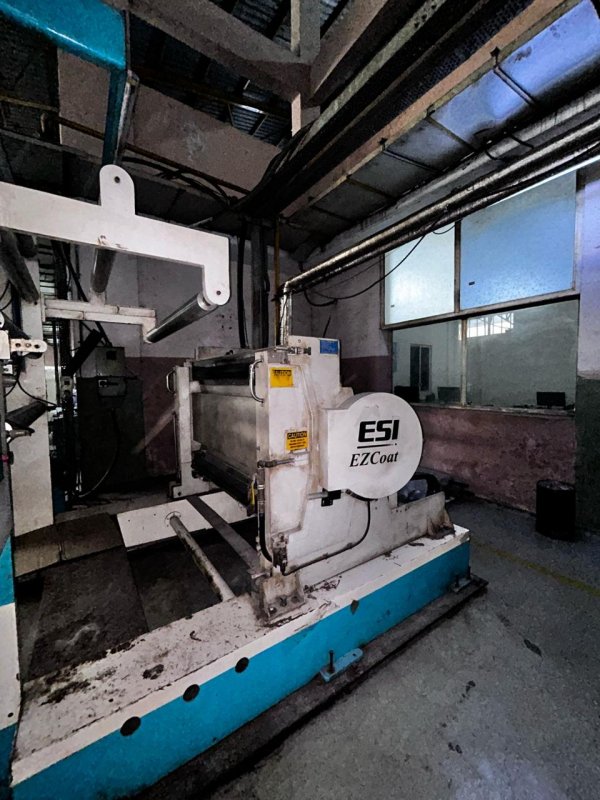

- ESI Electron beam curing machine EZ coat. Unitt for curing or crosslnking
- Note
- line for EB curing and cross linking
| Maschinencode | LA489 |
| Hersteller | Energy Science INC |
| Modello | EC 95/120/600 |
| Baujahr | 2011 |
| Application | Coating |
| Type of lamination/coating | OTHER APPLICATION |
| Working width (mm) | 1250 |
| Materials | PET 12-50mic, PAPER- 10-100 GSM, PA FILM 30-150 MIC. Substrate thickness 12 mic- 150mic |
| Speed | 200 mpm |
| First unwinder type | SIngle |
| Max diameter reel unwinder | 800 |
| Rewinder type | Single |
| Max diameter reel rewinder | 800 |
| Coating unit | Flexo print/coating, Anilox GSM coating - 3 GSM |
| Second Coating unitr | ESI Electron beam curing machine EZ coat. Unitt for curing or crosslnking |
| Note | line for EB curing and cross linking |
