- Maschinencode
- EC21
- Hersteller
- REIFENHAUSER
- Baujahr
- 1994
- Width (mm)
- 1200
- Coating/lamination units
- 1
- Coating/lamination unit 1 description

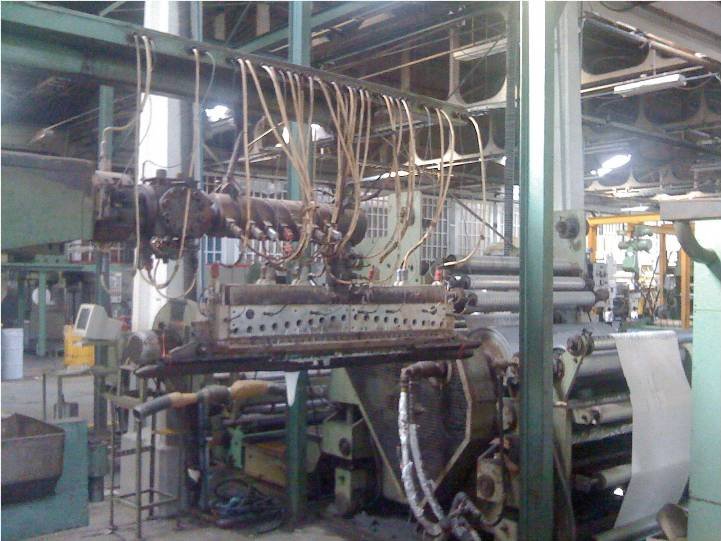

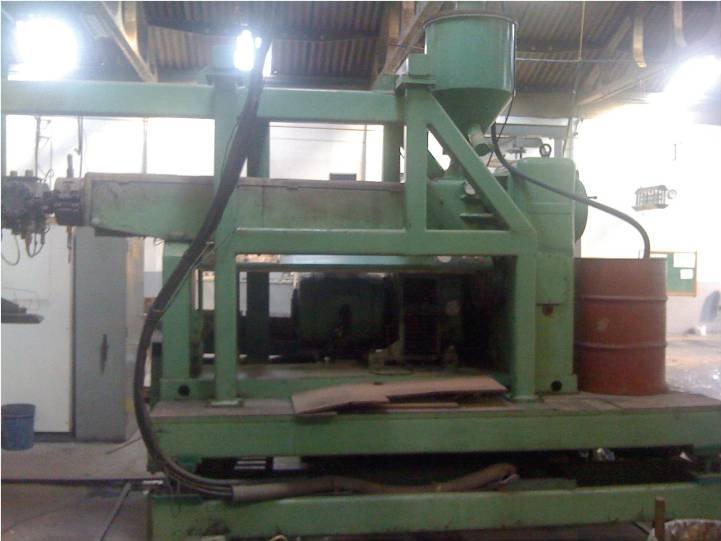

- extruder screw 90 mm extruder position: horizontal flat die Reifenhauser, 1200mm width 5 cooling units feeding unit: neumatic
- Primary unwinder description
- double shaft, reel diam, 800 mm
- Secondary unwinder description
- single shaft, reel diam. 500 mm
- Rewinder description
- double shaft , reel diam. 800 mm
- Speed
- Mechanical speed 150 m/min. Working speed: Paper 40 + Poli 20 = 100 m / min, Paper 100 + Poli 20 = 80 m / min, Pet + PE Coating + aluminium = 80 m / min
- Product structure / Materials
- Aluminium, PEL/ PEAD/ PEBD/ PET / PAPER
- Note
- Rotogravure printing group brand Profama for in continuous printing and possibility also to varnish. Machine dimensions: height 3,5 m - width 8 m - lenght 12 m.
| Maschinencode | EC21 |
| Hersteller | REIFENHAUSER |
| Baujahr | 1994 |
| Width (mm) | 1200 |
| Coating/lamination units | 1 |
| Coating/lamination unit 1 description | extruder screw 90 mm extruder position: horizontal flat die Reifenhauser, 1200mm width 5 cooling units feeding unit: neumatic |
| Primary unwinder description | double shaft, reel diam, 800 mm |
| Secondary unwinder description | single shaft, reel diam. 500 mm |
| Rewinder description | double shaft , reel diam. 800 mm |
| Speed | Mechanical speed 150 m/min. Working speed: Paper 40 + Poli 20 = 100 m / min, Paper 100 + Poli 20 = 80 m / min, Pet + PE Coating + aluminium = 80 m / min |
| Product structure / Materials | Aluminium, PEL/ PEAD/ PEBD/ PET / PAPER |
| Note | Rotogravure printing group brand Profama for in continuous printing and possibility also to varnish. Machine dimensions: height 3,5 m - width 8 m - lenght 12 m. |
