- Maschinencode
- BO107
- Hersteller
- BRUCKNER
- Baujahr
- 2005
- Number of layers
- 3
- Film structure
- ABC
- Output
- speed 425 m/min. 4000kg/h ant 25my ; 3800 kg/h at 20 my; 2854 kg/h at 15 my, 2285 kg/h at 12my
- Width (mm)
- 8200

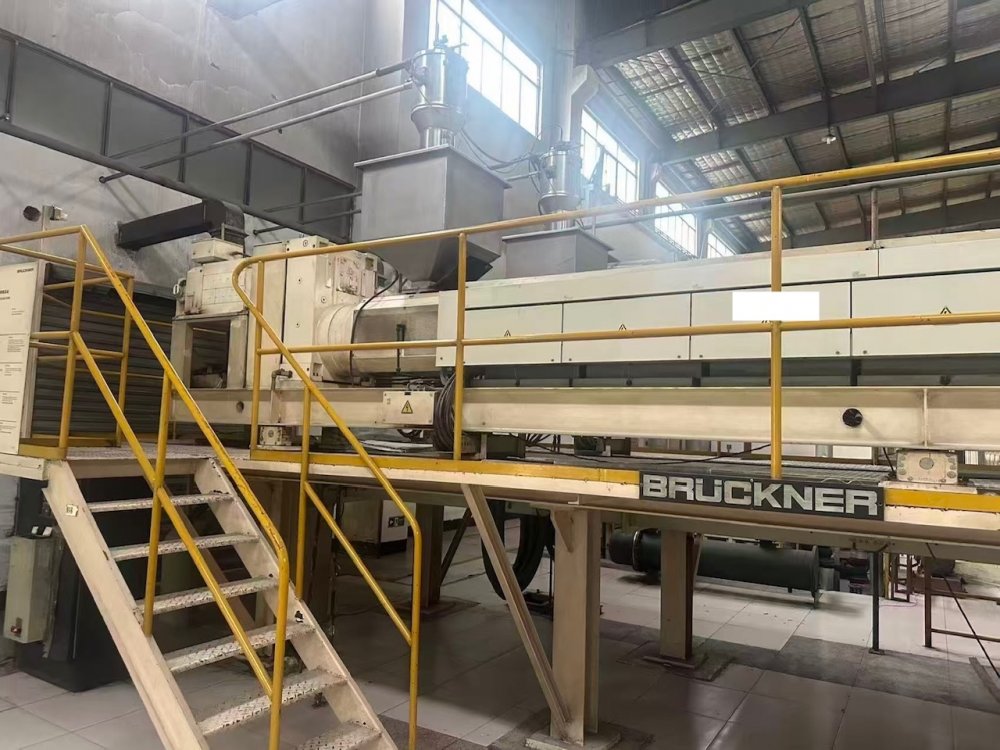

- Extruder 1 Description
- A

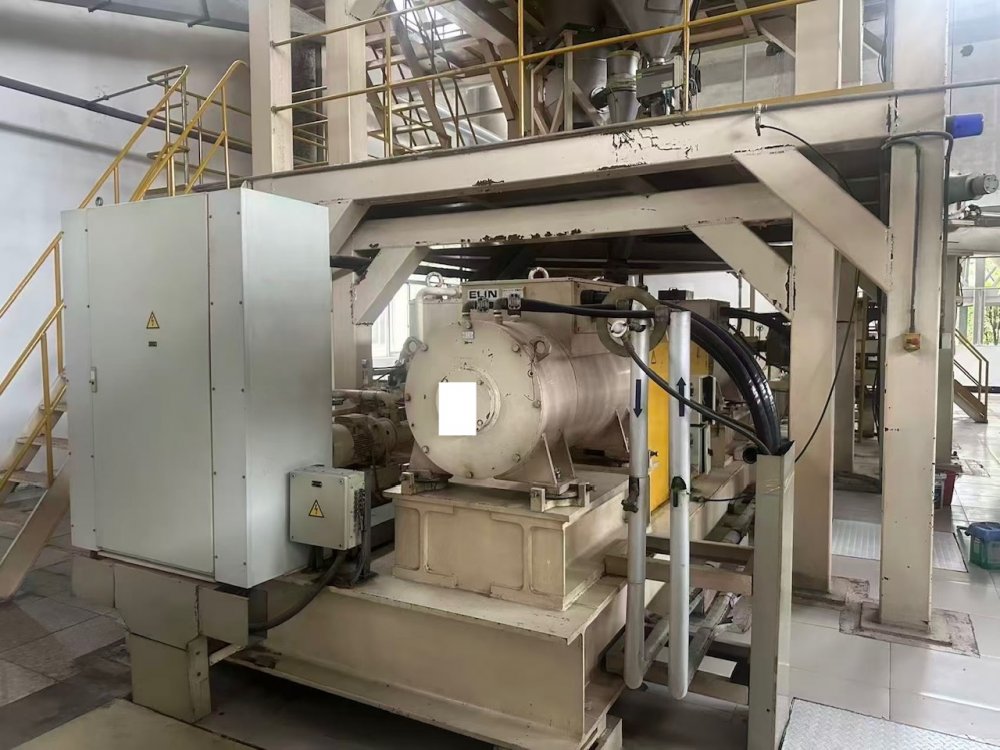

- Extruder 2 Description
- B, twin screw
- Extruder 3 Description
- C
- Die width
- Automatic die, flex lip and thermal baths automatic adjustment

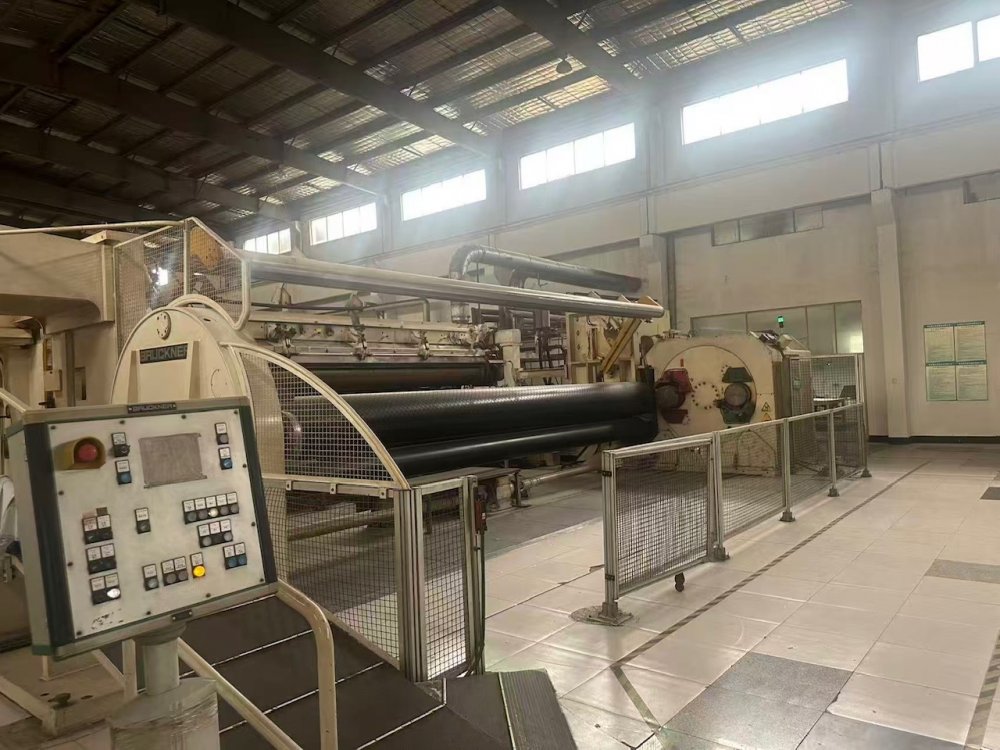

- Chill roll unit
- Chill roller in water bath, diameter 1350mm
- MDO description
- Stretching ratios: 1:1 - 1:7

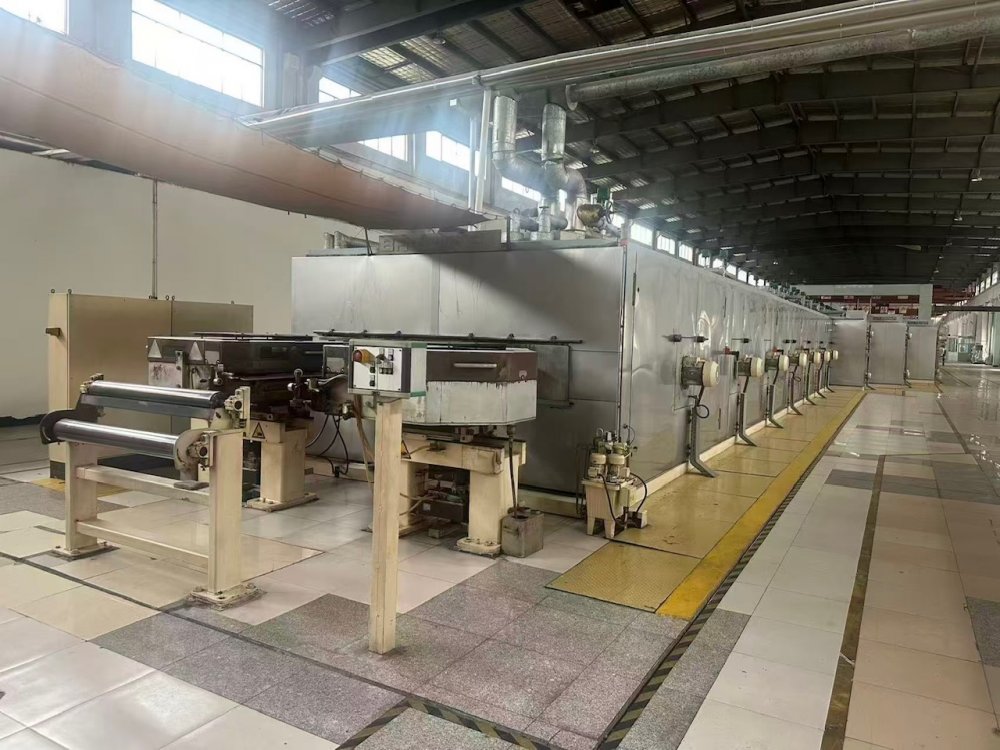

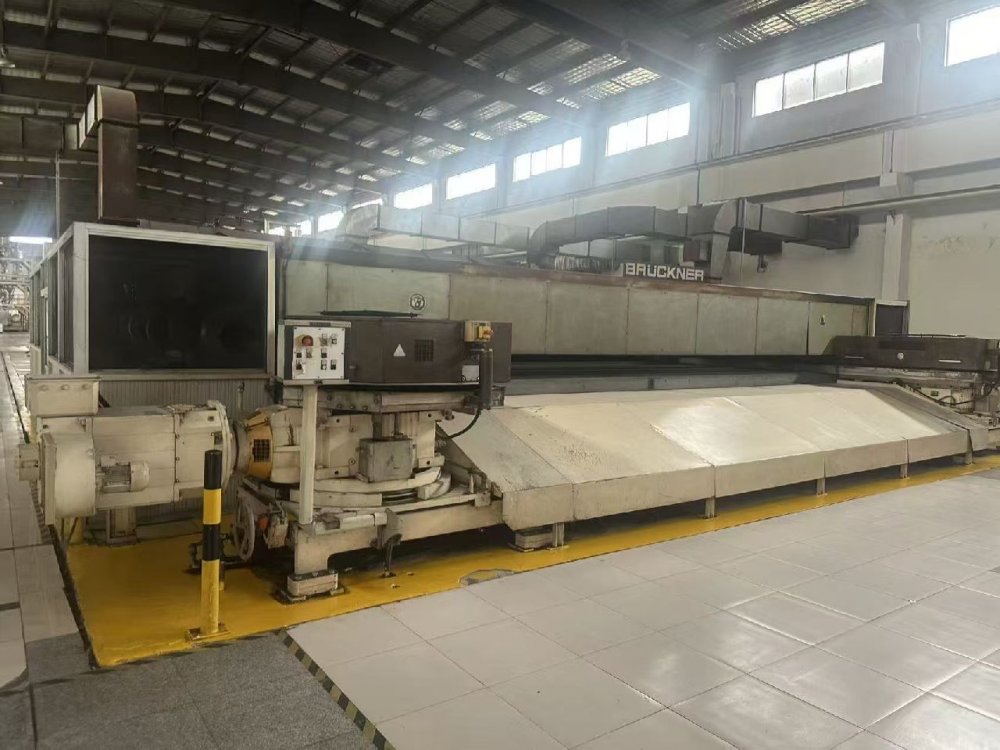

- TDO description
- Stretching ratios 1:8 - 1:10

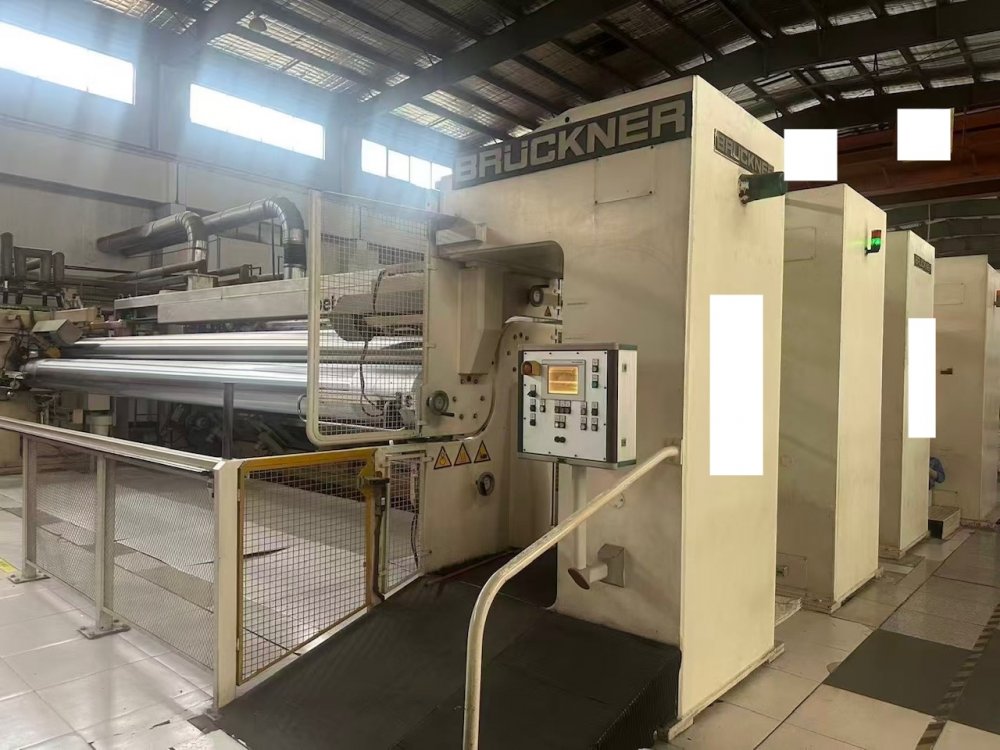

- Rewinder description
- Turret winder

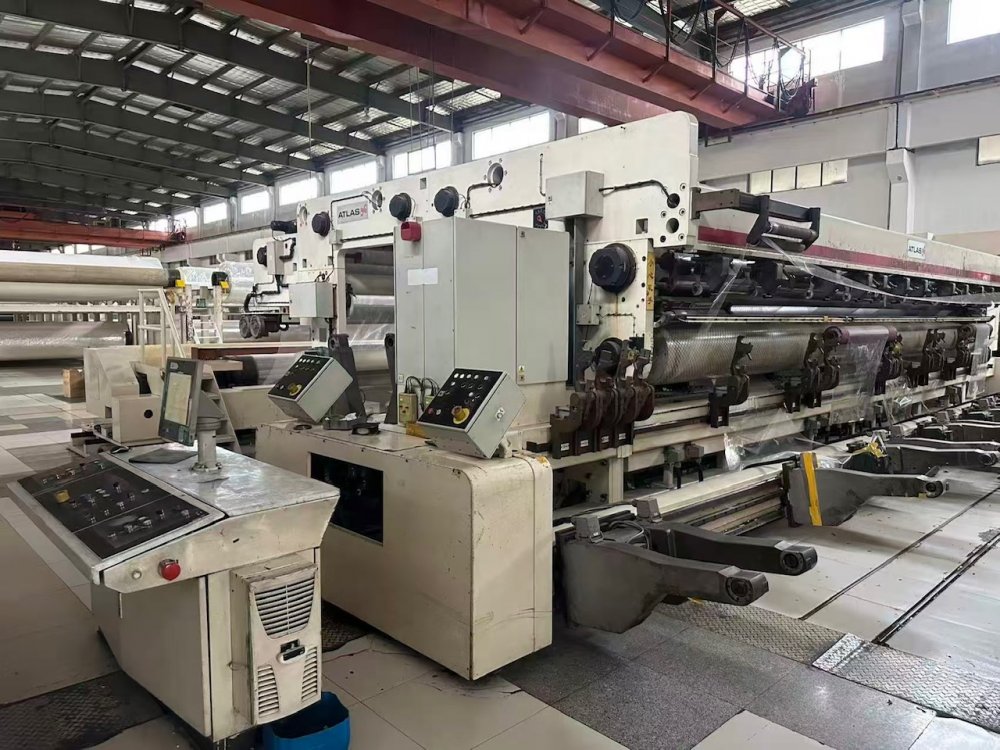

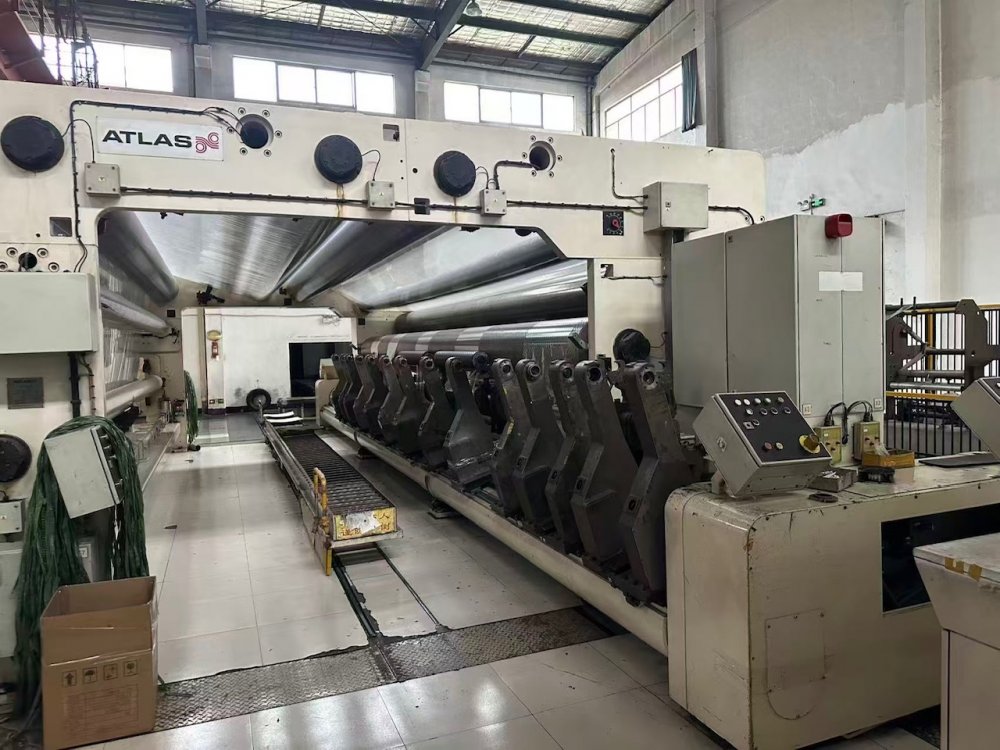

- Slitter
- Atlas, center driven winder with independent arms. 12 independent winding stations
| Maschinencode | BO107 |
| Hersteller | BRUCKNER |
| Baujahr | 2005 |
| Number of layers | 3 |
| Film structure | ABC |
| Output | speed 425 m/min. 4000kg/h ant 25my ; 3800 kg/h at 20 my; 2854 kg/h at 15 my, 2285 kg/h at 12my |
| Width (mm) | 8200 |
| Extruder 1 Description | A |
| Extruder 2 Description | B, twin screw |
| Extruder 3 Description | C |
| Die width | Automatic die, flex lip and thermal baths automatic adjustment |
| Chill roll unit | Chill roller in water bath, diameter 1350mm |
| MDO description | Stretching ratios: 1:1 - 1:7 |
| TDO description | Stretching ratios 1:8 - 1:10 |
| Rewinder description | Turret winder |
| Slitter | Atlas, center driven winder with independent arms. 12 independent winding stations |
