- Maschinencode
- CA261
- Hersteller
- COLINES
- Baujahr
- 2017
- Number of layers
- 5
- Film structure
- ACBCD
- Material
- Stretch film LLDPE
- Film width (mm)
- 1500
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 55/34 mm
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 55/34 mm
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 120mm
- Description 3
- Suction device for trimmed edge with Bigmouth with milling and transport complete with re-feeding system placed in the extruder 120 mm
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 55/34 mm
- Thickness controll system
- Electronic System X ray
- Rewinder description

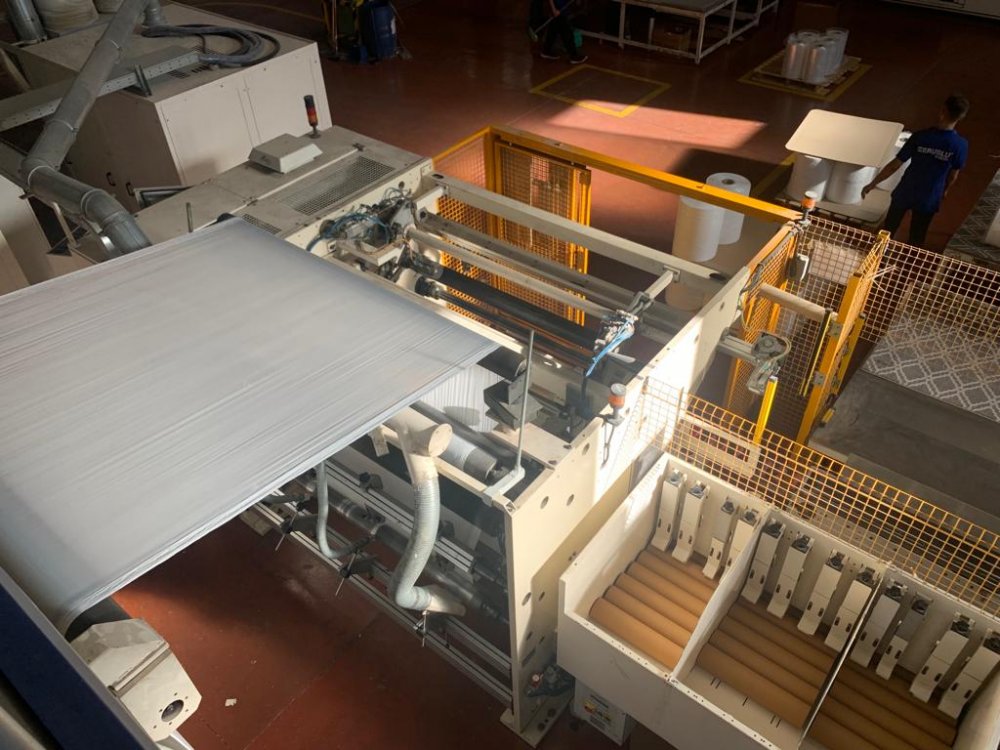

- Automatic rewinder ALLSPEEDY III, 3 shafts turret winding unit
- Note
- Thickness 10-35 my 5 layers coextrusion cast film line for the production of stretch film for hand, machine and jumbo rolls Rolls format 3x500 mm, 3x 450 mm, 2x750 mm,6x250 mm, 5x300 mm Flat extrusion die Cloeren 2050 mm
| Maschinencode | CA261 |
| Hersteller | COLINES |
| Baujahr | 2017 |
| Number of layers | 5 |
| Film structure | ACBCD |
| Material | Stretch film LLDPE |
| Film width (mm) | 1500 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 55/34 mm |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 55/34 mm |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 120mm |
| Description 3 | Suction device for trimmed edge with Bigmouth with milling and transport complete with re-feeding system placed in the extruder 120 mm |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 55/34 mm |
| Thickness controll system | Electronic System X ray |
| Rewinder description | Automatic rewinder ALLSPEEDY III, 3 shafts turret winding unit |
| Note | Thickness 10-35 my 5 layers coextrusion cast film line for the production of stretch film for hand, machine and jumbo rolls Rolls format 3x500 mm, 3x 450 mm, 2x750 mm,6x250 mm, 5x300 mm Flat extrusion die Cloeren 2050 mm |
